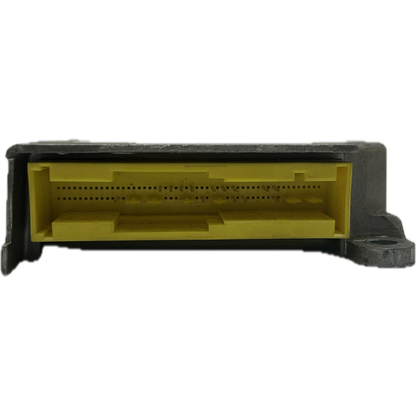

What is a Volkswagen Multivan T4 airbag control unit?
The Volkswagen Multivan T4 airbag control unit is your vehicle's central safety unit, immediately deploying occupant restraint systems such as airbags and belt tensioners in the event of a collision. It continuously monitors sensors, stores important crash data, and diagnoses system errors to ensure passenger safety and reliable operation.
This module, often installed centrally behind the center console, receives signals from the crash sensors.
When an accident is detected, it immediately generates firing pulses for the airbags and belt tensioners to protect the occupants.
Why is the Volkswagen Multivan T4 airbag control unit defective?
A Volkswagen Multivan T4 airbag control unit typically fails due to internal memory errors, incorrect coding, stored crash data after an impact, or age-related wear and tear. This causes the airbag warning light to illuminate and the system to suspend safety-relevant functions, making a professional Volkswagen Multivan T4 airbag control unit repair essential.
The most common causes are internal software or EEPROM errors that affect the functionality of the system.
After an accident, crash data often remains stored in the control unit, requiring reprogramming or repair and preventing further use without deletion.
Incorrect coding or the use of an incorrect label file after a replacement can also cause the control unit to report a defect.
Common error codes for Volkswagen Multivan T4 airbag control unit repair
When repairing the Volkswagen Multivan T4 airbag control unit, certain error codes directly indicate problems with the control unit itself. These range from internal memory or software errors to communication problems or blocked crash data, which require a precise diagnosis for successful resolution.
- B1000: Control unit communication error – The control unit cannot communicate correctly with other systems.
- B1001: Internal Memory Error – A defect in the internal memory of the airbag control unit was detected.
- B1002: Software error – There are problems with the internal control unit software.
- B1003: EEPROM Error – The control unit’s non-volatile memory (EEPROM) is corrupted.
- B1004: Control unit power supply error – The electrical supply to the module is faulty or interrupted.
- B1010: Internal control unit self-diagnosis failed – The control unit could not successfully complete its internal self-tests.
- B1015: Internal watchdog error (reset by control unit) – A monitoring mechanism in the control unit has triggered a reset.
- B1020: Internal communication error within the control unit – problems with data transmission within the module.
- B1050: Incorrect coding or label file in the control unit – The software configuration of the control unit is incorrect or incomplete.
- B1060: Memory error, e.g. incorrect crash data – Invalid or non-erasable crash data is stored in the control unit.
- B1070: Crash data present, programming or memory error – Crash data was stored after an accident and is blocking the system.
- B1080: Communication error with airbag sensors (control module side only, sensor itself excluded) – The control module is having problems receiving data from sensors.
- B1090: Error during data transfer / cloning of the control unit – Errors occurred during cloning or programming of the control unit.
- B1100: No communication possible with the control unit – The diagnostic tool cannot establish a connection to the airbag control unit.
- B65535: Control unit faulty (general error code for defective control unit) – A general defect in the airbag control unit is indicated.
What part numbers are available for the Volkswagen Multivan T4 airbag control unit repair?
For Volkswagen Multivan T4 airbag control unit repairs, specific OEM part numbers are relevant, guaranteeing precise fit and function. These include various variants of the 6N0 909 603 and 1J0 909 603 series, which were installed in the Multivan T4 from 1990 to 2003.
These numbers are crucial for selecting the right spare part or the correct Volkswagen Multivan T4 airbag control unit repair.
The variants cover different equipment, such as vehicles with only one driver airbag or with driver and passenger airbags.
- 6N0 909 603: A widely used OEM number for the Volkswagen Multivan T4, suitable for various model years.
- 6N0 909 603 E: This variant is functionally identical to the base number and was also used in the T4.
- 6N0 909 603 AR: Another original part variant that can be found in VW T4 / Caravelle models.
- 1J0 909 603: A common OEM number for repair offers on the VW T4 Type 7D (1990–2003).
- 1J0 909 603 AH: This specific number has been confirmed by VW and is often relevant for T4 models from 1999 with driver airbag.
- 1J0 909 603 BL: Similar to the AH variant, this number is also used for T4 models from 1999, often only with driver airbag.
Correct identification of the part number is essential for a successful Volkswagen Multivan T4 airbag control unit repair to ensure compatibility and safety.
