What is a Volkswagen California T5 airbag control unit?

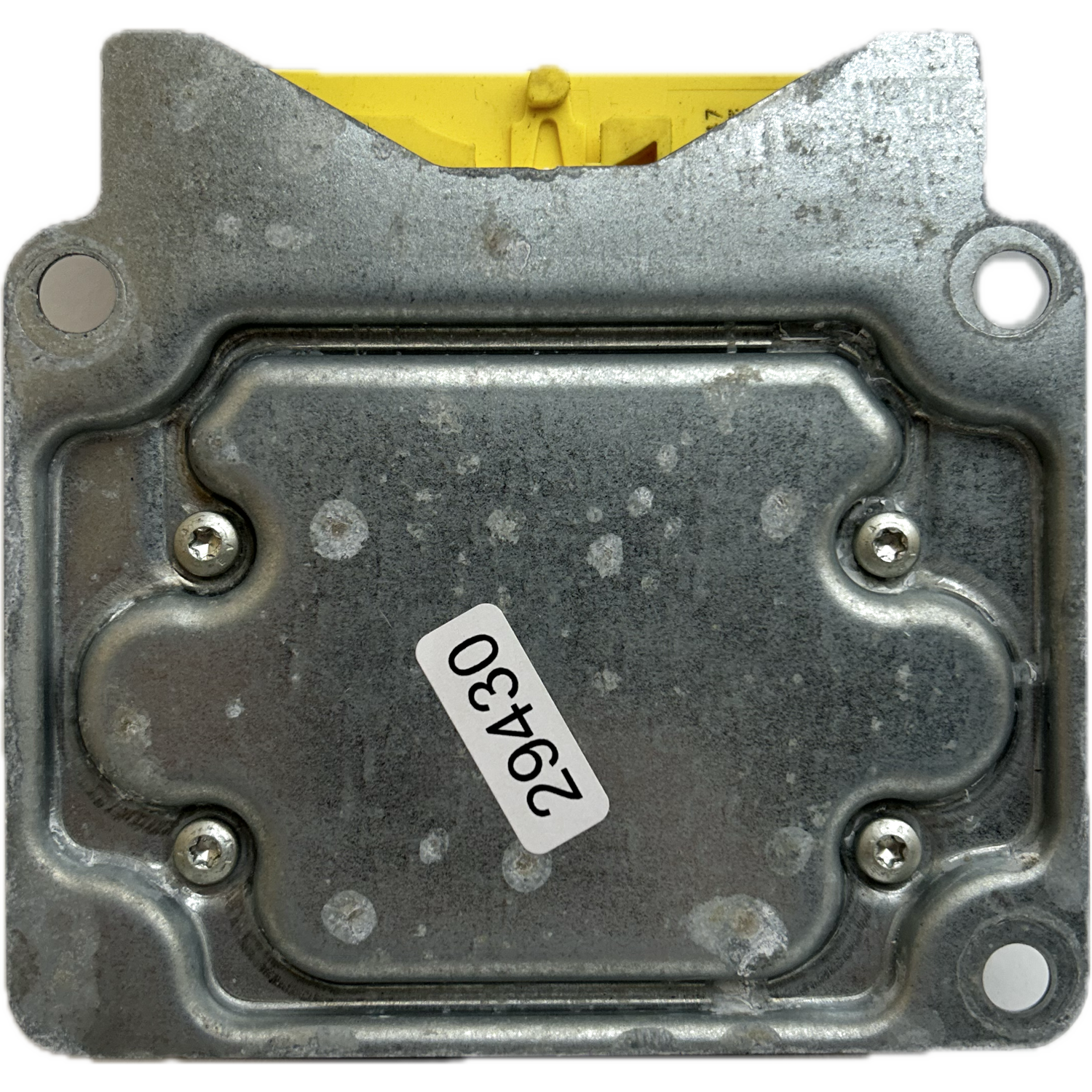

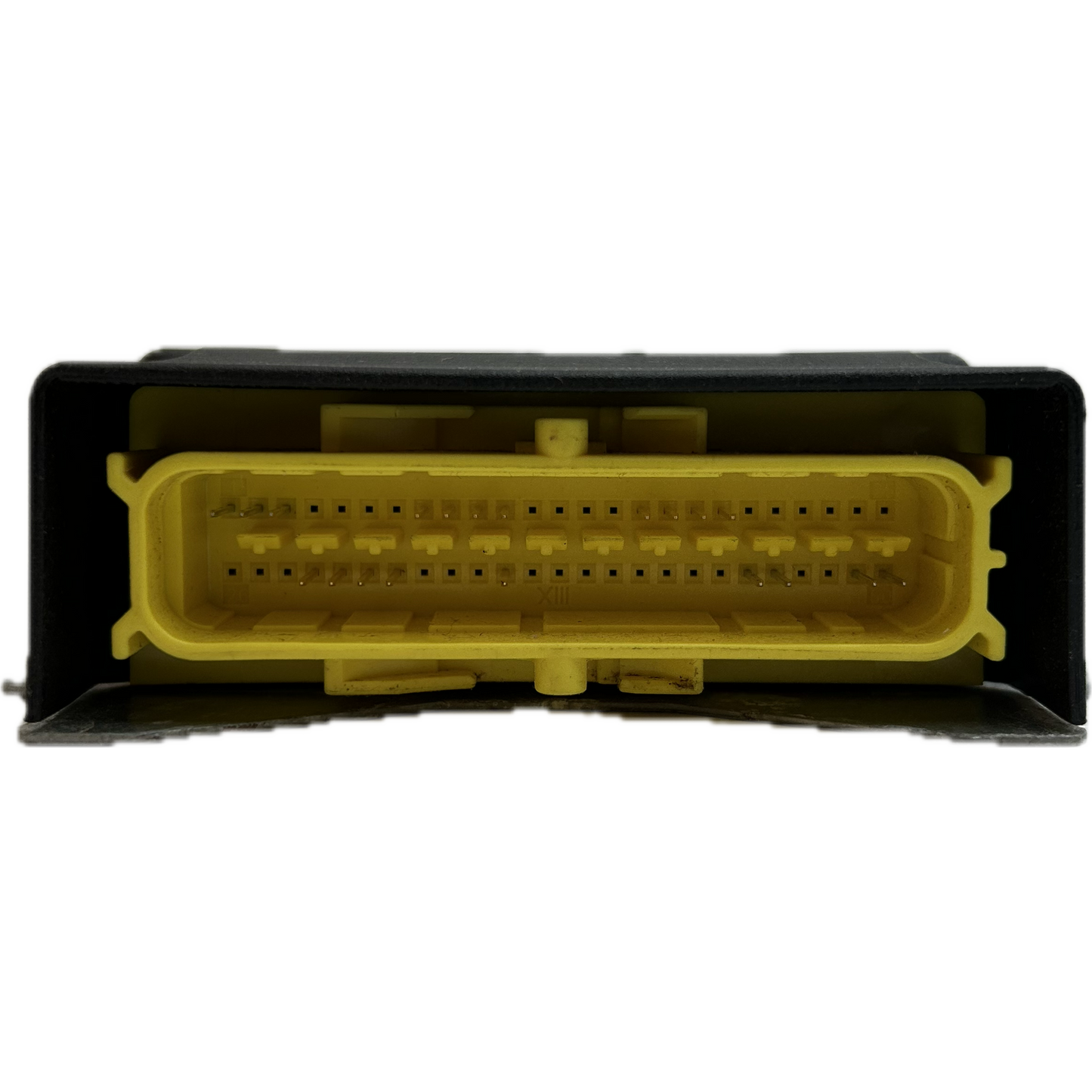

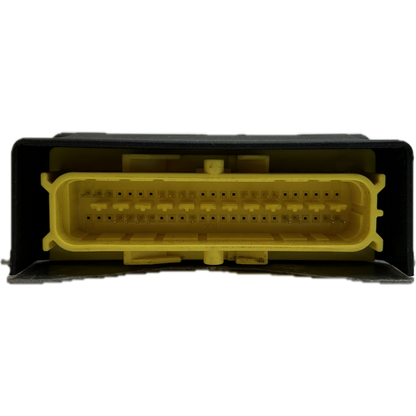

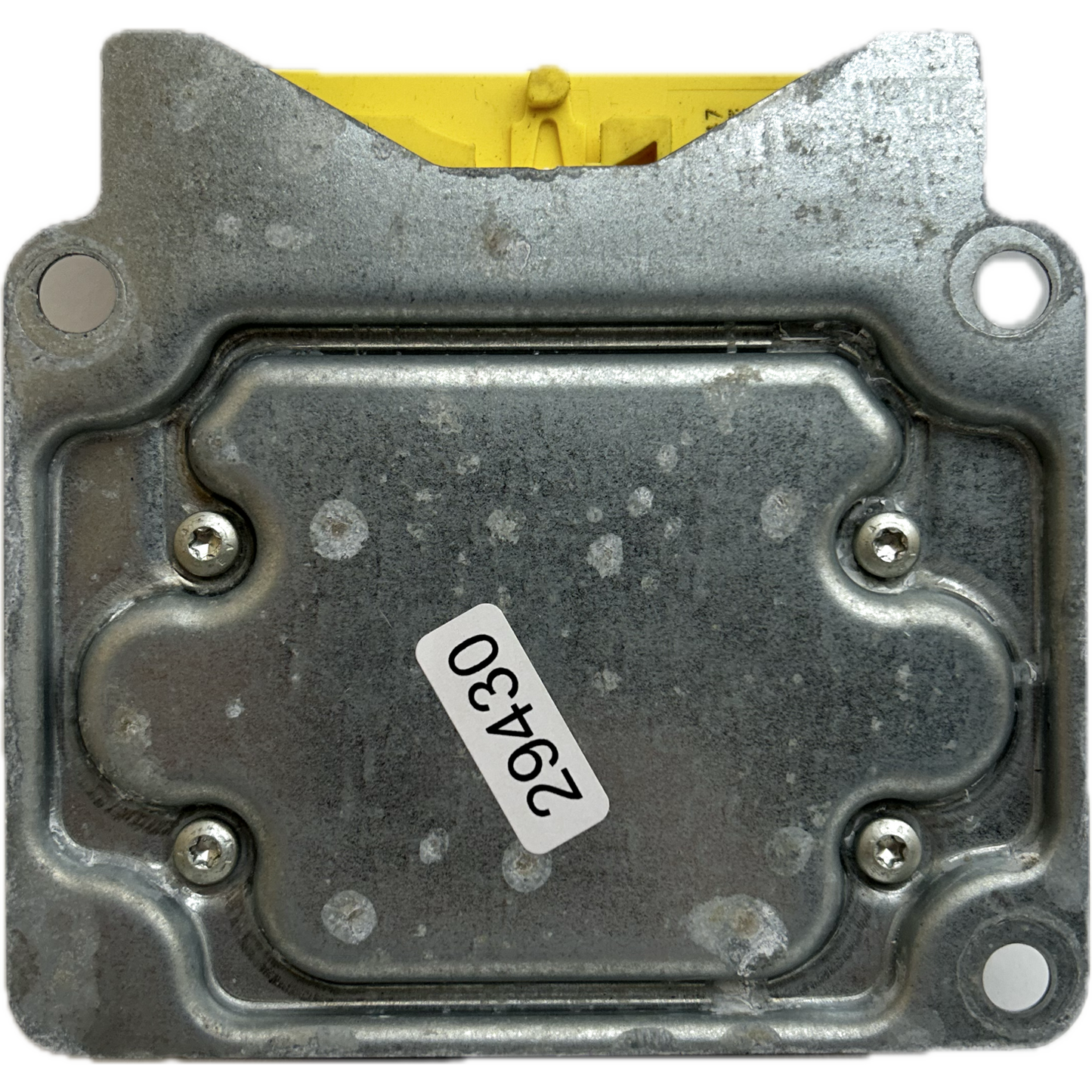

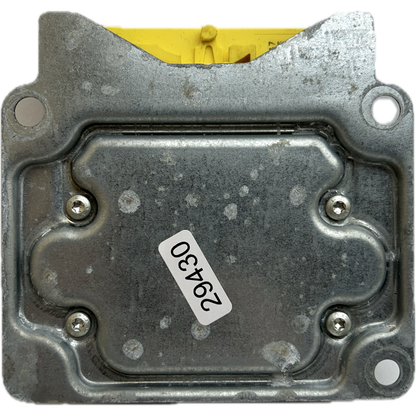

The Volkswagen California T5 airbag control unit is the central safety unit that activates all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It monitors sensors, stores relevant crash data, and is essential to the vehicle's safety, often the starting point for a necessary Volkswagen California T5 airbag control unit repair.
This control unit is responsible for the continuous monitoring of all airbag and seat belt pretensioner sensors in the vehicle.
It evaluates crash data in real time and, if necessary, triggers the appropriate protection systems to protect the occupants.
Why is the Volkswagen California T5 airbag control unit defective?
A defective Volkswagen California T5 airbag control unit often results from internal errors, stored crash data after an accident, or communication problems that paralyze the system. These defects require specialized diagnostics and a professional Volkswagen California T5 airbag control unit repair to restore the safety system to full functionality.
After an accident, the control unit stores immutable crash data that prevents the system from restarting until it is deleted by specialized services.
Internal memory errors (code B1001) or self-test errors (code B1002) indicate a defect in the control unit itself, which requires targeted repair.
A communication error (code B1000) or the general message "Control unit defective" may indicate damaged internal circuits or a broken connection.
Common error codes for Volkswagen California T5 airbag control unit repair
When diagnosing a Volkswagen California T5 airbag control unit repair, specific error codes will appear that directly indicate problems with the control unit itself. These codes, such as communication errors or internal memory errors, are crucial for identifying the exact cause of the malfunction and performing the repair correctly.
- B1000 → Control unit communication error → Signal interruption or internal defect in the airbag ECU.
- 00588 → Driver side airbag squib resistance too high or too low → May indicate a control unit defect, wiring problem or a faulty slip ring.
- 9447424 (B1028 00) → Front crash data saved → The airbag control unit has permanently stored the data of a frontal impact.
- 9466352 (B1071 F0) → Crash data belt tensioner saved → The control unit has registered and saved the activation of the belt tensioner in the event of an accident.
- B1001 → Control Unit Internal Memory Error → A malfunction or corruption in the internal memory of the airbag control unit was detected.
- B1002 → Control unit internal self-test error → The airbag control unit detected a fault during its routine self-diagnosis.
- No communication possible → Control unit does not respond → The diagnostic tool cannot establish a connection to the airbag control unit, often due to a complete failure.
- Control unit defective → Airbag control unit not working properly → A general and comprehensive malfunction of the airbag control unit is indicated.
What part numbers are available for the Volkswagen California T5 airbag control unit repair?
For a successful Volkswagen California T5 airbag control unit repair, it is essential to know the exact OEM part number of the installed control unit, as compatibility and interchangeability depend on this number. Genuine Volkswagen part numbers ensure correct function and integration into the vehicle system.

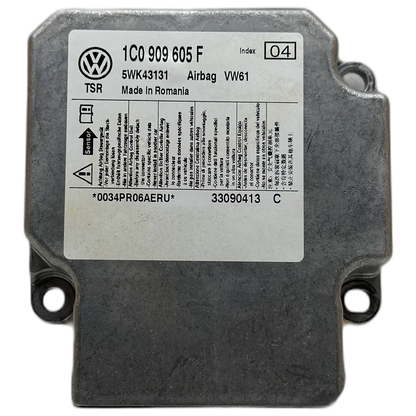

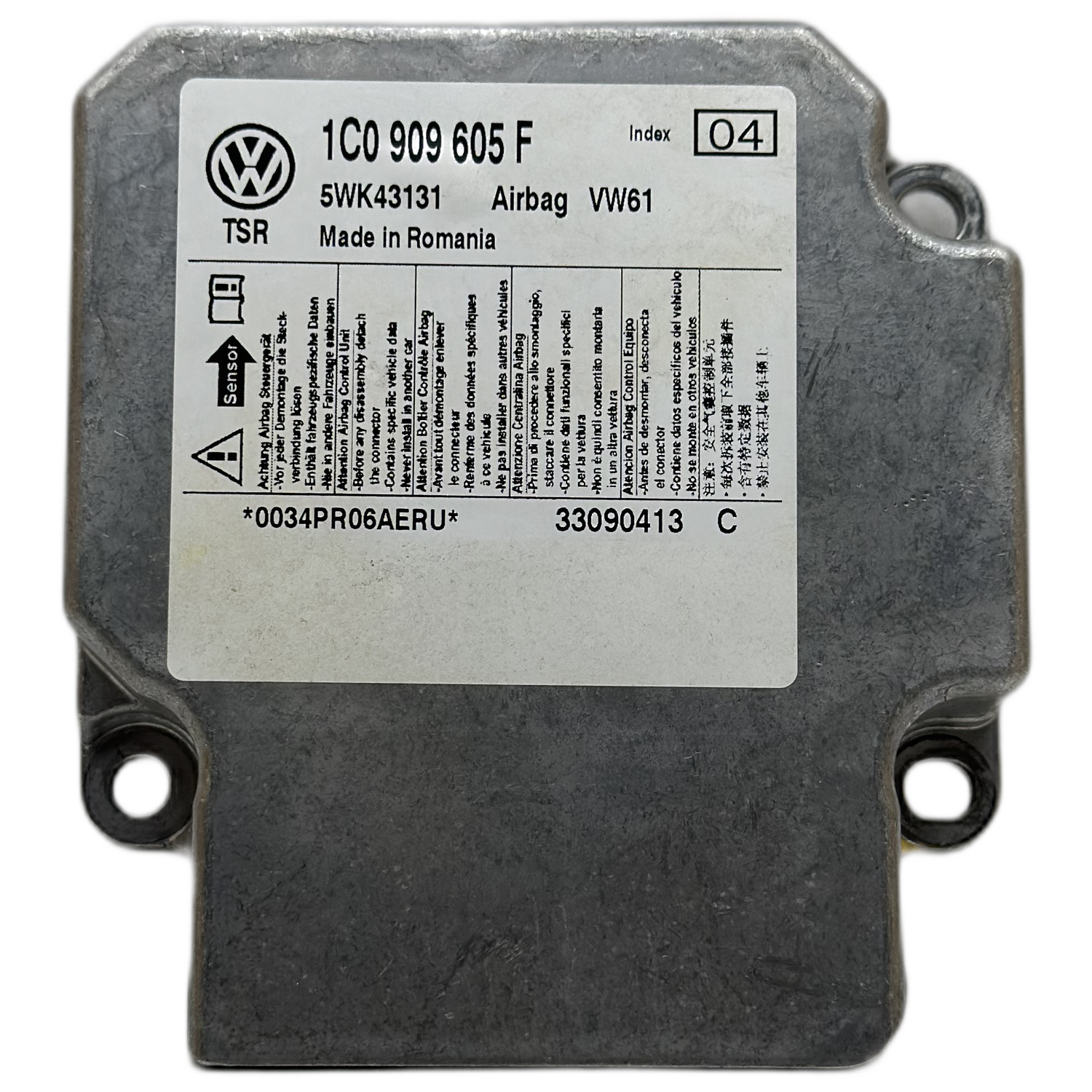

The verified original OEM part numbers for the airbag control unit in the Volkswagen California T5 are 1C0909605A, 7E0959655B and 6N0909603.
These part numbers are direct from Volkswagen and were designed and used in various T5 models, including the California.
These are purely control units, not sensors or other airbag modules, which ensures precise identification for a Volkswagen California T5 airbag control unit repair.
