What is a Fiat Stilo 192 airbag control unit?
The Fiat Stilo 192 airbag control unit is the central safety unit. It monitors all sensors and precisely triggers airbags and seatbelt pretensioners in the event of an accident. It is crucial for your safety, which is why a prompt Fiat Stilo 192 airbag control unit repair is essential in the event of a defect.
This module, often referred to as the airbag ECU, forms the heart of your Fiat Stilo's (192 series) passive safety system. It continuously receives data from crash sensors and seat occupancy sensors throughout the vehicle.
Based on this information, the control unit calculates the optimal deployment strategy for the occupant restraint systems in milliseconds to ensure maximum safety. A malfunction can pose serious hazards and should be remedied immediately.
Why is the Fiat Stilo 192 airbag control unit defective?
A Fiat Stilo 192 airbag control unit is often registered as defective after an accident because it stores crash data and then locks up. Electrical problems such as short circuits, low voltage, or moisture can also lead to failures and necessitate repair.
After an airbag is deployed, the control unit stores indelible crash data. This causes it to detect itself as "deployed" and be locked from further operation, requiring replacement or a specialized Fiat Stilo 192 airbag control unit repair.
Electrical defects are also often the cause of failure. These include short circuits in the wiring harness, problems with the vehicle battery that lead to low voltage, or water damage that can cause long-term damage to the sensitive electronics in the control unit.
A defective airbag control unit is often indicated by a permanently illuminated airbag warning light in the dashboard. Dirt or corrosion on the connectors under the seats can also cause communication errors.
Common error codes for Fiat Stilo 192 airbag control unit repair
Common error codes for the Fiat Stilo 192 airbag control unit indicate internal ECU errors, communication problems, or memory corruption. These B-codes can only be read with specialized diagnostic equipment and require detailed analysis before a Fiat Stilo 192 airbag control unit repair can be performed.
- B1000 → Control unit communication error → There is a disruption in data transmission between the airbag control unit and other vehicle systems.
- B1001 → Internal control unit error → A serious error within the electronics of the airbag control unit itself was detected.
- B1002 → EEPROM data error control unit → Problems with the integrity of the stored calibration or crash data in the non-volatile memory of the control unit.
- B1003 → Self-test error → The airbag control module failed a required internal self-test, indicating a malfunction.
- B1030 → Control Unit Internal Logic Error → A problem in the internal processing logic of the airbag control unit that affects its operation.
- B1200 → Bus communication error in the control unit → Faults on the internal communication bus of the airbag control unit were diagnosed.
- B1210 → Flash memory error → Defects in the flash memory, where the operating software and important configuration data of the control unit are stored.
- B1234 → Watchdog error control unit → An error in the internal monitoring system that is intended to ensure the proper functioning of the control unit has been detected.
These codes are specific to the airbag control unit and require precise diagnosis to determine the exact cause of the failure and perform a successful repair. Error codes related to sensors, seat belt pretensioners, or seat occupancy are not included here.

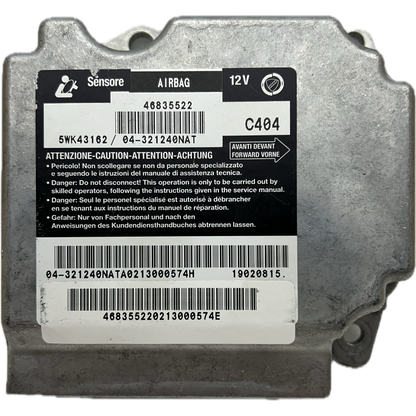

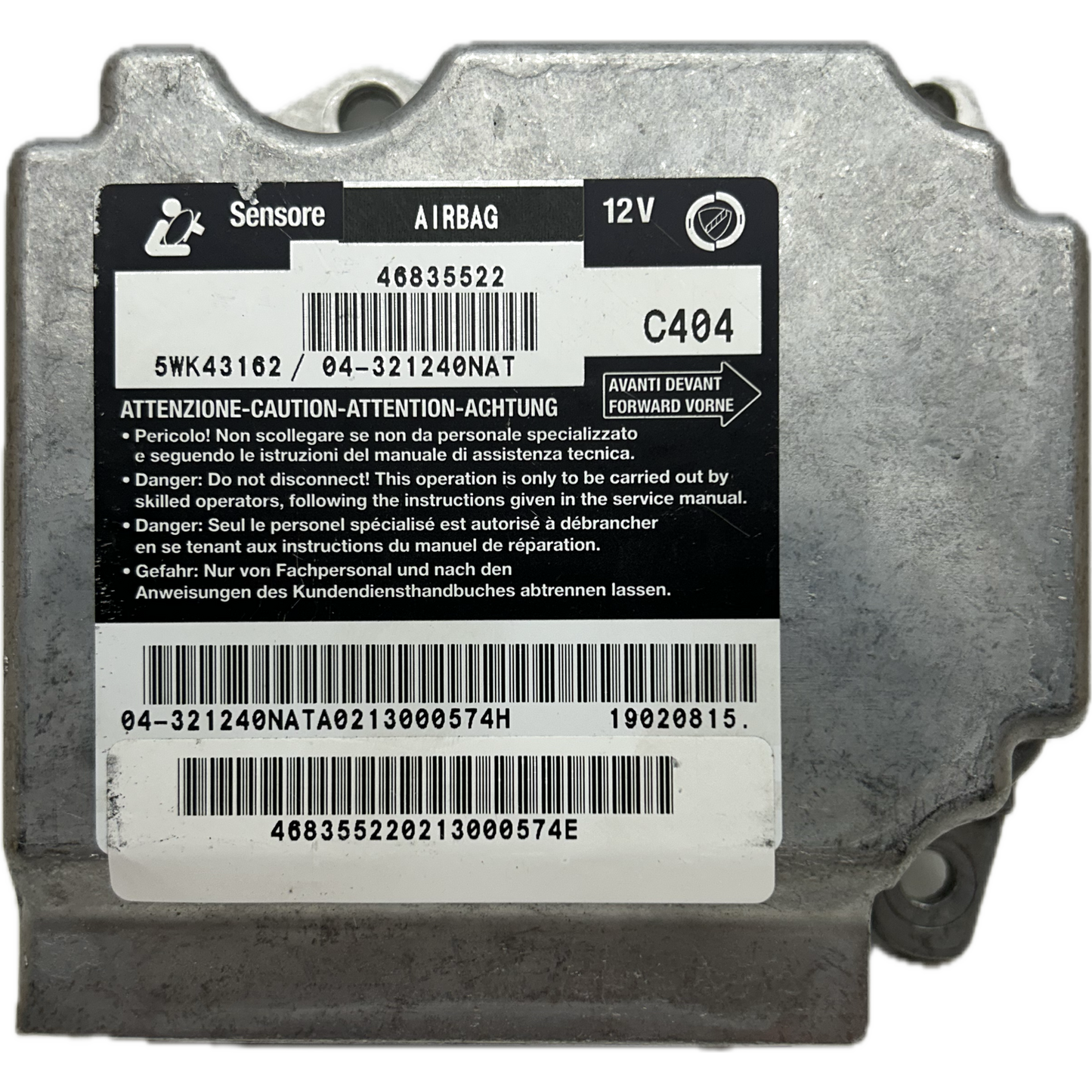

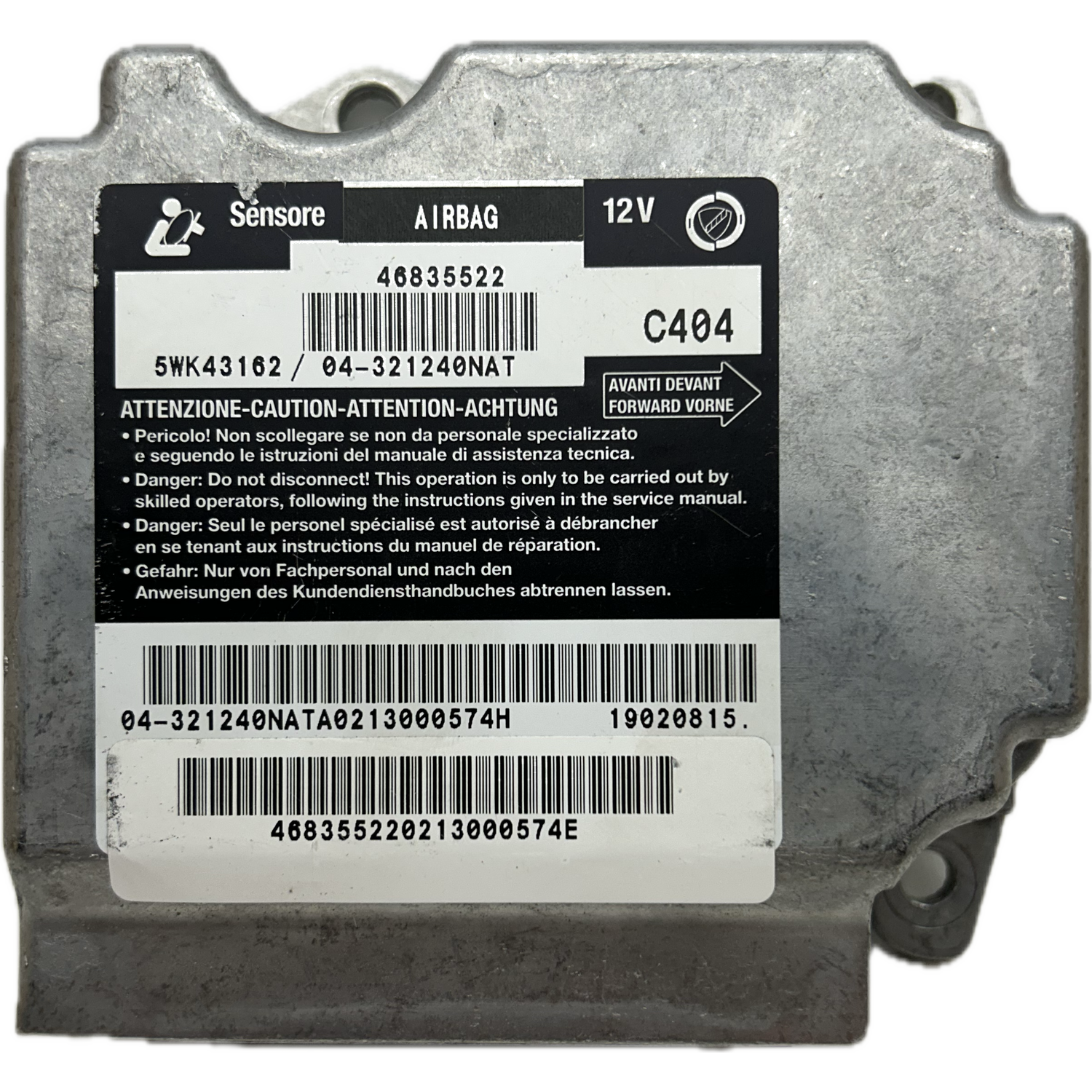

What part numbers are available for the Fiat Stilo 192 airbag control unit repair?
There are various OEM part numbers for the Fiat Stilo 192 airbag control unit from manufacturers such as Siemens, Continental, and Bosch. Precise identification is crucial, as the exact part number is essential for a successful Fiat Stilo 192 airbag control unit repair or replacement.
The list of common original part numbers for the Fiat Stilo 192 airbag control unit includes:
- 51711816 (Fiat / Siemens / Continental)
- 5WK43342 (Siemens/Continental)
- 51709144 (Fiat / Siemens)
- 51711815 (Fiat / Siemens)
- 46835521 (Fiat / Bosch)
These numbers ensure compatibility with various engines and equipment of the Fiat Stilo 192. Before any Fiat Stilo 192 airbag control unit repair or replacement, the exact part number should be checked against the vehicle's chassis number to avoid errors.
Function and compatibility of the Fiat Stilo 192 airbag control unit
The Fiat Stilo 192 airbag control unit was specifically developed for the Fiat Stilo model (192 series, built between 2001 and 2008). It is compatible with common engines such as the 1.9 JTD diesel and the 2.4 20V gasoline engine and ensures the correct deployment of the airbags and seat belt pretensioners in an emergency.
The control unit continuously collects data from the crash sensors located around the vehicle. It analyzes the intensity and direction of an impact to determine which airbags (e.g., front or side airbags) and seatbelt pretensioners need to be deployed. This optimizes occupant safety for the specific accident.
After deployment, the control unit stores important event data. For safety reasons, it is then marked as "defective" and requires either a professional repair to erase the crash data and reset the module, or a complete replacement. The use of airbag simulators to bypass error messages is illegal and potentially life-threatening.
Installation position and instructions for Fiat Stilo 192 airbag control unit repair
The Fiat Stilo 192 airbag control unit is typically located under the front seats, often under the passenger seat or between the seats. For a safe Fiat Stilo 192 airbag control unit repair or replacement, it is essential to disconnect the vehicle's battery and use specialized tools and expertise.
The airbag control unit's connectors are usually marked yellow and feature special safety mechanisms to prevent accidental activation and ensure a stable connection. These connectors often include a short protective jumper to protect the circuits during disassembly.
Before performing any work on the airbag system, the vehicle battery should be disconnected for at least 15-30 minutes to allow it to discharge and prevent accidental deployment. Missing or damaged wiring can impair function and lead to failure.
We strongly recommend that any work on the airbag system be carried out only by trained personnel in a specialized workshop. This is the only way to ensure full functionality and compliance with safety standards, thus avoiding any danger to vehicle occupants.
