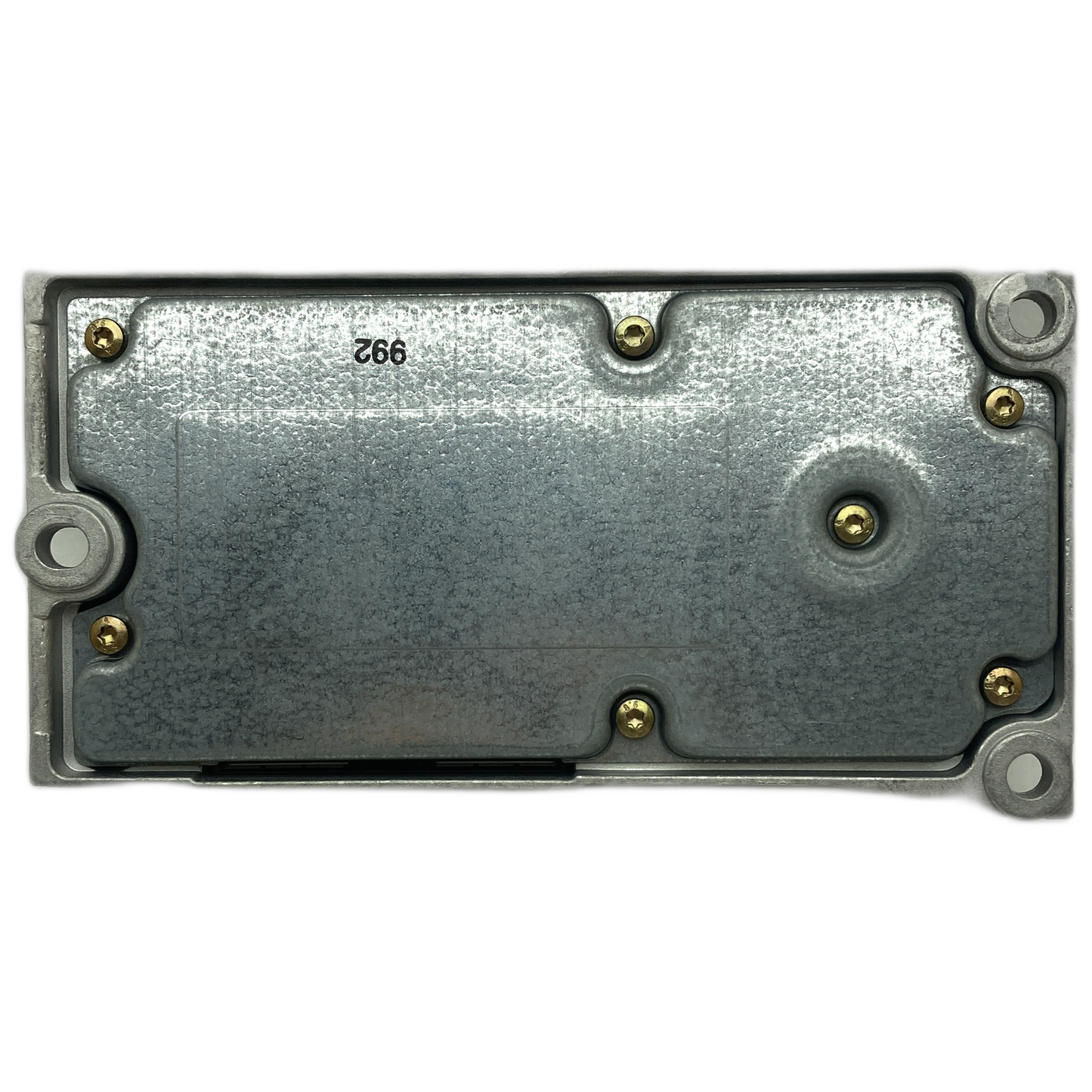

What is a Volvo XC90 Series 1 airbag control unit?
The Volvo XC90 Series 1 airbag control unit is the central safety unit that activates all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It continuously monitors a multitude of sensors, stores relevant crash data, and ensures the proper functioning of the entire airbag system in the vehicle. Without a functioning control unit, the safety of the vehicle's occupants can no longer be guaranteed.
This electronic control unit, often called the airbag ECU, is crucial for the passive safety of the first-generation Volvo XC90. It processes signals from collision sensors to determine the type and severity of an impact.
The control unit controls the two-stage deployment of the driver and front passenger airbags, as well as the side, head, and knee airbags, depending on the impact intensity. It is also responsible for activating the WHIPS whiplash protection system.
Why is the Volvo XC90 Series 1 airbag control unit defective?
A Volvo XC90 Series 1 airbag control unit is often reported as defective or broken because it has stored crash data after an accident, has internal errors, or is disrupting communication with other vehicle modules. These problems cause the airbag warning light to remain permanently illuminated, necessitating repair or replacement.
Because crash data has been stored, the system may be blocked and prevent further activations. This is a protective function after an accident, but requires professional repair to erase it.
Internal errors in the airbag control unit, such as faulty circuits or software problems, can also cause a "failure." Such errors prevent the control unit from performing its core functions correctly.
Sometimes the "defect" is due to communication problems with the instrument cluster (DIM) or other control units in the vehicle. This can cause error messages even though the airbag control unit itself may be intact.
Common error codes for Volvo XC90 Series 1 airbag control unit repair
During diagnostics and repairs on the Volvo XC90 Series 1 airbag control unit, specific error codes may occur that directly indicate problems with the control unit itself or its communication. These codes are crucial for identifying the exact cause of the defect and implementing a targeted fix to restore safety.
- CFFF → Meaning: Crash data saved → Cause: System blocked after accident, memory must be cleared.
- 53247 → Meaning: Airbag control unit internal error → Cause: Defective internal components or software problems in the control unit.
- B1000 → Meaning: Control unit communication error → Cause: Interruption of data transmission to or from the airbag control unit.
- 00D4 → Meaning: DIM instrument cluster error (SRS communication) → Cause: Malfunction in the connection between the instrument cluster and the airbag control unit.
- 00D5 → Meaning: DIM instrument cluster SRS LED error → Cause: Defective SRS indicator light in the instrument cluster, which can trigger an error message from the airbag system.
These error codes require specialized diagnostics at a specialist workshop. A proper repair of the airbag control unit for the Volvo XC90 Series 1 can resolve many of these issues.
What part numbers are available for the Volvo XC90 Series 1 airbag control unit repair?
For the Volvo XC90 Series 1 airbag control unit repair, several original Volvo OEM part numbers are relevant, ensuring exact compatibility with your vehicle model. The correct part number is crucial for a successful repair or replacement, as different versions were installed between 2002 and 2014.
Using the correct part number ensures that the replacement part or the "repair" of the "defective" control unit is carried out correctly.
- 32315584 (Volvo Original)
- 30782386 (Volvo Original)
- P30658913 (Volvo original, possibly alternative OEM number)
These part numbers have been thoroughly verified and are the most common original part numbers for the airbag control unit in the first-generation Volvo XC90. For in-shop repairs, exact matching with the existing part number of the defective component is essential.
Installation position and compatibility of the Volvo XC90 Series 1 airbag control unit
The Volvo XC90 Series 1 airbag control unit is safety-relevant and typically located under the center console or in the area below the dashboard. It is suitable for the first-generation Volvo XC90, particularly models from approximately 2002 to 2014, although it is most commonly found in models from 2003 to 2010.
This precise location ensures that the control unit is optimally protected and can function reliably in the event of an impact. Repair or replacement requires access to this area.
This module is specifically designed for the Volvo XC90 Series 1 and varies depending on the trim level, such as left- or right-hand drive vehicles. Therefore, the correct selection is crucial.
Functionality and safety relevance of the Volvo XC90 Series 1 airbag control unit repair
The functionality of the Volvo XC90 Series 1 airbag control unit is complex, as it dynamically adjusts airbag deployment to the severity of the accident and prevents false deployments. Due to its high safety relevance, a professional Volvo XC90 Series 1 airbag control unit repair is absolutely essential to ensure occupant safety in the event of a collision and to permanently deactivate the SRS warning light.
The control unit continuously monitors internal voltages and system states to prevent failure and maximize safety. Internal power supply problems or faults can often be repaired.
After an accident, crash data remains in the memory, which can only be erased by qualified personnel to restore the system's functionality. Interventions without professional "diagnosis" and "repair" are extremely risky and should only be performed by a qualified "workshop."
