What is a Volkswagen Phaeton 3D airbag control unit?
The Volkswagen Phaeton 3D airbag control unit is the central safety unit that activates all occupant restraint systems in the event of an accident. It monitors sensors, stores crash data, and ensures the proper functioning of all airbag modules in the vehicle.
As the heart of the occupant protection system in the Volkswagen Phaeton 3D, it continuously evaluates signals from acceleration and crash sensors.
In the event of an impact, the control unit decides in milliseconds whether to trigger airbags and belt tensioners.
The module is usually located centrally in the vehicle, often under the center tunnel, and is connected to the rest of the vehicle electronics via CAN bus.
Why is the Volkswagen Phaeton 3D airbag control unit defective?
A Volkswagen Phaeton 3D airbag control unit often fails because immutable crash data is stored after an accident, preventing the warning light from resetting. Internal memory failures or communication problems can also lead to system failure, making a Volkswagen Phaeton 3D airbag control unit repair essential.
Common causes are crash data that is permanently stored in the internal memory after an accident and causes the airbag warning light to illuminate permanently.
Internal malfunctions or memory damage can cause the control unit to be reported as "broken" (error codes 00003 or 65535).
Sometimes communication errors also occur, for example when the connection via the CAN bus is disrupted, which leads to a failure of the entire airbag function.
Common error codes for Volkswagen Phaeton 3D airbag control unit repair
During Volkswagen Phaeton 3D airbag control unit repair, specific error codes may occur, indicating a defect in the unit itself or communication issues. These codes, such as 00003, 65535, or B1000, require professional diagnosis and resetting or repair of the control unit.
- 00003 → Control unit defective → Internal error in the airbag control unit.
- 65535 → Control unit defective → Serious internal error, often after a crash.
- B1000 → Control unit communication error → Problem with data transmission to or from the airbag control unit.
These codes are directly related to the control unit and are critical to the safety of the vehicle.
A correct diagnosis of these errors is the first step to a successful Volkswagen Phaeton 3D airbag control unit repair.
What part numbers are available for the Volkswagen Phaeton 3D airbag control unit repair?
Several precisely verified OEM part numbers are relevant for the Volkswagen Phaeton 3D airbag control unit repair. These include the common 3D0909601E, the Bosch reference 0285001733, the older 3D0909601A, and the specific 3D0959485 for VFL models, all of which allow for repair.

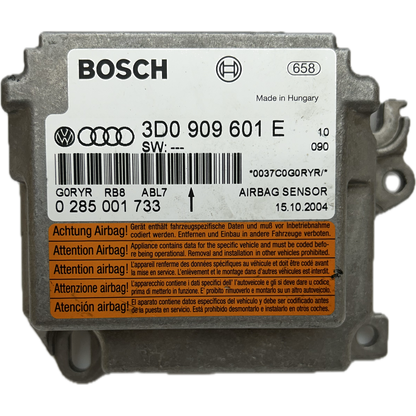

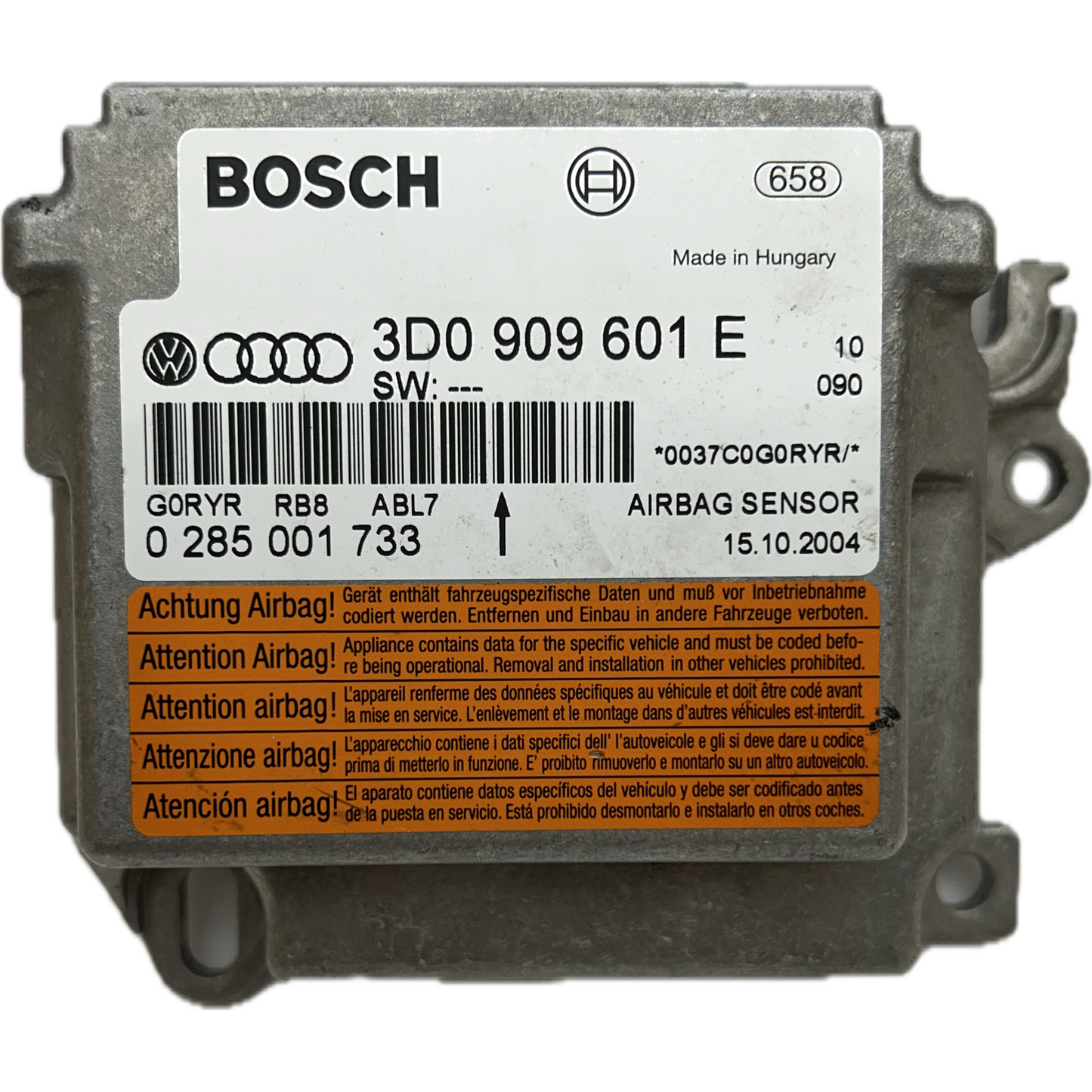

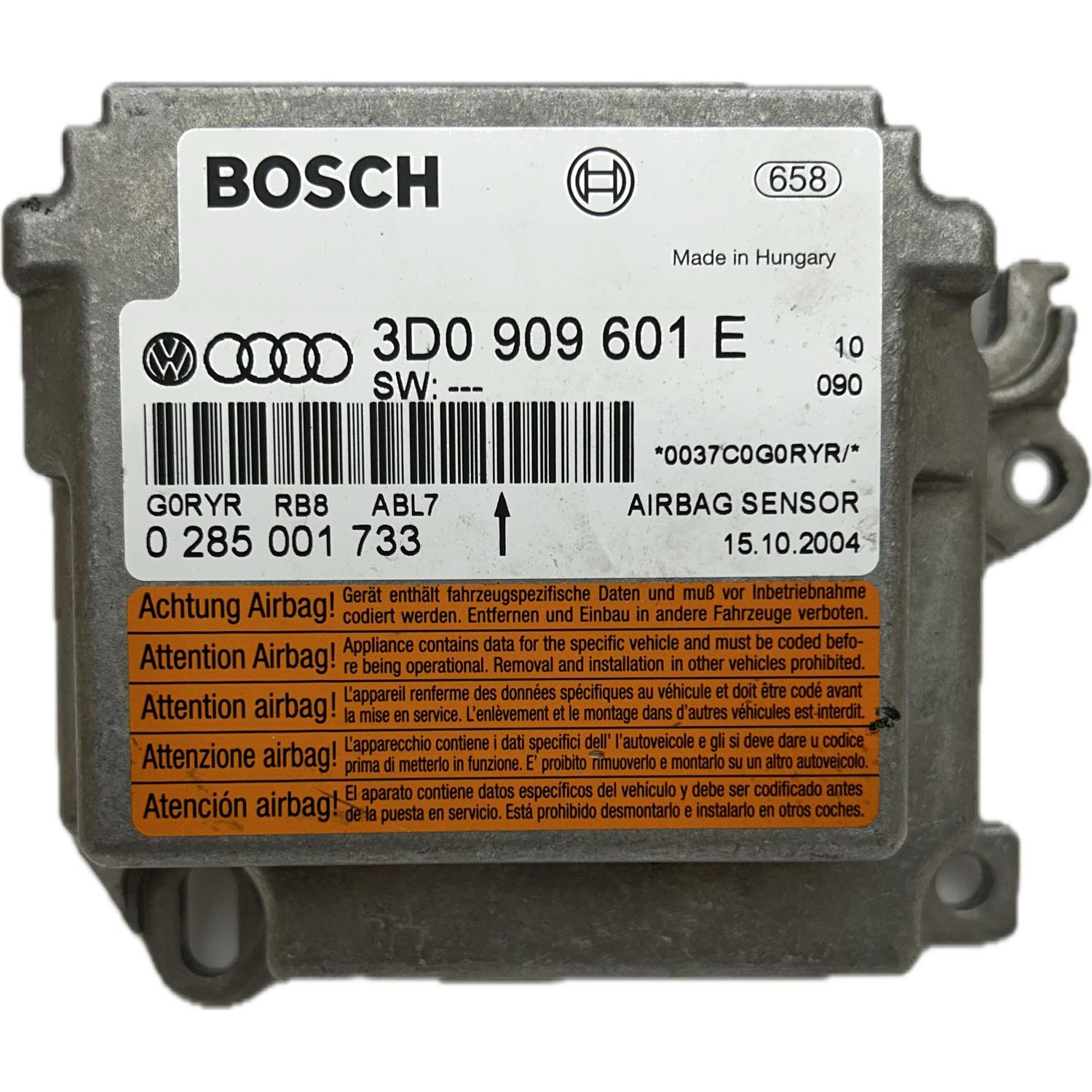

- VW 3D0909601E → Genuine part → Most confirmed OEM number for the Phaeton 3D.
- Bosch 0285001733 → Supplier Original → The corresponding Bosch manufacturer number for 3D0909601E.
- VW 3D0909601A → Genuine part → A compatible, but less common OEM part number.
- VW 3D0959485 → Original part → Especially for VW Phaeton 3D models before the facelift (up to 02/2007).
These part numbers guarantee that they are original parts or direct supplier OEM numbers that are suitable for a Volkswagen Phaeton 3D airbag control unit repair.
Knowing the correct part number is crucial for successfully diagnosing and repairing a defective control unit.
Compatibility and model years for the Volkswagen Phaeton 3D airbag control unit repair
The Volkswagen Phaeton 3D airbag control unit repair is specific to first-generation and facelift models built from approximately 2002 to 2016. The control unit is compatible with various engine and transmission variants, including all-wheel drive models, and ensures full functionality of the occupant protection system.
The airbag control unit is designed exclusively for the Volkswagen Phaeton 3D series.
It covers the entire range of model years from 2002 to 2016, including VFL and facelift models.
Compatibility extends across various engines, from V6 to W12, as well as models with 4MOTION all-wheel drive.
It is important to note that this control unit is not universally transferable to other VW models due to vehicle-specific software and hardware.
Installation position and safety aspects of the Volkswagen Phaeton 3D airbag control unit repair
The Volkswagen Phaeton 3D airbag control unit is typically installed centrally in the vehicle floor or under the center console to ensure optimal sensor connections. During installation, special safety precautions, such as strictly disconnecting the battery and observing the yellow airbag connectors, must be observed to avoid malfunctions.
The installation location under the center tunnel ensures central recording of crash signals and a short connection to all sensors.

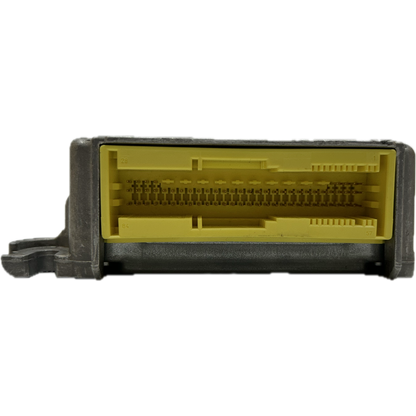

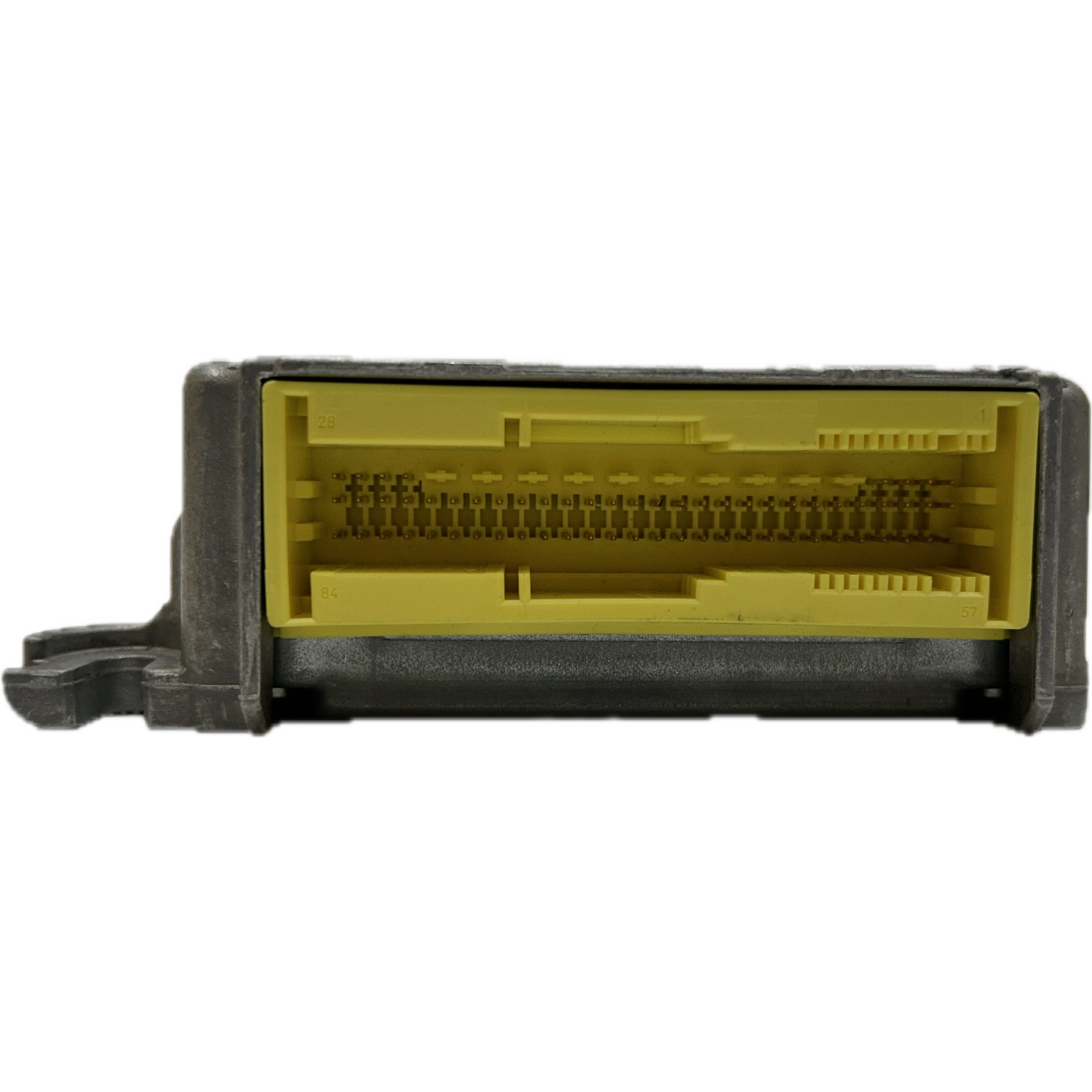

The control unit's connections are marked by distinctive yellow connectors that have special locking mechanisms.
Before performing any work on the airbag system, the vehicle battery must be disconnected to prevent accidental deployment of the airbags.
This safety-relevant procedure should always be carried out by qualified personnel.
Professional Volkswagen Phaeton 3D Airbag Control Unit Repair: Duration and Benefits
A professional Volkswagen Phaeton 3D airbag control unit repair fixes defects and erases stored crash data, allowing full restoration of original functionality. This service typically takes 3-5 business days and ensures that all safety-relevant functions, such as correct airbag deployment and warning light reset, are restored.
The repair includes deleting crash data and repairing internal memory that may lead to a defective condition.
The process is more sustainable than purchasing a new part and restores the vehicle-specific software of the control unit.
After successful Volkswagen Phaeton 3D airbag control unit repair, the error memory can be erased and the airbag warning light goes out.
This service saves costs compared to buying a new one and ensures the full functionality of the protection system in the Volkswagen Phaeton 3D.
