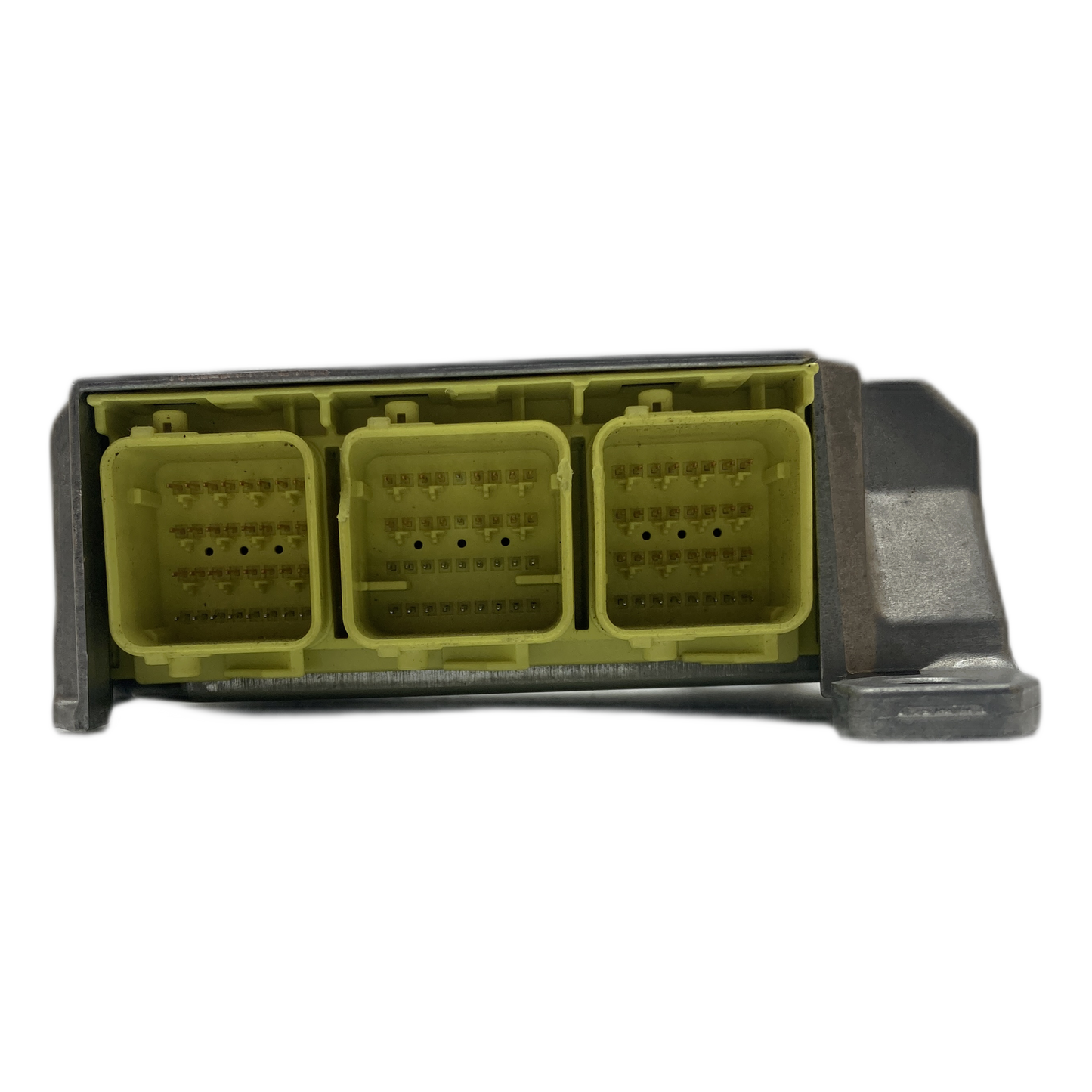

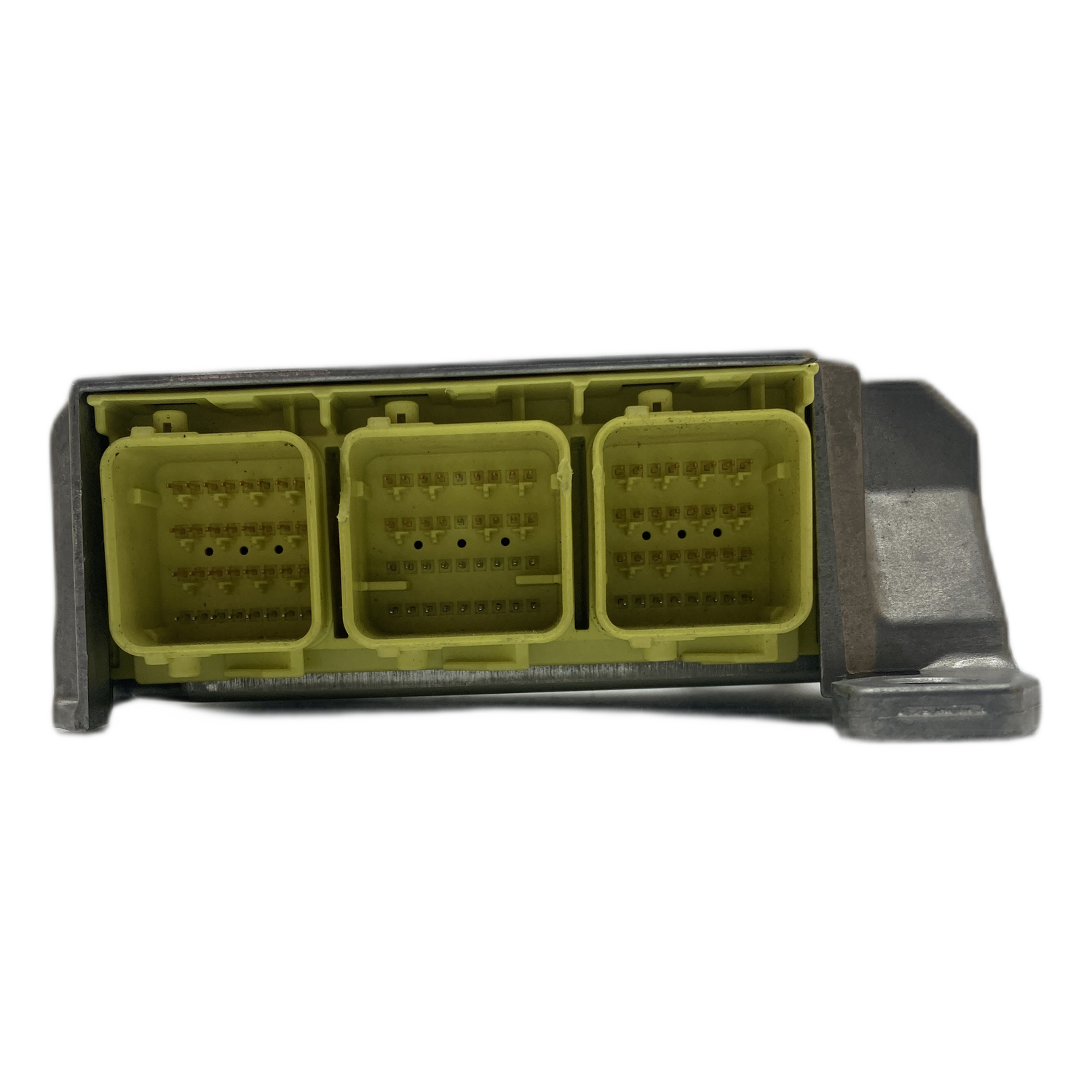

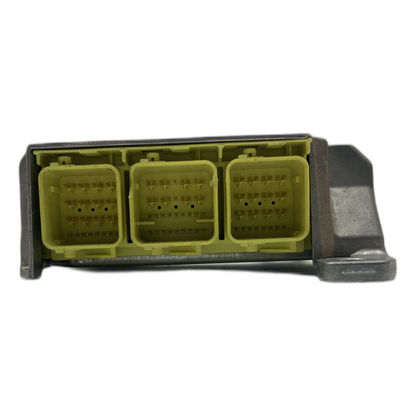

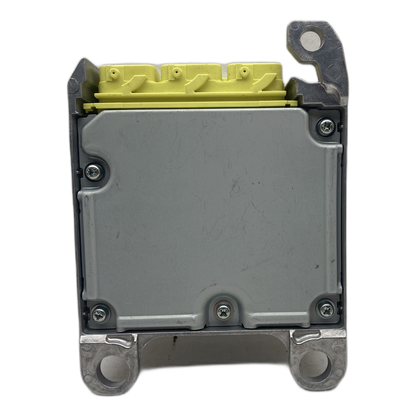

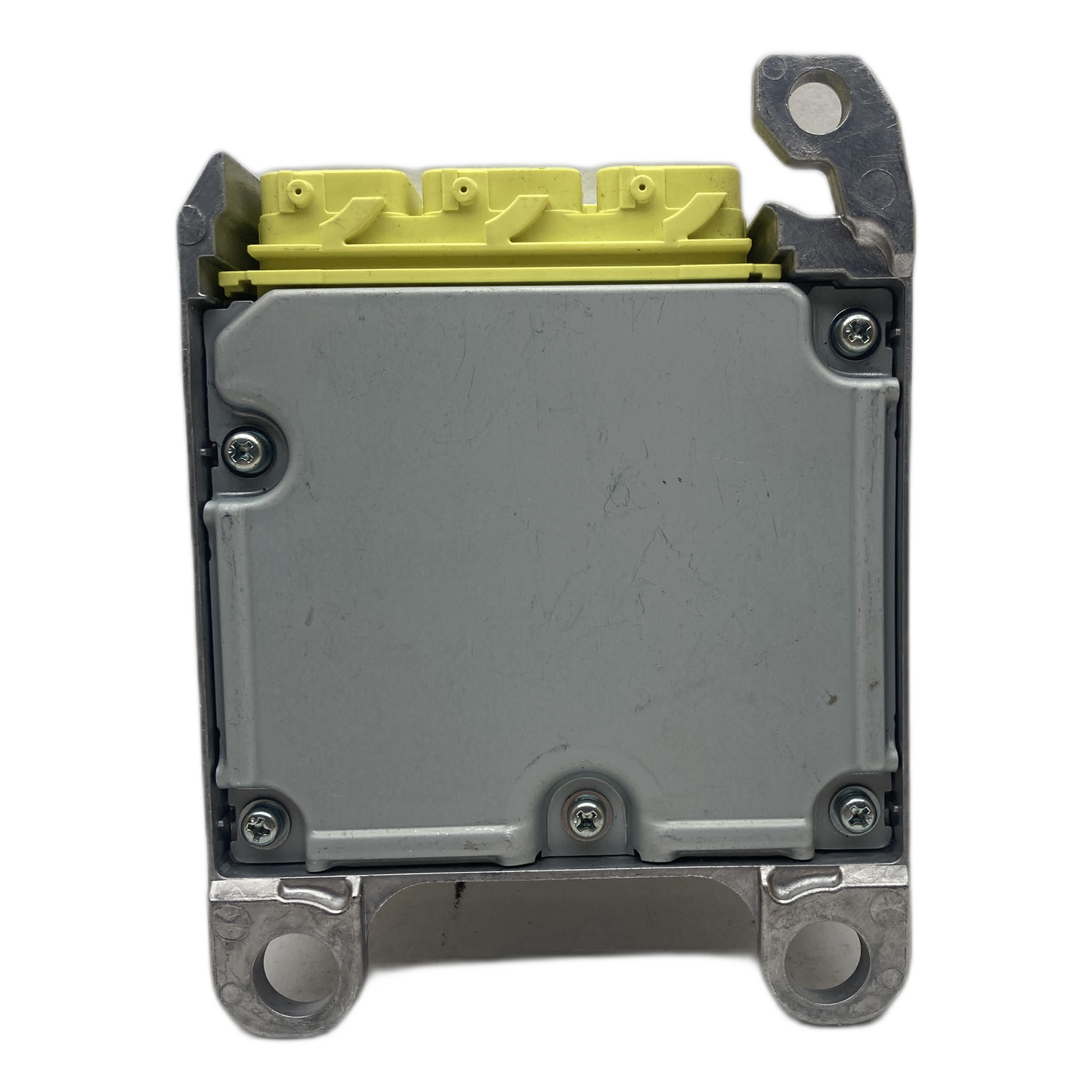

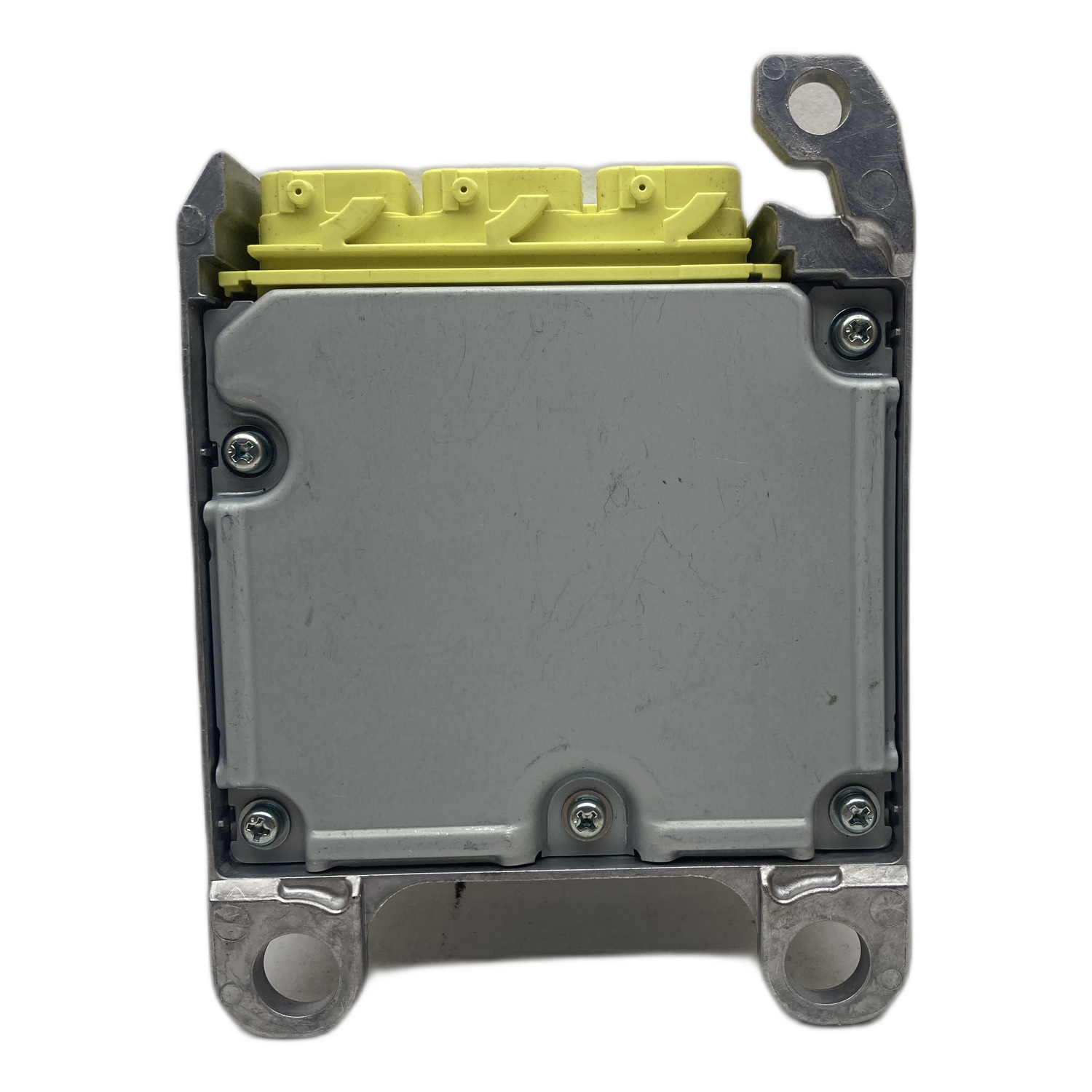

What is a Toyota HiAce H300 airbag control unit?
The Toyota HiAce H300 airbag control unit is the central safety unit in the vehicle, activating all occupant restraint systems in the event of an accident. It precisely monitors sensors, stores relevant crash data, and ensures the immediate and proper operation of all airbag modules and seatbelt pretensioners to maximize passenger safety.
This electronic module is responsible for controlling and monitoring the entire airbag system. It processes signals from acceleration sensors and deploys the protective airbags when necessary.
In addition, the control unit performs self-diagnosis and stores error codes that enable precise identification of system malfunctions.
Why is the Toyota HiAce H300 airbag control unit defective?
The Toyota HiAce H300 airbag control unit may be defective due to internal memory errors, electrical circuit problems, or crash data that cannot be erased after an accident. A defective control unit prevents the airbag system from functioning properly, causing the safety warning light to illuminate continuously, making repair necessary to restore full occupant safety.
A common cause of a malfunction is internal memory corruption, which manifests itself in error codes like B1100. After an accident, the control unit stores crash data that cannot always be easily erased, rendering the system unusable.
Communication errors with the vehicle's electrical system or failures in the internal circuits can also damage the airbag control unit. A professional diagnostics at a workshop is then necessary to identify the exact fault and initiate the necessary repair.
Common error codes for Toyota HiAce H300 airbag control unit repair
When repairing the Toyota HiAce H300 airbag control unit, specific B-codes are typically encountered, indicating internal problems with the control unit. These error codes facilitate the diagnosis of defects such as communication problems, memory errors, or non-erasable crash data, and are crucial for targeted repair or replacement of the component.
- B1000: This code indicates a communication error in the airbag control unit, often caused by internal malfunctions or lost connections.
- B1100: An internal memory error has occurred, indicating that the control unit cannot manage its data correctly.
- B1120: This indicates a circuit or output fault in the control module, which may affect the function of individual system components.
- B1200: A general circuit fault has occurred in the airbag control module, affecting the power supply or internal electronics.
- B1400: This trouble code indicates a problem in the airbag circuit, such as a defect in the squib or the wiring to the airbag module.
- B1600: This code means a memory erase error or that crash data could not be erased after an accident, which blocks the system from activating.
What part numbers are available for the Toyota HiAce H300 airbag control unit repair?

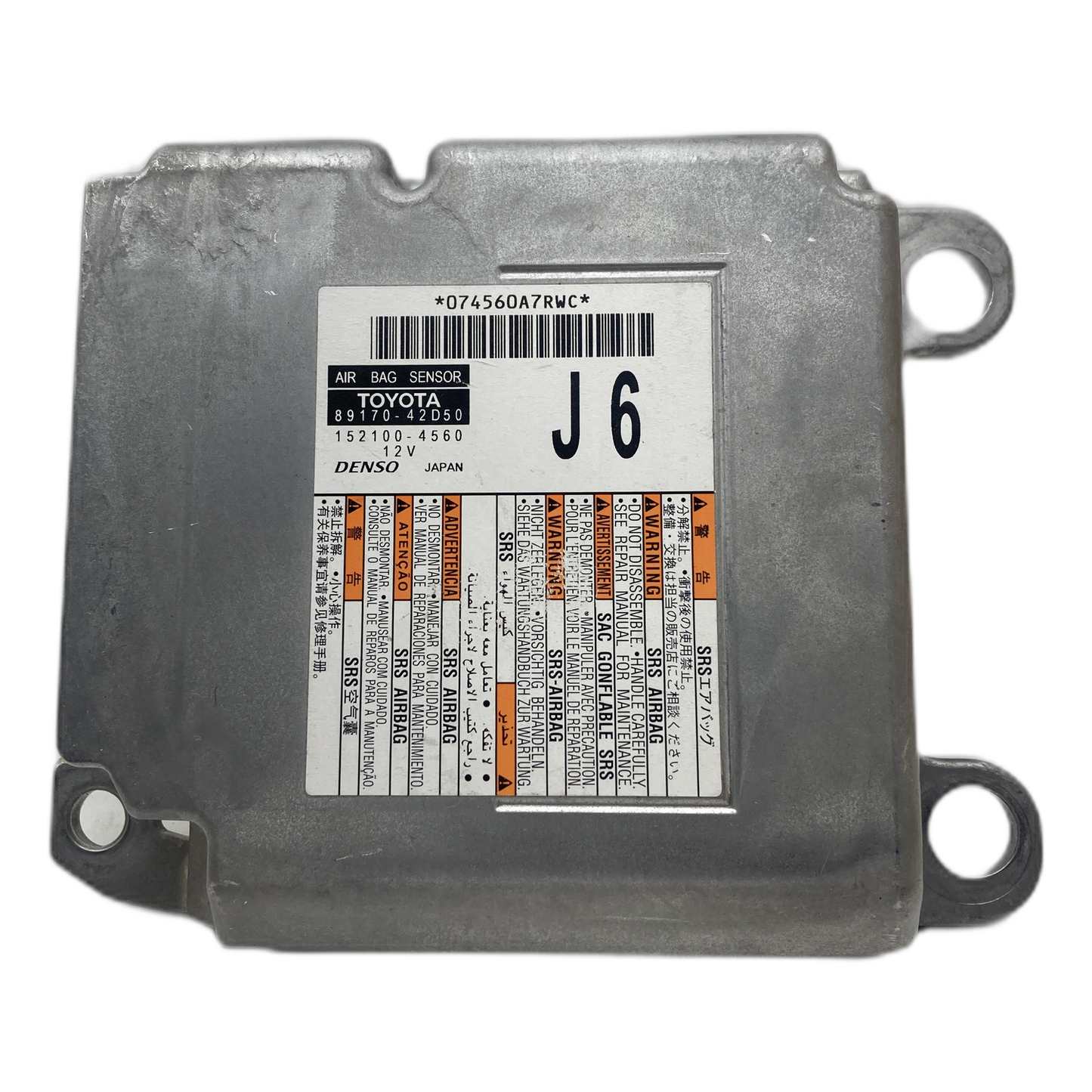

For a successful Toyota HiAce H300 airbag control unit repair, the correct OEM part numbers are crucial to ensure compatibility and safety. The primary verified OEM part numbers are 89170-42D50 from Toyota and 152100-4560 from Denso, which fit the HiAce H300 model exactly and ensure reliable operation.
The main OEM number for the Toyota HiAce H300 airbag control unit is 89170-42D50, directly from Toyota. This number is the official identification for the original part.
In addition, the supplier number 152100-4560 from Denso, a renowned OEM supplier to Toyota, can also be assigned exactly to this airbag control unit.
These part numbers have been fully verified and ensure that you receive the correct replacement part for your vehicle to ensure optimal repair of the defective airbag control unit.
When replacing or repairing the airbag control unit, it is essential to use only these specific and confirmed part numbers to avoid mismatches or safety hazards.
