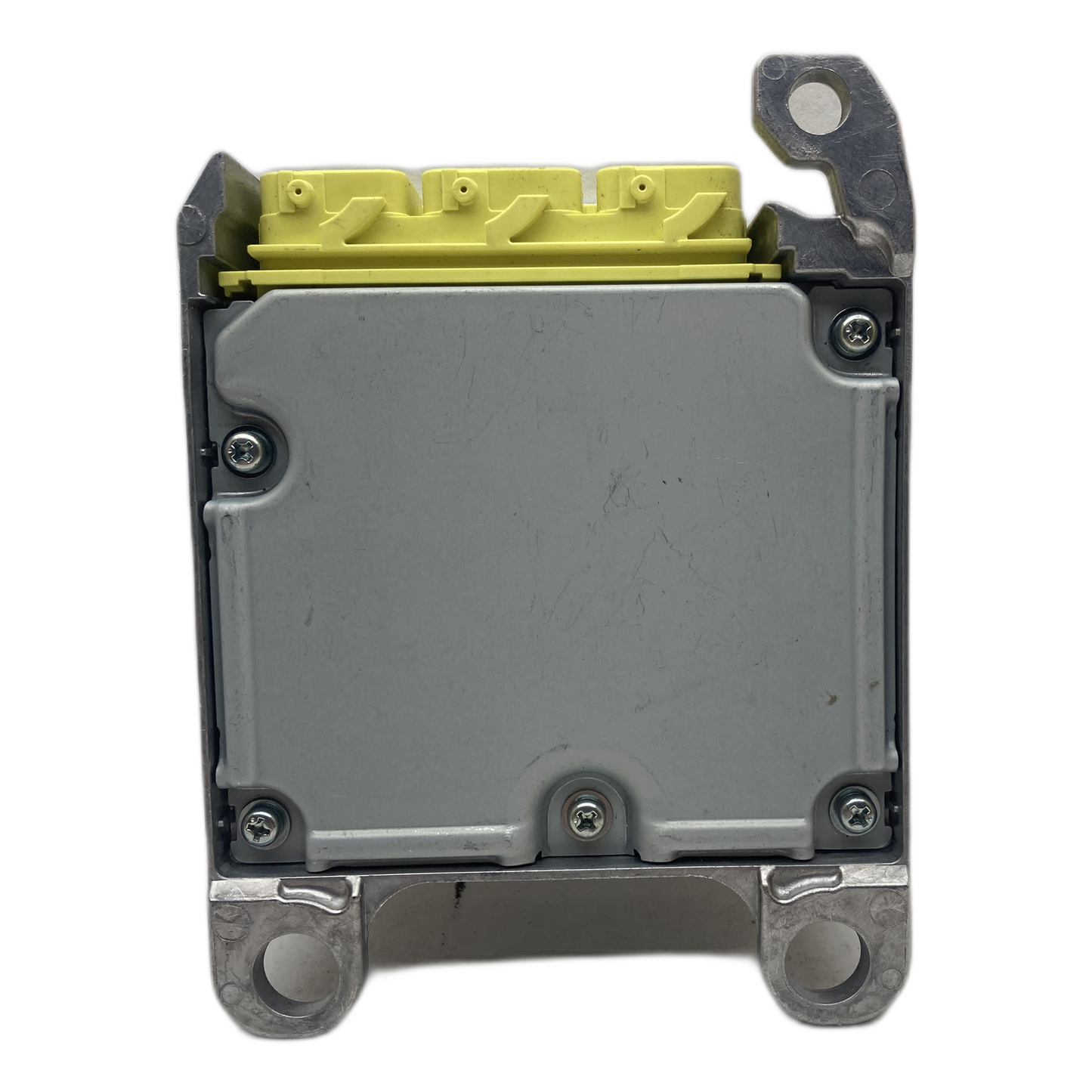

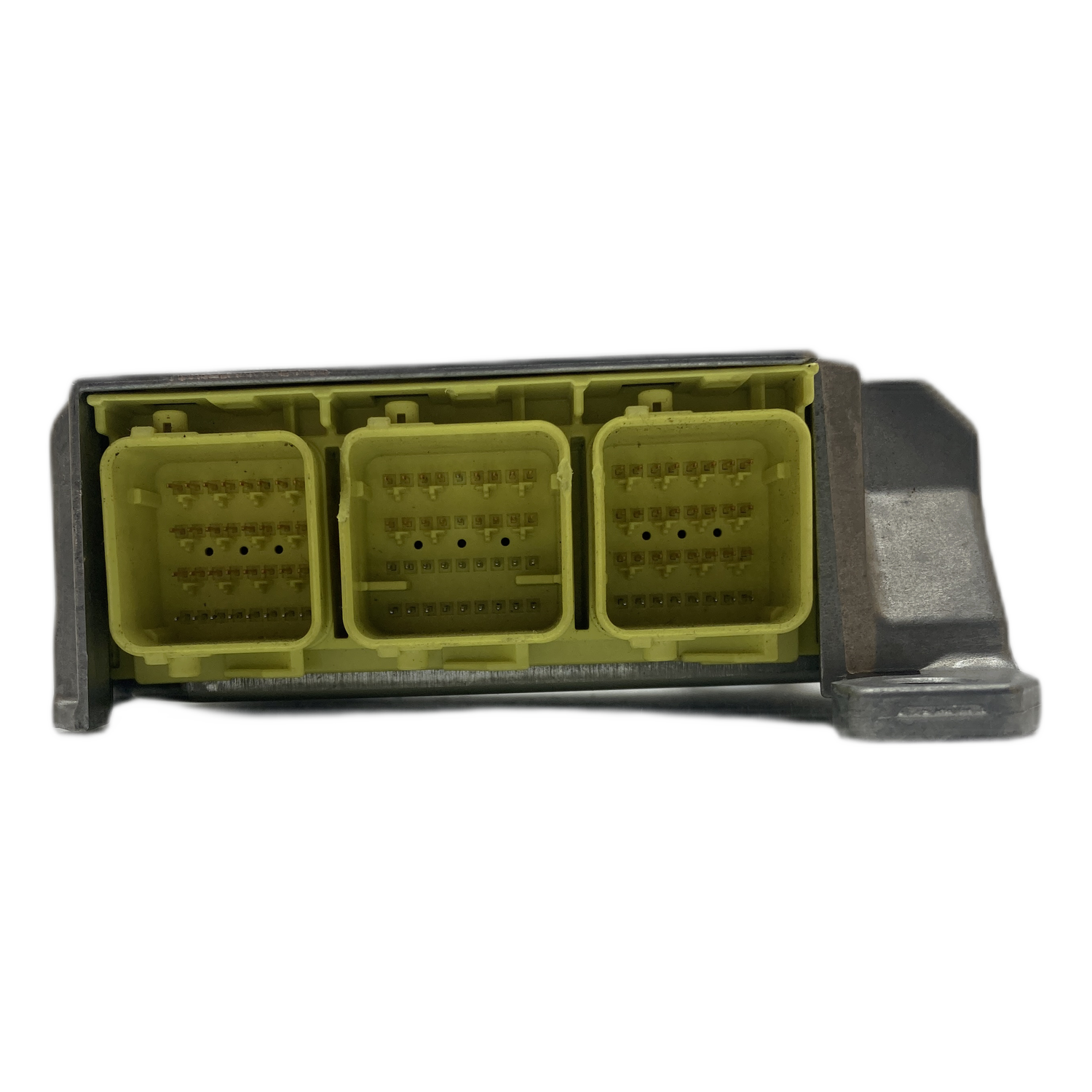

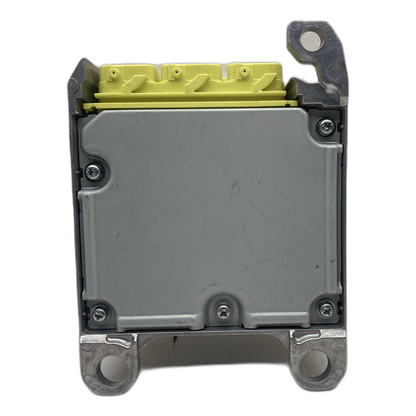

What is a Toyota HiAce H100 airbag control unit?
The Toyota HiAce H100 airbag control unit is the central safety unit that precisely controls all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It continuously monitors sensors, stores crash data, and ensures the proper functioning of all passive safety system components for maximum protection.
This electronic control unit, also called an ECU, processes signals from acceleration and impact sensors in real time. Its main task is to decide whether and when the airbags should be deployed in the event of a collision.
It is securely mounted inside the vehicle, often in the center console. This ensures optimal connection to the sensors and short cable routes to the airbag modules.
The airbag control unit is tailored to the specific engine and vehicle versions of the HiAce H100, built between 1989 and 2004. It is compatible with diesel and gasoline engine variants, as well as 2WD and 4WD configurations.
Why is the Toyota HiAce H100 airbag control unit defective?
The Toyota HiAce H100 airbag control unit can fail due to aging internal components, corrosion, or a crash event stored in memory. This leads to airbag failure, which is why a Toyota HiAce H100 airbag control unit repair is essential to restore safety.
Common causes include internal CPU errors, power supply issues, or communication problems with other control units. Such defects often result in the airbag warning light remaining permanently illuminated.
Water ingress or mechanical damage can also damage the control unit. A professional diagnosis is essential to identify the exact cause of the fault and ensure vehicle safety.
Early troubleshooting rather than waiting for a complete failure is advisable. This minimizes the risk of a total security system failure.
Common error codes for Toyota HiAce H100 airbag control unit repair
During Toyota HiAce H100 airbag control unit repairs, specific error codes may occur that indicate internal defects or communication problems within the control unit. These standardized B-codes help technicians quickly diagnose the exact cause of a malfunction and take targeted corrective action to restore full functionality of the airbag system.
- B1000: Indicates a communication error within the airbag control unit, often caused by internal connection or software problems.
- B1100: Indicates an internal CPU error in the airbag control unit, which means a malfunction of the central processing unit.
- B1200: Indicates an airbag ECU power supply fault, indicating insufficient or interrupted voltage supply.
- B1400: Indicates an EEPROM memory error in the airbag control unit that affects the correct storage of important data.
- B1600: Indicates an internal hardware error in the airbag control unit, indicating damage to physical components.
- B1800: Indicates a communication error between the airbag ECU and other vehicle control units, causing data exchange problems.
- B2100: Indicates an airbag control module diagnostic or self-test error affecting the unit's internal check.
- B2200: Indicates a software or calibration error in the airbag ECU, resulting in incorrect operating parameters.
- B2500: Indicates a relearning error of the airbag control unit, which indicates problems with initialization or programming.
What part numbers are available for the Toyota HiAce H100 airbag control unit repair?
For Toyota HiAce H100 airbag control unit repairs, specific OEM part numbers are crucial to ensure compatibility. The verified numbers are 89170-42D50 (Toyota OEM) and 152100-4560 (Autoliv supplier). These unique identifiers are essential for the correct identification and repair of your Toyota HiAce H100 airbag control unit.
The primary, uniquely verified OEM part number for the Toyota HiAce H100 airbag control unit is:
- 89170-42D50 (Toyota OEM)
In addition, there is the supplier part number, which also corresponds to the original:
- 152100-4560 (Autoliv Supplier OEM)
- 1521004560 (Autoliv supplier OEM, without hyphen)
These numbers are crucial as they guarantee an exact fit for the HiAce H100 model from 1989 to 1995. No other alternative part numbers from other manufacturers could be verified for this specific model.
