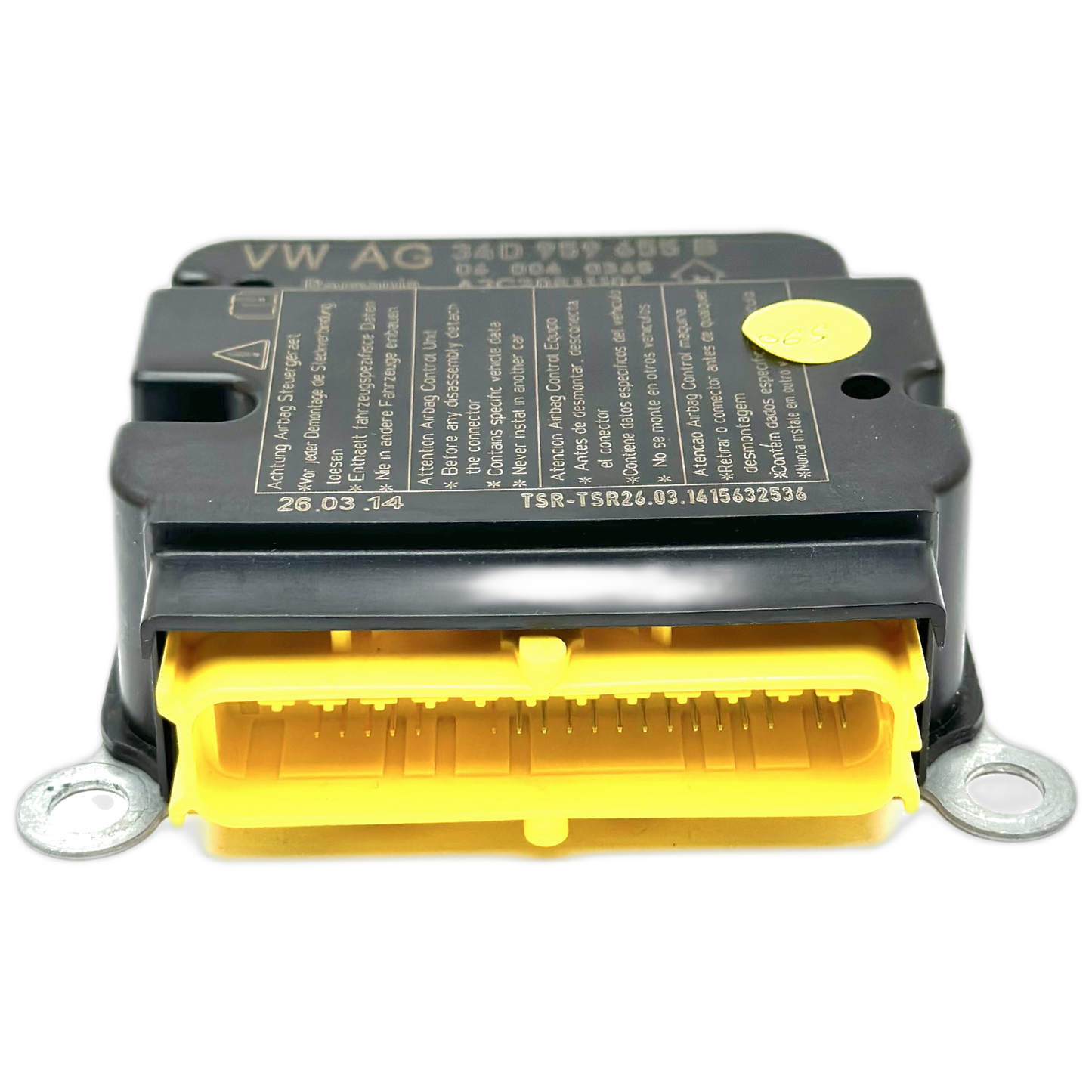

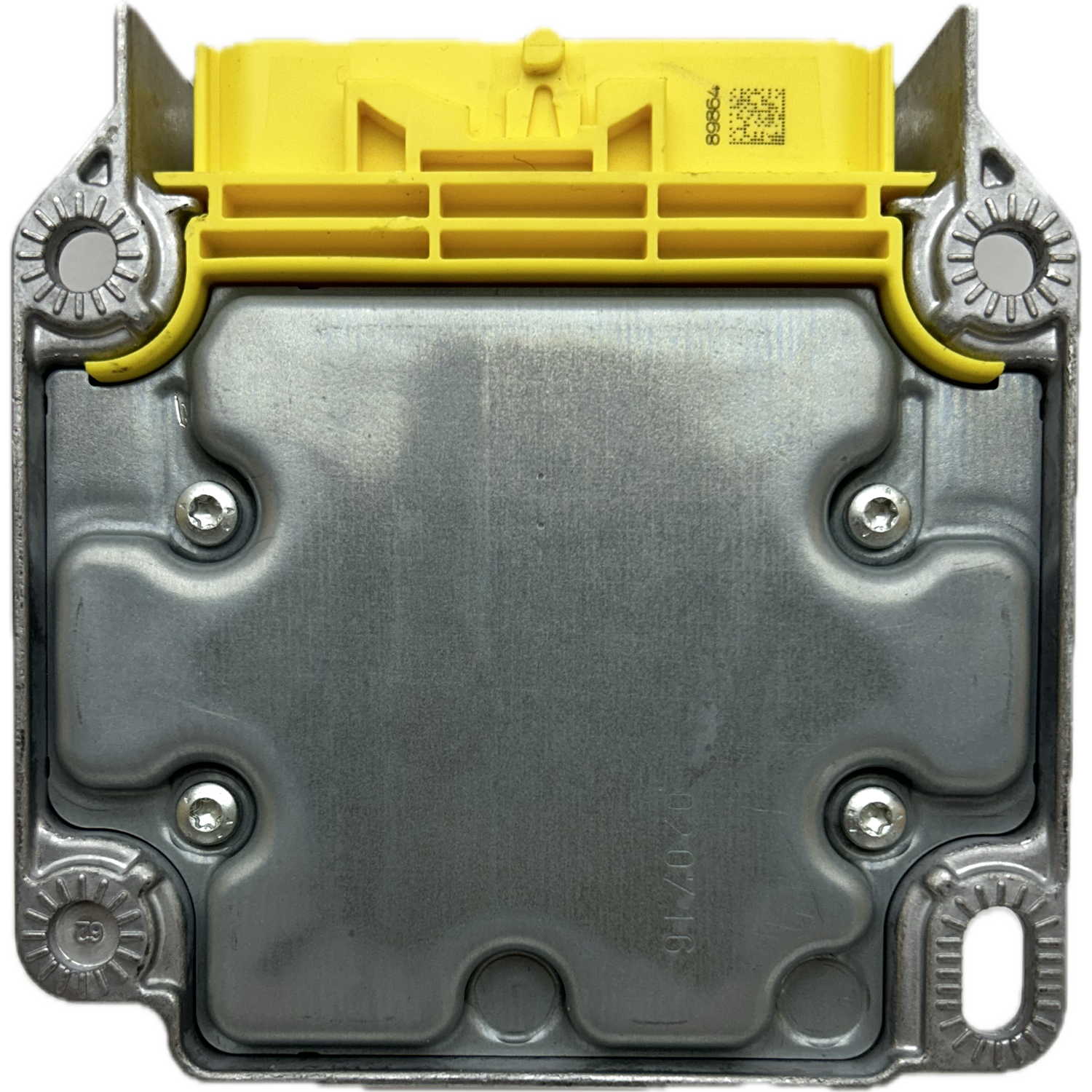

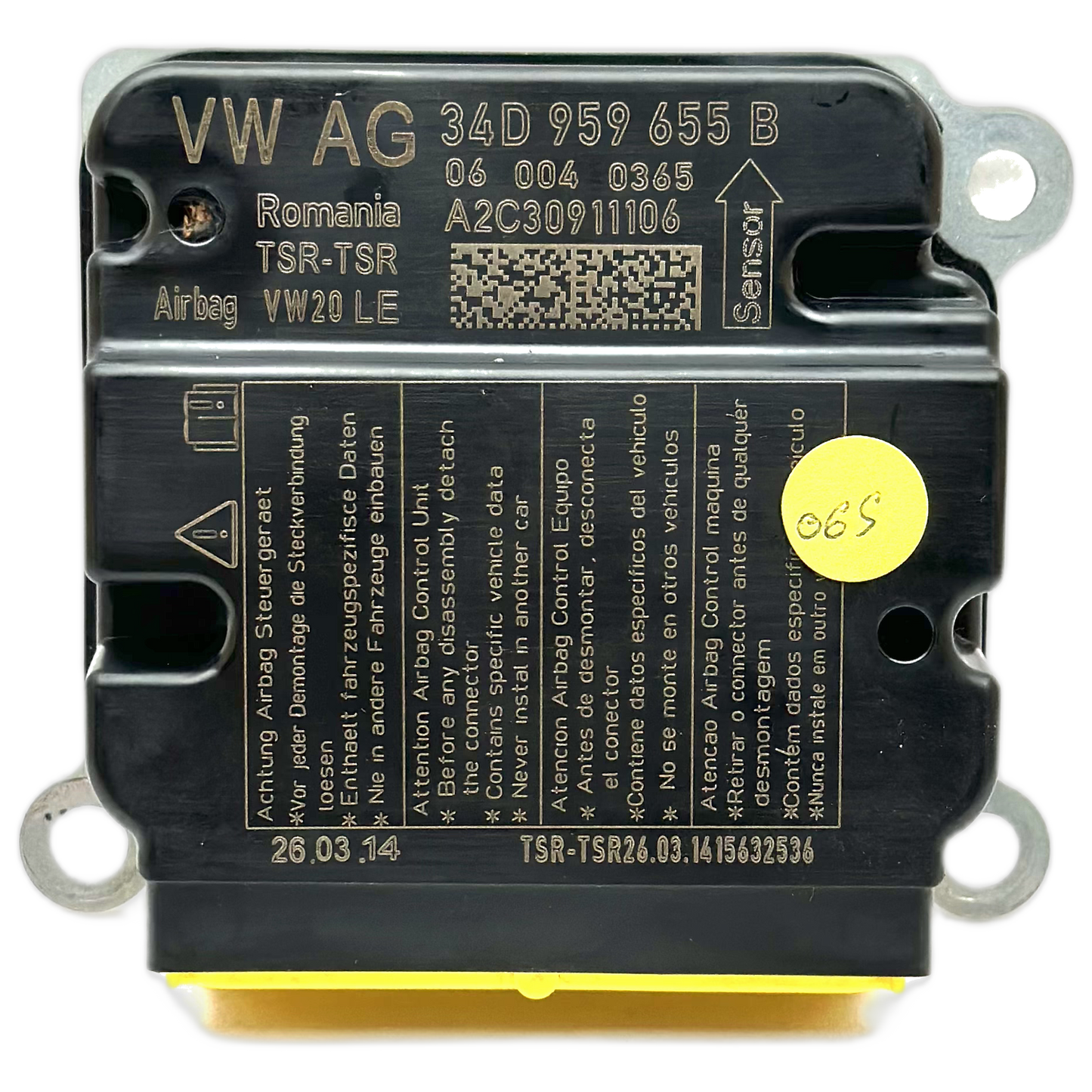

What is a Skoda Rapid Mk1 airbag control unit?
The Skoda Rapid Mk1 airbag control unit is the central safety unit that activates all occupant restraint systems in the event of an accident. It monitors sensors, stores crash data, and ensures the proper functioning of all airbag modules in the vehicle.
It continuously monitors sensors for crash events and seat occupancy mattresses. In the event of an accident, the control unit evaluates this data and triggers airbags and seatbelt pretensioners.
The control unit collects and stores crash data after an accident. This data is important for diagnostics, but it blocks further operation of the airbag system.
Vehicle- and seat-specific parameters are stored in the control unit. It was developed and used specifically for the Skoda Rapid Mk1 (model generation from approximately 2012).
The airbag control unit is usually installed centrally in the vehicle interior, often under the front seats or in the center console. This ensures short cable routes to the sensors and airbags.
The vehicle battery must be disconnected during installation and removal. Installation and removal should only be performed by qualified personnel to avoid hazards.
Why is the Skoda Rapid Mk1 airbag control unit defective?
A Skoda Rapid Mk1 airbag control unit can be defective because crash data was stored after an accident, preventing its operation. Internal errors, short circuits, or moisture damage also often lead to failure and require a Skoda Rapid Mk1 airbag control unit repair.
After accidents, so-called crash data often remains stored in the control unit. This data cannot be easily deleted and leads to the control unit being detected as defective.
Typical errors include internal control unit faults or problems caused by short circuits and low voltage. Repairing the control unit is often possible, avoiding a costly complete replacement.
The control unit is robust but susceptible to moisture damage, especially when installed under seats. Spilled drinks can be a cause of failure.
After an accident or a system failure, the airbag warning light in the instrument cluster flashes or remains illuminated. This indicates the need for diagnosis and potentially a Skoda Rapid Mk1 airbag control unit repair.
Common error codes for Skoda Rapid Mk1 airbag control unit repair
During Skoda Rapid Mk1 airbag control unit repairs, specific error codes may occur that indicate communication problems or implausible signals from the control unit. These codes directly indicate a defect in the airbag control unit and are crucial for a precise diagnosis.
- 12669184: Function restricted due to missing message(s)
- U1111 00: Airbag control unit: no communication
- U0452 00: Implausible signal from the airbag control unit
Error code 12669184 or U1111 00 indicates a communication error with the airbag control unit. A broken connection to the airbag ECU limits its functions.
The error code U0452 00 indicates an implausible signal from the airbag control unit. This may indicate faulty data or internal problems with the control unit.
These codes are specific to the airbag control unit and do not indicate sensor or module errors. A precise error reading using a GUTMANN or Bosch tester is recommended.
What part numbers are available for the Skoda Rapid Mk1 airbag control unit repair?

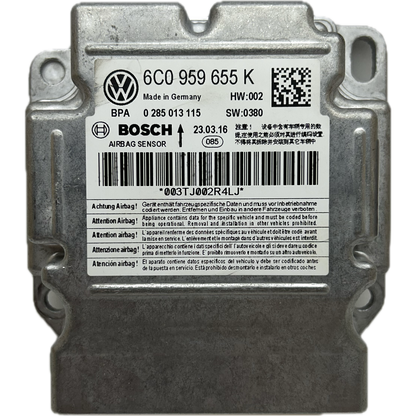

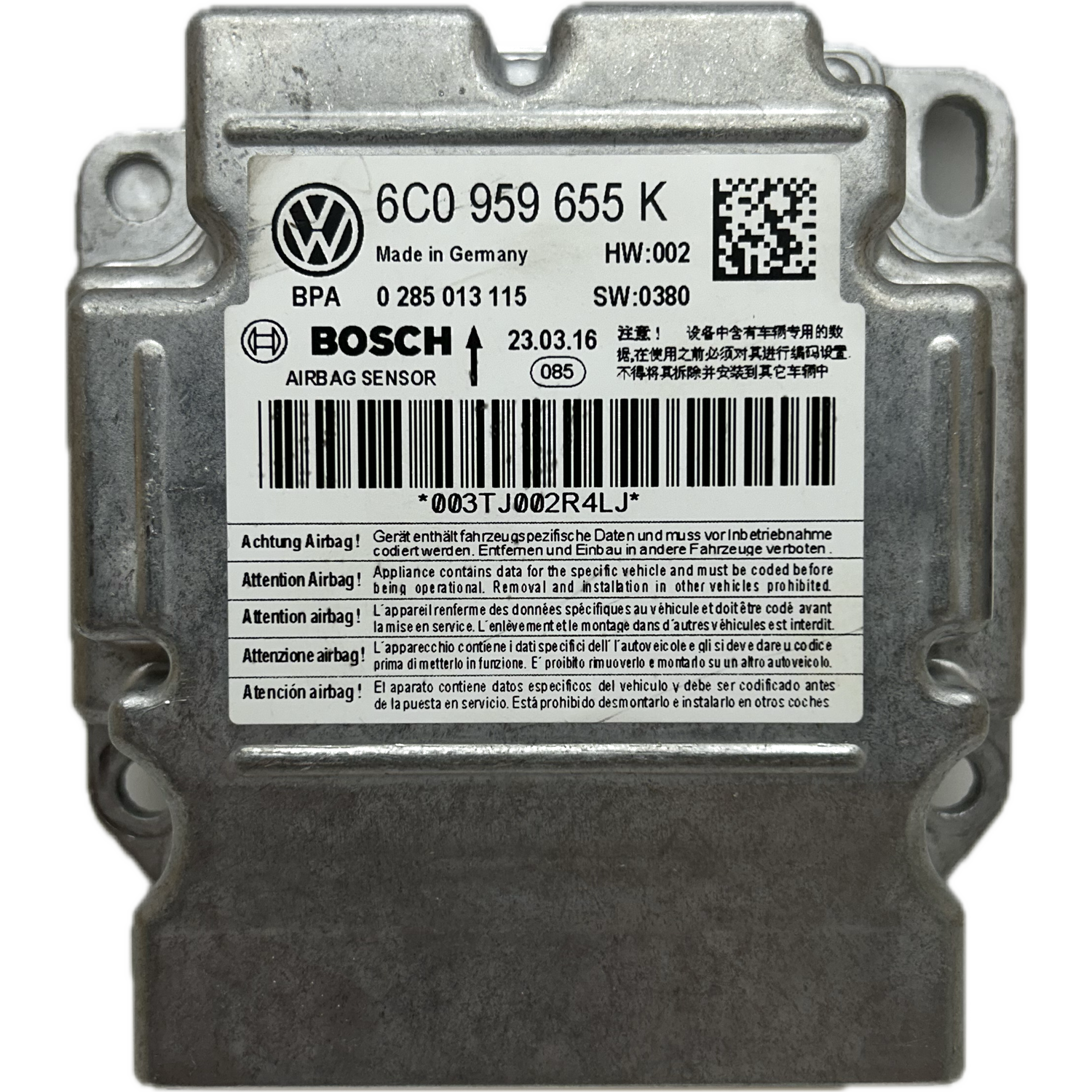

For the Skoda Rapid Mk1 airbag control unit repair, the exact OEM part number 6C0 959 655 K is crucial. This number is verified as the only genuine spare part and ensures compatibility and the vehicle-specific software of the airbag system.
Part number 6C0 959 655 K is listed as the original airbag control unit specifically for the Skoda Rapid Mk1 (NH / NH1 series). It is the only clearly verified OEM part number for this model.
Important spare part or alternative part numbers could not be confirmed. No OEM or supplier alternative numbers are available; only the original number can be used for repairs.
For airbag control units, the exact OEM part number is essential. Software and crash data storage are vehicle-specific, making confusion dangerous.
It is recommended that only this OEM number be used for repair or replacement. Installation and repair should only be performed by qualified specialist workshops.
