What is a MINI Cooper S R56 airbag control unit?
The MINI Cooper S R56 airbag control unit is the central safety unit in the vehicle, activating all occupant restraint systems such as airbags and seatbelt pretensioners in the event of an accident. It continuously monitors sensors, stores relevant crash data, and ensures the proper functioning of the entire safety system, making professional MINI Cooper S R56 airbag control unit repair essential after an incident.
This electronic module is the brains of the passive safety system in your MINI Cooper S R56. It is crucial for protecting vehicle occupants in the event of a collision.
Why is the MINI Cooper S R56 airbag control unit defective?
A MINI Cooper S R56 airbag control unit often fails because it stores crash data after an accident, resulting in airbag deactivation, or it suffers internal malfunctions due to aging, voltage spikes, or moisture. These defects trigger the airbag warning light and require a specialized MINI Cooper S R56 airbag control unit repair to restore full safety.
After an impact, the control unit stores non-erasable crash data. This data signals the system that the airbags have been deployed and the control unit is locked for safety reasons.
Internal electronic defects, such as faulty memory cells or processor failures, can also lead to failure. Such problems are often the cause of a persistent airbag warning light.
Common error codes for MINI Cooper S R56 airbag control unit repair
When diagnosing a faulty MINI Cooper S R56 airbag control unit, specific error codes may occur that signal internal defects or accident events. Codes like 93D7, F0, or 37847 directly indicate a malfunction in the control unit and require a professional MINI Cooper S R56 airbag control unit repair to fully reactivate the safety systems.
- 93D7 → Internal control unit error → Malfunction of the airbag ECU
- F0 → Control unit defective → Internal error, cannot be erased
- 37847 → Control unit defective / internal error → Permanent airbag warning light after accident or defect
- 240 → Control unit error (general) → General malfunction of the airbag ECU
What part numbers are available for the MINI Cooper S R56 airbag control unit repair?
Several OEM part numbers are relevant for the MINI Cooper S R56 airbag control unit repair, which are often interchangeable to ensure compatibility across different model years. Important part numbers include 65773428715, 65773454346, and Bosch numbers like 220440810, all of which allow precise identification for the required repair.
These part numbers are crucial for selecting the correct replacement or repair device.

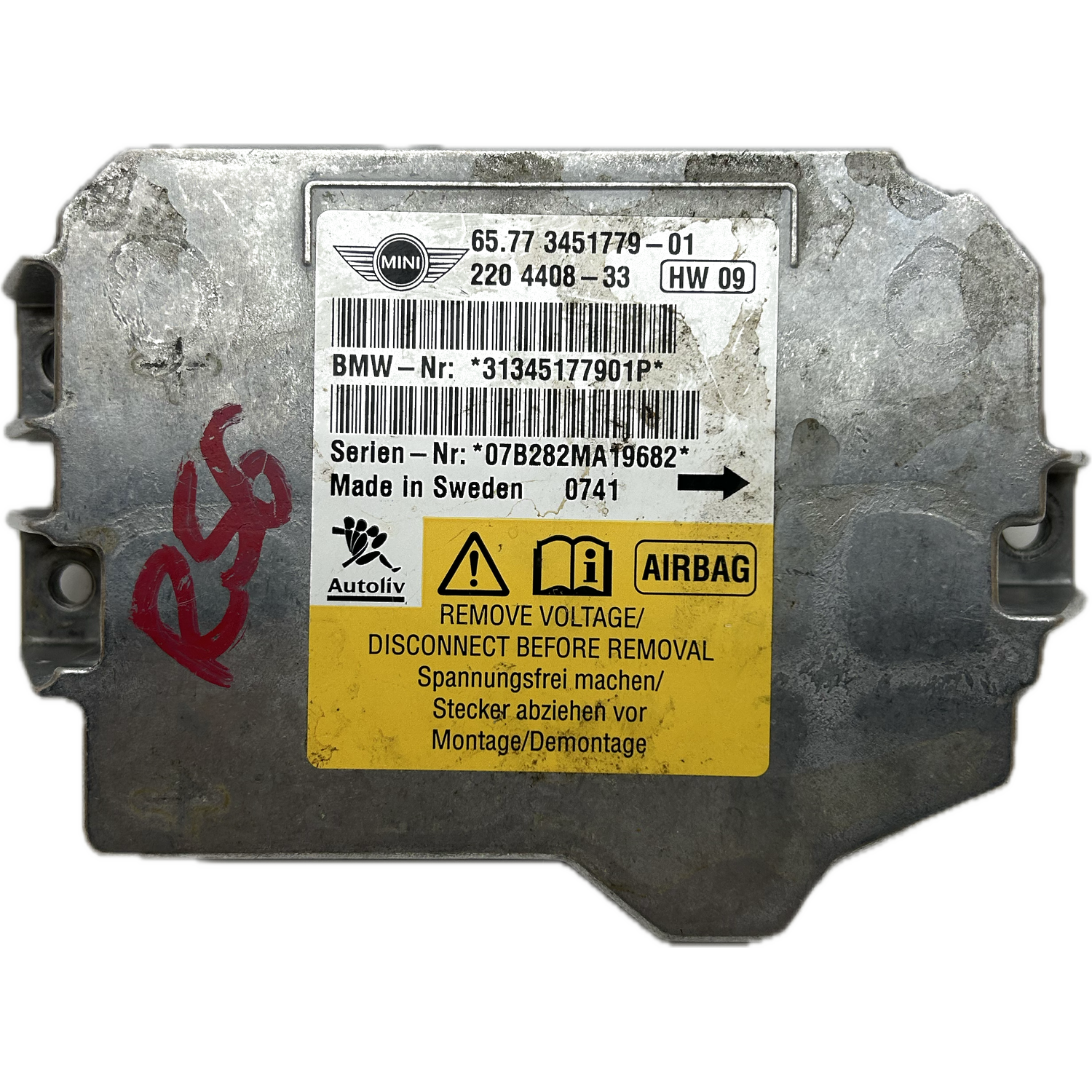

- 65773428715

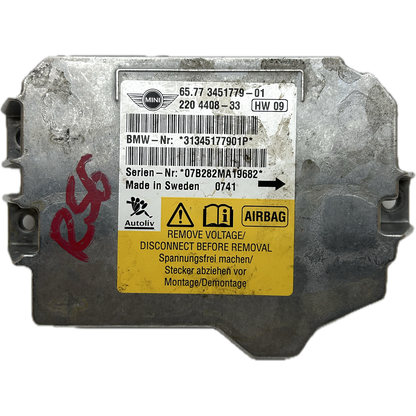

- 65773451779

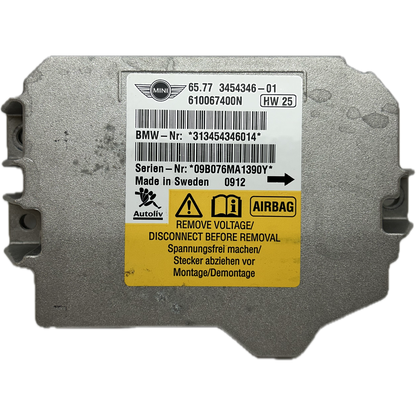

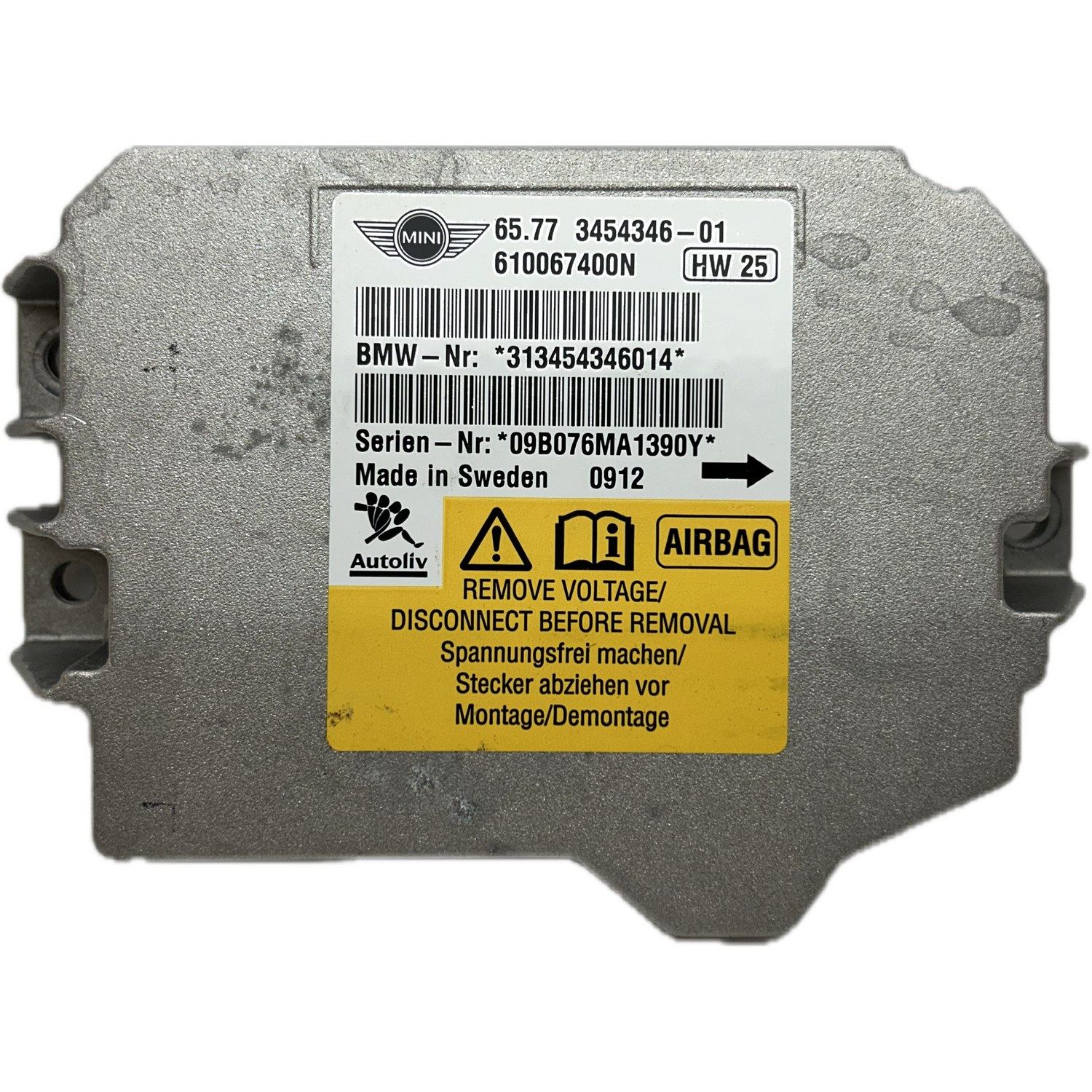

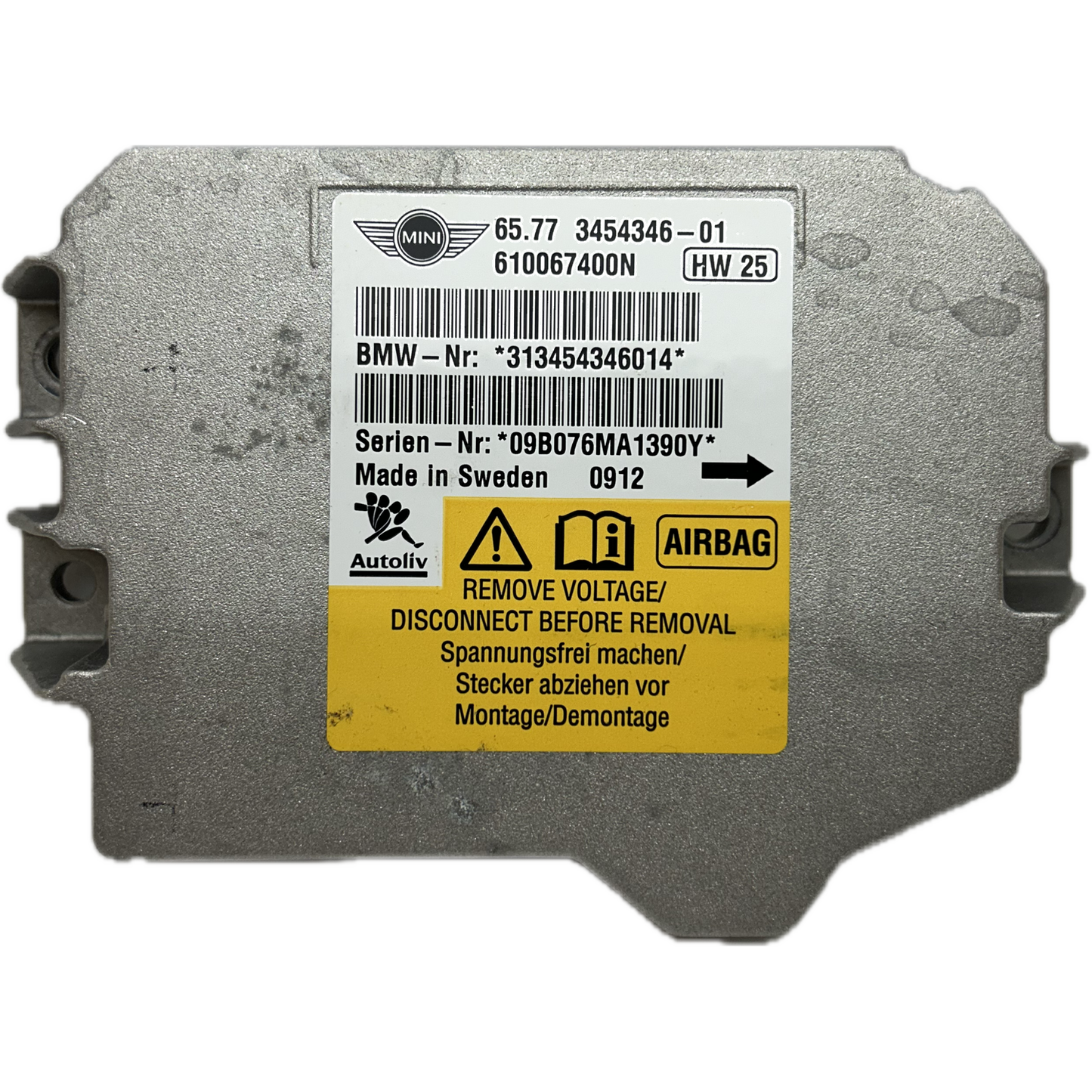

- 65773454346 (often also as 65.77 3454346-01)
- 65779807169
- 65779808714

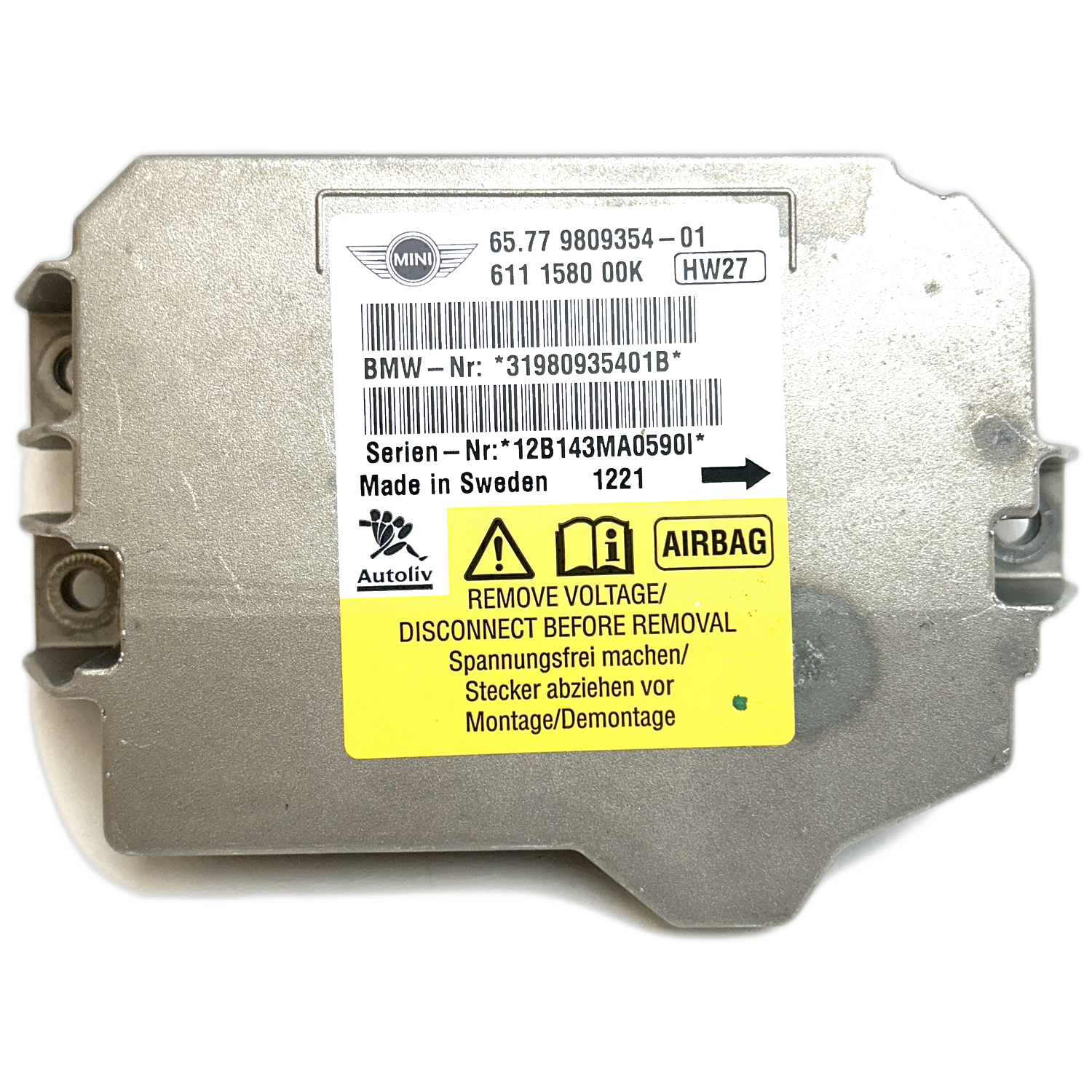

- 65779809354
- 65779811224

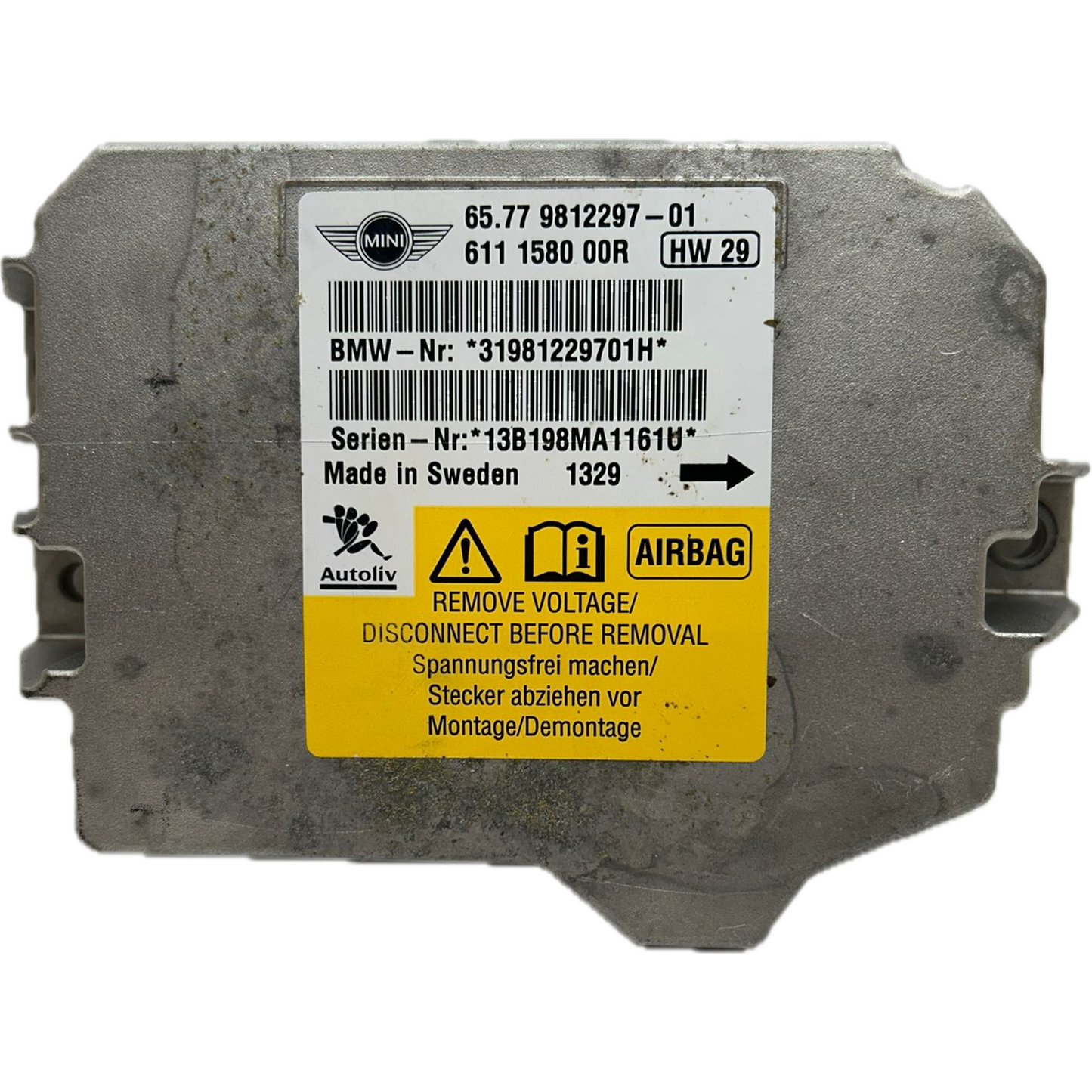

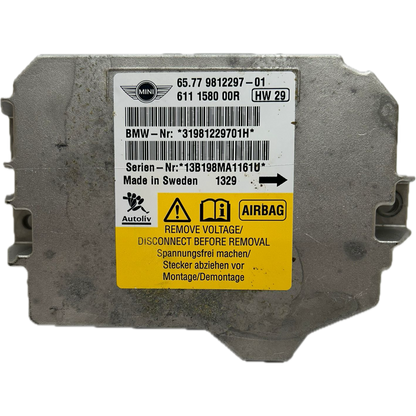

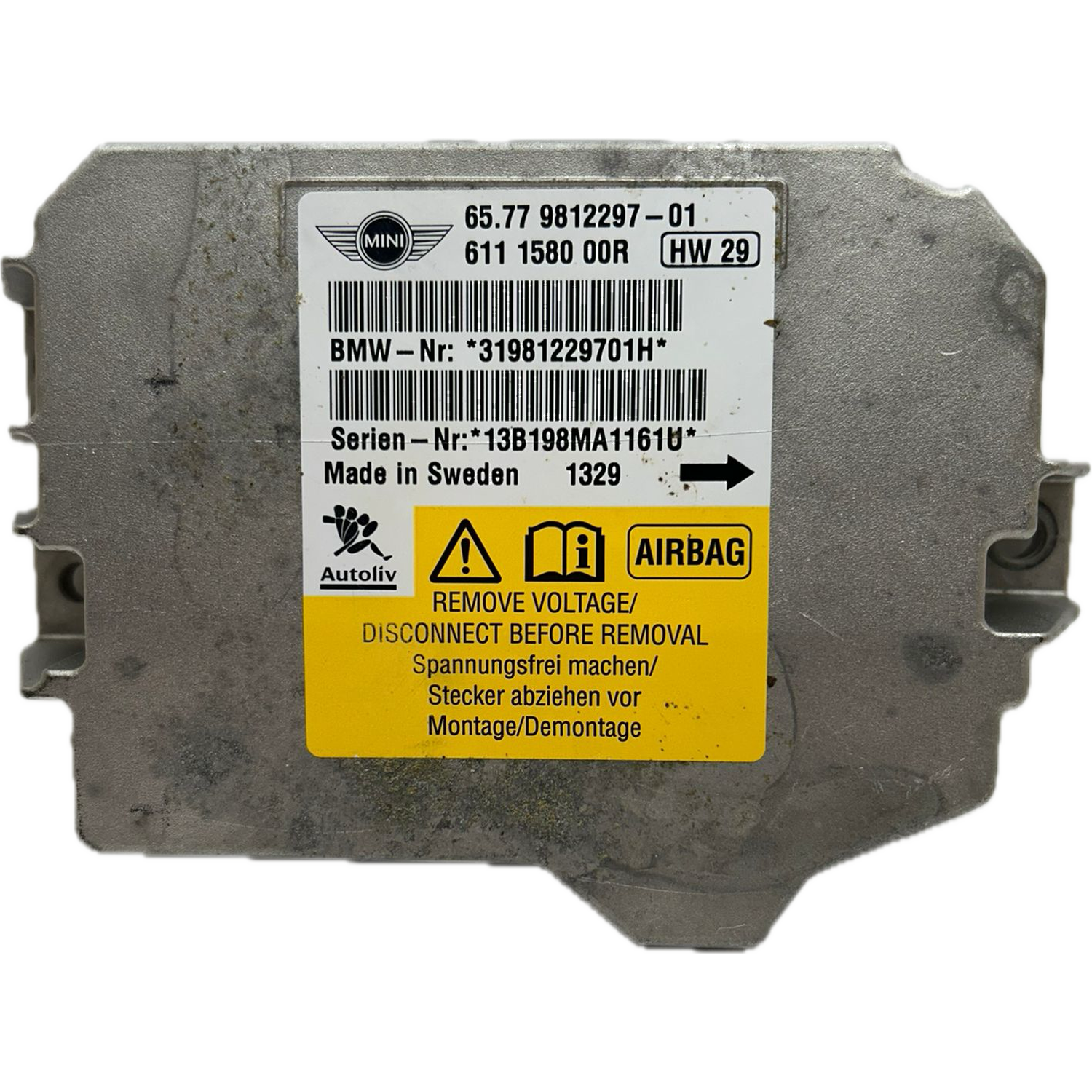

- 65779812297
- 220440810 (Bosch)
- 313454346014
Technical specifications for the MINI Cooper S R56 airbag control unit repair
For a successful MINI Cooper S R56 airbag control unit repair, knowledge of the technical specifications is essential, including the 12-volt power supply, integrated crash sensor interfaces, and support for multiple pyrotechnic ignition circuits. The control unit also contains a flash memory for error and crash data, the contents of which must be erased or updated during the repair.
The control unit is designed for the 12-volt electrical system of the MINI Cooper S R56. It features specialized interfaces.
It controls pyrotechnic ignition circuits for airbags and seat belt pretensioners. Communication takes place via the CAN bus.
Compatibility and model years for the MINI Cooper S R56 airbag control unit
The airbag control unit is specifically designed for the MINI Cooper S R56 (model R56) and covers models from approximately 2005 to 2013, ensuring broad applicability for MINI Cooper S R56 airbag control unit repairs. It is compatible with various engine codes, such as the N12B14A, and can be found in variants such as the MINI One or Cooper, as the basic system architecture is similar.
Compatibility extends to MINI Cooper S models of the R56 type. It also fits certain MINI One and Cooper variants.
It is suitable for vehicles with engine code N12B14A (1.6-liter gasoline engine). The control units are often retroactively replaceable.
Function and repair of the MINI Cooper S R56 airbag control unit
The MINI Cooper S R56 airbag control unit's functionality is based on continuously monitoring sensor values to trigger airbags and seatbelt pretensioners within milliseconds in the event of a collision. A MINI Cooper S R56 airbag control unit repair after an accident involves erasing the stored crash data and correcting internal errors to restore the vehicle's full operational capability and thus its safety.
The control unit receives and processes data from crash and acceleration sensors. This data enables the safety systems to be triggered as needed.
After an accident, immutable crash data is stored in the memory. This data can only be deleted using special diagnostic software.
Error codes in the control unit that indicate an internal defect can be read. A professional repair fixes these errors and deactivates the warning light.

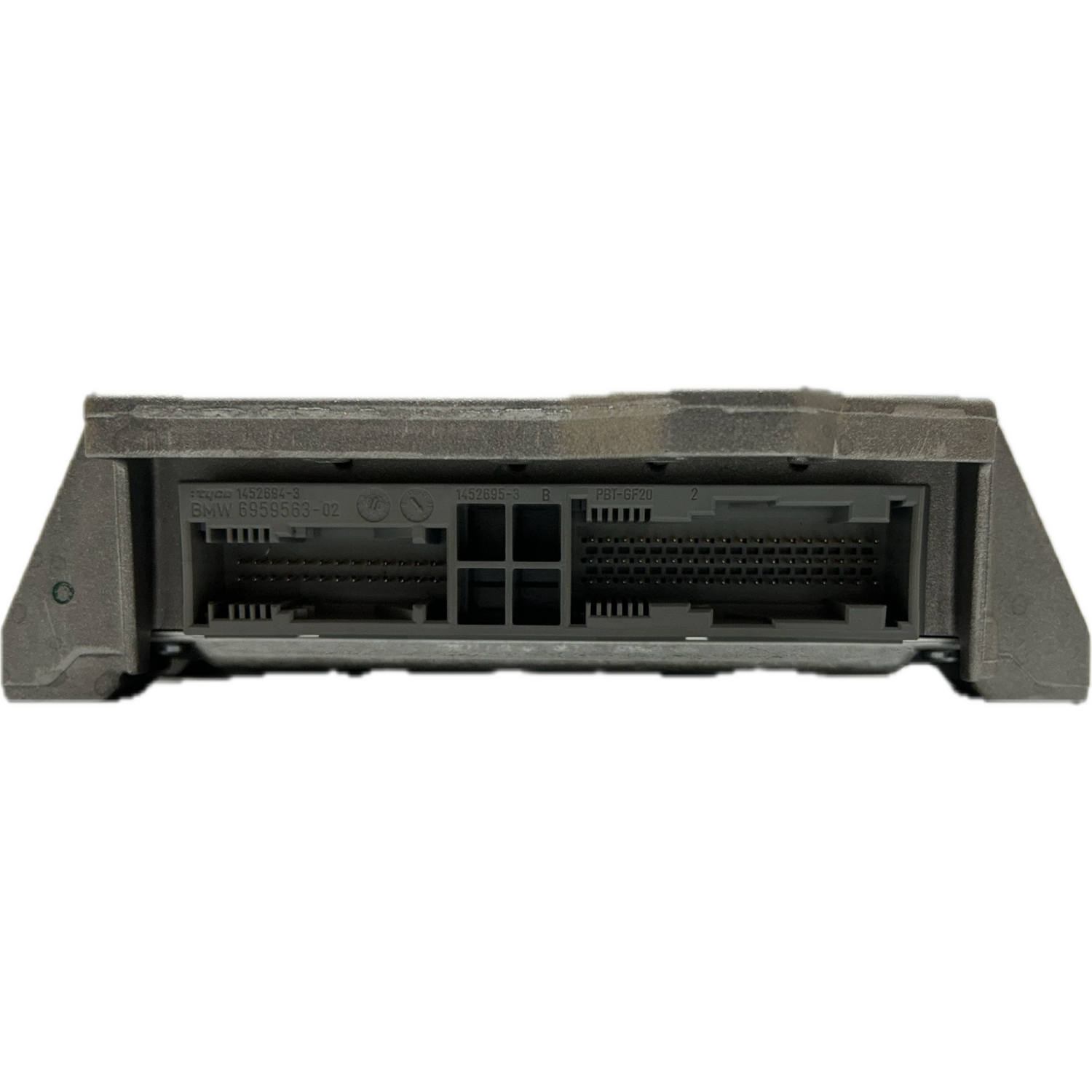

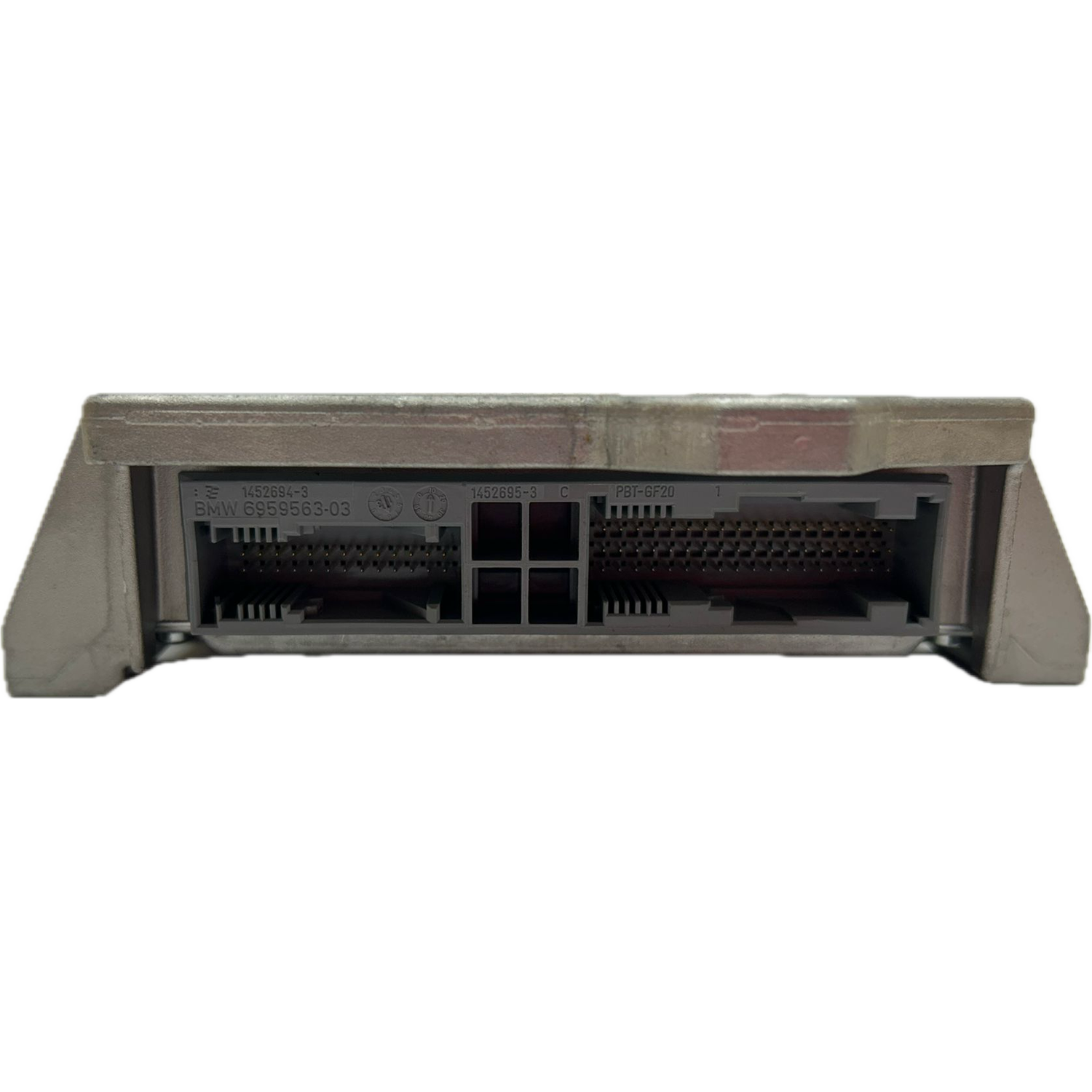

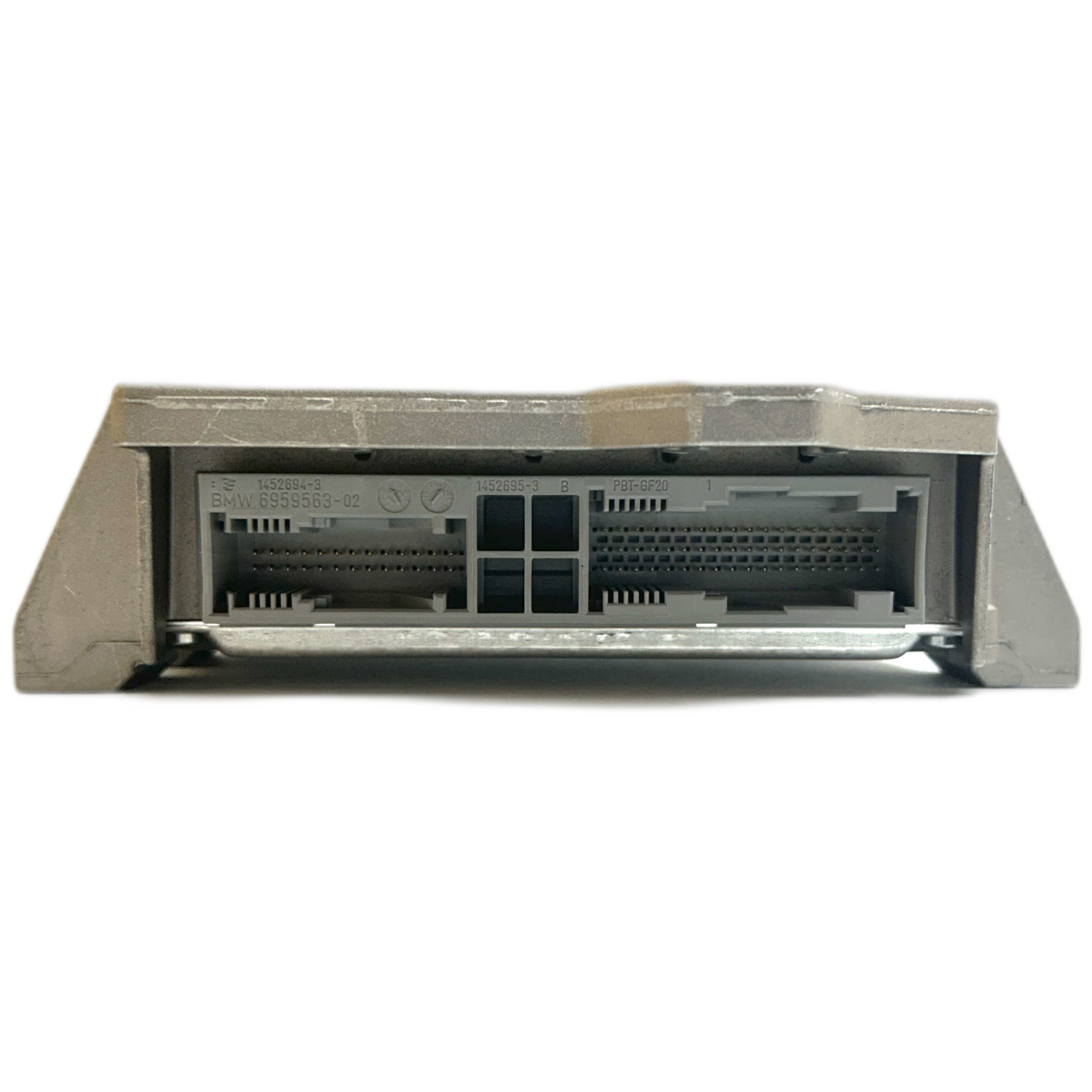

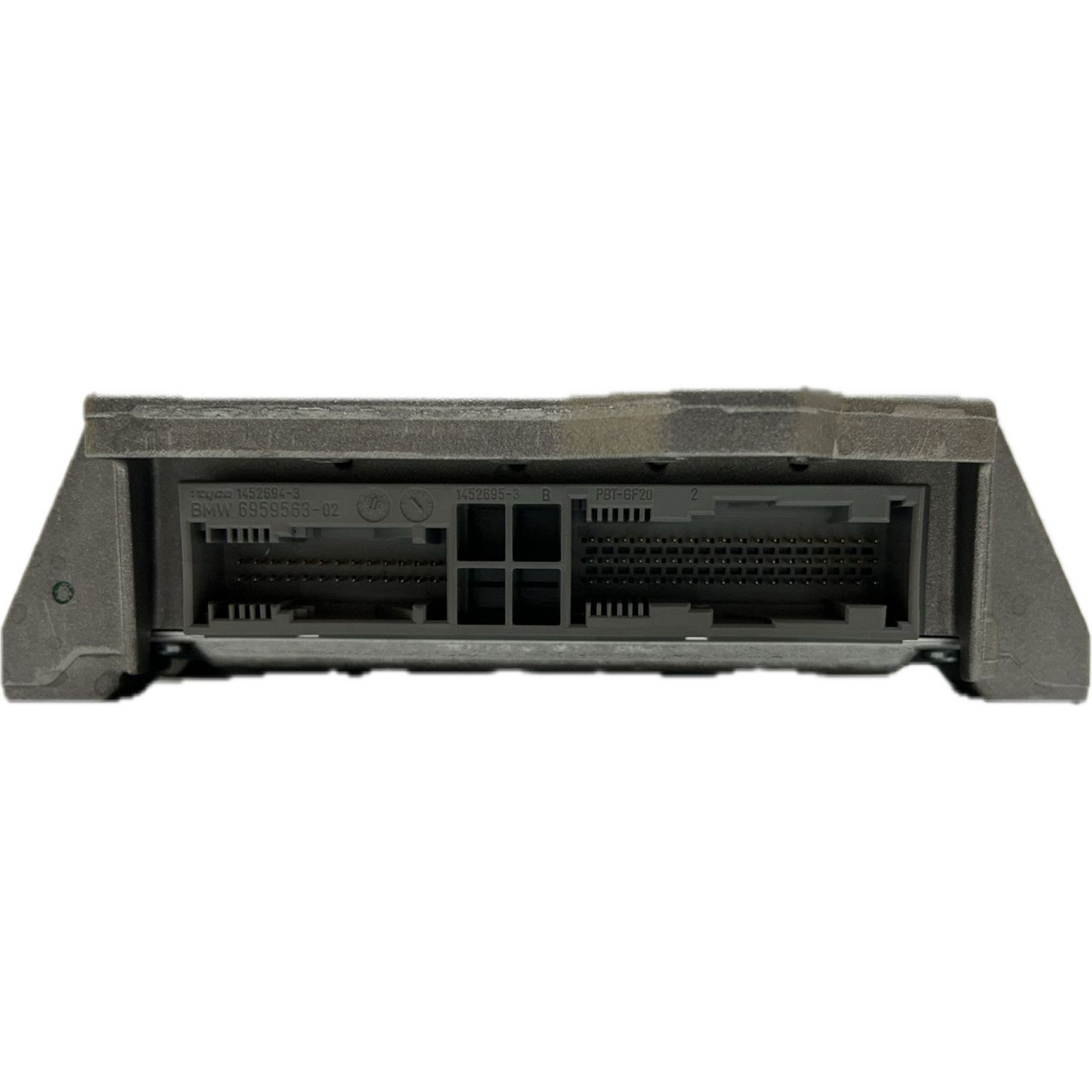

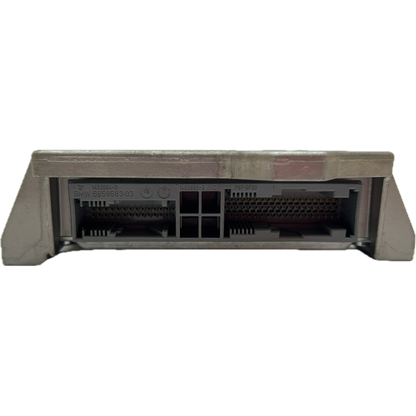

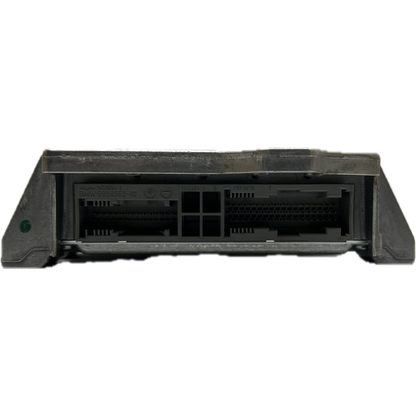

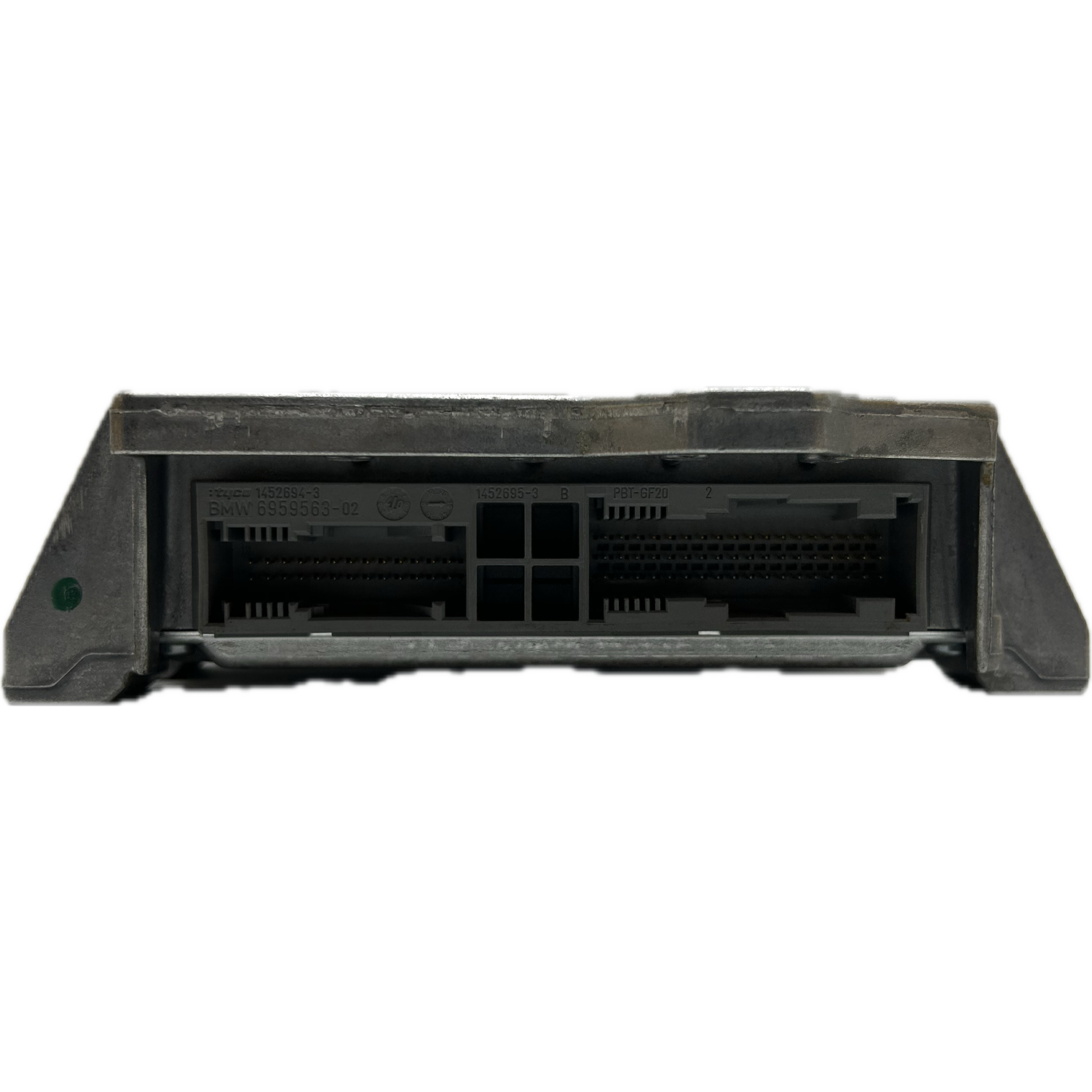

Installation position and connections of the MINI Cooper S R56 airbag control unit
The MINI Cooper S R56 airbag control unit is typically installed centrally in the vehicle, usually in the footwell or under the seat, protected from direct impact. The electrical connections are crucial for the MINI Cooper S R56 airbag control unit repair, including the CAN bus interface for vehicle communication, as well as connections to ignition circuits and several sensor connections, which must be precisely assigned.
The central placement protects the sensitive module, which is often protected by a cover or carpet.

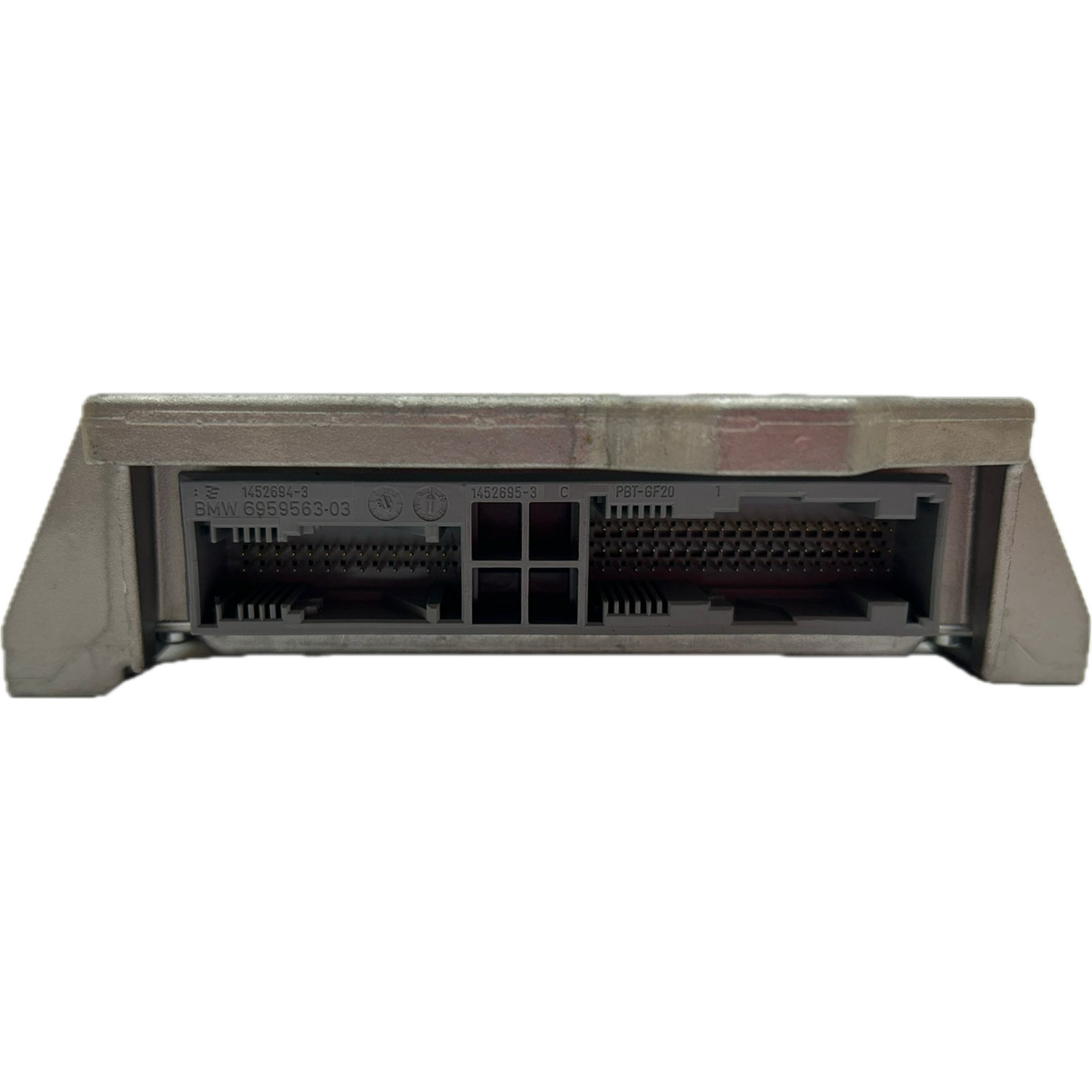

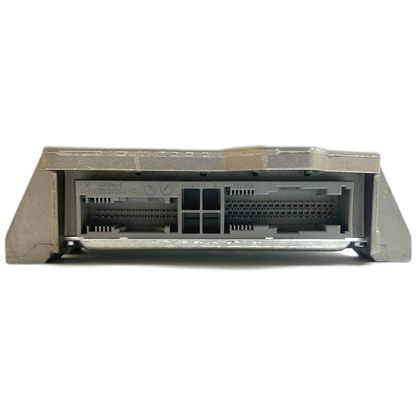

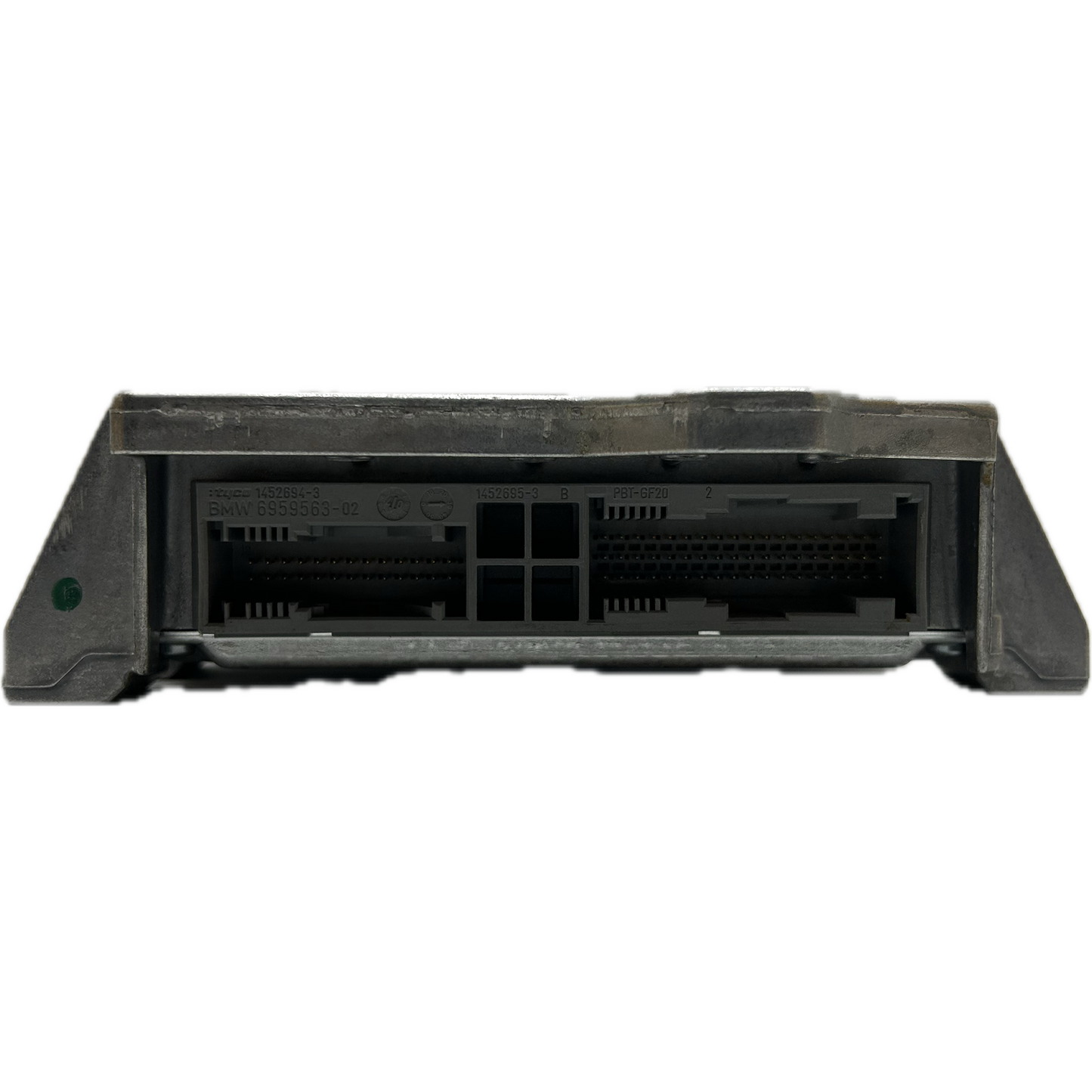

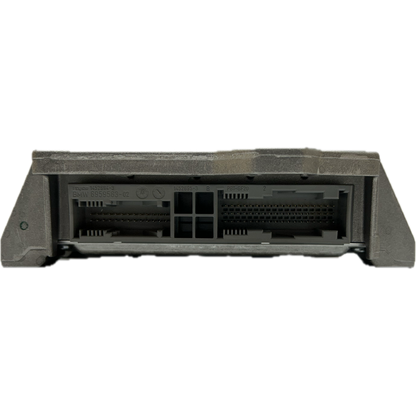

The electrical connections include the CAN bus (high and low), which is important for communication with the vehicle's electrical system. There are also connections for up to 32 ignition circuits.
Several sensor connections (e.g., PSI5 interfaces) connect the control unit to the crash and pressure sensors. Power and ground connections complete the wiring for the MINI Cooper S R56 airbag control unit repair.
Important information about MINI Cooper S R56 airbag control unit repair
MINI Cooper S R56 airbag control unit repair benefits from the availability of numerous compatible and retroactively interchangeable part numbers, simplifying the search for replacement parts. Specialized service providers offer professional testing, repair, and the crucial deletion of crash data to restore the control unit to full functionality and permanently deactivate the airbag warning light.
The various part numbers of the control unit are generally compatible with each other. This ensures high spare parts availability.
Some manufacturers, such as Bosch, offer highly integrated and reliable control units that can manage a multitude of ignition circuits and sensors.
For safety reasons, repairs and installation should only be carried out by trained specialists. Improper handling poses significant risks.
