What is a Mazda Mazda3 BL airbag control unit?
The Mazda Mazda3 BL airbag control unit is the central safety unit in the vehicle, activating all occupant restraint systems in the event of an accident. It continuously monitors sensors, stores relevant crash data, and ensures the proper functioning of all airbag modules and seatbelt pretensioners to provide maximum occupant protection in an emergency.
This module, also known as the Airbag Control Module (ACM) or Airbag ECU, is crucial for the vehicle's passive safety.
It acts as the brain of the Supplemental Restraint System (SRS) by processing signals from accelerometers.
Why is the Mazda Mazda3 BL airbag control unit defective?
A Mazda Mazda3 BL airbag control unit often malfunctions due to internal hardware component failure, corrupted EEPROM memory, or communication errors, requiring immediate Mazda Mazda3 BL airbag control unit repair. Even after an accident, crash data remains stored, which can block the module and cause a persistent airbag warning light, even if there is no further physical damage.
Typical causes of failure include internal circuit errors or problems with the EEPROM that affect system functionality.
Often the airbag warning light remains active even when external components such as sensors or seat belt pretensioners are intact, indicating an internal control unit fault.
Sometimes errors can occur without specific OBD-II codes, which requires a more detailed diagnosis of the module.
Common error codes for Mazda Mazda3 BL airbag control unit repair
When diagnosing a faulty Mazda Mazda3 BL airbag control unit, specific B-codes appear that directly indicate internal module problems and make a Mazda Mazda3 BL airbag control unit repair inevitable. These error codes signal problems with communication, the internal memory, or the hardware of the control unit itself.
- B1000 → Control unit communication error → Error in the internal communication of the module or with the vehicle network.
- B1004 → Airbag control unit self-test failed → The control unit could not successfully complete its internal functional tests.
- B1005 → Internal memory error in the airbag control unit → Problems reading or writing data in the module's internal memory.
- B1016 → Hardware defect in the airbag control unit (component failure) → Internal failure of a physical component such as capacitors or resistors.
- B1128 → EEPROM error (data corrupt) → Data stored in the EEPROM chip is damaged or unreadable.
- B2232 → Control unit-specific error in the airbag module (Mazda) → A general, manufacturer-defined internal error in the airbag module.
What part numbers are available for the Mazda Mazda3 BL airbag control unit repair?
For a successful Mazda Mazda3 BL airbag control unit repair, an exact part number match is crucial, as the module is vehicle-specific and various OEM numbers exist. The following 100% verified OEM part numbers are known for the Mazda 3 BL airbag control unit and ensure compatibility and functionality.
- BFB6-57K30 (Mazda/Autoliv)
- BCF1-57K30 (Mazda/Autoliv)

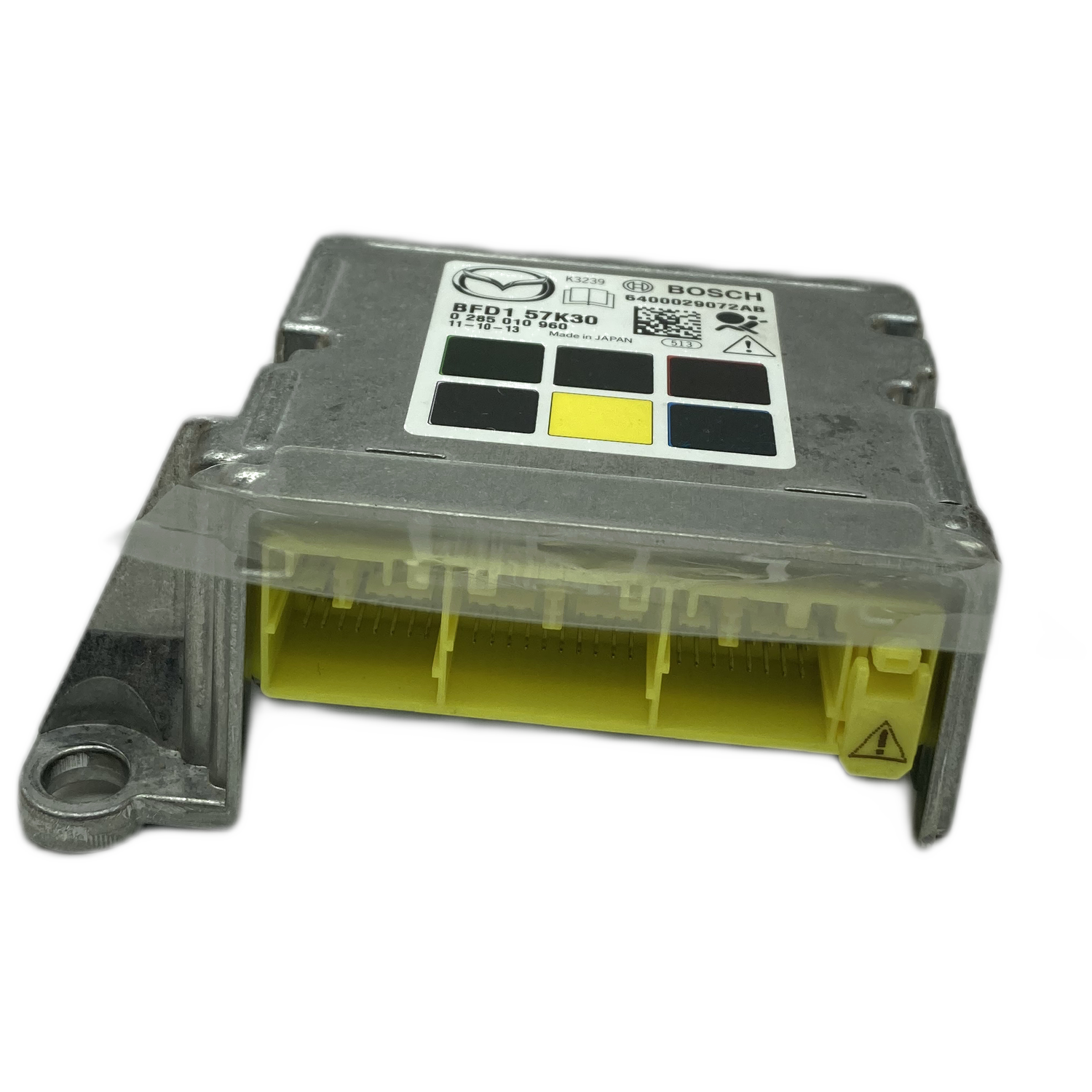

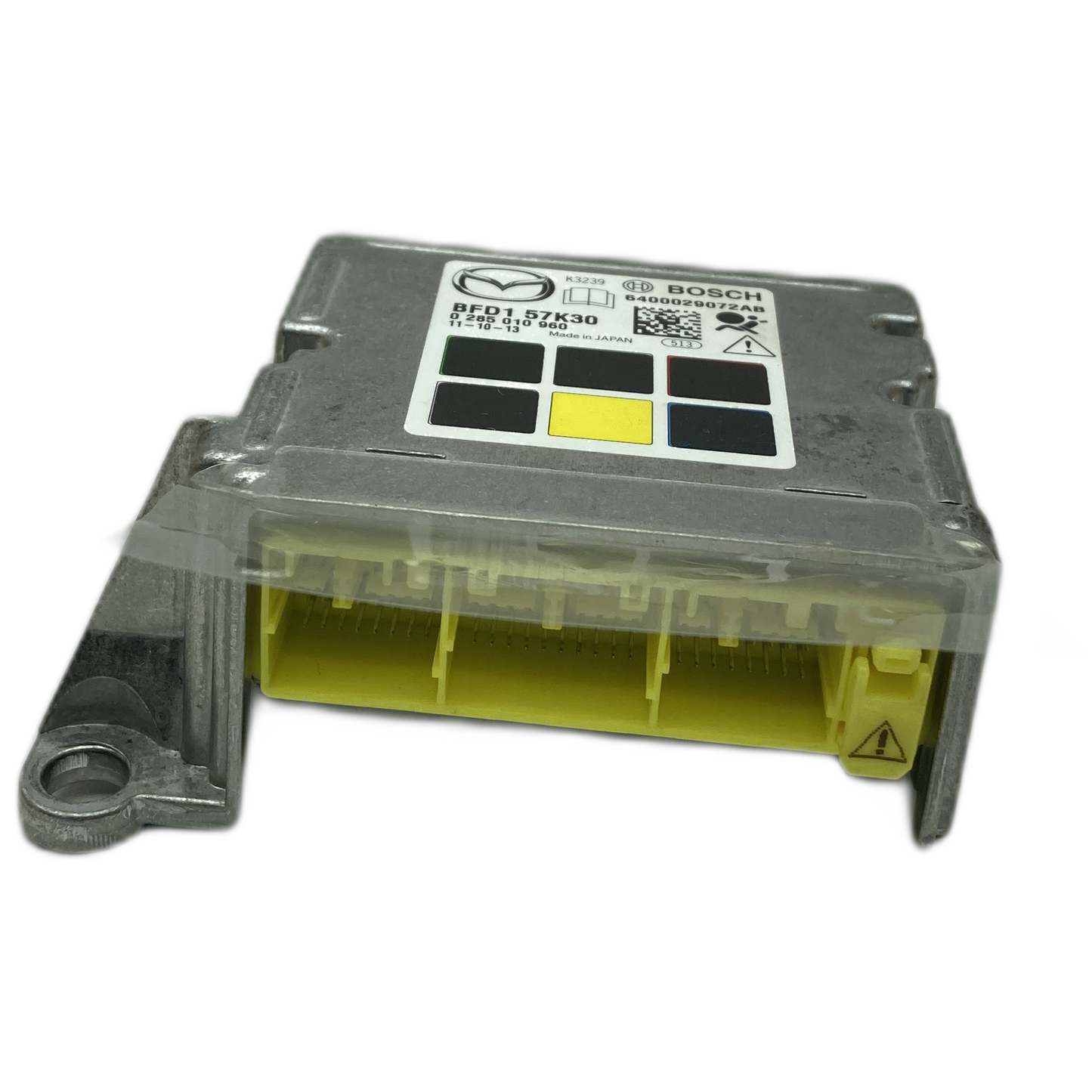

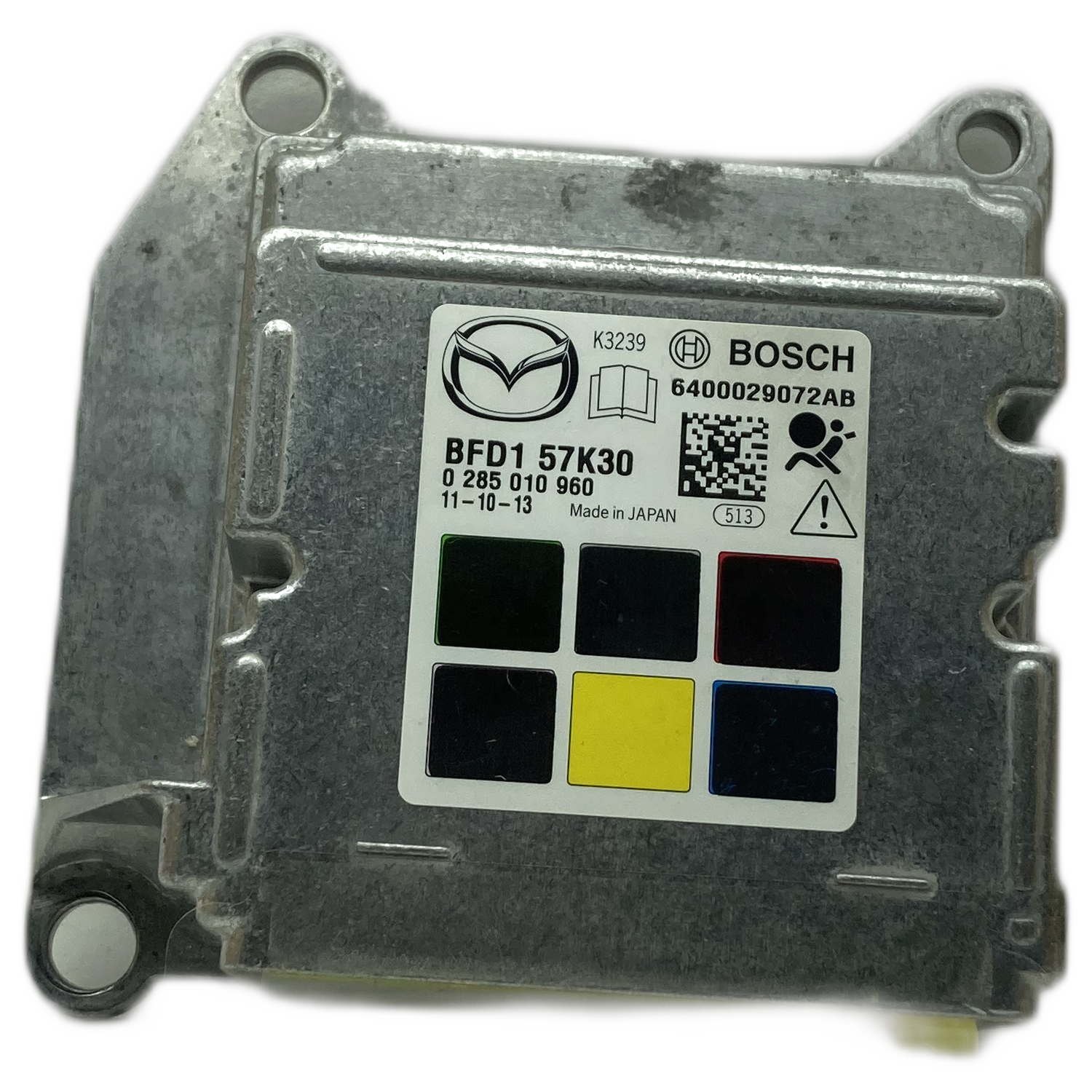

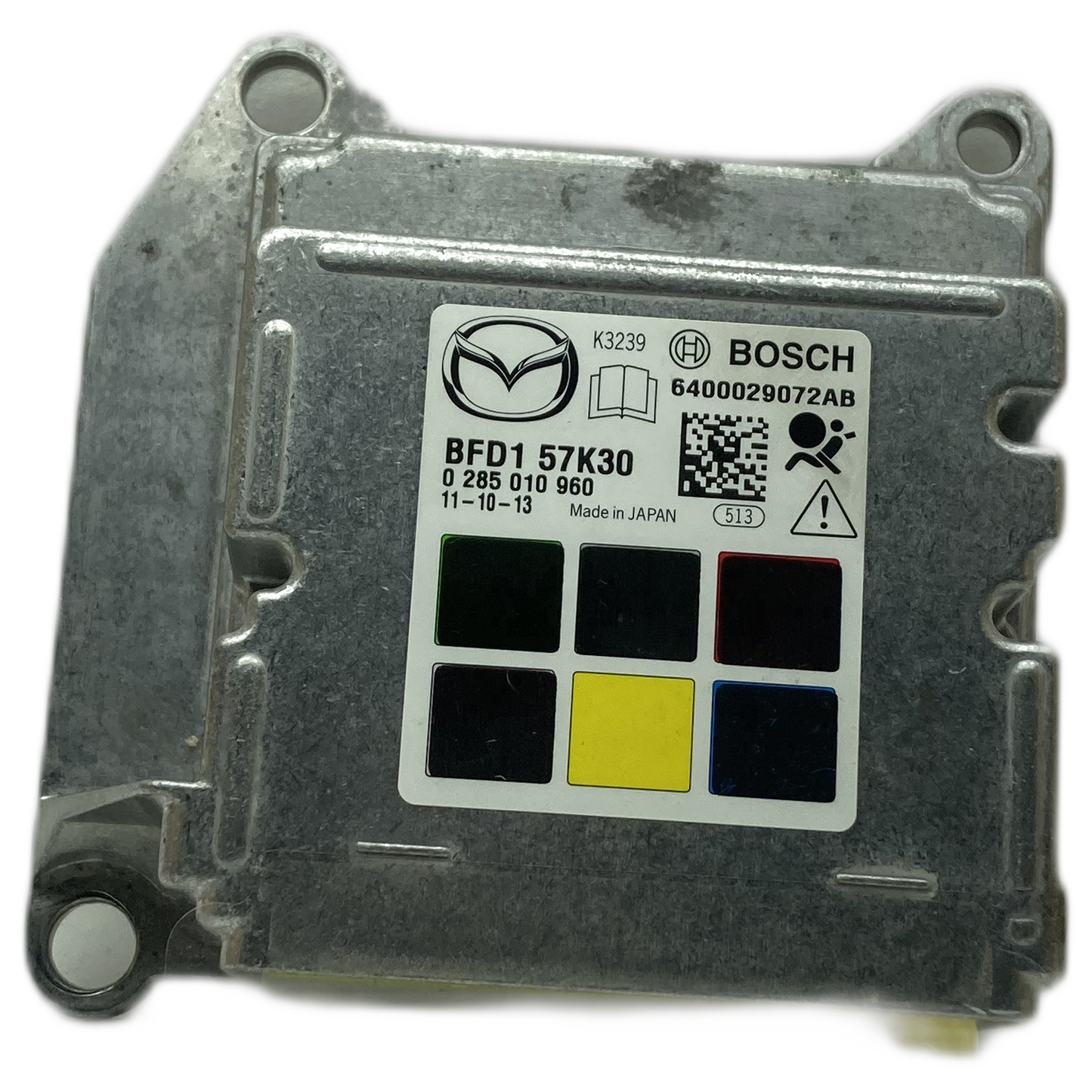

- BFD1-57K30 (Mazda/Autoliv)
- B39G-57K30 (Mazda/Autoliv)
- BR5S-57K30B (Bosch OEM 0285001960)
- BP4K-57K30B (Bosch OEM 0 285 001 453)
These numbers include both genuine Mazda parts and modules from OEM suppliers such as Autoliv and Bosch.
Before installing a replacement module, the existing part number of the defective control unit should always be checked.
Technical specifications and compatibility of the Mazda Mazda3 BL airbag control unit
The airbag control unit is specifically designed for the Mazda Mazda3 BL (model years approximately 2008–2014) and must exactly match the vehicle model to ensure a safe Mazda Mazda3 BL airbag control unit repair. It is a compact unit that is compatible with various engine and body variants of the BL model and controls key safety functions.
The module was developed for all common engines of the Mazda3 BL, including 1.6 petrol, 2.0 petrol, 2.2 diesel (MZR-CD) and the 2.3 Turbo MPS variant.
It is compatible with various body styles such as hatchback (5-door) and sedan (4-door) of the BL series.
The control unit monitors and controls a variety of airbag types, including driver, passenger, side, curtain and, if applicable, knee airbags.
Functionality and features for a safe Mazda Mazda3 BL airbag control unit repair
The Mazda3 BL airbag control unit continuously analyzes vehicle data via acceleration sensors to deploy airbags and seatbelt pretensioners as appropriate in the event of an accident, which is essential for safety after a Mazda3 BL airbag control unit repair. It also stores important crash data and requires professional recoding if necessary.
The system differentiates the activation based on the type of impact, such as frontal or side collision, as well as the occupancy of the seats.
After an accident, crash data is stored in the module, which must be read out and deleted for diagnostic and repair purposes.
Although the module often does not require factory VIN programming, recoding by a Mazda dealer after installation may be advisable.
Installation position and connections of the Mazda Mazda3 BL airbag control unit
The central airbag control unit of the Mazda Mazda3 BL is typically located in the interior, often under the driver's seat or the center console, and is connected to the vehicle's network via several connectors. A Mazda Mazda3 BL airbag control unit repair or replacement must always be performed by qualified personnel, and safety precautions such as disconnecting the battery must be strictly observed.
The central installation position ensures optimal connections to all associated sensors and triggering devices of the airbag system.
The module has complex multi-plug connectors that enable connection to the vehicle's CAN bus system.
Before performing any work on the airbag system, it is essential to completely disconnect the vehicle battery to avoid accidental activation.
Special features and variants of the Mazda Mazda3 BL airbag control unit repair
When repairing the Mazda Mazda3 BL airbag control unit, it's important to note that there are different versions of the control unit, each with its own part number, for example, for base models or sporty MPS versions. After an accident, a repair is often possible by erasing crash data and restoring the module to working order, rather than replacing it entirely.
These are genuine parts; any necessary recoding to the vehicle's VIN must be performed separately and is not part of the parts purchase.
The control unit is closely integrated into the entire vehicle safety system, including seat occupancy detection to trigger airbags in a targeted manner.
Complex cases require special programming devices and detailed expertise to fix internal hardware errors or corrupt data.
