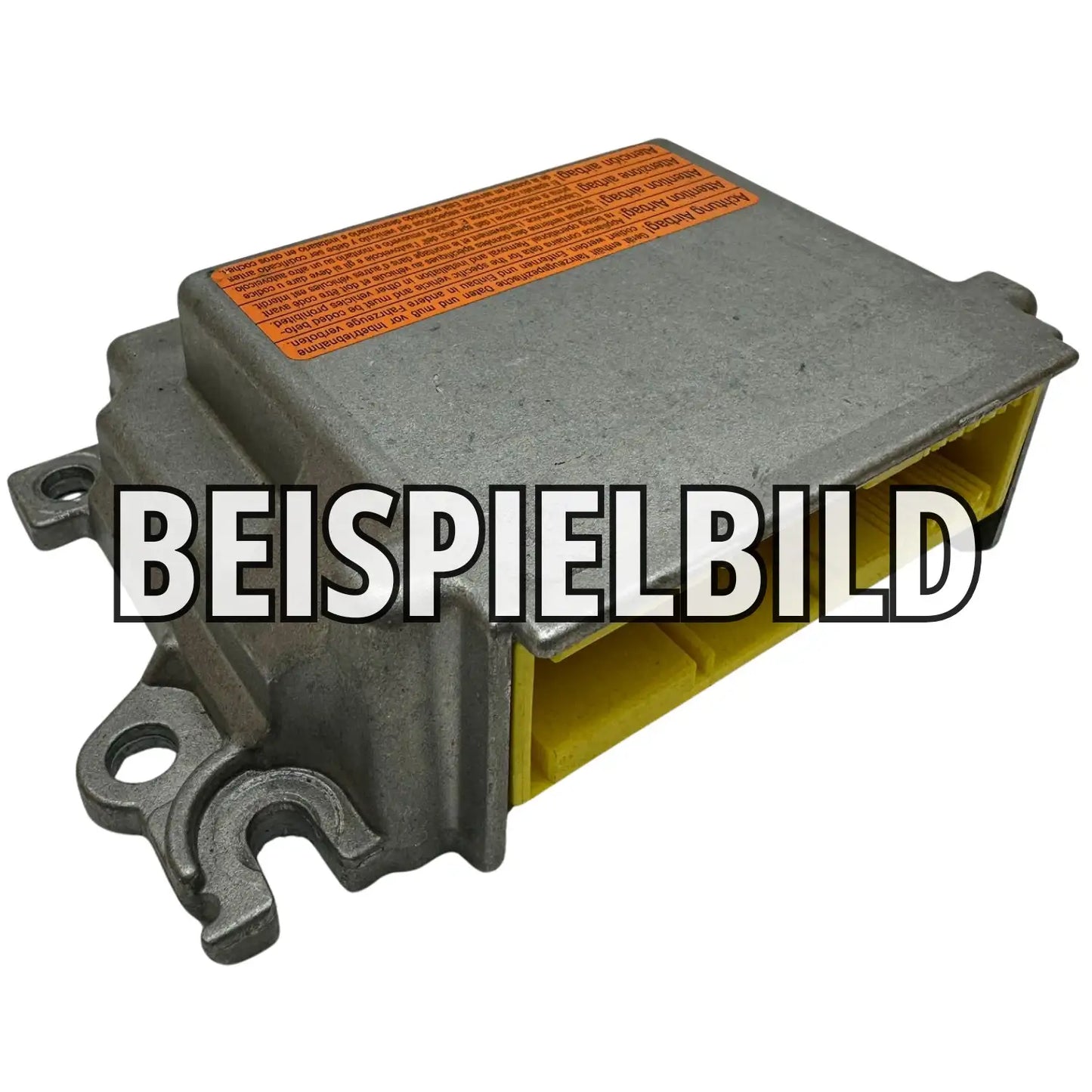

What is a Mazda CX-9 TB airbag control unit?
A Mazda CX-9 TB airbag control unit is the heart of your vehicle's passive safety system, responsible for monitoring and precisely deploying the airbags and seatbelt pretensioners in the event of a collision. It collects data from sensors and stores critical information for post-crash vehicle diagnostics.
This central module, also known as the SRS control unit or airbag computer, is essential for the safety of the occupants of the Mazda CX-9 TB series. It processes information from collision sensors in real time to activate the safety systems only when critical parameters are present.
Its main task is to control and diagnose all components of the airbag system. These include front, side, and curtain airbags, as well as the seatbelt pretensioners, which are designed to provide protection in the event of a collision.
Why is the Mazda CX-9 TB airbag control unit defective?
A Mazda CX-9 TB airbag control unit can fail, often after an accident, as it permanently stores crash data and cannot be reset. Internal component failures, voltage spikes, or corrosion at connectors can also lead to failure, requiring repair or replacement.
After an airbag deployment event, the control unit stores so-called "crash data," which makes further use impossible without a special reset. This data locks the module to ensure functionality in an emergency.
Malfunctions can also be caused by internal electronic defects, short circuits in the airbag circuits, or water ingress. Such damage often manifests itself as the airbag warning light on the dashboard illuminating.
Sometimes the module itself isn't faulty, but rather communication problems or high resistance in the wiring harnesses trigger the error messages. A precise diagnosis is crucial before attempting a Mazda CX-9 TB airbag control unit repair.
Common error codes for Mazda CX-9 TB airbag control unit repair
If a Mazda CX-9 TB airbag control unit repair is necessary, specific error codes are helpful in identifying the cause of the malfunction. These codes directly indicate problems within the control unit or its direct circuits, such as communication errors or improper resistance.
- B1000 → Control unit communication error → Signal interruption or internal defect of the airbag control unit.
- B1994 → Driver airbag circuit high resistance → Increased resistance in the driver airbag circuit, often due to contact problems or corrosion.
- B1998 → Passenger airbag circuit high resistance → Increased resistance in the passenger airbag circuit, often due to similar causes as B1994.
What part numbers are available for the Mazda CX-9 TB airbag control unit repair?
For the Mazda CX-9 TB airbag control unit repair, several original part numbers are validated, ensuring a perfect fit for your vehicle model. It is crucial to match the number printed on your existing module, as small differences can lead to incompatibilities.
Mazda original part numbers include TK4857K30C and TK48-57-K30B, which are listed in official parts catalogs.
Another Mazda original number, also relevant for newer models, is EH62-57-K00.
In addition, the part number TD1157K30 exists, often in conjunction with the alternative OEM number 0285010577, which comes from suppliers such as Autoliv.
These numbers identify the correct airbag control unit and are not for sensors or other components.
Technical specifications and features of the Mazda CX-9 TB airbag control unit
The Mazda CX-9 TB airbag control unit is a highly complex Sophisticated Airbag Sensor (SAS) unit that provides precise crash detection and response functions. It monitors all passive safety systems and stores relevant diagnostic data for the workshop.
The control unit is used for the comprehensive control and monitoring of the entire airbag and belt tensioner systems. It is connected via special, often yellow-colored connectors with gold-plated pins to ensure secure and corrosion-free data transmission.
An integrated backup power supply ensures that the module remains functional for a short time even after the vehicle battery is disconnected. This enables controlled post-discharge and prevents unwanted activation.
The diagnostic function stores all detected errors and accident events as error codes. After a replacement, the new module often requires vehicle-specific reprogramming to the vehicle identification number (VIN).
Compatibility and installation of the Mazda CX-9 TB airbag control unit
The Mazda CX-9 TB airbag control unit is primarily designed for the 2007 and 2008 model years of the first generation CX-9. It is typically installed centrally in the vehicle, with the specific coding to the chassis number requiring precise coordination for full functionality.
The compatibility of this control unit is strictly limited to the TB series of the Mazda CX-9. Due to the complex coding and vehicle-specific software, its use in other Mazda models or different model years is not possible without professional adaptation.
The module is typically installed centrally in the vehicle, often under the center console or driver's seat. This location ensures short and direct connection paths to the airbag modules and crash sensors throughout the vehicle.
The connectors consist of several yellow multi-plug connectors that communicate with the front, side, and curtain airbags, as well as the seat belt pretensioner control. Special wiring harnesses and short-circuit clips in the connectors increase safety during installation.
Important information about Mazda CX-9 TB airbag control unit repair
A Mazda CX-9 TB airbag control unit repair requires special attention, as the module cannot be simply reset after a crash and requires recoding to the vehicle identification number (VIN). It is crucial to inspect all components involved after an accident and replace them if necessary.
After airbags are deployed, the control unit usually needs to be replaced, as it irreversibly stores crash data. A reset is only possible by specialized service providers with professional equipment and is not a do-it-yourself task.
Used and professionally tested modules can be a cost-effective and reliable alternative and often come with a warranty. This helps keep the cost of a Mazda CX-9 TB airbag control unit repair within reasonable limits.
After an accident, it is strongly recommended to replace not only the control unit, but also deployed airbags, seat belt pretensioners, and, if applicable, crash sensors. This ensures the full restoration of the vehicle's safety standards.
Proper function often requires programming or coding the replacement module to the vehicle's VIN. This work should be performed by a specialist workshop with appropriate diagnostic equipment to avoid errors and the risk of failure.
