What is a Lexus IS IS300h airbag control unit?
The Lexus IS IS300h airbag control unit (SRS) is the central safety unit that activates all occupant restraint systems in the event of an accident. It precisely monitors sensor data from impact sensors and seat occupancy, stores important crash data, and ensures the proper deployment of all airbag modules in the vehicle.
This module is critical to the Supplemental Restraint System (SRS) and coordinates the vehicle's response in the event of a collision. It continuously processes signals to enable rapid and targeted airbag deployment.
Proper functioning of the control unit is essential, as it is directly responsible for passenger safety and, if malfunctioning, activates the airbag warning light. Therefore, a professional Lexus IS IS300h airbag control unit repair is highly recommended in the event of a defect.
Why is the Lexus IS IS300h airbag control unit defective?
A Lexus IS IS300h airbag control unit may be defective because crash data was irretrievably stored after an accident, preventing a reset. Internal hardware errors or problems with the communication interface can also lead to failure, necessitating immediate Lexus IS IS300h airbag control unit repair.
After a collision, the control unit stores special crash data that prevents the airbags from deploying again, thus rendering the module unusable. This data often cannot be erased using standard diagnostic tools.
Other causes include internal electronic defects, short circuits, or moisture damage that impair the control unit's functions. Such problems typically manifest themselves as a permanently illuminated airbag warning light.
Common error codes for Lexus IS IS300h airbag control unit repair
During Lexus IS IS300h airbag control unit repairs, specific error codes often occur that directly affect the control unit and indicate internal problems. These codes signal either communication problems or the storage of crash data that prevent normal operation.
- B1000 → Control unit communication error → Defective internal control unit hardware or problems with the CAN bus connection to the vehicle.
- B1100 → Crash data stored, error in the control unit → Data stored after an accident that blocks the deletion of the error and the reactivation of the airbag system.
What part numbers are available for the Lexus IS IS300h airbag control unit repair?
Several OEM part numbers are relevant for Lexus IS IS300h airbag control unit repair, with 89170-53380 being the primary one for the IS300h. Other possible numbers such as 89170-53850 and 89170-53370 may be compatible for certain models. A precise check with the VIN is always required.
The OEM part number 89170-53380 is verified as a genuine module directly for the Lexus IS 300h. This number is often the first choice when sourcing a replacement part.

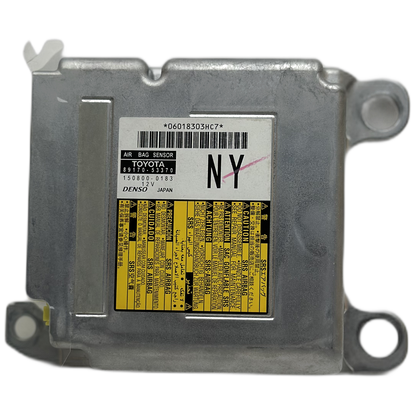

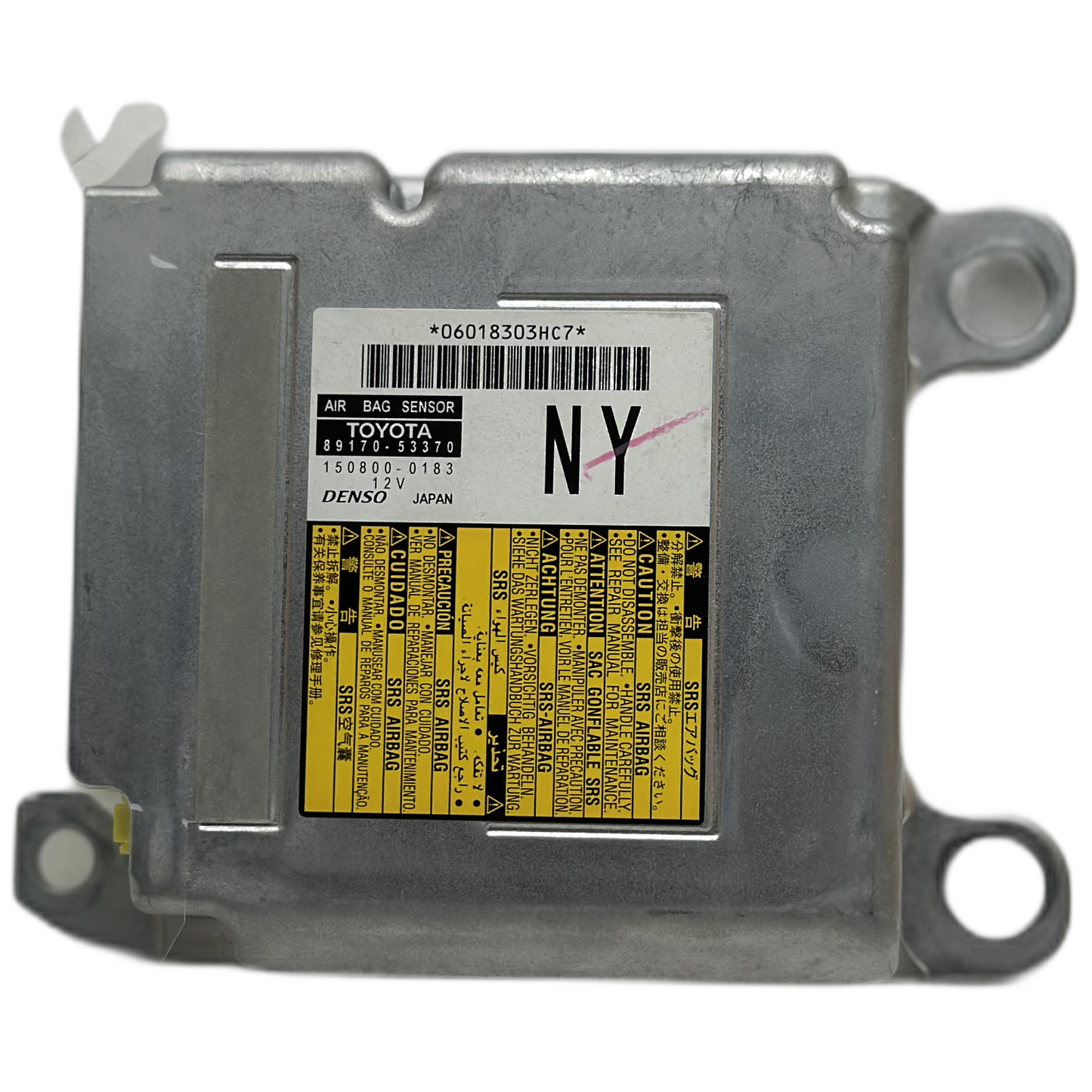

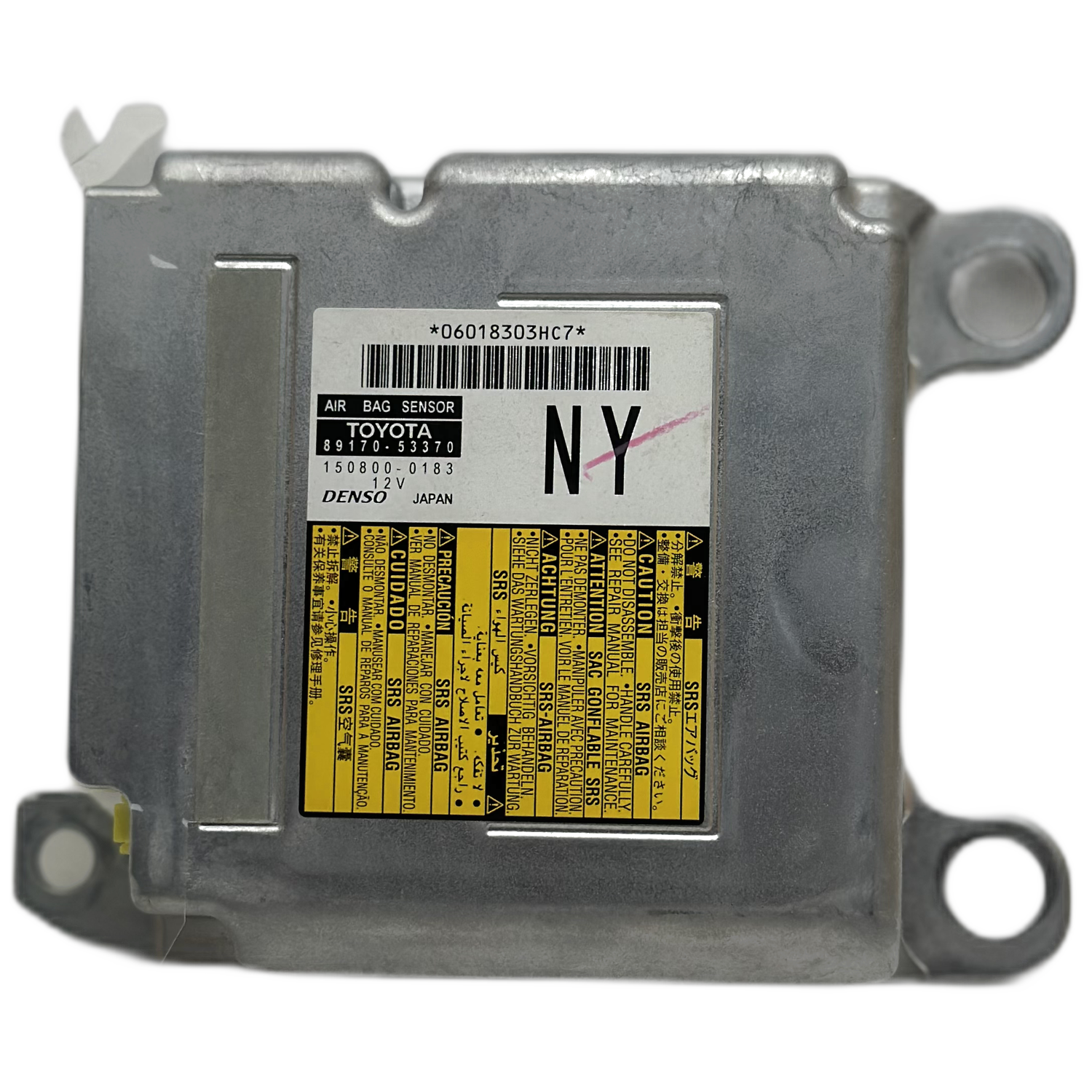

Numbers like 89170-53850 are primarily for the Lexus IS300 (petrol), but some sources also list them as compatible with the IS300h. 89170-53370 is another frequently used original number.
No explicit OEM part numbers for the Lexus IS 300h airbag control unit could be verified from suppliers such as Bosch, Continental, Siemens, or Autoliv.
Technical specifications and functionality of the Lexus IS IS300h airbag control unit
The Lexus IS IS300h airbag control unit controls the entire safety system (SRS) through precise evaluation of crash and seat occupancy sensors. It enables differentiated deployment of airbags and seatbelt pretensioners, communicates via the CAN bus, and ensures maximum occupant safety in the event of a collision.
The control unit continuously receives data from impact and pressure sensors, as well as the seat occupancy detection system, to determine the need for and type of restraint system deployment. It is connected to the 12V vehicle electrical system.
It controls the deployment of dual-stage airbags and seat belt pretensioners, minimizing the risk of injury. Integrated short-circuit mechanisms in the connectors prevent accidental deployment, increasing safety during operation.
The system is fully integrated into the vehicle's internal CAN bus system, enabling comprehensive diagnostics and coordination with other control units. Professional diagnostics are essential for Lexus IS IS300h airbag control unit repair.
Installation position and special features of the Lexus IS IS300h airbag control unit repair
The Lexus IS IS300h airbag control unit is typically located under the radio or in the center console on the vehicle floor, protected from environmental influences. Installation requires strict safety precautions, such as disconnecting the vehicle's battery and waiting a while to prevent accidental airbag deployment and ensure safety.
The modules are equipped with bright yellow, multi-pin connectors to prevent confusion and ensure a corrosion-resistant connection. Correct and secure connections are crucial for proper function.
Special caution is required: Disconnect the vehicle battery and wait at least three minutes before beginning any work on the system. Testing airbag connectors with measuring devices must also be avoided.
Repair services for this control unit are a cost-effective alternative to replacement. Professional workshops use specialized Lexus service tools for precise troubleshooting and successful Lexus IS IS300h airbag control unit repair.
