What is a Hyundai i20 BC airbag control unit?
The Hyundai i20 BC airbag control unit is the central safety unit in the vehicle, precisely deciding whether to deploy the airbags and seatbelt pretensioners in the event of a collision. It continuously monitors all components of the restraint system, stores important crash data, and thus ensures the safety of the occupants of the Hyundai i20 BC.
This specialized electronic unit receives signals from impact sensors. Within milliseconds, it calculates the need for deployment. It is crucial for a successful Hyundai i20 BC airbag control unit repair.
The control unit communicates with other vehicle systems via the CAN bus. It ensures that the airbag system is functional at all times.
Why is the Hyundai i20 BC airbag control unit defective?
A Hyundai i20 BC airbag control unit often fails because it permanently stores crash data after an accident, which must be erased, or because it is damaged by internal malfunctions such as voltage fluctuations and aging processes. A Hyundai i20 BC airbag control unit repair is then essential to restore full functionality.
After an impact, the control unit stores indelible crash data. This data prevents the unit from being used again without a special Hyundai i20 BC airbag control unit repair or reset.
Moisture ingress or short circuits can also lead to failure. In such cases, the control unit is defective and must be repaired or replaced.
Sometimes, aging electronics or software errors can cause malfunctions. In these cases, a professional diagnosis is essential to resolve the issue.
Common error codes for Hyundai i20 BC airbag control unit repair
During the Hyundai i20 BC airbag control unit repair, specific error codes occur that directly indicate problems with the control unit itself, such as communication problems, resistance values in the driver airbag circuit or defects in the warning light circuit, which require immediate diagnosis.
- B1000 → Control unit communication error → Cause: The airbag control unit does not communicate correctly with other vehicle systems or diagnostic devices.
- B1346 → DAB circuit (driver airbag) resistance high → Cause: There is too high resistance in the driver airbag circuit, often due to wiring or internal control unit problems.
- B2500 → Airbag warning light circuit fault → Cause: The control unit detects a defect or an open circuit in the circuit of the airbag warning light in the dashboard.
What part numbers are available for the Hyundai i20 BC airbag control unit repair?
For a successful Hyundai i20 BC airbag control unit repair, various OEM part numbers are relevant to ensure compatibility with your vehicle and serve as a reference for replacement or repair. These include specific Hyundai/Mobis and Bosch numbers verified for the i20 BC model.
The most frequently verified part numbers are 95910-1J100 (Hyundai/Mobis) and its Bosch equivalent, 5WK43925-95640. These are directly confirmed for the i20 BC and are used in the workshop.

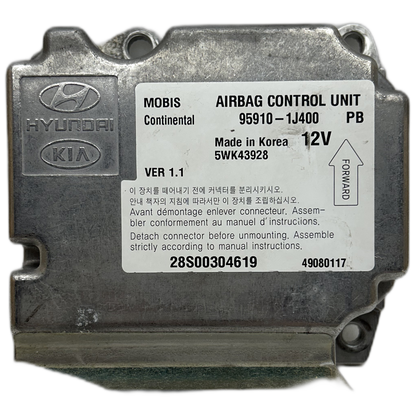

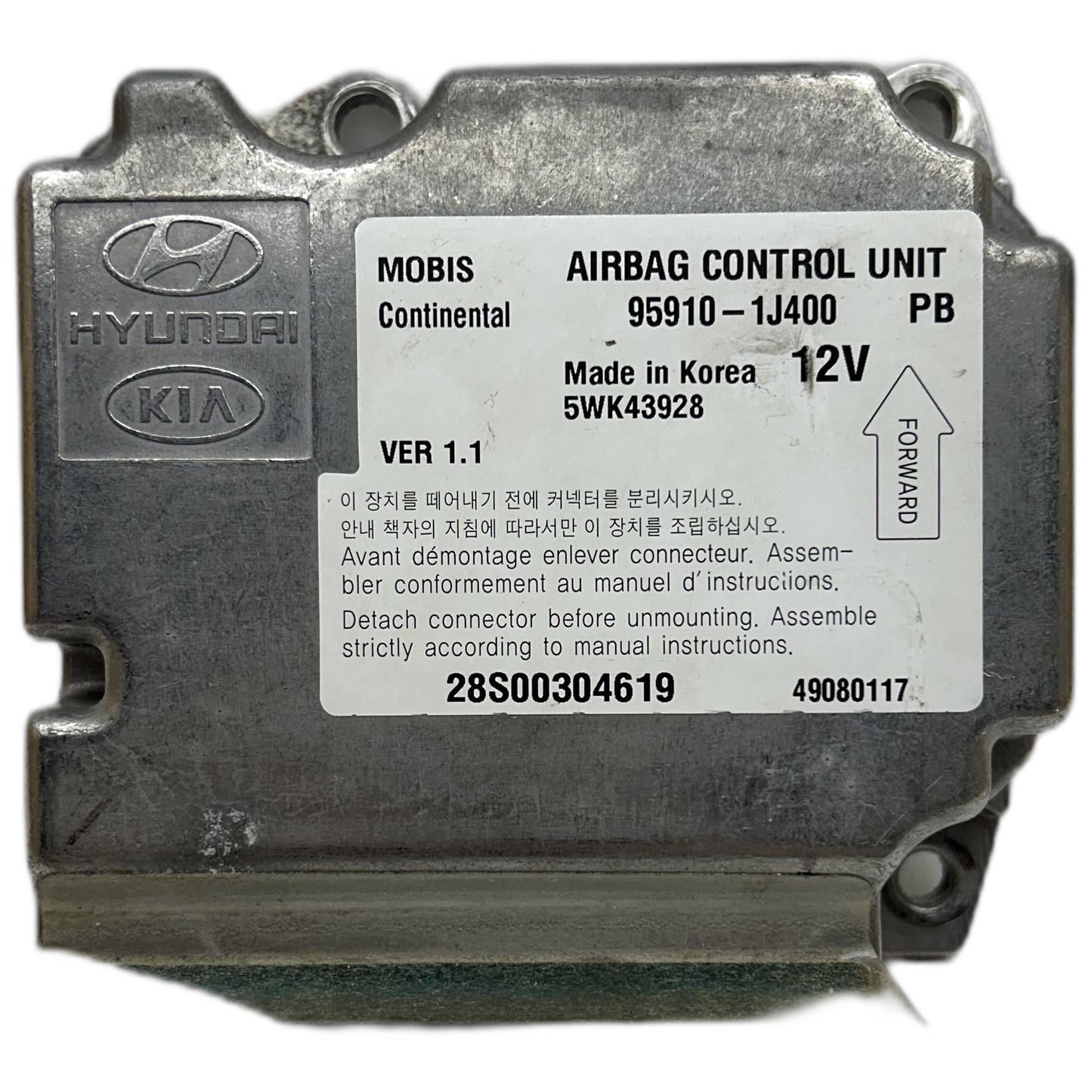

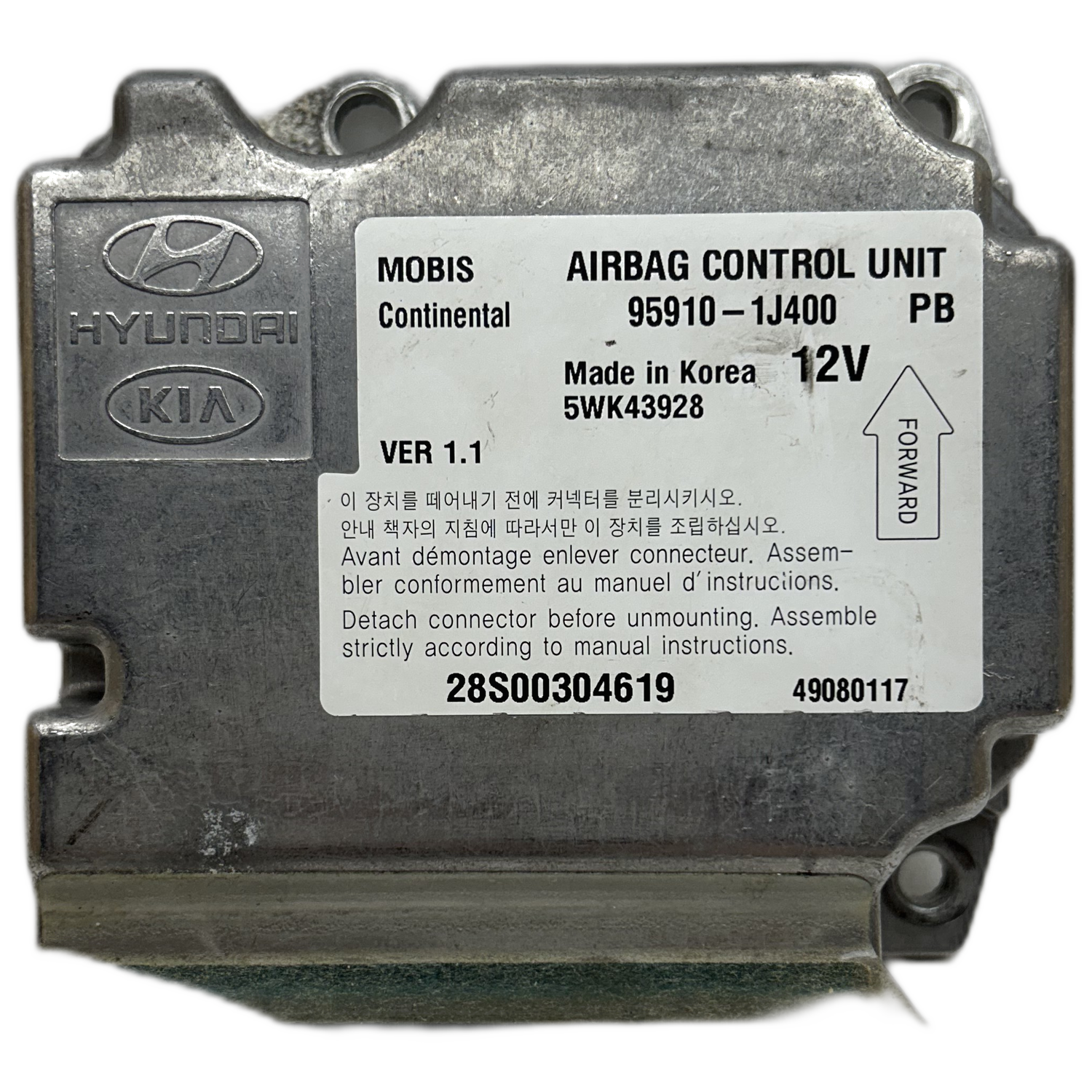

Another important OEM number is 95910-1J400 from Hyundai/Mobis, also listed several times for the Hyundai i20 BC airbag control unit repair.
Part number 95910-C8100 is also a confirmed Hyundai OEM number for this model, often found on used units. The exact part number is crucial for correct selection and function.
Technical specifications and compatibility of the Hyundai i20 BC airbag control unit
The Hyundai i20 BC airbag control unit is specifically designed for the 12-volt electrical systems of the i20 BC generation and communicates via CAN bus to precisely process impact signals. It is compatible with various engines and trim levels from model years 2014 to 2020 and is crucial for reliable Hyundai i20 BC airbag control unit repair and vehicle operation.
It operates on 12 volts of on-board voltage and is connected to the sensors via the CAN bus. This enables fast and reliable data transmission within the vehicle.
Compatibility extends to models such as the Hyundai i20 (BC generation). This includes variants with 1.2-liter and 1.0 T-GDI engines.
Special yellow connectors with gold-plated contacts ensure a secure connection. They prevent corrosion and ensure long-lasting operation to prevent system failure.
Function and installation of the Hyundai i20 BC airbag control unit
The Hyundai i20 BC airbag control unit continuously analyzes sensor data and activates the airbags and seatbelt pretensioners as needed, also indicating faults via the warning light. Typically located under the center console, its installation is a safety-critical process that requires careful workshop work.
Its main function is real-time monitoring of the entire airbag system. It ensures that all restraint systems are correctly deployed in the event of an accident.
System errors are signaled by the airbag warning light in the dashboard. Early diagnosis can prevent major damage and improve safety.
The control unit is usually installed centrally under the center console or dashboard, where it is protected from external influences such as vibrations.
Strict safety protocols must be followed during installation and repair of the Hyundai i20 BC airbag control unit. This applies particularly to battery disconnection and the correct positioning of components in the workshop.
