What is a Honda CR-V 5th Gen airbag control unit?
The Honda CR-V 5th Gen airbag control unit is the central safety unit that precisely activates all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It continuously monitors sensors, stores relevant crash data, and ensures the proper functioning of the entire Supplemental Restraint System (SRS) in the vehicle for maximum occupant safety.
This essential component is essential for the proper functioning of the passive safety system in your 5th generation Honda CR-V.
It acts as a brain, interpreting signals from impact sensors and other modules to respond quickly in an emergency.
Why is the Honda CR-V 5th Gen airbag control unit defective?
The Honda CR-V 5th Gen airbag control unit can be defective because crash data is often permanently stored after an accident, preventing the system from being reset. Internal hardware or software errors, such as a problem with the EEPROM memory or communication issues, can also necessitate repair or replacement of the control unit for the Honda CR-V 5th Gen airbag control unit.
Typical defects include the storage of crash data after an accident, which blocks the reactivation of the airbags.
Internal errors in the EEPROM memory or on the circuit board can cause the airbag warning light to stay on.
Sometimes water damage or age-related material fatigue are causes of control unit failure.
Common error codes for Honda CR-V 5th Gen airbag control unit repair
During Honda CR-V 5th Gen airbag control unit repairs, specific error codes may occur that indicate problems with the control unit itself, such as internal errors, communication problems, or crash data storage after an accident. These codes are crucial for diagnosing and successfully repairing the airbag system to restore vehicle safety.
- B1000 → Control unit communication error → Indication of interruption or defect in communication with the airbag control unit.
- B0021 → Internal error in the airbag control unit → Occurs as a direct control unit error in this Honda CR-V model.
- B1610 → Crash data stored (crash data block) → Indicates that crash data is stored in the control unit after an accident.
- B1611 → Crash data cannot be deleted → Indicates that the stored crash data prevents the fault memory from being deleted.
- B1615 → Internal control unit error (e.g. EEPROM problem) → May cause the airbag warning light to stay on and requires repair.
What part numbers are available for the Honda CR-V 5th Gen airbag control unit repair?
For Honda CR-V 5th Gen airbag control unit repairs, specific, 100% verified OEM part numbers are relevant, ensuring the component's compatibility and authenticity. These numbers, including variants from supplier Siemens, guarantee that the control unit is precisely tailored to the vehicle's safety architecture and enables professional repair.
The following OEM part numbers are verified for the airbag control unit of the Honda CR-V 5th generation (type RW, model years 2016-2023):

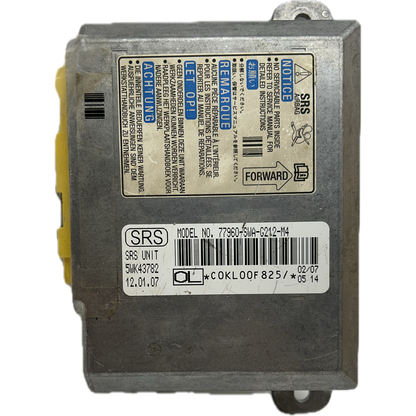

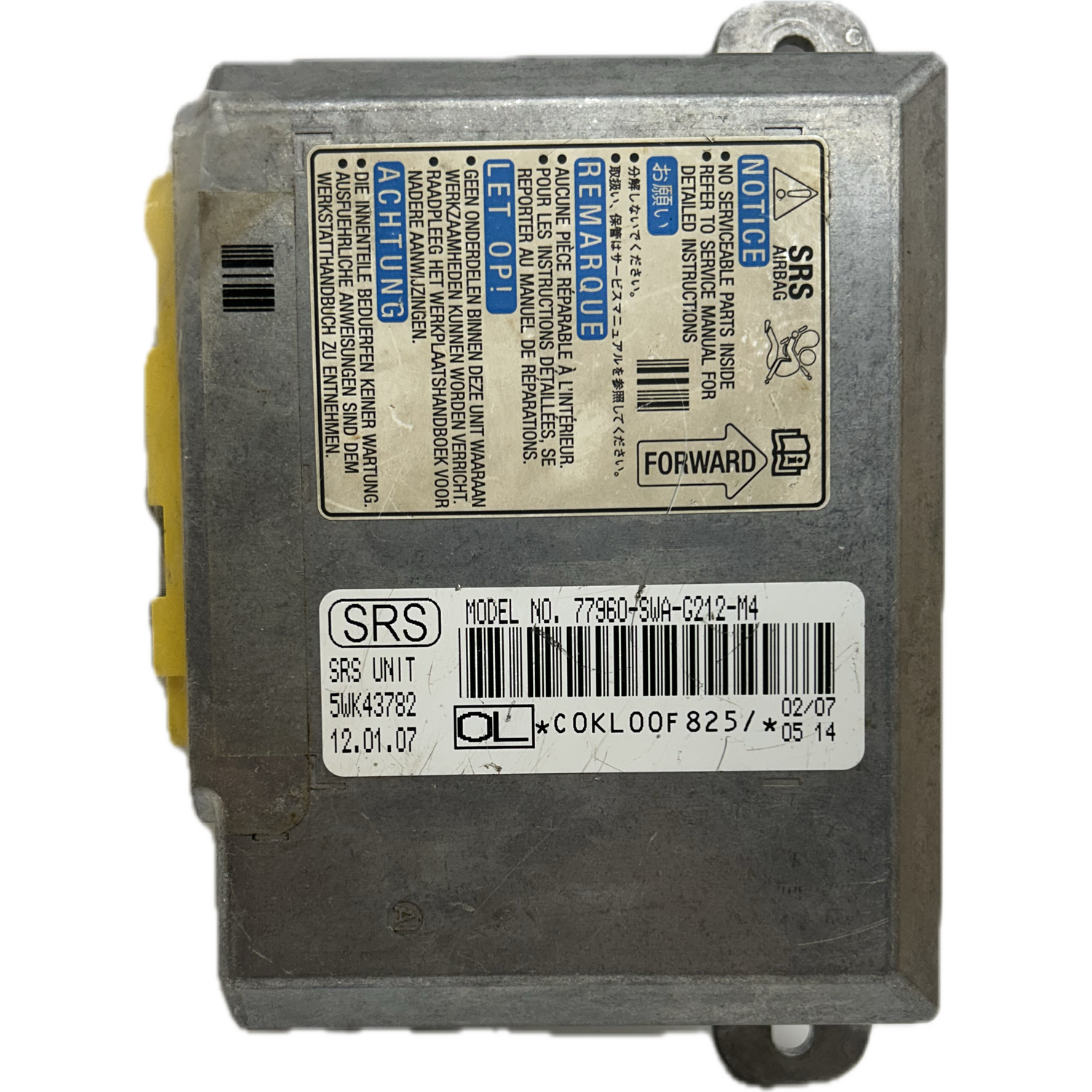

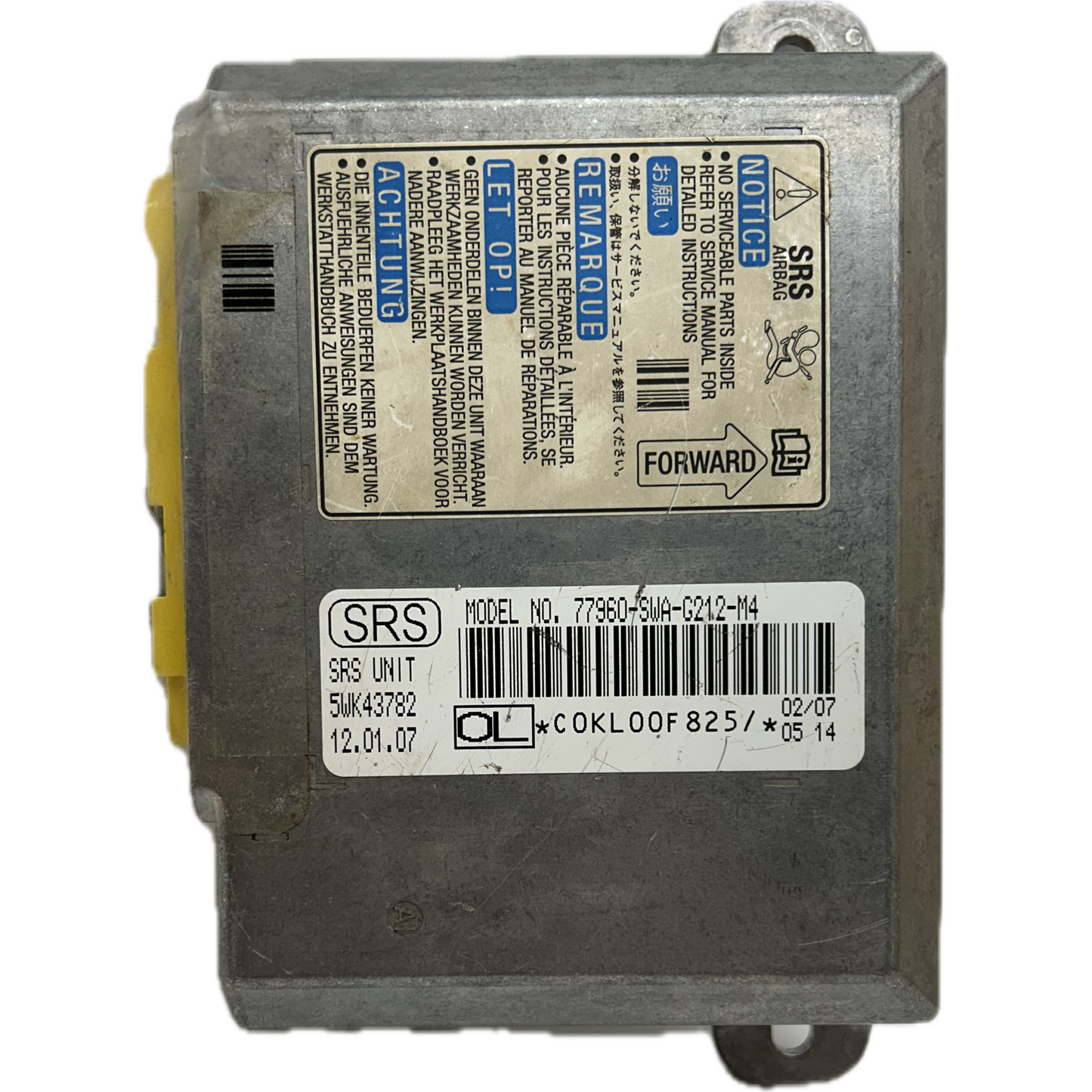

- 77960-SWA-G212-M4 (Honda/Siemens) → Original OEM airbag control unit, also identified with Siemens supplier number 5WK43782.

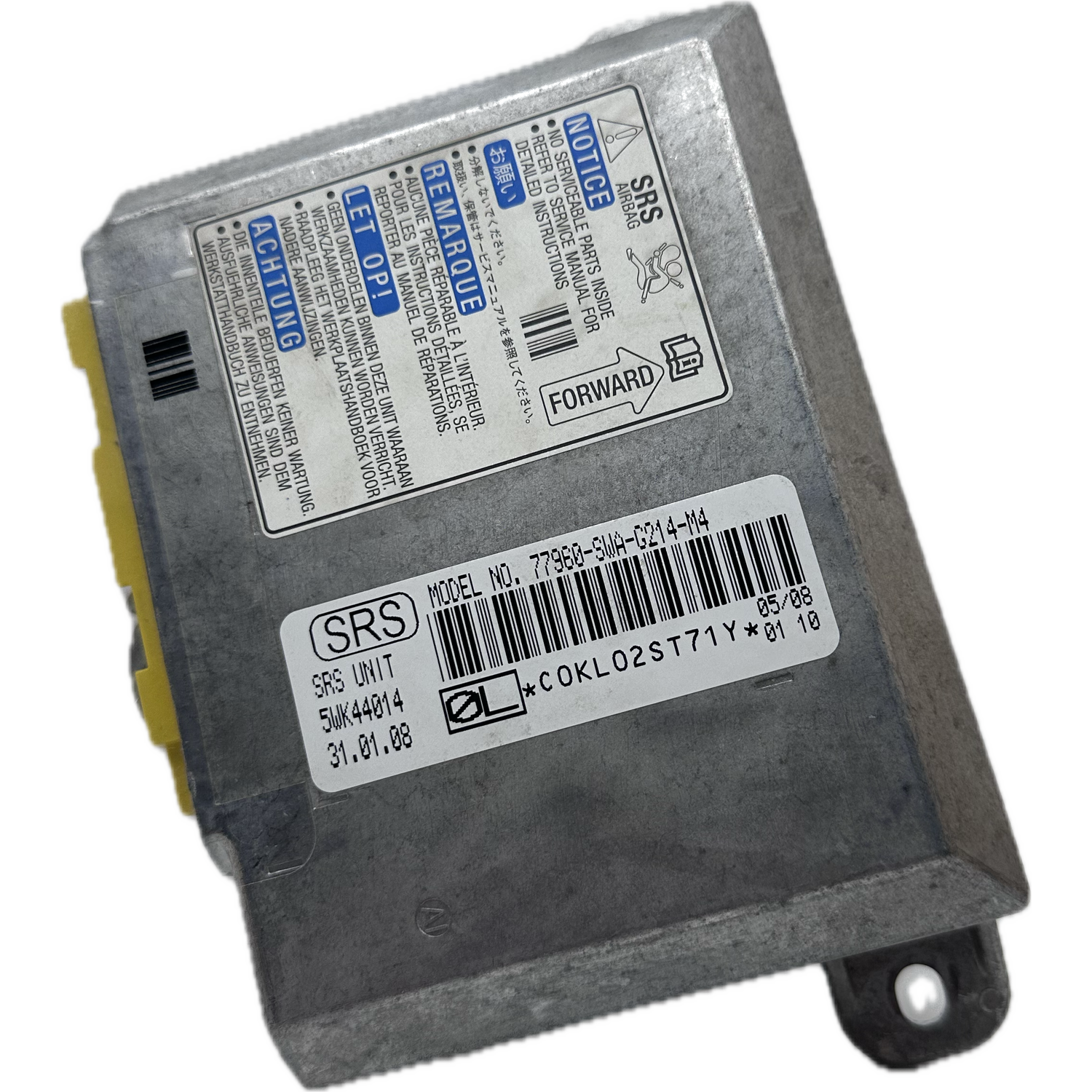

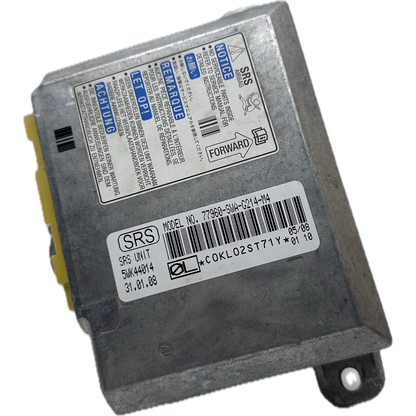

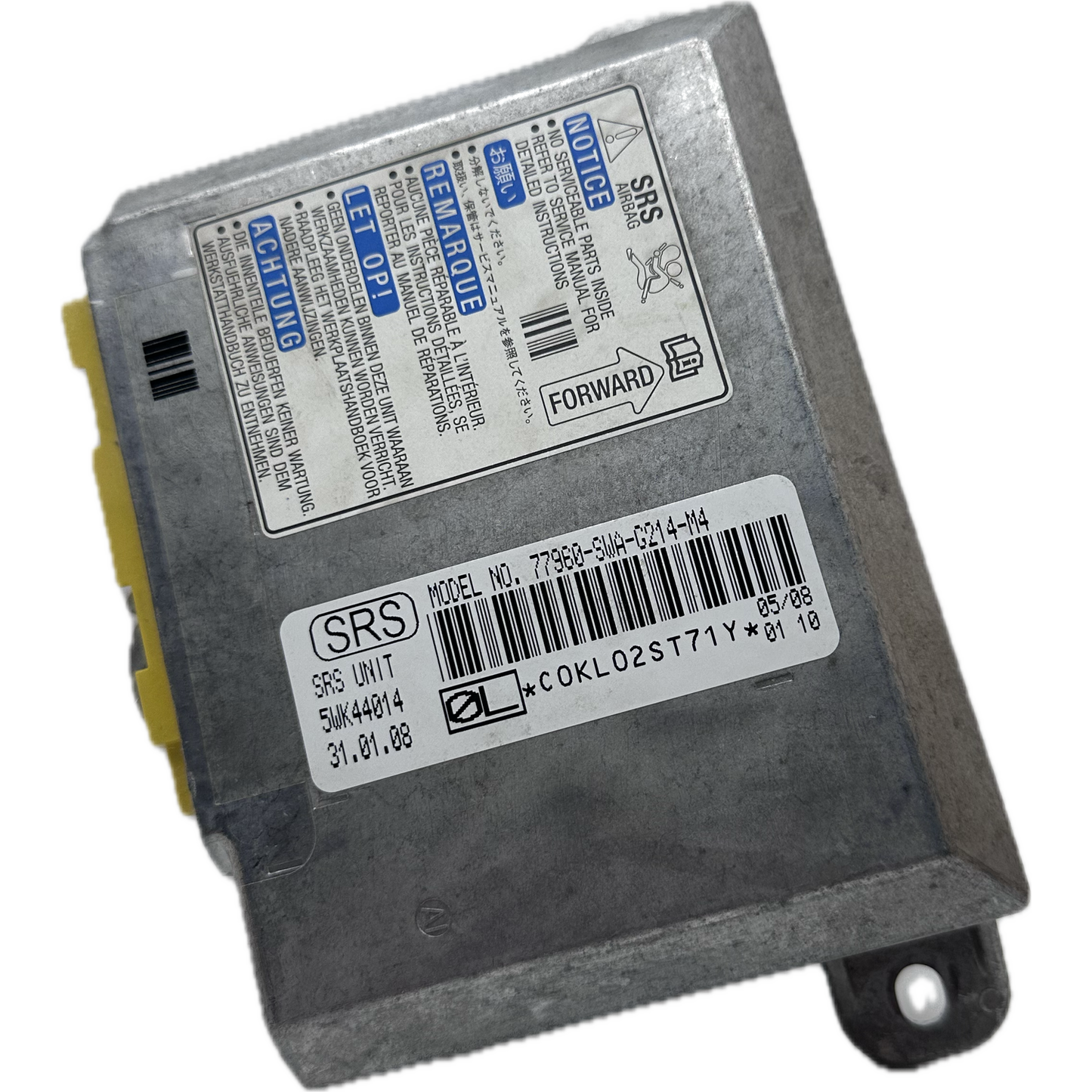

- 77960-SWA-G214-M4 (Honda) → Another original OEM part number for this specific model.
- 77960-SWAA213-M1 (Honda) → Also a verified original OEM airbag control unit for the Honda CR-V.
These part numbers refer only to the control units, not to separate sensors or other airbag components.
When repairing the Honda CR-V 5th Gen airbag control unit, it is crucial to use the exact part number to ensure system compatibility.
The control unit is compatible with various CR-V trim levels, both front-wheel and all-wheel drive.
Functionality and technical details of the Honda CR-V 5th Gen airbag control unit
The Honda CR-V 5th Gen airbag control unit continuously monitors a multitude of sensors, including impact, seat belt, and seat occupancy sensors. Based on this data, it makes millisecond-by-million decisions regarding the precise deployment of the front, knee, side, and side curtain airbags, as well as the activation of the seat belt pretensioners, in the event of an accident to provide optimal occupant protection.
It processes signals from impact sensors for front and side collisions as well as from seat belt buckle and seat occupancy sensors.
The control unit also detects an impending vehicle rollover using integrated sensors and triggers the side curtain airbags in good time.
In the event of an accident, crash data is stored, containing important information about the course of the impact.
Error and status messages are sent to the instrument cluster to inform the driver about the system status.
Installation position and special features of the Honda CR-V 5th Gen airbag control unit repair
The Honda CR-V 5th Gen airbag control unit is typically mounted in the footwell under the dashboard or on the passenger seat, requiring professional handling during a Honda CR-V 5th Gen airbag control unit repair. It is important to disconnect the vehicle's battery before removal to prevent accidental airbag deployment and ensure safety during maintenance.

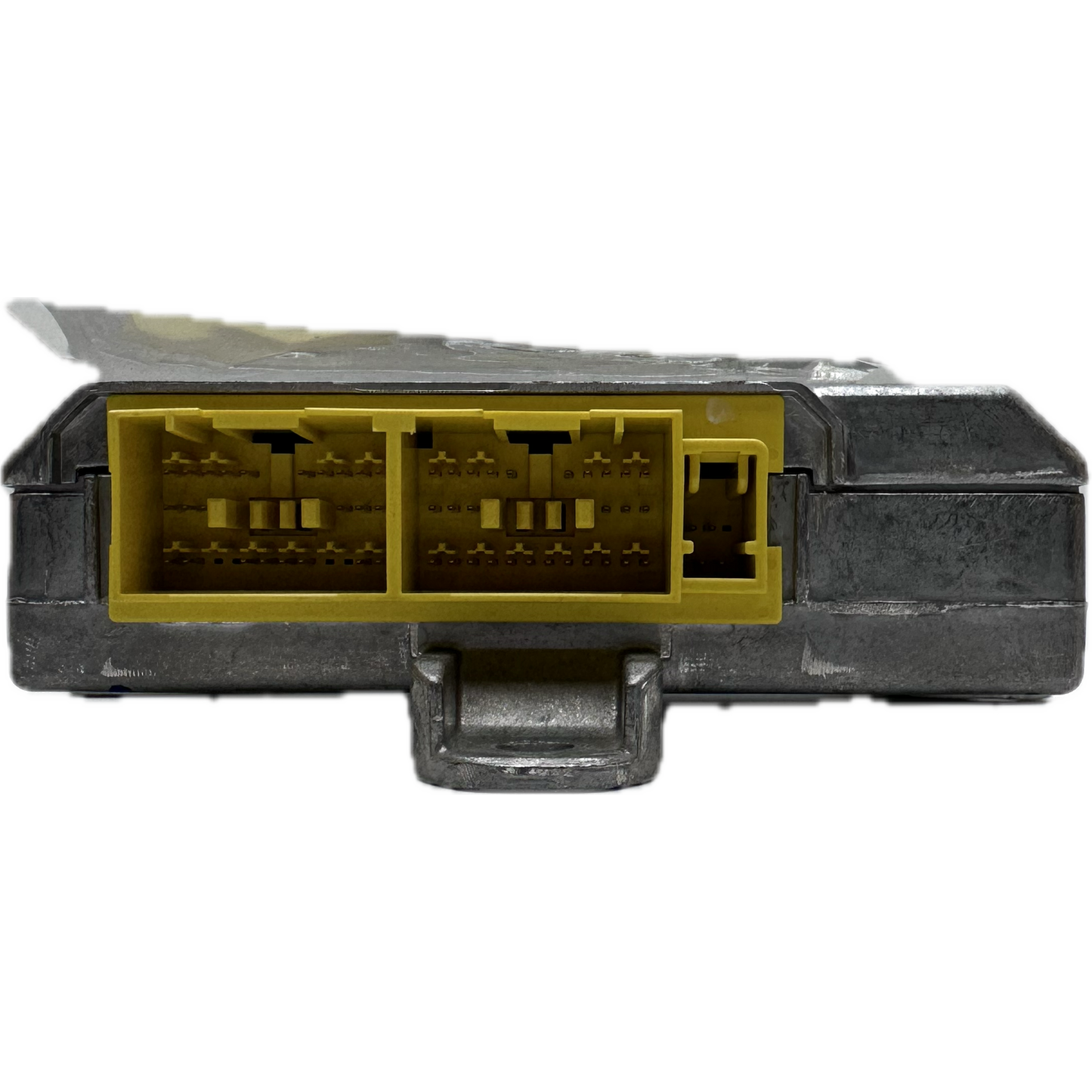

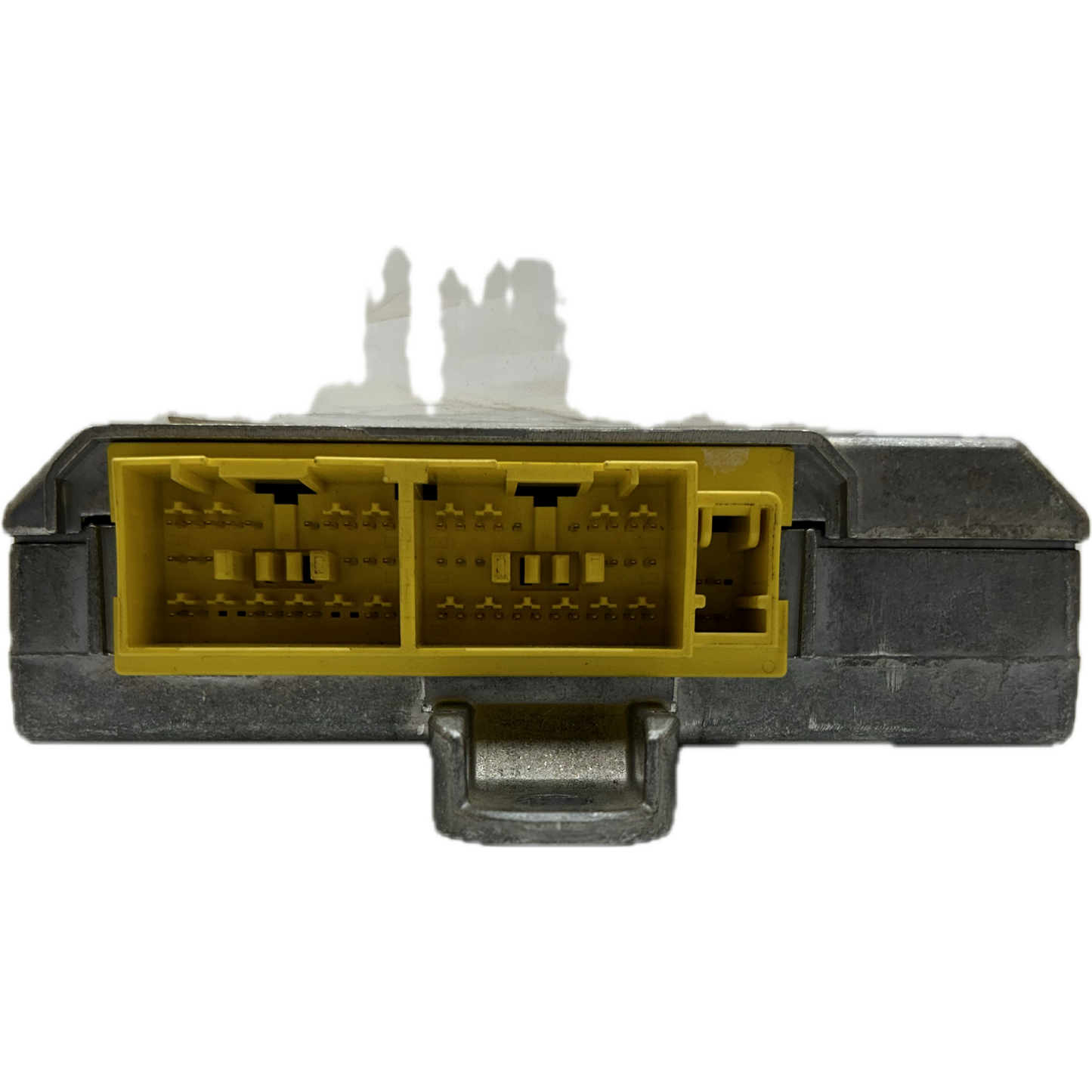

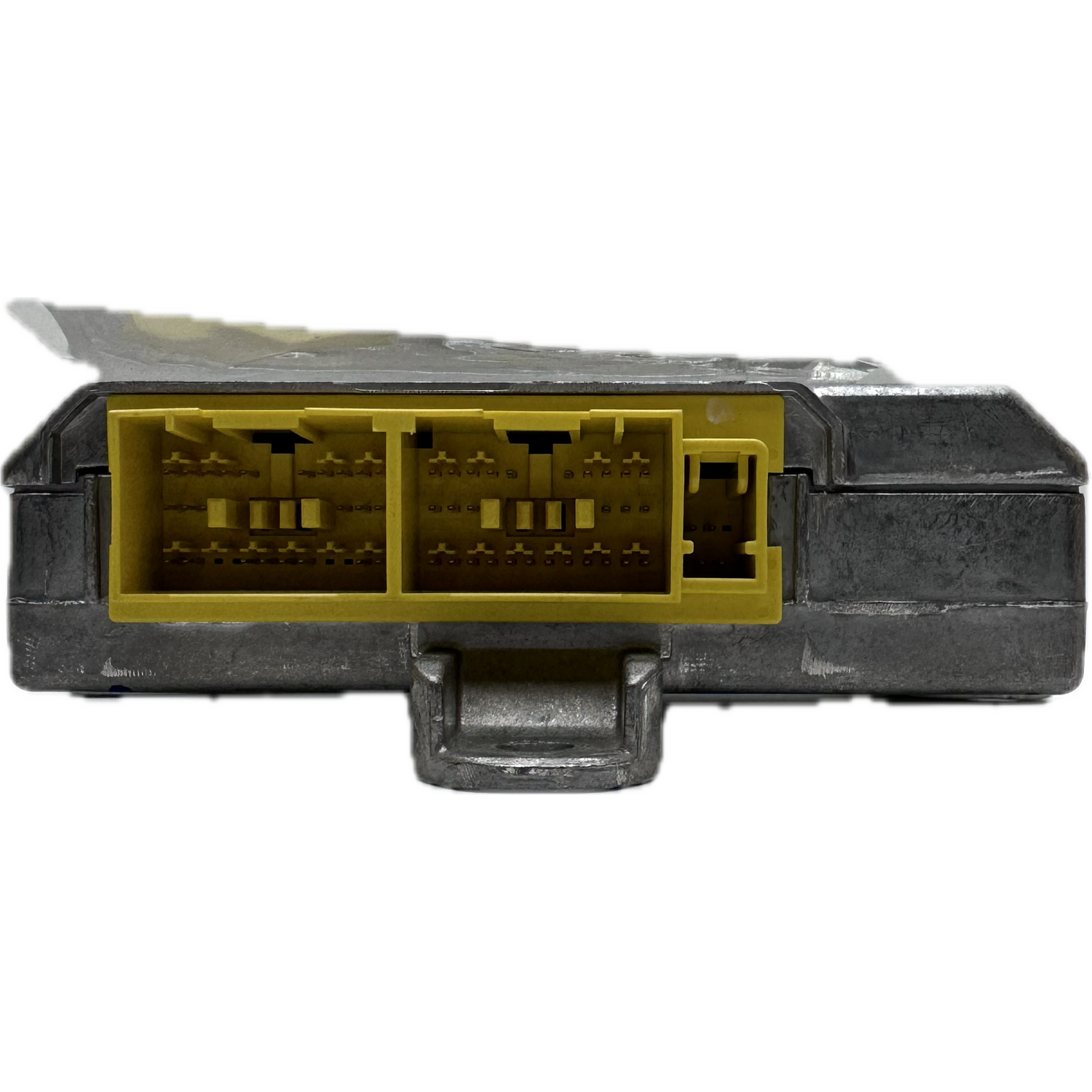

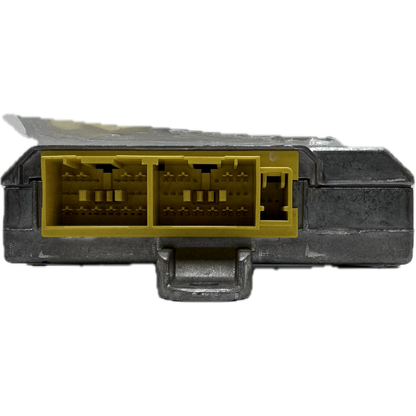

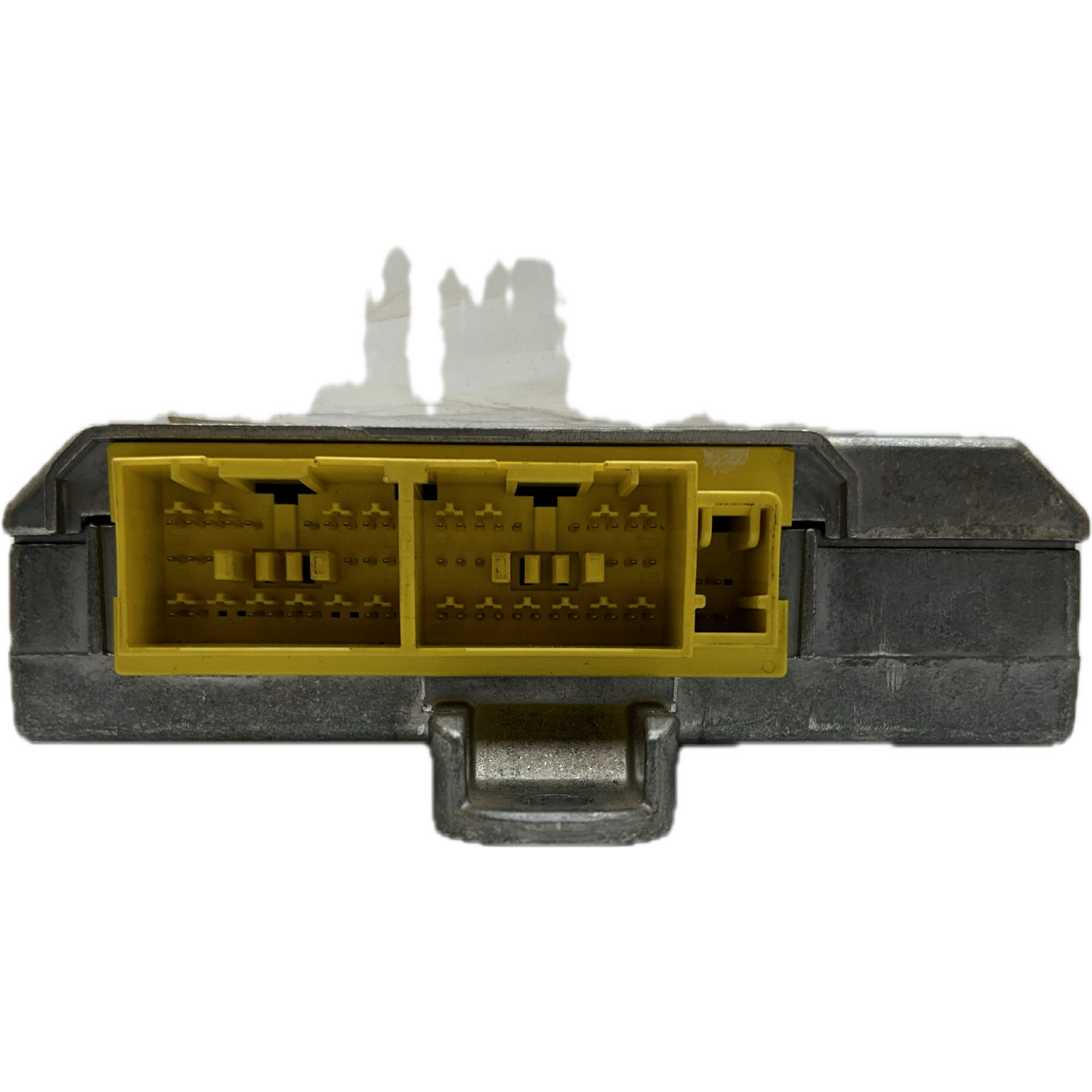

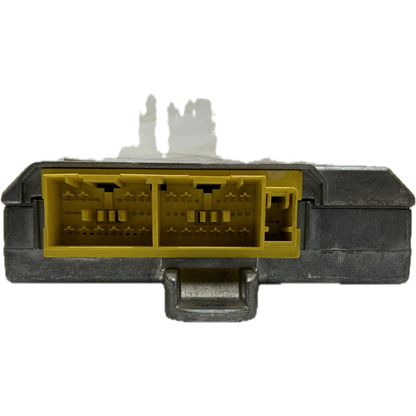

It is connected to sensors, airbag triggers and the instrument cluster via a variety of electrical connectors.
Repairing the control unit, especially deleting crash data, is often an economical alternative to buying a new one.
There are various hardware revisions and software versions that are tailored to specific model years and equipment of the CR-V.
Installation and wiring should only be carried out by qualified specialist workshops, as these are safety-critical components.
