What is a Honda CR-V 2nd Gen airbag control unit?
The Honda CR-V 2nd Gen airbag control unit is the central safety unit for the restraint system. It continuously monitors all sensors, such as impact and rollover sensors, evaluates the data, and deploys airbags and seatbelt pretensioners in the event of an accident to optimally protect the occupants. It also stores important crash data.
It controls and monitors the entire Supplemental Restraint System (SRS) in the vehicle, which includes all airbags (front, side, curtain, knee) and seat belt pretensioners.
The device continuously integrates and analyzes signals from front and side impact sensors, rollover sensors, as well as sensors for seat occupancy and passenger seat weight.
After an accident, the control unit stores relevant crash data that is important for forensic analysis and can only be deleted by specialized workshops.
In the event of a malfunction, the system's permanent self-diagnosis activates the airbag warning light and issues specific error messages.
The vehicle-specific software stored in the control unit remains intact even after a repair and is adapted if necessary.
Why is the Honda CR-V 2nd Gen airbag control unit defective?
A Honda CR-V 2nd Gen airbag control module often becomes **defective** due to internal electronic failures, overvoltage, or the storage of crash data after an accident. These problems impair safety functions, cause the airbag warning light to illuminate, and require urgent professional **repair** or replacement of the module.
An internal **error** often occurs in the control unit, often caused by aging components or electrical problems within the vehicle system.
After an accident, the control unit stores irreversible crash data, requiring immediate **repair** or reset of the module, even if it is physically undamaged.
Communication problems with other vehicle systems or a **failure** of the internal power supply can also cause the airbag control unit to malfunction.
Sometimes a **defective** control unit is the cause of a permanently illuminated airbag warning light, even though all sensors and wiring appear intact.
A precise **diagnosis** by a specialist workshop is essential to determine the exact cause of the defect and initiate the necessary **repair**.
Common error codes for Honda CR-V 2nd Gen airbag control unit repair
During a Honda CR-V 2nd Gen airbag control unit repair, specific error codes occur that directly indicate problems with the control unit. Codes like B1000 or B1320 indicate internal errors, communication malfunctions, or stored crash data. A precise diagnosis is essential to correct these errors and restore vehicle safety.
- B1000 → Control unit communication error → Communication interrupted or no connection to the airbag control unit possible.
- B1202 → Airbag control unit internal error (power supply) → Problem with the internal power supply or other internal components of the control unit.
- B1310 → Internal memory error in the airbag control unit → Damage or corruption of the internal memory in the control unit.
- B1320 → Error in the airbag control unit – crash data stored → An accident has occurred and the crash data has been irreversibly stored in the memory.
- B1330 → No contact / no communication with airbag control unit → The control unit cannot be addressed, often due to a defect or connection error.
- B1601 → Internal error in the control unit – crash data could not be deleted → Attempt to delete crash data failed due to an internal error.
- B1615 → Control unit self-diagnosis error → The control unit could not successfully complete its internal self-diagnosis.
What part numbers are available for the Honda CR-V 2nd Gen airbag control unit repair?

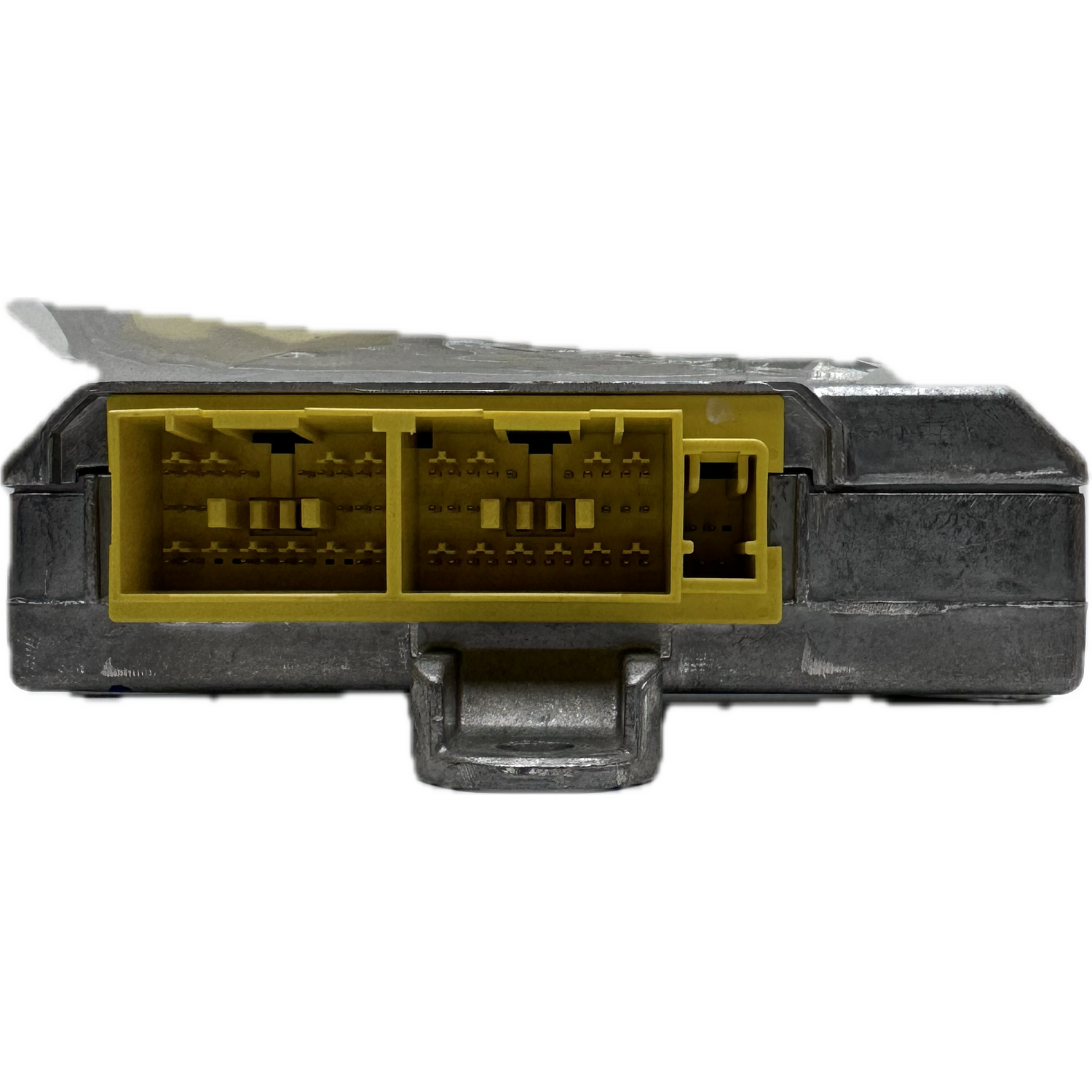

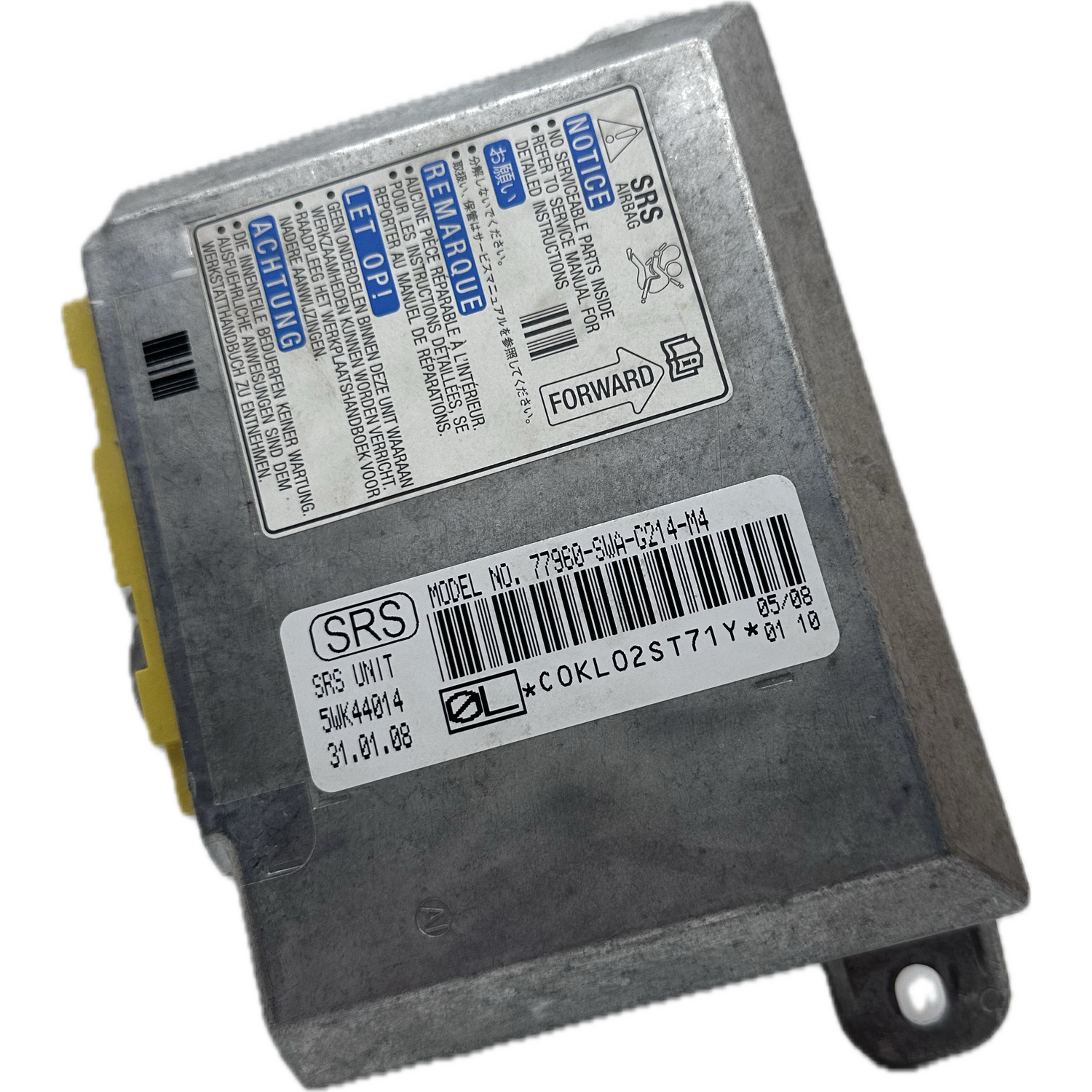

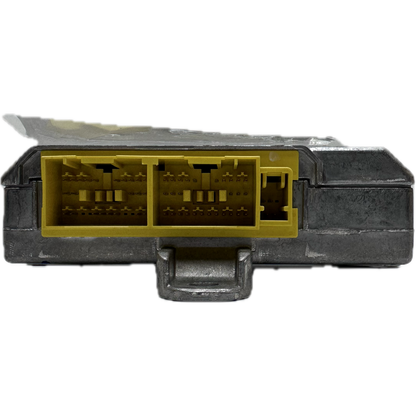

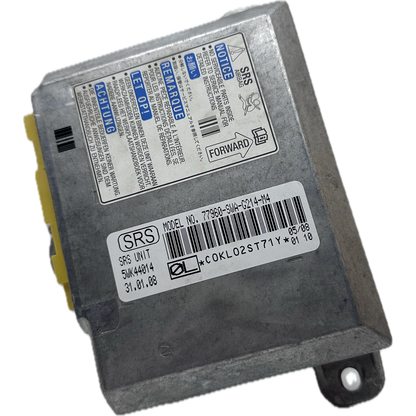

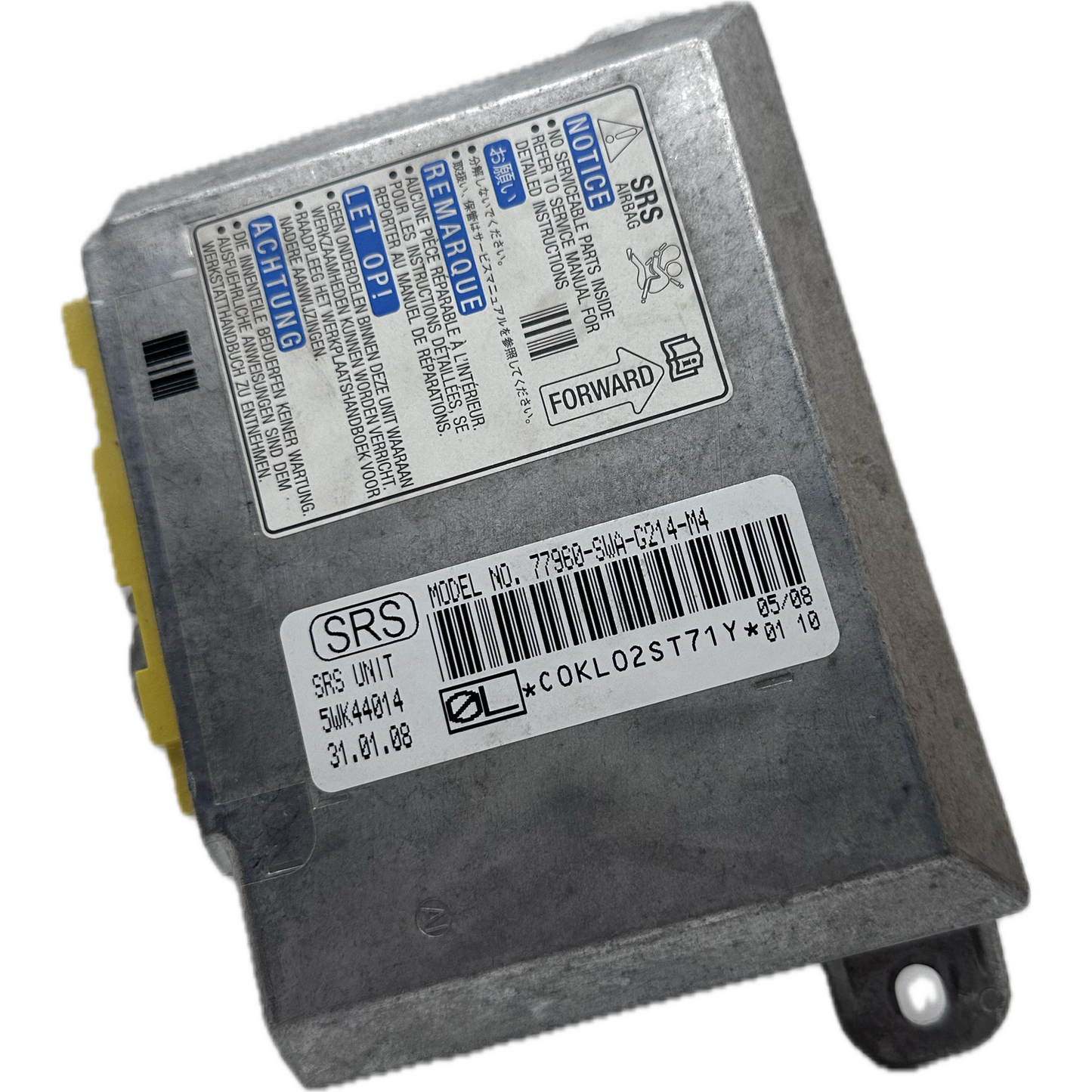

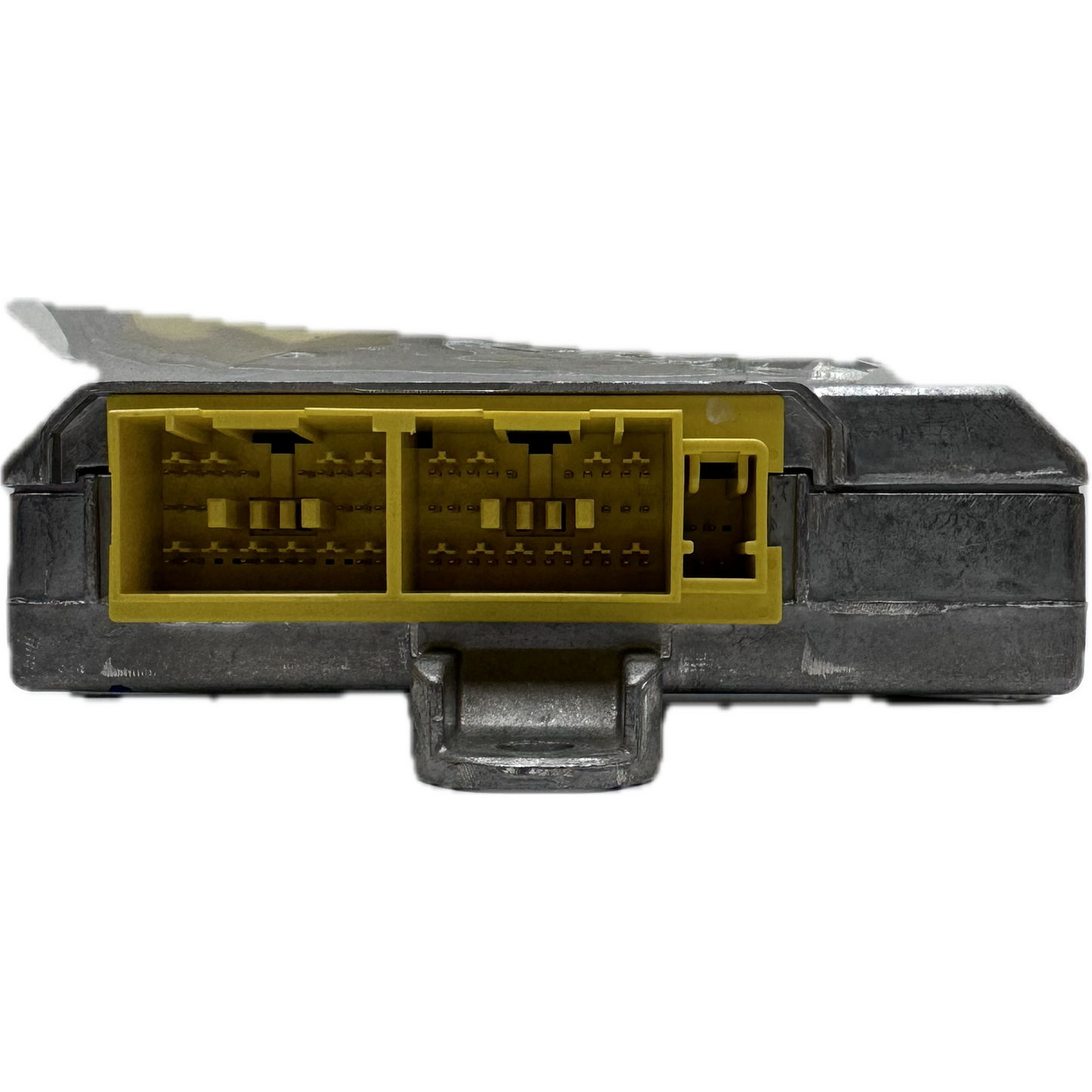

For the **Honda CR-V 2nd Gen Airbag Control Module** repair, specific OEM part numbers are critical to ensure compatibility. Genuine Honda part numbers for the airbag control module include 77960-S9A-A924-M1 and 77960-SWA-G214-M4, which are essential for a successful **repair**.
The primary original Honda OEM part number for the airbag control module of the 2nd generation CR-V is 77960-S9A-A924-M1, which is listed specifically for model years 2002-2004.
Another verified genuine Honda OEM part number for this model series is 77960-SWA-G214-M4, which is also used to **repair** or reset the airbag control module.
Both part numbers mentioned have been confirmed by multiple trusted sources as exact OEM parts for the Honda CR-V 2nd Gen airbag control module.
It is of utmost importance to accurately match the part number of the removed control module with these numbers before any **repair** or replacement.
Supplier-specific OEM numbers from manufacturers such as Bosch or Autoliv are not publicly verified as alternative OEM part numbers for this specific airbag control unit.
