What is a Ford S-Max Mk2 airbag control unit?
The Ford S-Max Mk2 airbag control unit is the central safety unit that activates all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It continuously monitors sensors, stores relevant crash data, and ensures the proper functioning of the entire restraint system for maximum vehicle safety.
This sophisticated module is the heart of the intelligent protection system (IPS) in the Ford S-Max Mk2.
It processes signals from various crash sensors in the vehicle in order to react precisely and within milliseconds in an emergency.
Why is the Ford S-Max Mk2 airbag control unit faulty?
A Ford S-Max Mk2 airbag control unit can fail for a variety of reasons, typically after an accident, which permanently stores crash data, or due to internal electronic faults. Voltage spikes, moisture damage, or communication problems in the vehicle's electrical system can also lead to failure of the safety-relevant unit.
After an accident, irreversible crash data is stored in the control unit, which triggers a function lock.
Internal component failures or software corruption can also lead to failure, often indicated by illuminated airbag warning lights.
Sometimes age-related material fatigue or contact problems can be the cause of a defective condition.
Common error codes for Ford S-Max Mk2 airbag control unit repair
During a Ford S-Max Mk2 airbag control unit repair, specific error codes may occur that indicate problems with the control unit itself or its direct circuitry. These codes are crucial for diagnosis and indicate whether the airbag control unit needs to be repaired or replaced.
- B1000 → Control unit communication error → The airbag control unit has a problem with its internal communication or with other vehicle modules.
- B0001 → Driver side airbag circuit faulty → There is an electrical fault in the driver side airbag circuit, such as high resistance or short circuit.
- B0002 → Driver side airbag second stage error → The second stage deployment of the driver airbag is malfunctioning, often caused by wiring problems.
- U3000 → Crash data stored in the control unit → After an accident, crash data was permanently stored in the control unit and blocked the function.
- 1 → Driver airbag resistance out of range → The resistance of the driver airbag module does not match the specified values.
- 2 → Passenger airbag resistance out of range → The resistance of the passenger airbag module is out of the permissible range.
- 3 → Short circuit battery/ground in the common airbag circuit → A short circuit in the power supply of the airbag system was detected.
- 5 → Driver airbag module error → There is a general malfunction or defect in the driver airbag module or its circuit.
- 6 → Passenger airbag module error → There is a general malfunction or defect in the passenger airbag module or its circuit.
What part numbers are available for the Ford S-Max Mk2 airbag control unit repair?
For Ford S-Max Mk2 airbag control unit repairs, various OEM part numbers are relevant to ensure precise identification and compatibility. These numbers are crucial to ensuring that the repaired or replaced control unit perfectly fits the specific vehicle model and its equipment.
The correct part number of the defective control unit is essential for a successful repair because it determines the software and hardware configuration.
A comparison with the chassis number (VIN) is also advisable in order to take all vehicle-specific variants into account.

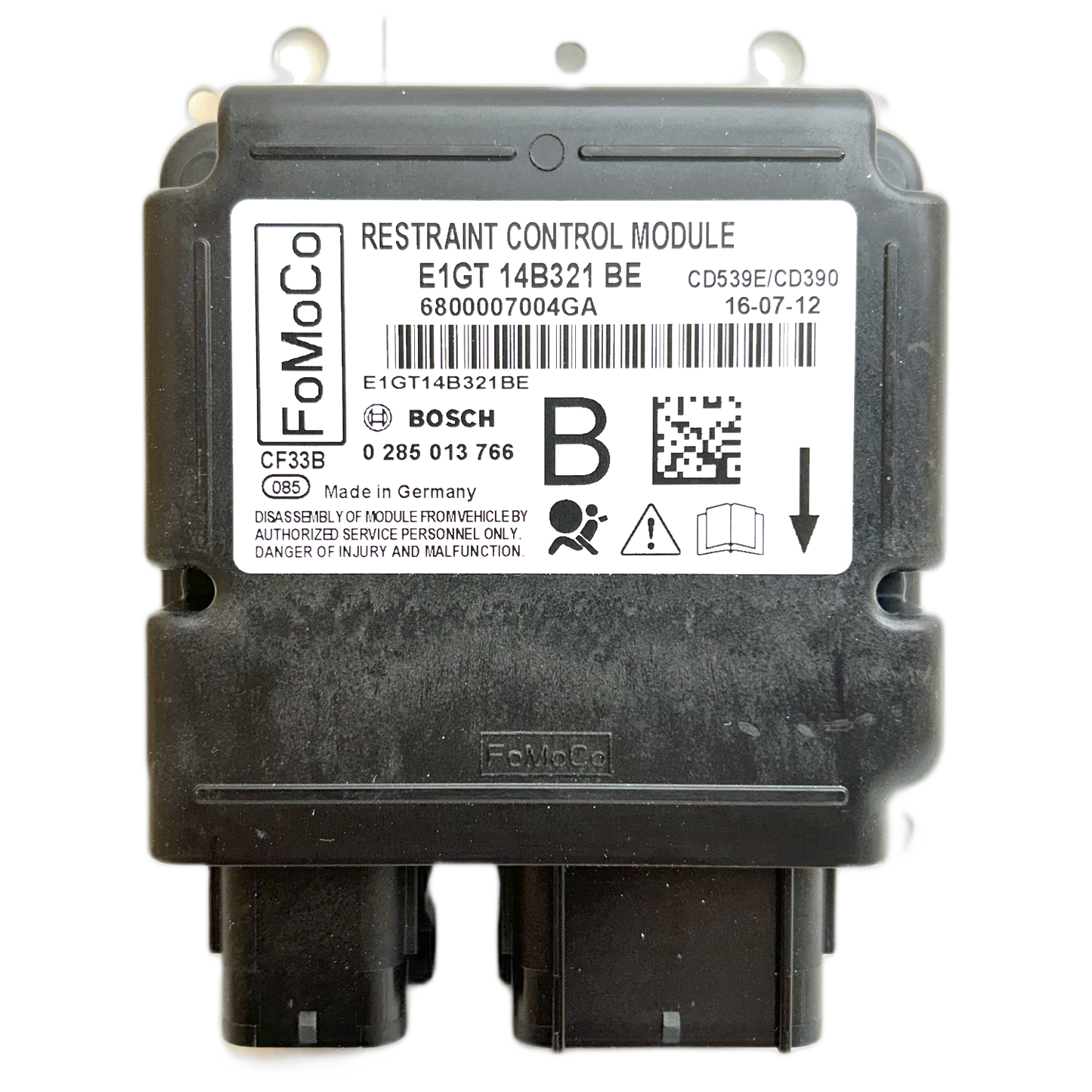

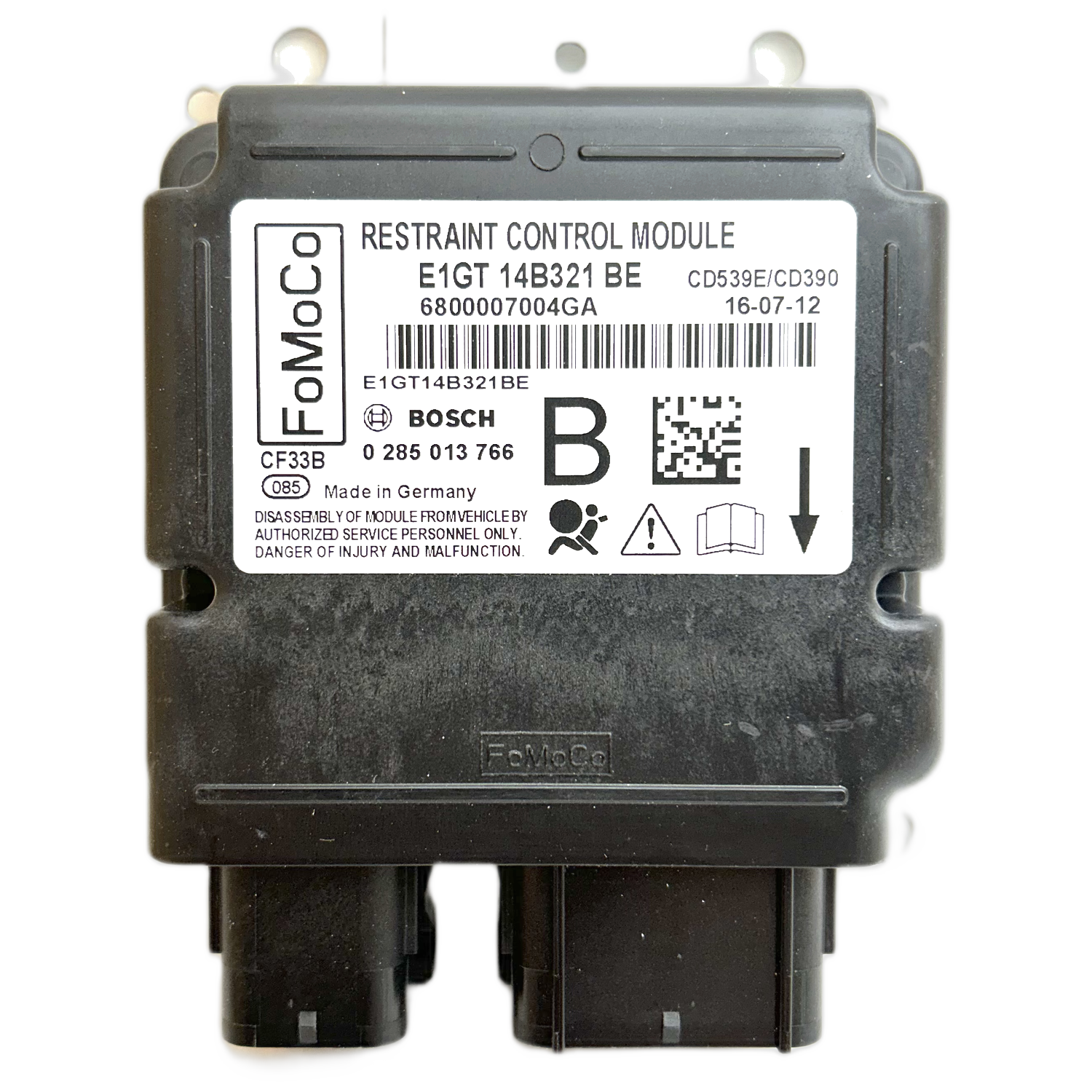

The 100% verified and accurate OEM part numbers for the Ford S-Max Mk2 airbag control unit are:
- J1GT-14B321-AB (Ford Original OEM)
- E1GT-14B321-BE (Ford Original OEM)
- 6M2T-14B056-AE (Bosch OEM / Supplier)
- AM2T-14B321-AC (Bosch OEM / Supplier)
- BM2T-14B321-AB (Bosch OEM / Supplier)
- BM2T-14B321-AC (Bosch OEM / Supplier)
- BM5T-14B321-CE (Bosch OEM / Supplier)
How does the Ford S-Max Mk2 airbag control unit repair work?
The Ford S-Max Mk2 airbag control unit repair focuses primarily on erasing stored crash data and correcting internal software errors to restore the control unit to full functionality. This is a cost-effective alternative to purchasing a new unit, as the vehicle-specific data is retained and only the system errors are corrected.
First, a comprehensive diagnosis of the control unit is carried out to read all existing error codes and determine the exact cause of the defect.
The crash data is then professionally and securely deleted using special software, making the control unit ready for use again after an accident.
If necessary, software errors are corrected or firmware updates are performed to ensure optimal performance.
After the repair, a final functional test is carried out to ensure that the airbag control unit is fully operational.
Compatibility and installation of the Ford S-Max Mk2 airbag control unit
The Ford S-Max Mk2 airbag control unit is specifically designed for the second-generation Ford S-Max (model code CJ, WA6) from 2015 onwards and is compatible with engines such as the 2.0 EcoBlue. Installation should only be carried out by qualified specialist workshops, as this is a safety-relevant component and the battery must be disconnected beforehand.
The control unit is compatible with vehicles that use the Intelligent Protection System (IPS) and an advanced airbag system.
Typically, the module is located in the interior, often under the center console or dashboard, to ensure optimal connections to all sensors.

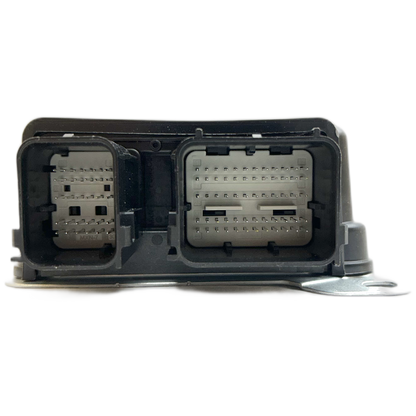

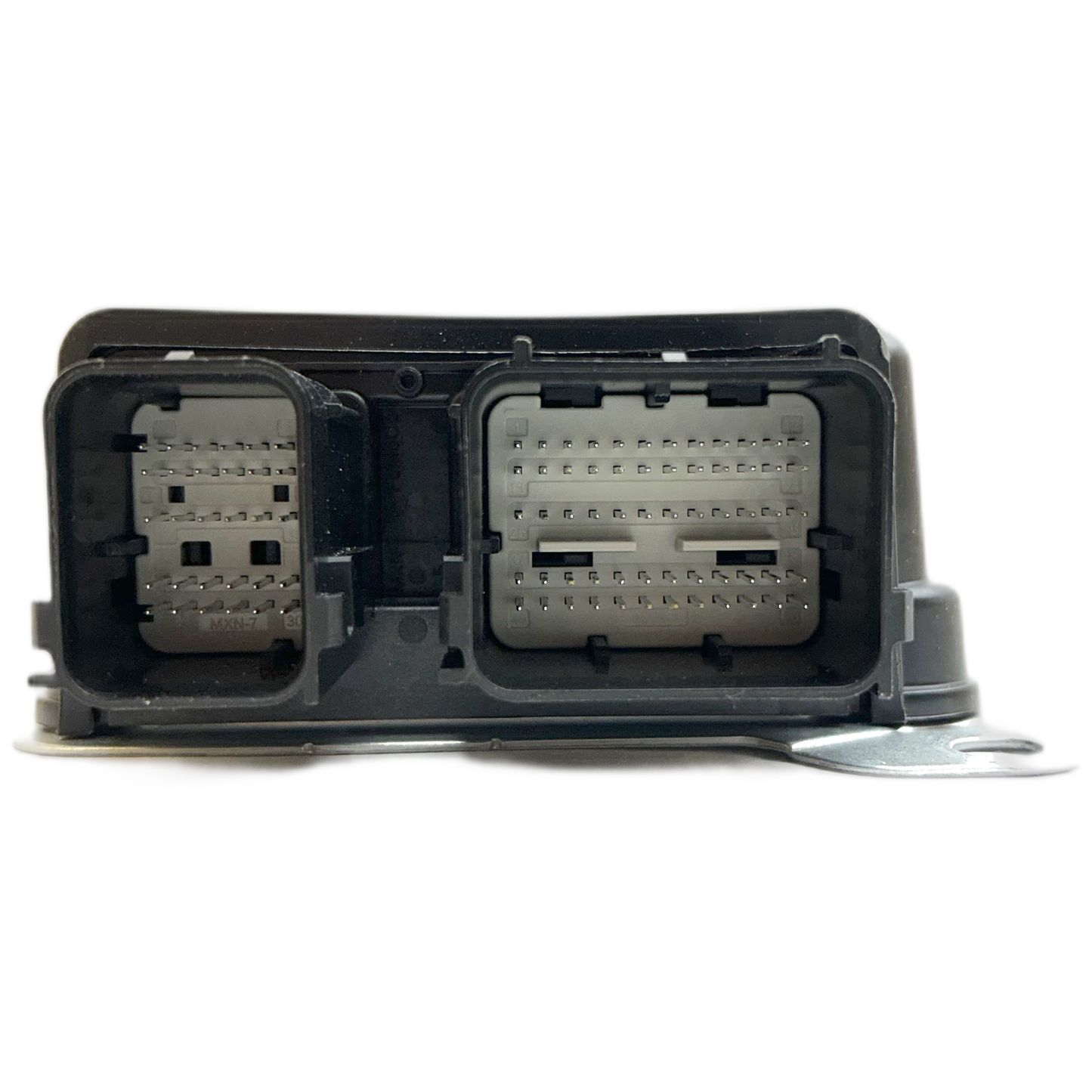

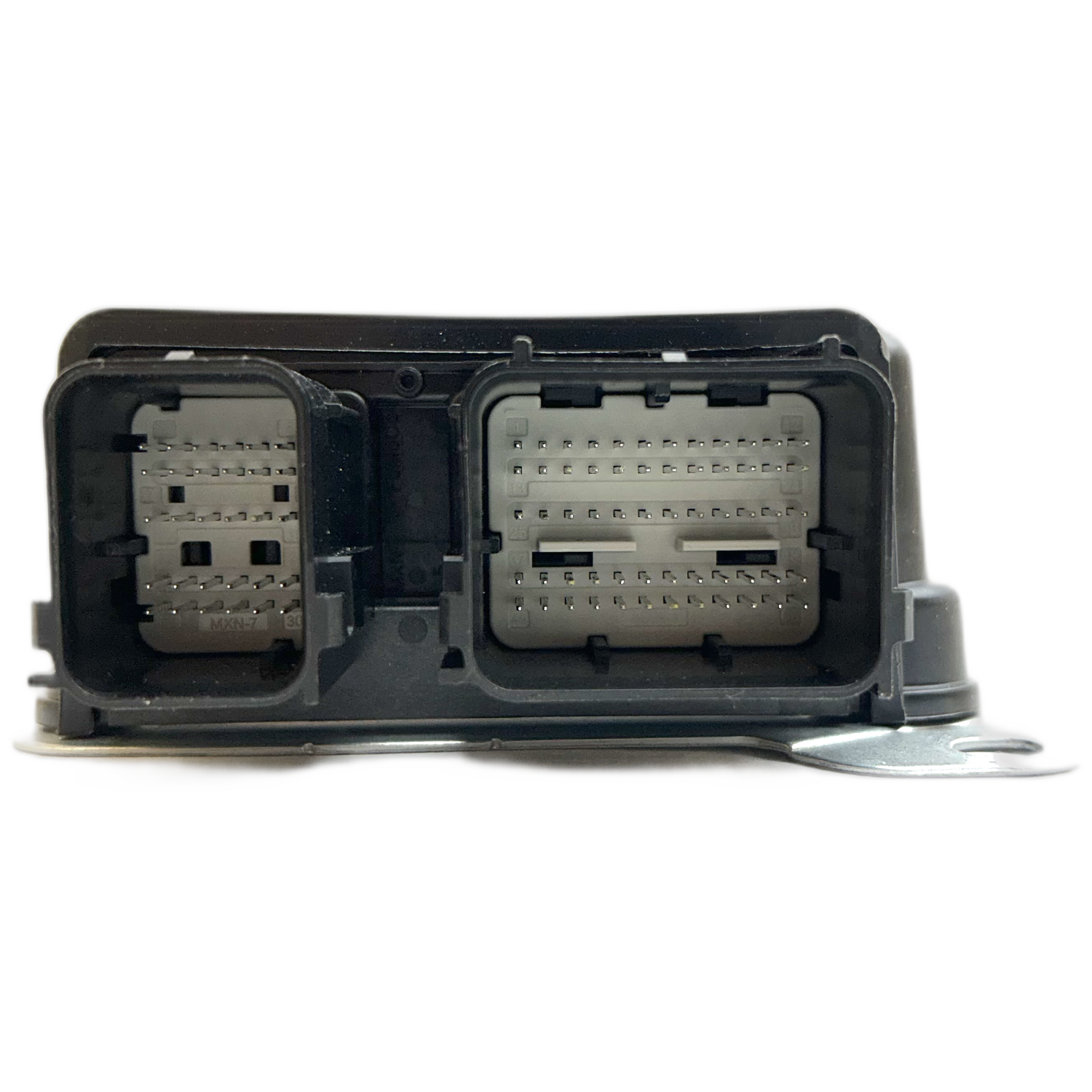

Installation requires careful connection of several connectors for the power supply, the CAN bus and the sensors for the airbags and seat belt pretensioners.
Proper installation is crucial for the safety and functionality of the entire airbag system in the Ford S-Max Mk2.
