What is a Fiat Multipla 186 airbag control unit?
The Fiat Multipla 186 airbag control unit is the central safety unit in the vehicle, responsible for monitoring and controlling the passive restraint systems. In the event of an impact, it precisely registers the collision severity and, if necessary, triggers the airbags and belt pretensioners to provide optimal occupant protection. This ensures the functional safety of the entire airbag system.
This safety-critical electronic module continuously processes signals from various sensors in the vehicle. It is the primary authority for occupant safety. Proper functioning is essential for the protection of vehicle occupants.
Why is the Fiat Multipla 186 airbag control unit defective?
The Fiat Multipla 186 airbag control unit can fail due to aging, moisture damage, or internal electronic defects, activating the airbag warning light and compromising safety. Even after an accident, they are often blocked due to stored crash data, requiring professional Fiat Multipla 186 airbag control unit repair.
Often, age and environmental influences such as humidity or temperature fluctuations are the causes of a defect. These factors can lead to corrosion of internal components, which impairs the communication capability or correct function of the control unit.
Another common reason for a replacement or repair is an accident. After a triggering, the control unit stores crash data. This data must be professionally erased or the unit replaced to restore full functionality.
Internal software errors or overvoltage damage can also lead to failure. In such cases, the system often stops responding. The airbag warning light remains permanently illuminated, indicating that the Fiat Multipla 186 airbag control unit needs repair.
Common error codes for Fiat Multipla 186 airbag control unit repair
When diagnosing a faulty Fiat Multipla 186 airbag control unit, generic error codes often occur, indicating communication problems or internal hardware defects, even if Fiat Multipla-specific codes are not publicly documented. These codes signal that an immediate Fiat Multipla 186 airbag control unit repair is necessary to restore system safety.
- B1000 → Control unit communication error → Indicates a faulty connection to the airbag control unit.
- 65535 → Control unit defective / no communication → Indicates an internal hardware error or the complete failure of the control unit.
- 93F9 → Internal error in the airbag control unit → Indicates a malfunction within the module itself, often without an external cause.
- CAN error → No communication with control unit (CAN) → Means an interruption in data transmission via the CAN bus to the airbag module.
These codes are generic and are also observed in other vehicle manufacturers. They always indicate a problem with the airbag electronics. A precise diagnosis often requires Fiat-specific diagnostic tools.
What part numbers are available for the Fiat Multipla 186 airbag control unit repair?
For the Fiat Multipla 186 airbag control unit repair, specific OEM part numbers from Fiat and Bosch are relevant, ensuring compatibility with the 186 model. These numbers are crucial for finding the correct replacement part and ensuring smooth operation after repair or replacement.
There are several verified original part numbers for the Fiat Multipla 186 airbag control unit. These come directly from Fiat or from their original equipment manufacturer, Bosch. They are specifically designed for this vehicle model and confirm a perfect fit.

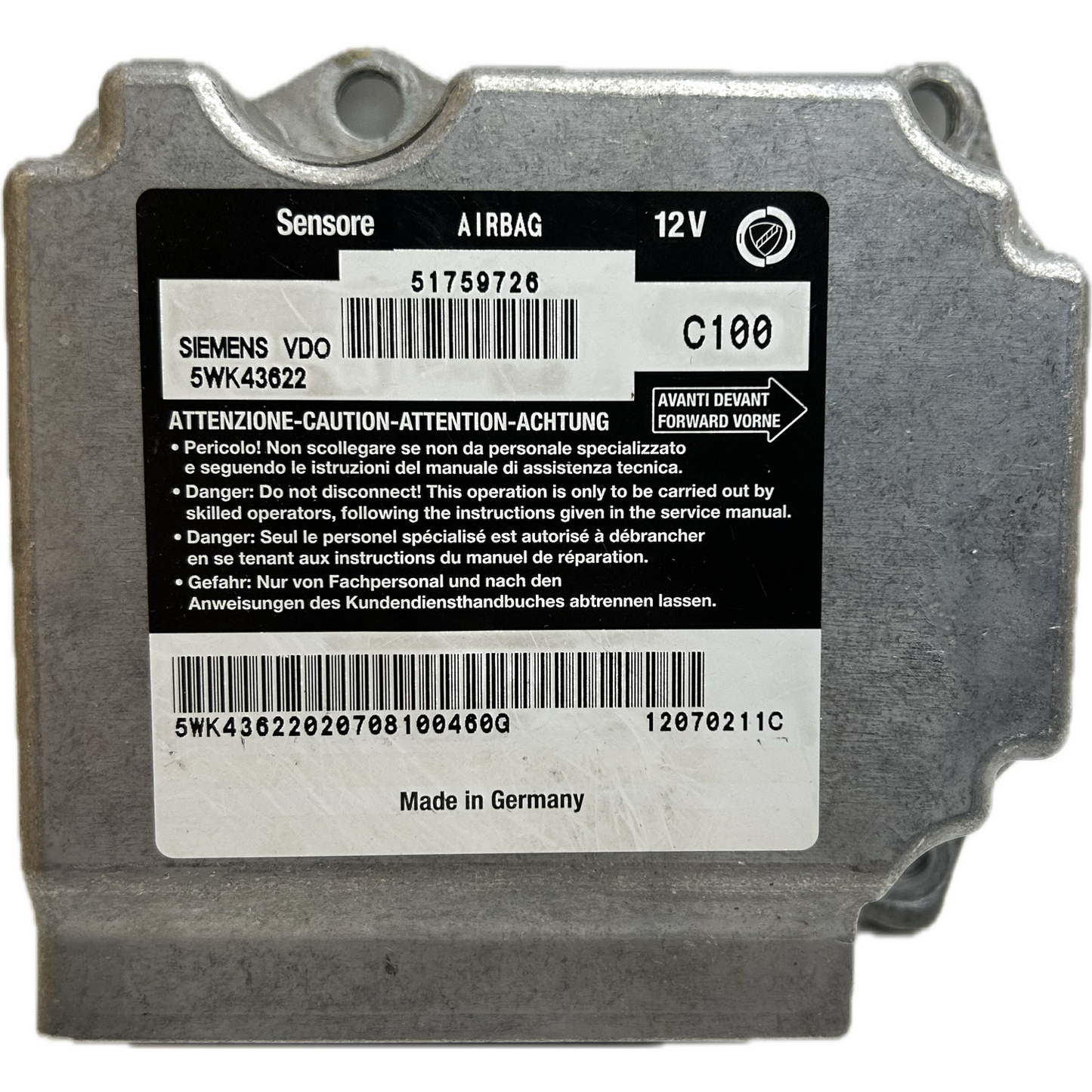

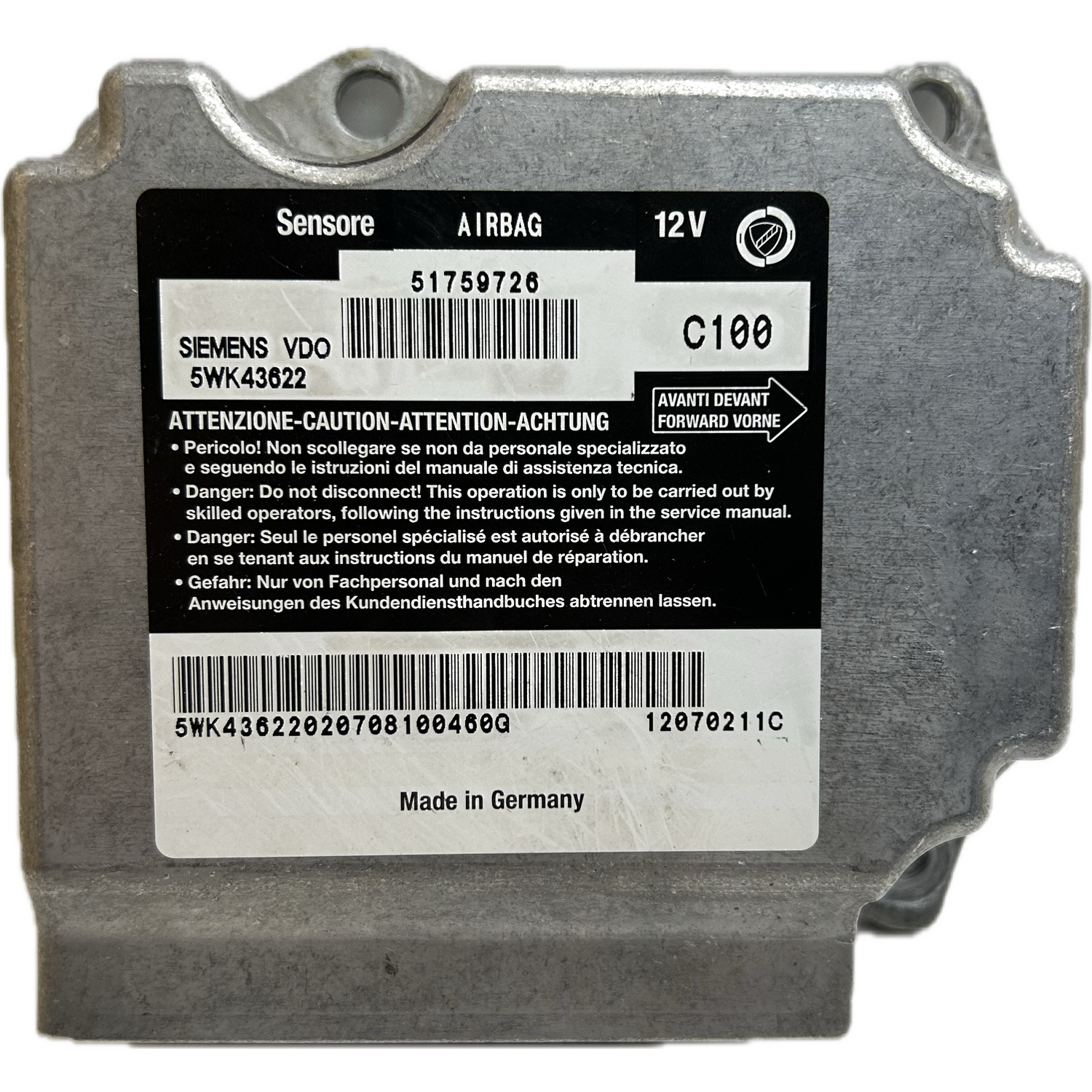

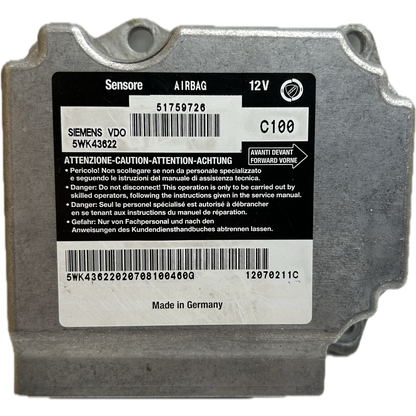

Known Fiat OEM numbers include 51759726 and 1480999080. These are sold directly by Fiat or authorized dealers. They guarantee original quality and functionality.
The Bosch part number 5WK42818 is also an important reference for Fiat Multipla 186 airbag control unit repairs. Bosch is a well-known original equipment manufacturer for Fiat and many other car brands. This number identifies the same control unit, often also available in the original packaging.
It's important to note that there are currently no explicit alternative or replacement part numbers from other manufacturers publicly available. The numbers listed are the most commonly confirmed and verified options. Always ensure an exact match when purchasing to avoid compatibility issues.
Technical specifications and features of the Fiat Multipla 186 airbag control unit
The Fiat Multipla 186 airbag control unit operates on a 12V electrical system and communicates via the OBD-II/EOBD interface for fault diagnosis. It integrates signals from crash, tilt, and seat belt pretensioner sensors, performs continuous self-diagnosis, and stores important error codes to ensure system integrity and passenger safety.
The control unit is specifically designed for the Fiat Multipla 186 model. It is compatible with various engine codes, such as 186A8000 for diesel or 1.6 16V for gasoline. Power is supplied via the vehicle's 12V electrical system.
It features various sensor ports for connecting crash and side airbag sensors. The belt tensioner sensors are also managed via this module. Communication with external diagnostic devices takes place via the vehicle's standard diagnostic interface.
Its primary function is to control the airbags and seatbelt pretensioners in the event of a collision. It processes the sensor signals at lightning speed, ensuring timely and precise activation of the safety systems.
The airbag system features a permanent self-diagnosis function. Error codes are stored in the control unit. These codes, if necessary, trigger the airbag warning light in the instrument cluster to alert the driver to problems.
Installation position and safety instructions for the Fiat Multipla 186 airbag control unit repair
For a safe Fiat Multipla 186 airbag control unit repair, the module is typically installed in the passenger-side footwell or under the center console and secured with screws. Before removing the module, the vehicle battery must be disconnected to prevent accidental airbag deployment and damage to the vehicle's electronics.
The airbag control unit in the Fiat Multipla 186 is typically located in the passenger-side footwell. Alternatively, it can also be installed under the center console. These locations allow for relatively easy access for maintenance and replacement.
The connectors are usually secured to the vehicle floor or chassis using screws. The connectors are often multi-locked and require careful disconnection. This prevents accidental damage during the Fiat Multipla 186 airbag control unit repair.
An extremely important safety tip is to disconnect the vehicle battery before performing any work on the airbag system. This prevents accidental deployment of the airbags or seatbelt pretensioners. At the same time, it protects the sensitive vehicle electronics from short circuits.
Compatibility and variants of the Fiat Multipla 186 airbag control unit
The Fiat Multipla 186 airbag control unit is specifically designed for models from 1999 to approximately 2010 and various engine variants, such as the 1.6 16V petrol or 1.9 JTD diesel. There are vehicle-specific programmed variants that must be adjusted using diagnostic technology to ensure full compatibility for a successful Fiat Multipla 186 airbag control unit repair.
The airbag control unit is fully compatible with the Fiat Multipla 186 series. It supports a wide range of model years, typically from 1999 to approximately 2010. The various engine variants of the Multipla are also covered.
Depending on the Multipla's equipment and engine, different versions of the control unit may exist. These are tailored to specific vehicle parameters. A professional repair or replacement often requires adaptation using vehicle diagnostic technology.
After a trigger, the control unit remains locked and displays a permanent error message. It is imperative that the system be professionally reactivated or the control unit replaced. Specialized repair service providers can offer a cost-effective alternative to purchasing a new unit, while retaining the firmware.
