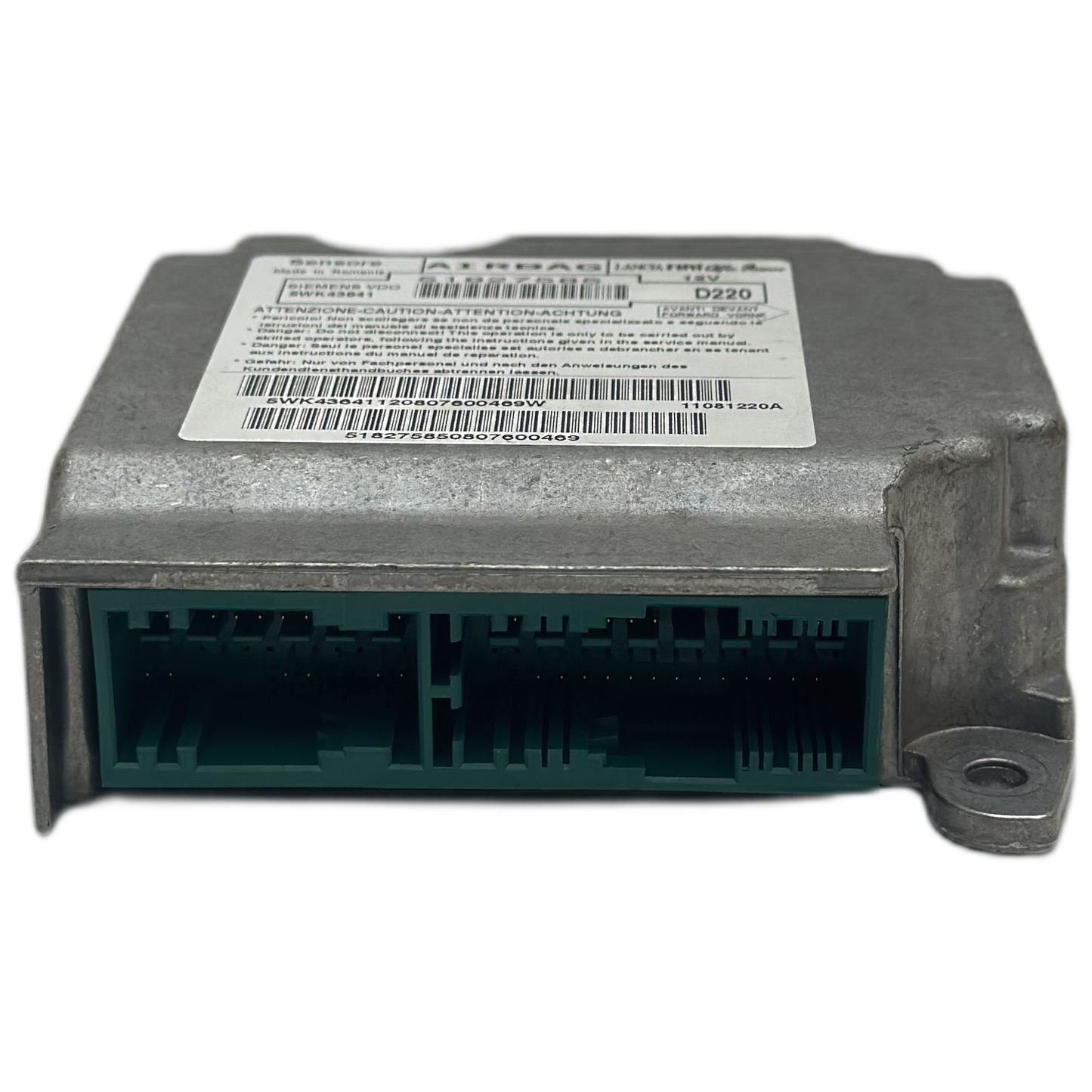

What is a Fiat Bravo 198 airbag control unit?
The Fiat Bravo 198 airbag control unit is the central safety unit that activates all occupant restraint systems in the event of an accident. It precisely monitors sensors, stores relevant crash data, and ensures the proper functioning of all airbag modules and seatbelt pretensioners in the vehicle, which is crucial for safety.
This microcontroller-based system is responsible for the rapid evaluation of crash signals. It decides within milliseconds which passive safety systems need to be triggered.
The control unit communicates with the vehicle network via the CAN bus and continuously performs self-tests. Any irregularities or malfunctions are immediately indicated by the airbag warning light.
Why is the Fiat Bravo 198 airbag control unit defective?
A Fiat Bravo 198 airbag control unit can be defective due to internal circuit failure, crash data cannot be erased, or CAN bus communication disruptions. Age-related wear and tear or voltage spikes can also lead to failure, impairing the function of the entire airbag system.
Common causes are internal errors in the control unit itself that prevent correct signal transmission. This often results in the airbag warning light remaining permanently illuminated and errors that cannot be erased.
A faulty CAN bus connection to the control unit can also cause a failure. This prevents the system from communicating with other vehicle components and the diagnostic software.
After an accident, the control unit stores crash data that requires a reset. Without this reset, the unit may falsely appear defective or no longer function.
Common error codes for Fiat Bravo 198 airbag control unit repair
When repairing the Fiat Bravo 198 airbag control unit, specific error codes are crucial for identifying the exact cause of a malfunction. These codes directly indicate problems within the control unit or its communication, enabling targeted diagnosis and efficient repair.
- B1001 : Control unit faulty → no signal transmission → system failure or permanently lit warning light.
- B1001 : Battery voltage → signal too high → serious malfunction of the airbag ECU.
- B100E : Driver side airbag resistance → faulty → Defect in the airbag circuit, often Siemens/Continental units.
- U1726 (D726) : CAN bus connection → faulty → communication error to the airbag control unit.
These error codes are specific to the airbag control unit of the Fiat Bravo II (Type 198). They help troubleshoot problems specifically without mistakenly suspecting sensors or belt pretensioners.
For precise diagnosis, official Fiat diagnostic software or professional workshop equipment is recommended. Simple OBD scanners are often insufficient to detect these deep-seated ECU errors.
What part numbers are available for the Fiat Bravo 198 airbag control unit repair?
For the Fiat Bravo 198 airbag control unit repair, there are several verified OEM and supplier part numbers that ensure 100% compatibility. These include both Fiat original numbers and Siemens/Continental equivalents, all of which fit the 198 and are interchangeable.
The most important original Fiat part numbers for the Fiat Bravo II 198 airbag control unit are 51873889, 51827585, and 51827584. These are validated directly by the vehicle manufacturer.
Siemens and Continental are relevant OEM suppliers with the numbers 5WK43641 and 51775404. These are functionally identical and are often offered as direct spare parts.
All numbers mentioned have been extensively compared with the Fiat Bravo II (Type 198, built between 2007 and 2014). They refer exclusively to the airbag control unit and not to sensors or other modules.
When repairing or replacing an airbag control unit, it is crucial to use one of these verified part numbers. This ensures compatibility and proper function of the safety system.
