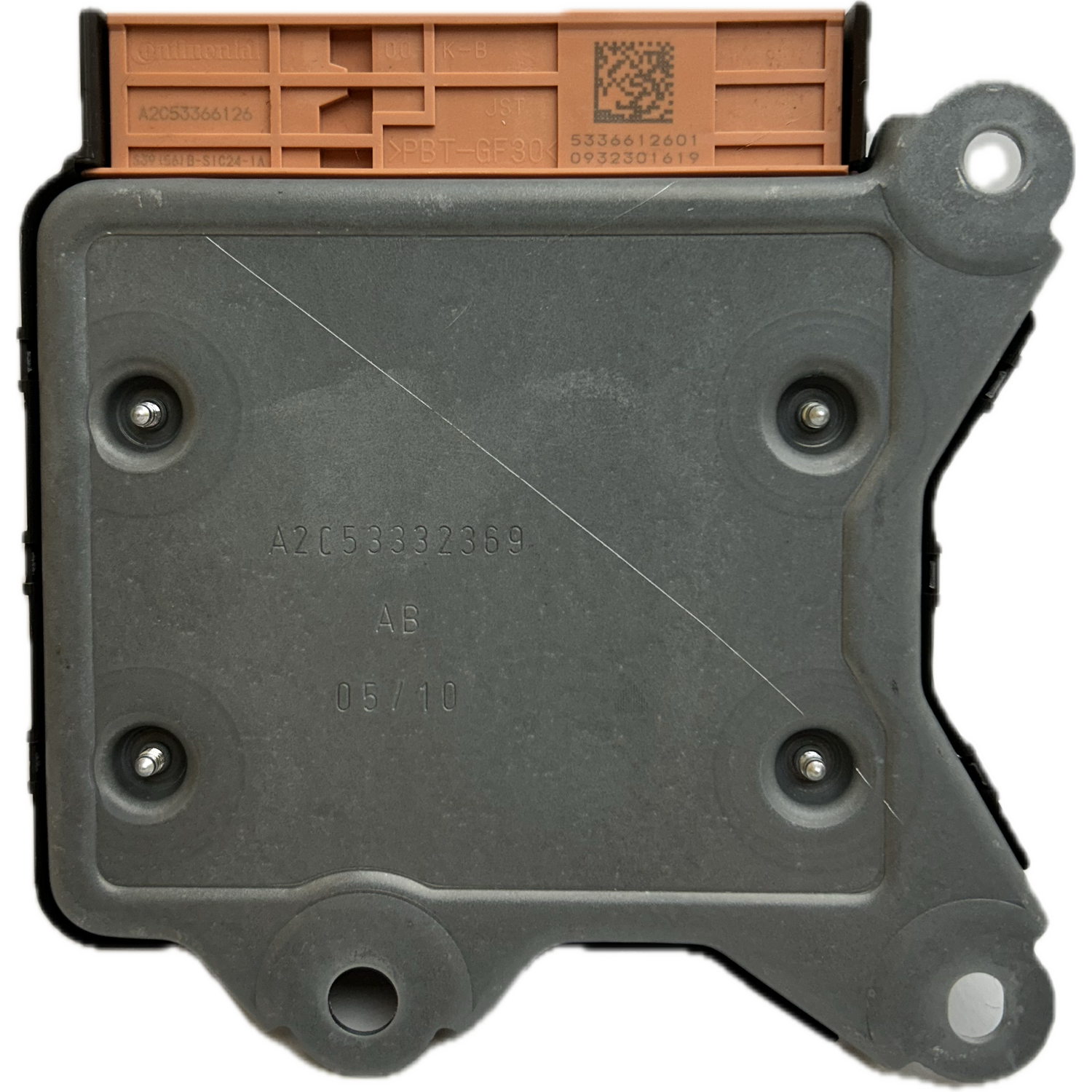

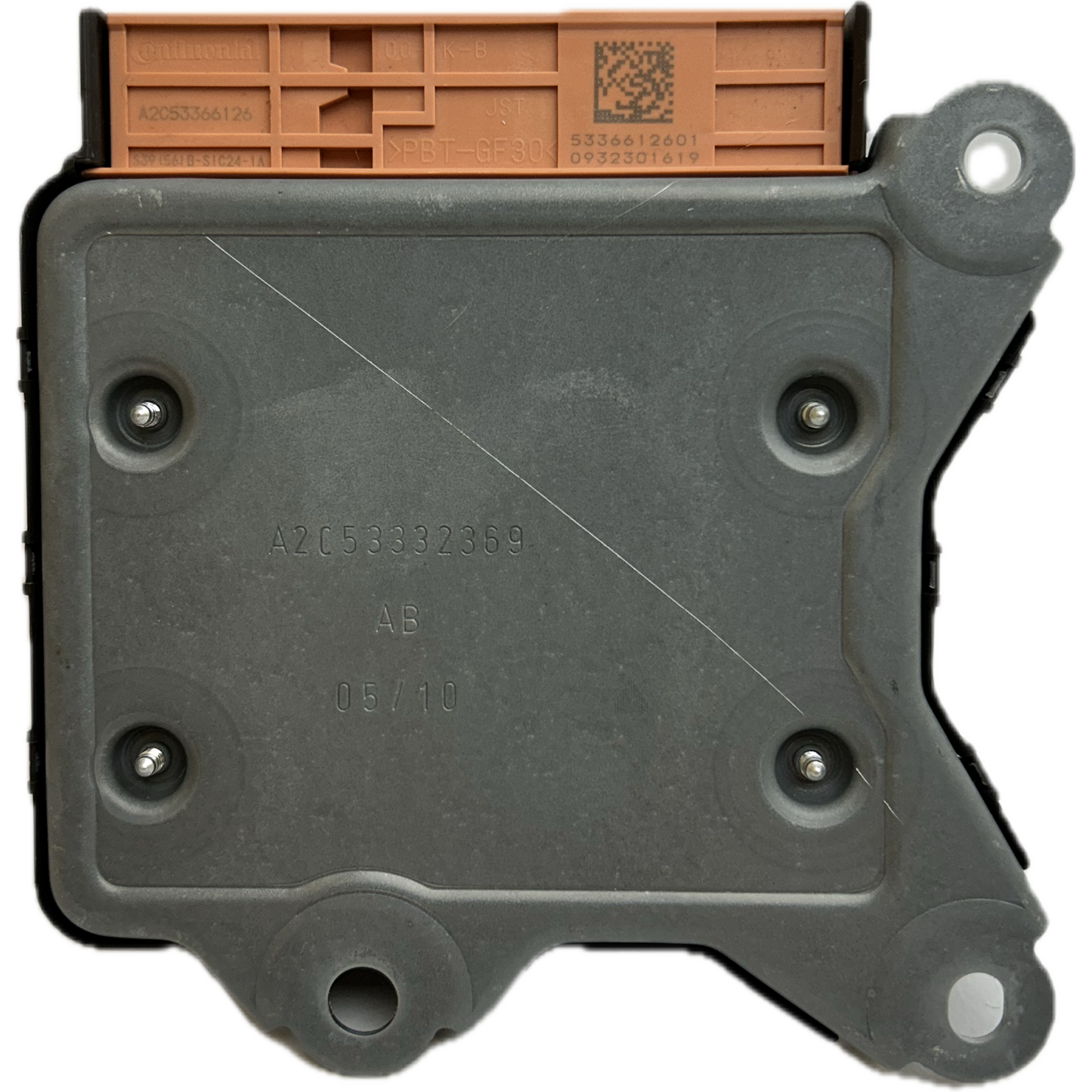

What is a Fiat 500 312 airbag control unit?
The Fiat 500 312 airbag control unit is the central safety unit that activates all occupant restraint systems in the event of an accident. It precisely monitors sensors in the vehicle, stores relevant crash data, and ensures the reliable and proper operation of all airbag modules and seatbelt pretensioners, which is crucial for vehicle safety.
This safety-relevant component is responsible for monitoring and controlling the entire restraint system in the Fiat 500 (Type 312). It processes signals from impact sensors and initiates the activation of the protection systems when necessary.
The control unit is used in various Fiat 500 engines and models from 2007 to at least 2015. It is compatible with 0.9, 1.2 petrol, diesel, and electric versions.

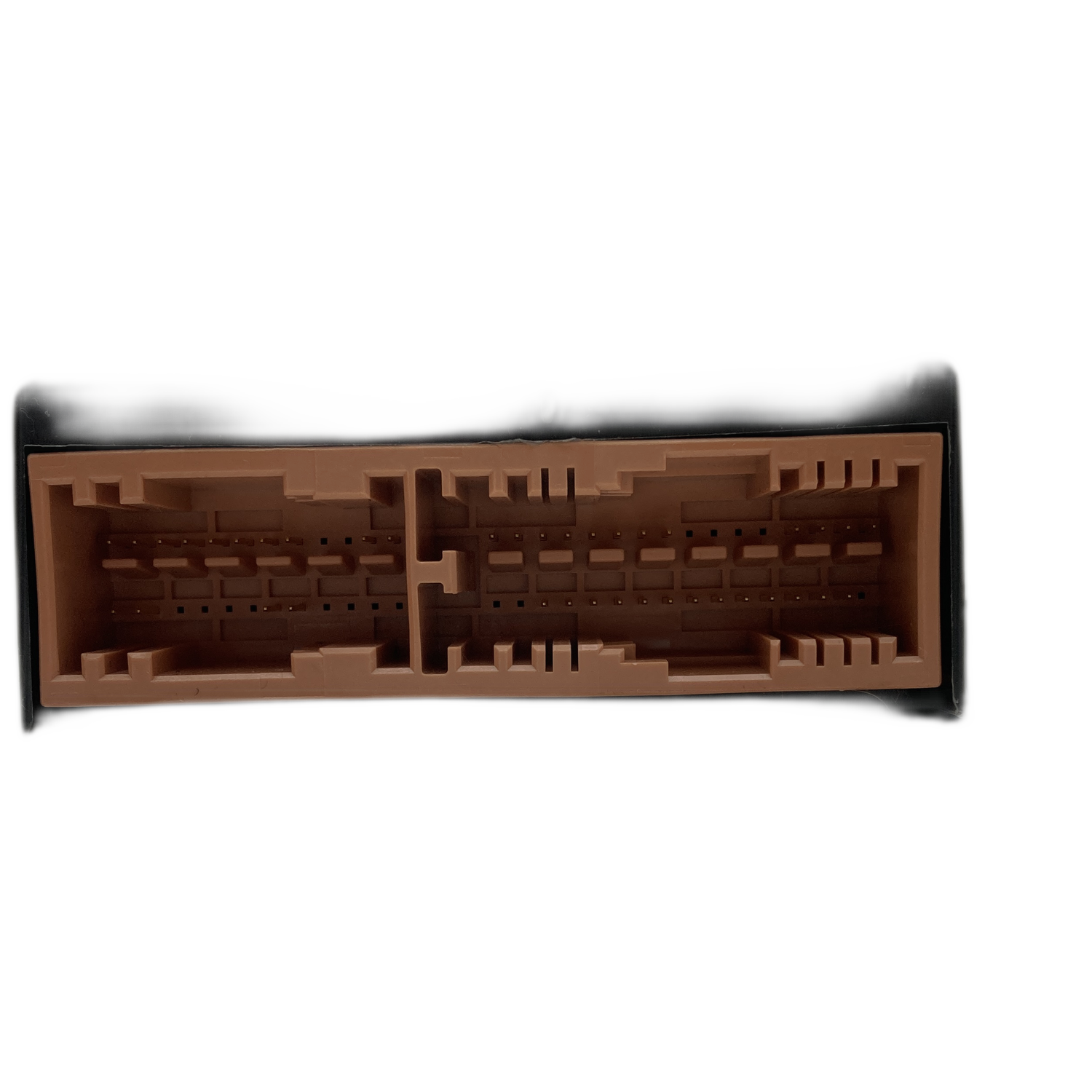

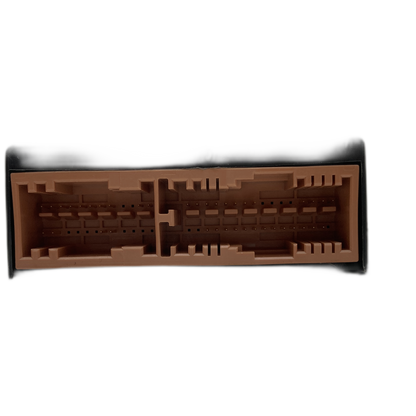

Its installation location is typically centrally located in the vehicle, often in the center tunnel or under the floor panel. The electrical connections are made via special, yellow-labeled connectors.
Why is the Fiat 500 312 airbag control unit defective?
A defective Fiat 500 312 airbag control unit often occurs due to internal errors, communication problems in the CAN bus, or after an accident where crash data was permanently stored. Such defects prevent the airbag system from functioning properly, severely compromising vehicle safety and requiring immediate repair.
Internal electronic defects or memory errors are a common cause of airbag control unit failure. These can lead to the control unit no longer establishing communication with the vehicle's network.
After an accident, the airbag control unit stores crash data that cannot be automatically erased. This stored data blocks the system from reactivating and requires a special reset or module replacement for the Fiat 500 312 airbag control unit repair.
A faulty control unit can also cause the airbag warning light to stay on. This signals to the driver a critical system error that should be corrected immediately through diagnostics.
Common error codes for Fiat 500 312 airbag control unit repair
Knowledge of specific error codes is essential for a successful Fiat 500 312 airbag control unit repair, as these directly indicate internal defects or communication problems within the control unit. They often manifest as a permanently illuminated airbag warning light and are crucial for a precise diagnosis of the failure.
- B1000 : Control unit communication error → Indicates a faulty communication between the airbag control unit and other vehicle systems.
- U1726 : Control unit - Communication error with airbag ECU → Often reported in connection with a faulty airbag ECU when it does not communicate with the CAN network.
- B10AA : Faulty Airbag ECU Communication → A Fiat-specific code indicating problems with the control unit's data transmission.
- B1053 : Airbag control unit internal error → Indicates a hardware or software defect within the control unit itself, requiring repair or replacement.
These error codes are specific to the airbag control unit and do not indicate problems with sensors, seatbelt pretensioners, or airbag modules. A precise diagnosis is essential to pinpoint the cause of the failure.
After repairing or replacing the control unit, vehicle-specific coding is always required. This is the only way to restore the full functionality and safety of the airbag system in the Fiat 500.
What part numbers are available for the Fiat 500 312 airbag control unit repair?
For a successful Fiat 500 312 airbag control unit repair, various precisely matching OEM part numbers are available, either from Fiat itself or from renowned suppliers such as Continental and Bosch. The correct part number is crucial for compatibility and safety after replacing or repairing the safety-relevant control unit.
The following part numbers have been verified multiple times and are suitable exclusively for the airbag control unit of the Fiat 500 Type 312. They ensure compatibility with the vehicle system.
- 52056238 / A2C95530206 : Original Fiat part numbers, often listed together.

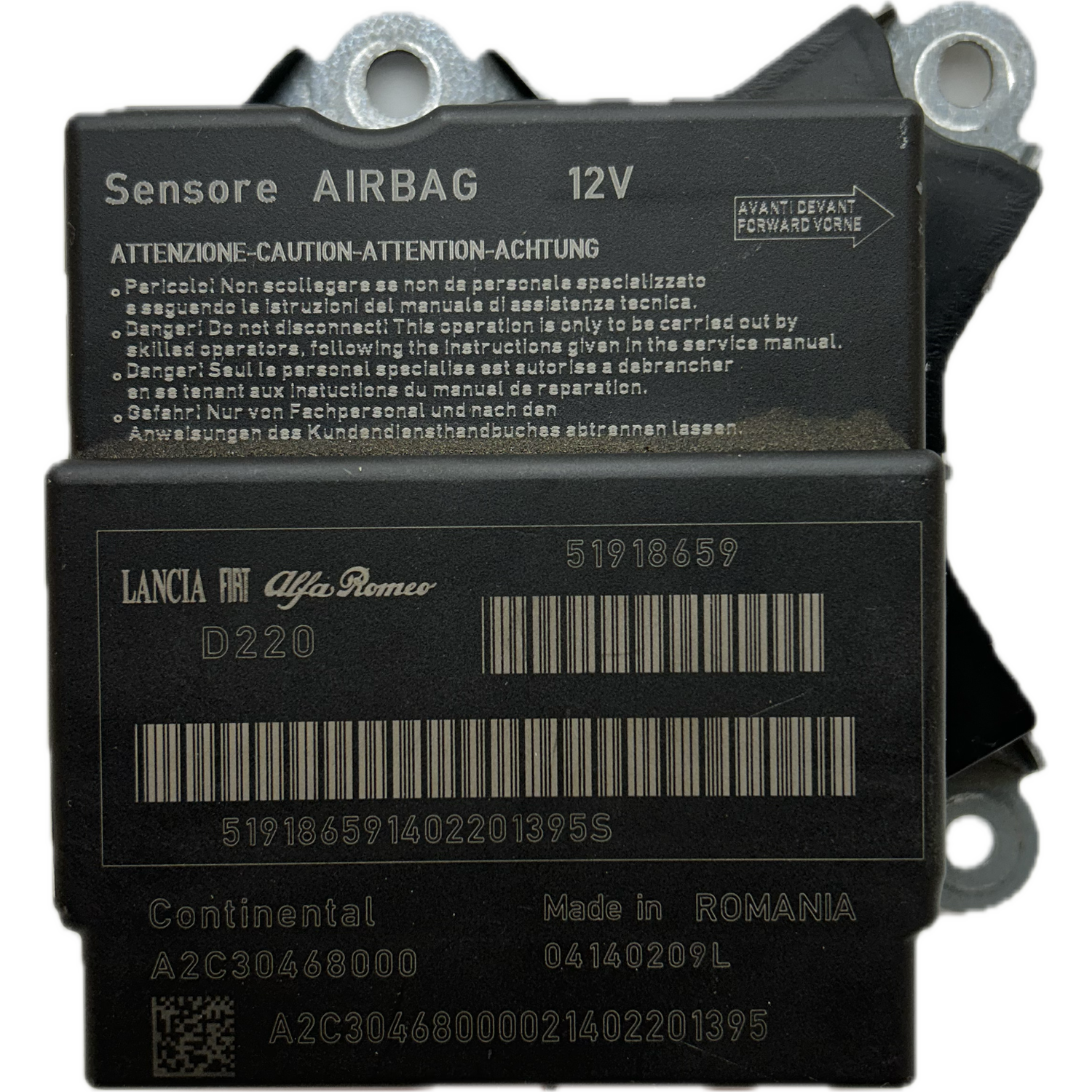

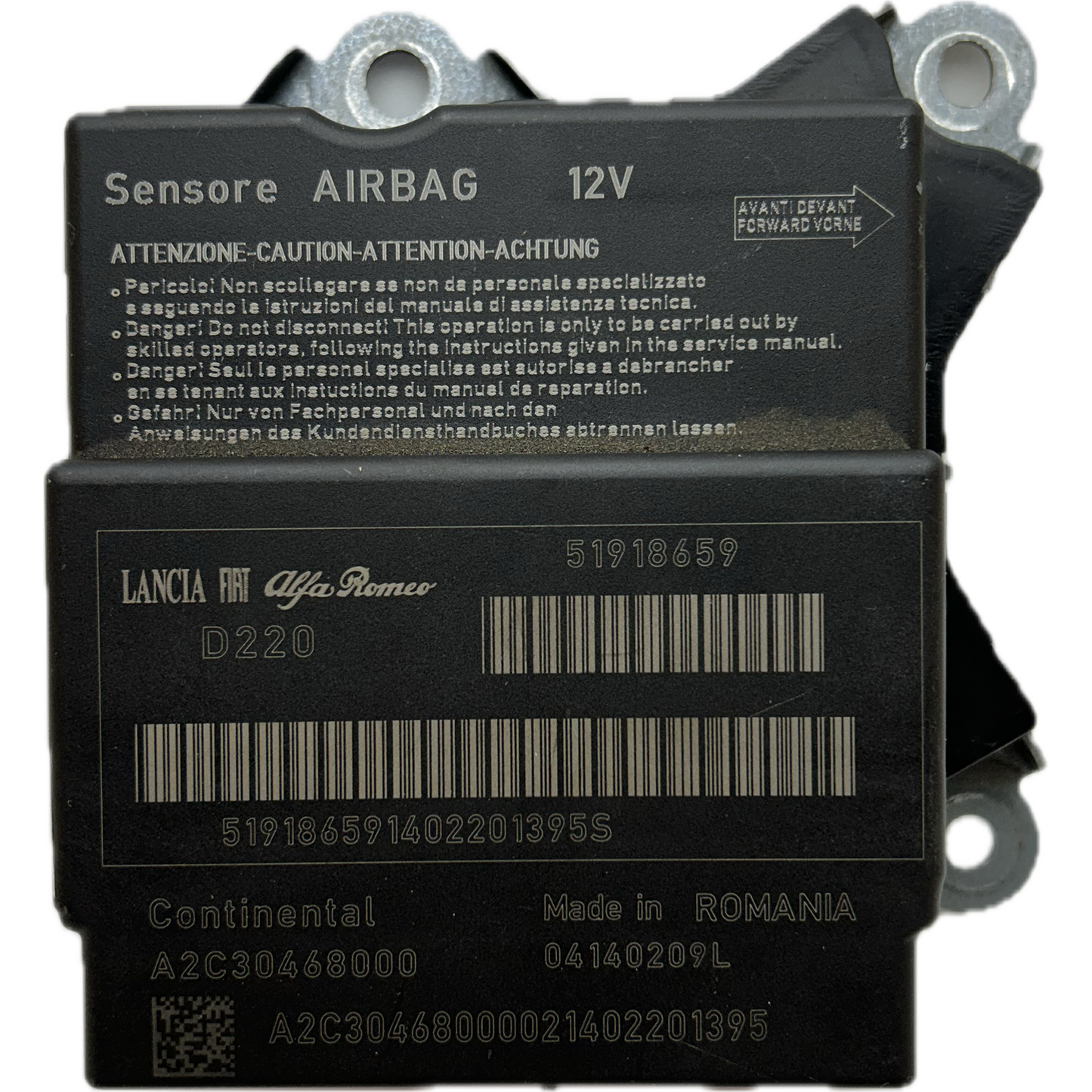

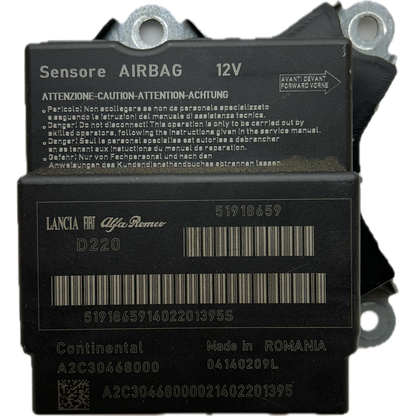

- 51918659 : Another Fiat part number, also manufactured by Continental as a supplier.

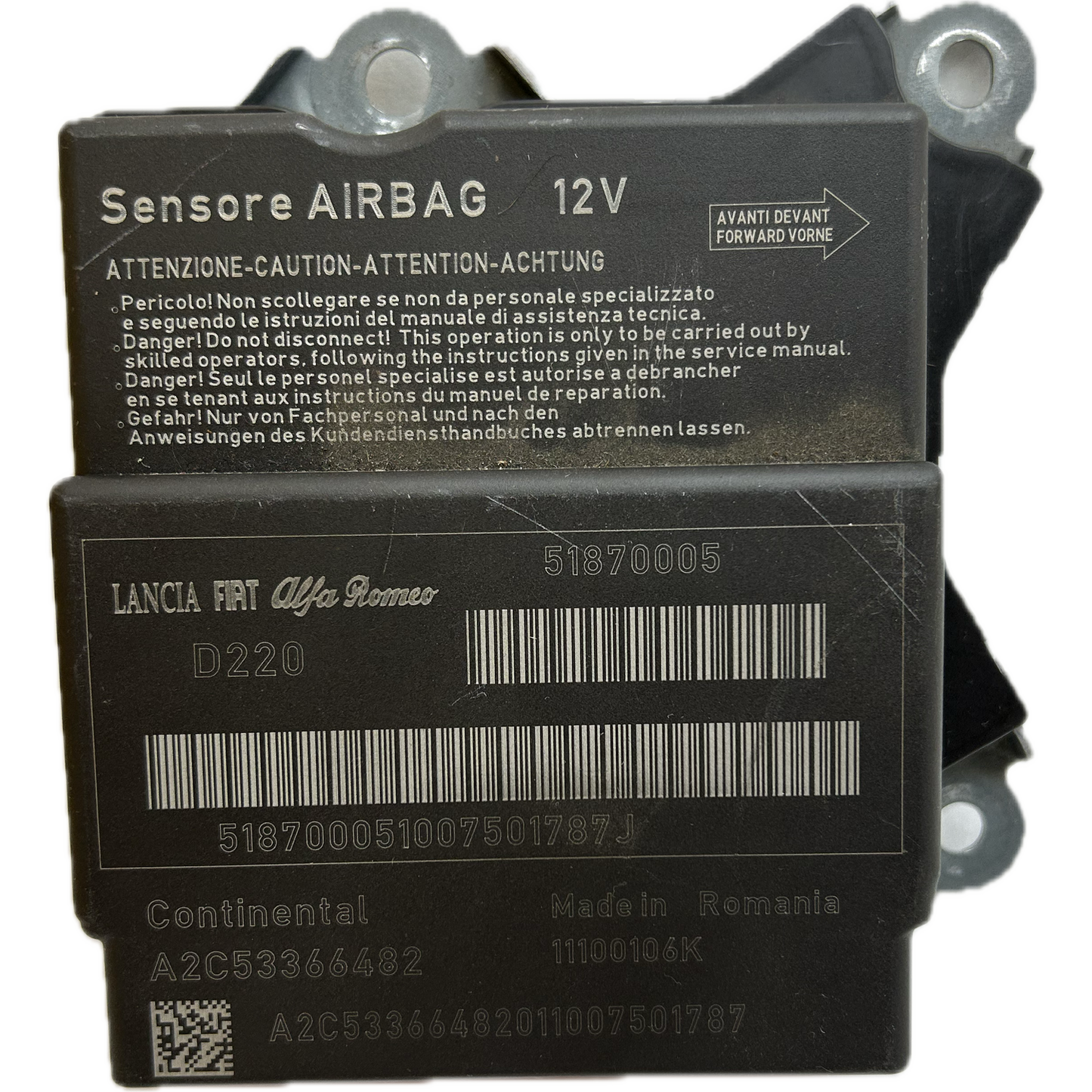

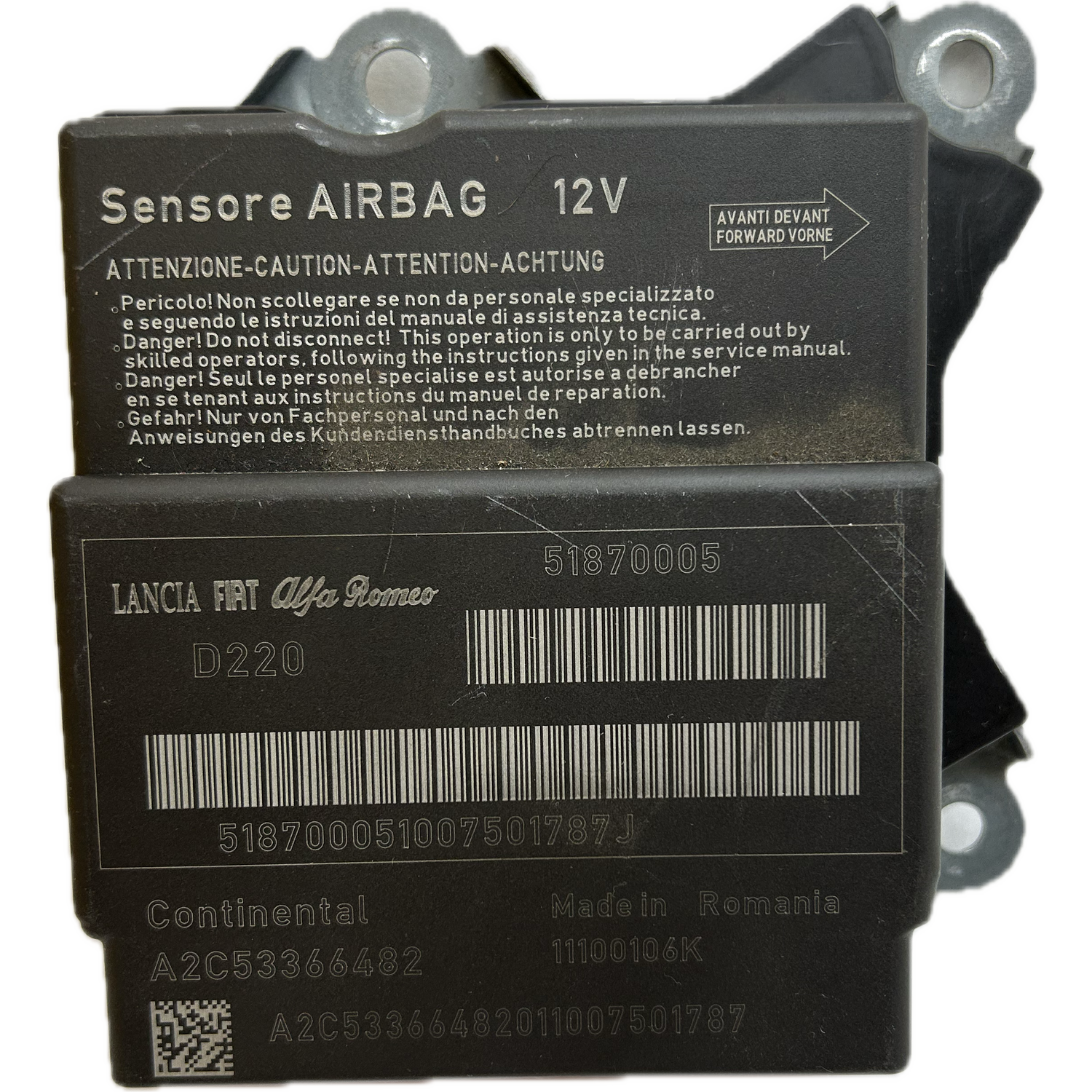

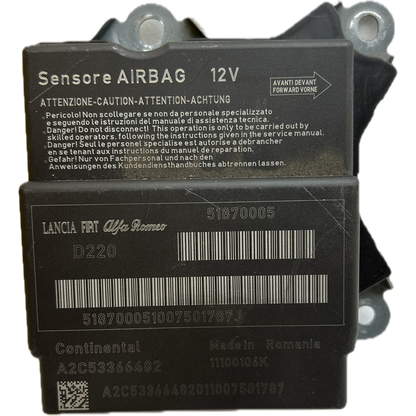

- 518700051 : A Fiat specific OEM number for the airbag control unit.

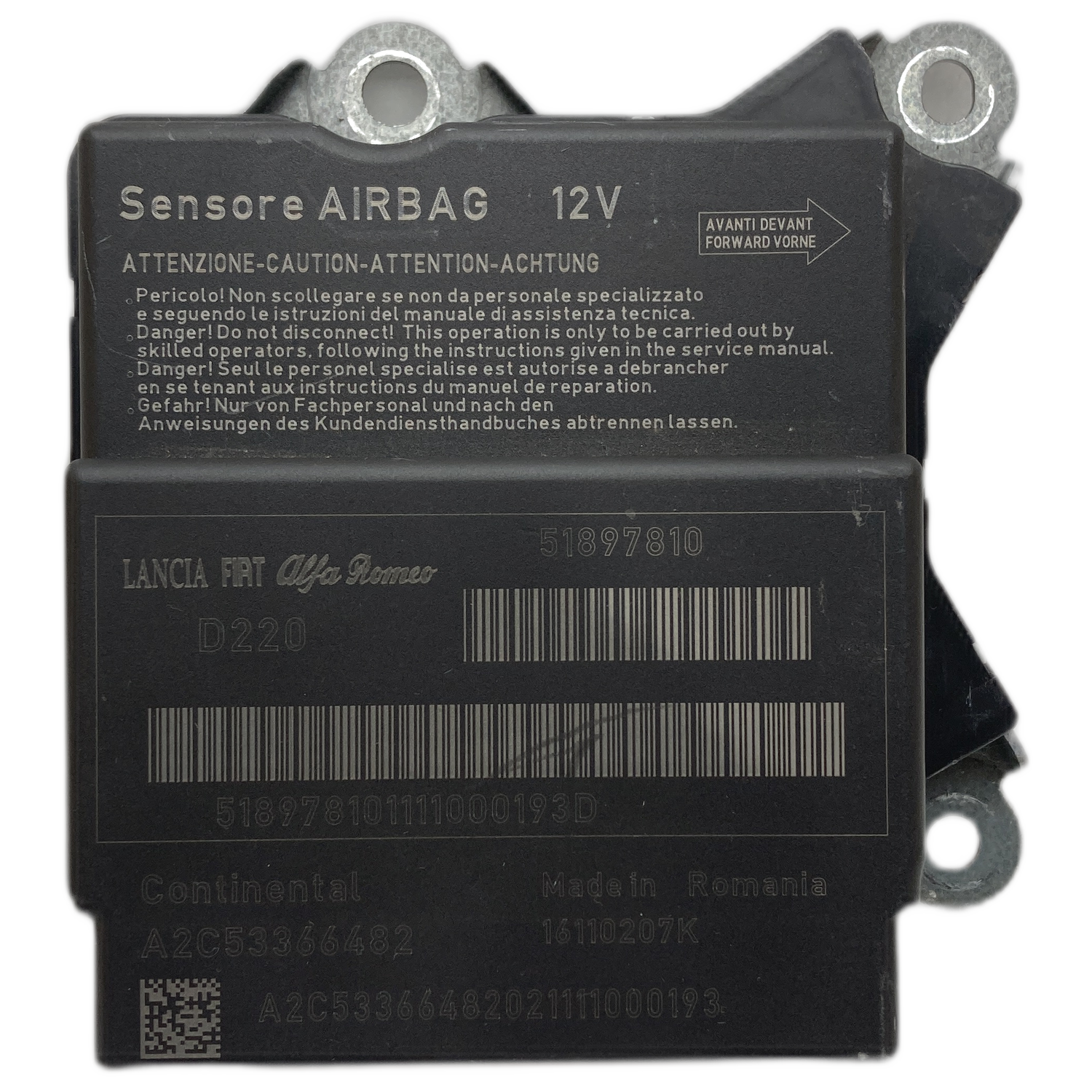

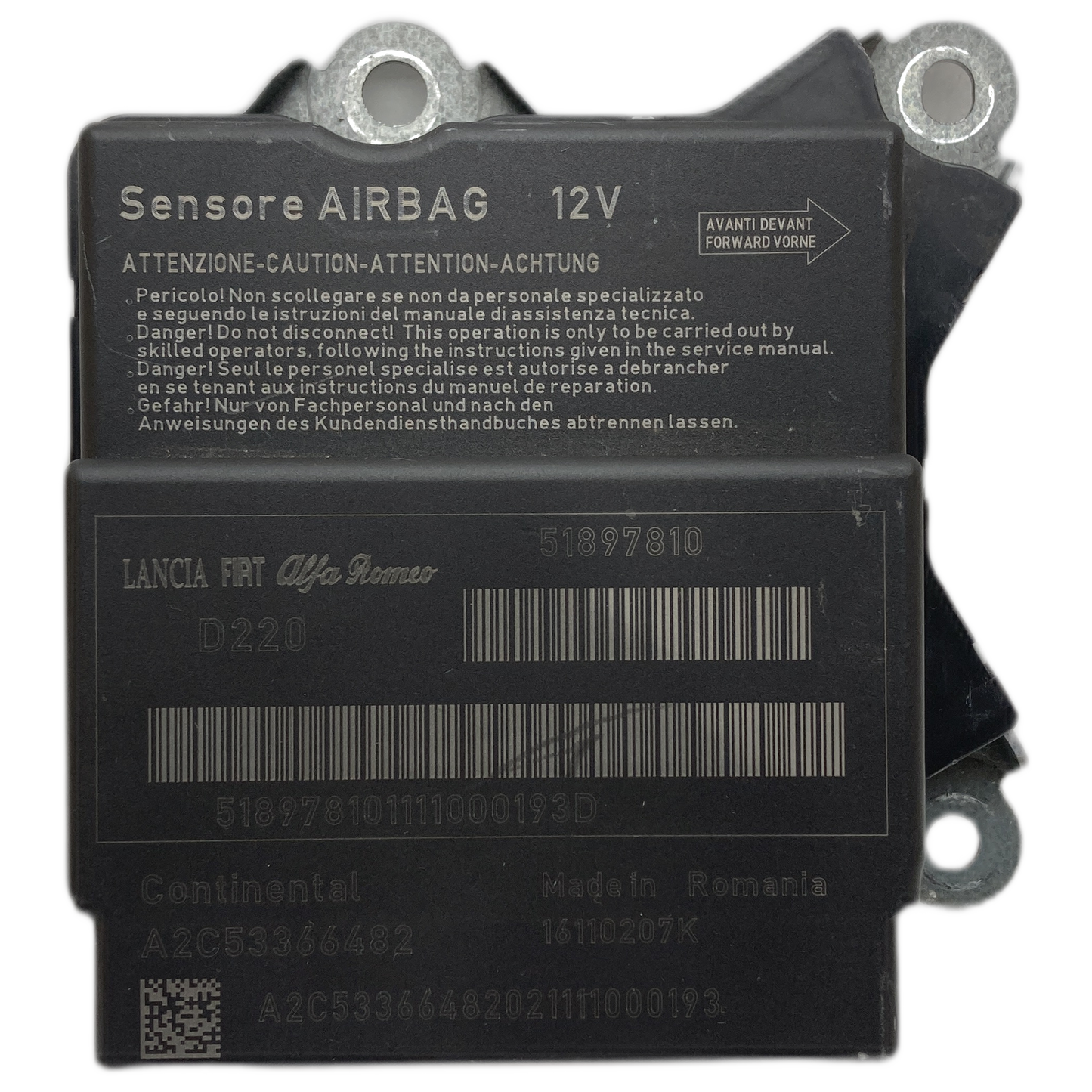

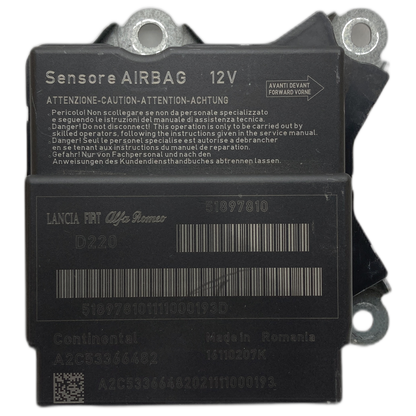

- 51897810 : A Continental part number used as an original or comparison part.
- 51967821 / A2C81350100 : Part numbers that also indicate Bosch as a supplier for Fiat.
- 52040843 : Another original part number used by Fiat.
These numbers cover various model years and engines of the Fiat 500, from 2007 to at least 2015. A precise check of the number on your old part is essential for the correct Fiat 500 312 airbag control unit repair.
Whether it's a new part, a tested used part, or a repair service, using the exact OEM number is crucial. This ensures the airbag system's full functionality after installation in the workshop.
