What is a BMW 7 Series F02 airbag control unit?
The BMW 7 Series F02 airbag control unit is the central safety unit that activates all occupant restraint systems in the event of an accident. It monitors sensors, stores crash data, and ensures the proper functioning of all airbag modules in the vehicle, which is crucial for occupant safety.
This module, often referred to as the central sensor, is the heart of the passive safety system in your BMW 7 Series F02 (model years 2008-2015).
It weighs about 1 kg and has integrated acceleration sensors that measure vehicle dynamics in real time to enable precise response to accident events.
After installation, the airbag control unit requires special coding or programming in the vehicle to synchronize it with the existing software and ensure full functionality.
Why is the BMW 7 Series F02 airbag control unit defective?
A BMW 7 Series F02 airbag control unit can fail due to internal components such as the backup battery wearing out or being damaged by overvoltage, disrupting system communication and leading to the failure of critical safety functions. Crash data stored after an accident may also require a reset or replacement.
Common causes of a defect are internal errors in the chipset or problems with the power supply, which render the control unit unusable.
A typical example is error code 93F9, which indicates a faulty energy reserve voltage supply in the control unit and requires immediate repair or replacement.
Even after a minor accident, the control unit stores crash data that may require a manual reset or replacement of the unit, even if the module itself is still mechanically intact.
Common error codes for BMW 7 Series F02 airbag control unit repair
When diagnosing a faulty BMW 7 Series F02 airbag control unit, specific error codes will occur that indicate internal problems, communication failures or trigger circuit errors and allow precise identification of the problem for quick and targeted repair.
- 93F9 → Energy reserve voltage problem in the control unit → Cause: Defective reserve battery or internal voltage supply in the airbag ECU.
- 93AE → Driver airbag trigger circuit/communication error → Cause: Problem with the ignition cable or the communication between the control unit and the driver airbag.
- 93AB → Passenger airbag trigger circuit/communication error → Cause: Malfunction in the ignition line or the communication between the control unit and the passenger airbag.
- B1000 → Control unit communication error → Cause: General communication problems between the airbag control unit and other vehicle systems.
- F0 → Internal control unit error → Cause: Non-specific error within the hardware or software of the airbag ECU.
- FF → Unknown internal error → Cause: ECU-specific problem whose exact cause cannot be directly assigned.
- 102F → Seat back locking - control unit error → Cause: The airbag control unit registers an incorrect locking of the front passenger seat back, which indicates an internal locking error.
What part numbers are available for the BMW 7 Series F02 airbag control unit repair?
For BMW 7 Series F02 airbag control unit repairs, several verified OEM part numbers are relevant, ensuring exact compatibility with the F01 and F02 models and significantly simplifying replacement or repair. These numbers guarantee original quality and reliable function.
The most common and confirmed original OEM part numbers for the airbag control unit of the BMW 7 Series F01/F02 (model year 2008-2016) include both Bosch and BMW-specific numbers.
The relevant Bosch OEM numbers include 34526857314, 34526850783, 6857314 and 6850783, which are widely documented and tested for this model series.
Genuine BMW OEM part numbers to check for your vehicle are 65779199756, 31919975601D, 9280186 (also for used parts), and 34526851242.

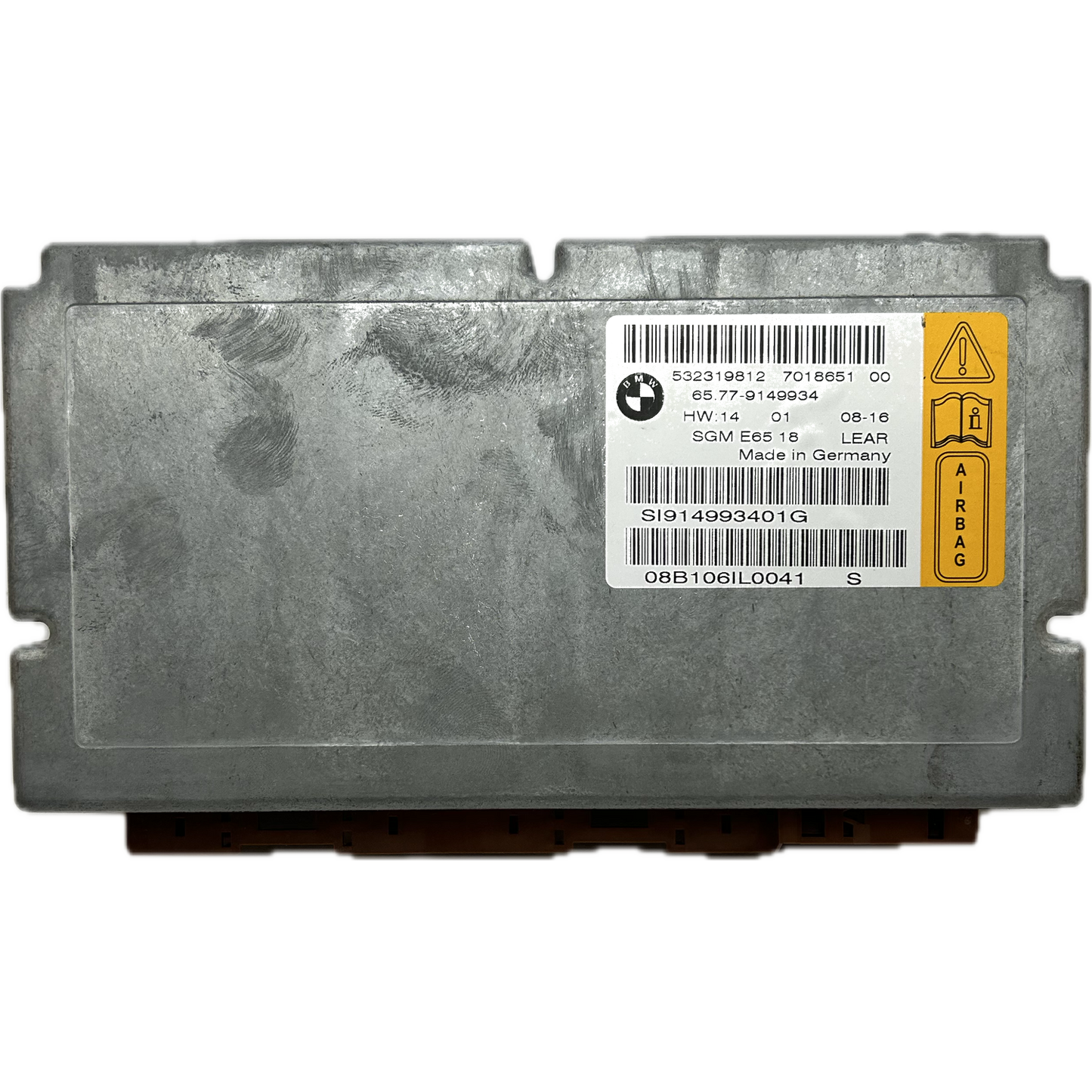

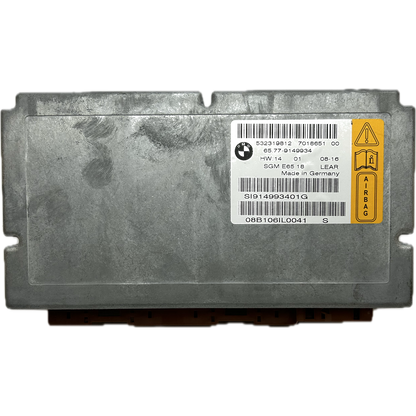

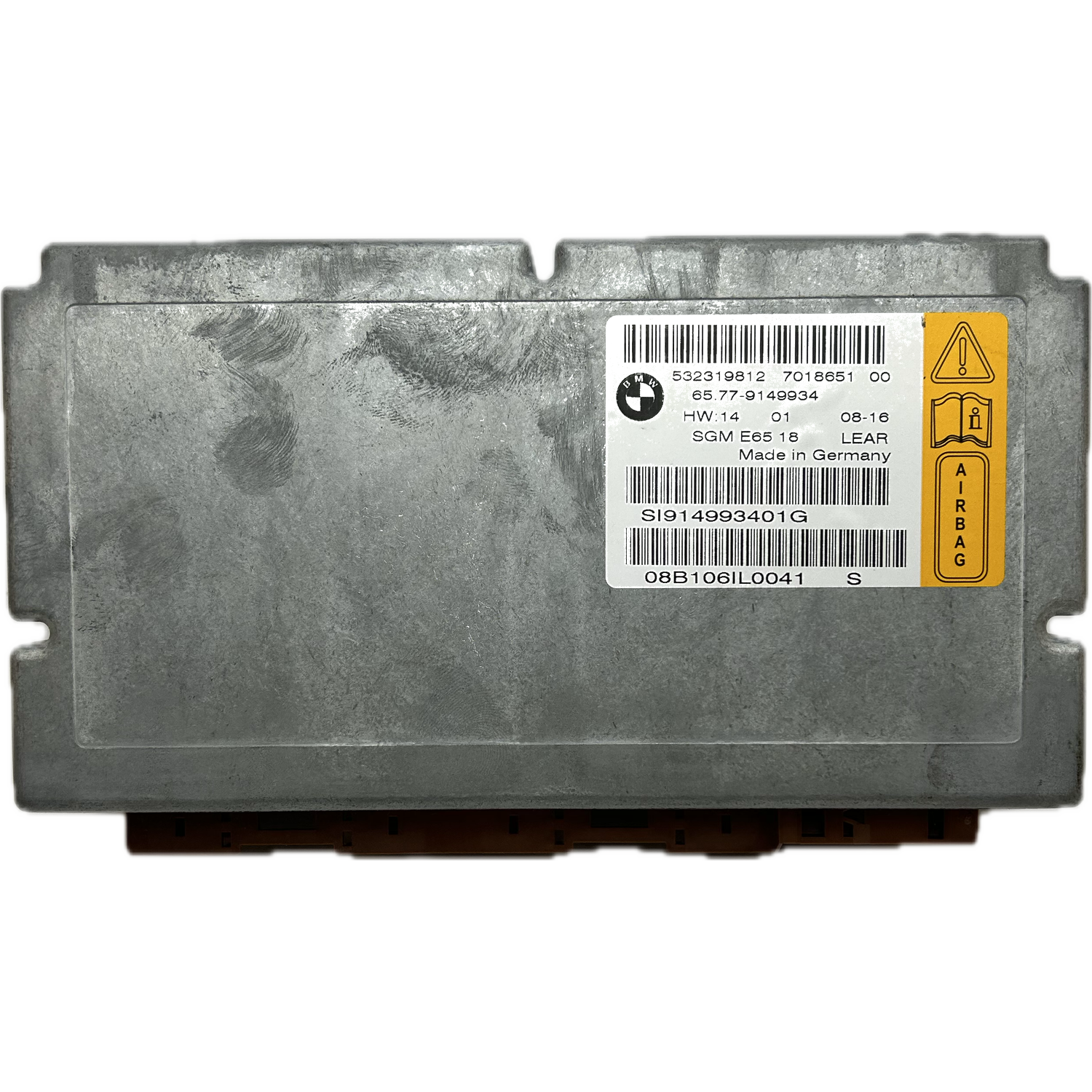

Another frequently occurring OEM number, often Bosch-based and relevant in the context of BMW 7 Series F02 airbag control unit repair, is 65.77-9149934.
Technical specifications and installation of the BMW 7 Series F02 airbag control unit
The BMW 7 Series F02 airbag control unit features precise technical specifications and a central installation location, ensuring proper function for vehicle safety. This requires professional installation in a workshop. Repairs should always be performed by qualified personnel.
This control unit is designed for the BMW 7 Series F01, F02, F03 and F04 models from 2008 to 2015.
It is suitable for various engine types and drive variants, including all-wheel drive (xDrive) and rear-wheel drive, and is designed for engine outputs up to approximately 320 hp (235 kW).
The installation location is typically in the center tunnel of the vehicle, under the dashboard or near the center console.
The attachment is made via a three-point mounting in special rubber mounts for vibration damping, with a defined tightening torque of 6–7 Nm (65–77 light inches).

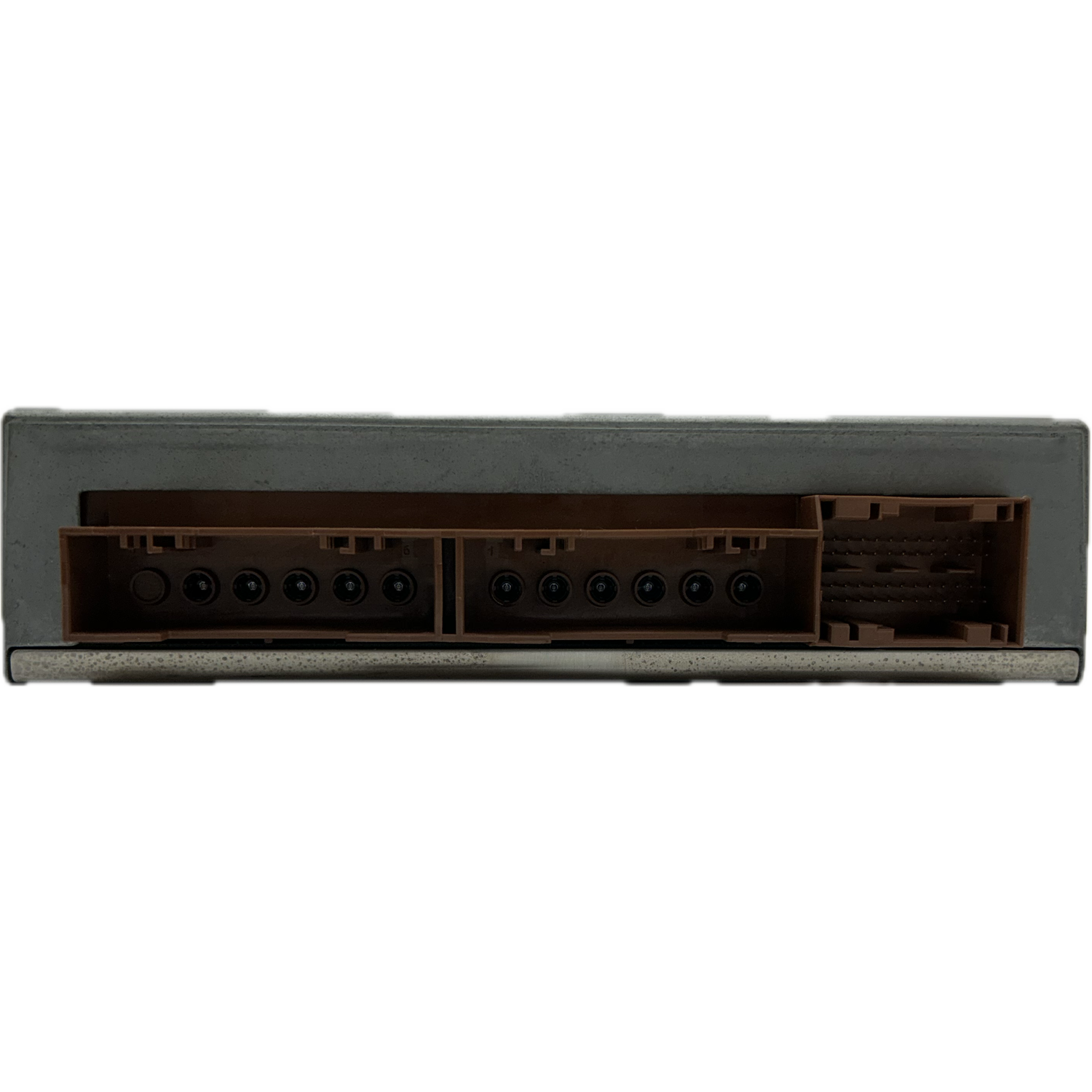

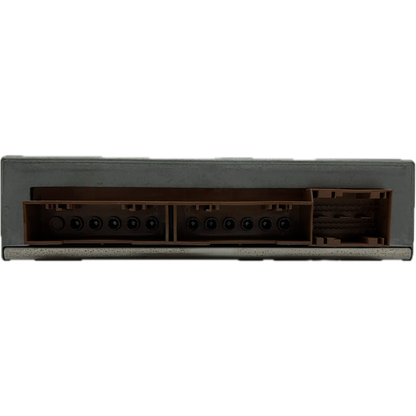

For a secure electrical connection, the module has several multi-plug connectors with integrated locking.
After a replacement, professional coding and adaptation of the control unit to the specific vehicle data in a specialist workshop is always necessary to ensure proper function and to reset any warning lights.
