What is an Audi S8 D4 airbag control unit?
The Audi S8 D4 airbag control unit is the central safety unit that precisely activates all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It continuously monitors sensor data, stores important crash information, and ensures the proper functioning of all components of your vehicle's passive safety system.
This electronic control unit processes signals from acceleration and crash sensors in milliseconds to determine the impact intensity and direction.
Based on this information, it specifically triggers the necessary airbags and belt tensioners to effectively minimize injuries to the vehicle occupants.
Why is the Audi S8 D4 airbag control unit defective?
An Audi S8 D4 airbag control unit can be defective because crash data was stored after an accident, internal electronic components fail due to age, or moisture causes short circuits. These defects often prevent the airbag warning light from resetting or the system from functioning correctly, requiring specialized repair.
The most common cause of a defect is the storage of crash data after an accident, which blocks the control unit and activates the airbag light.
Water damage or corrosion can also lead to malfunctions and internal short circuits that render the control unit unusable.
Software errors or defective solder joints inside the module are further reasons why an Audi S8 D4 airbag control unit repair is necessary.
Common error codes for Audi S8 D4 airbag control unit repair
When diagnosing a faulty Audi S8 D4 airbag control unit, specific error codes will appear that directly indicate problems with the control unit itself or its ability to communicate. These codes are crucial for precise repair and system reset.
- B1000 → Control unit communication error → There is a fault in the data transmission between the airbag control unit and the vehicle electrical system.
- 00588 → Airbag igniter resistance error (e.g. driver's side) → The resistance in the airbag igniter circuit deviates from the specified value, which indicates a problem with the control unit or the wiring.
- 01217 → Side airbag igniter error → The airbag control unit detects an error in the ignition circuit of a side airbag, which can be triggered by the control unit.
- U1112 → Communication error / function limitation (implausible messages) → The control unit receives implausible or no messages from other components, which limits its function.
- U1113 → Communication error with other control units → The communication between the airbag control unit and other relevant control units in the vehicle is disrupted.
What part numbers are available for the Audi S8 D4 airbag control unit repair?
For Audi S8 D4 airbag control unit repairs, various OEM part numbers from Bosch and Audi are relevant to ensure compatibility with your vehicle. The most common and verified numbers are 4H0959655C, 4H0959655G, and 4H0907553E, all of which fit model years 2009-2017.
These numbers have been verified multiple times from official Audi catalogs and specialized spare parts sources to ensure a high level of fit.

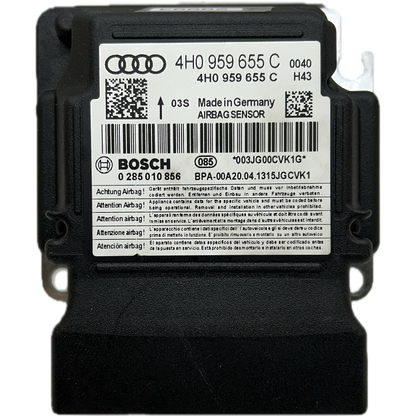

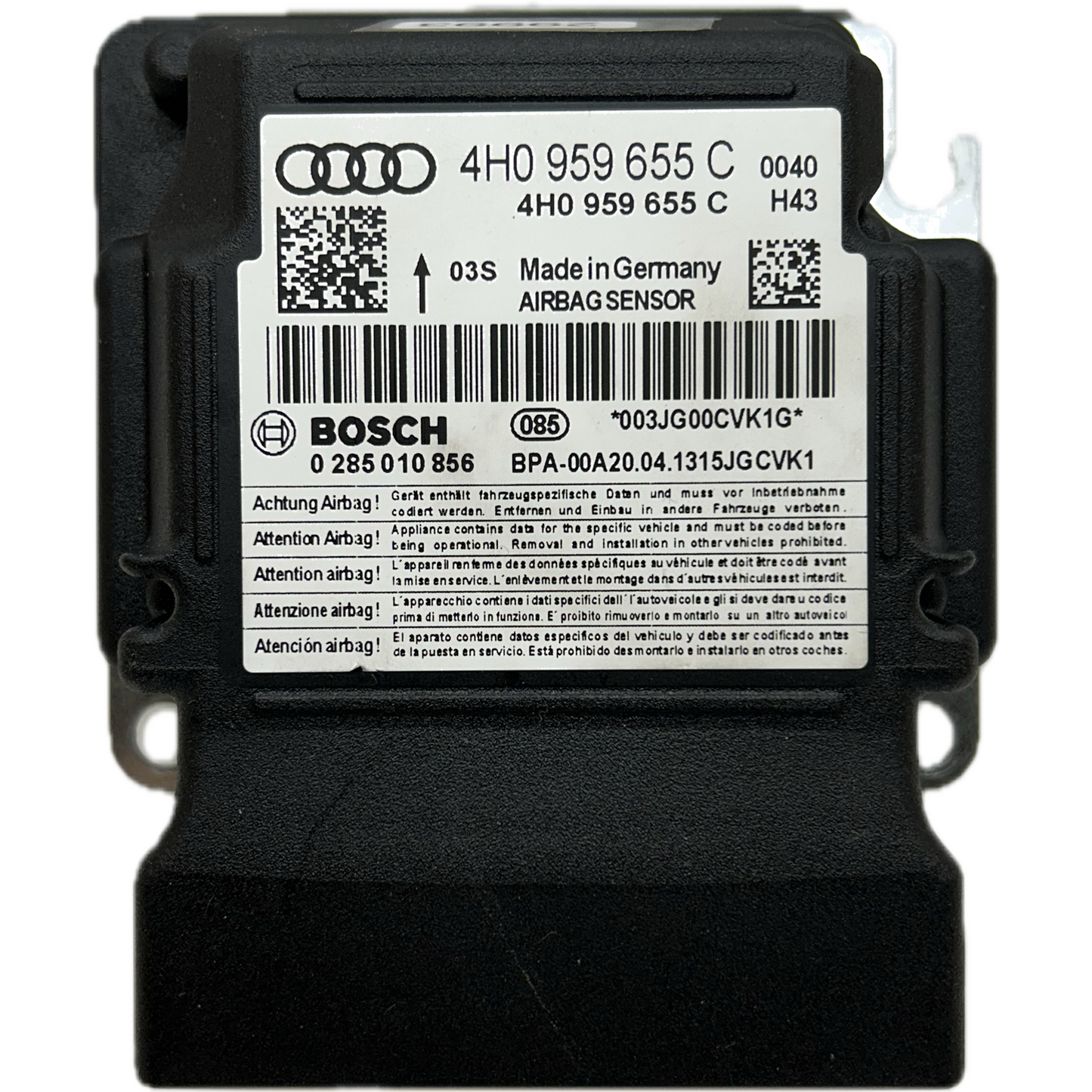

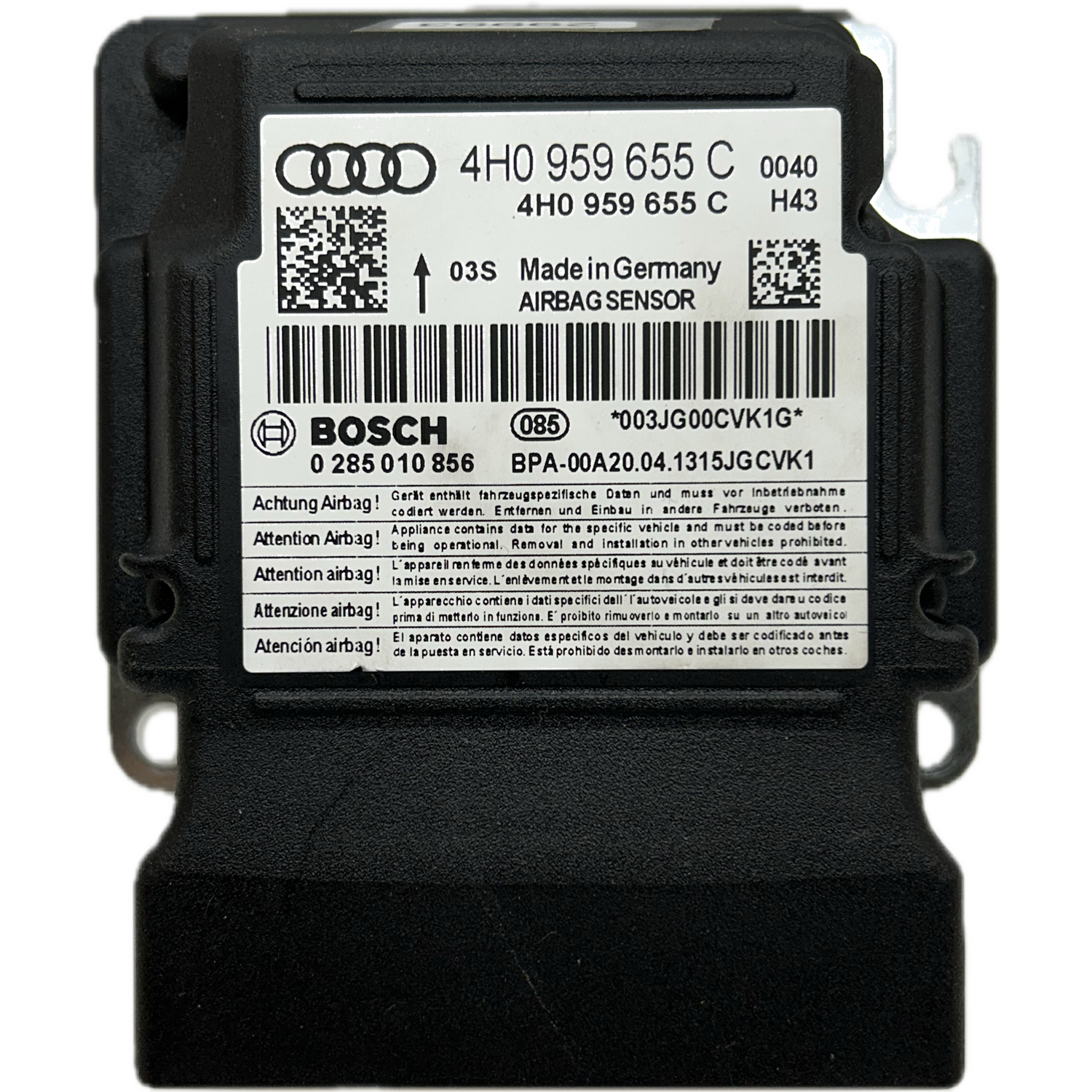

Part numbers 4H0959655C (Bosch 0 285 010 856) and 4H0959655G are identical or compatible revisions and both confirmed as genuine parts for the Audi S8 D4.
Other important OEM numbers from Audi/Bosch that are relevant for airbag control unit repair include 4H0907553E (often with Bosch 441570500) and 4H0907553.
Bosch is the main supplier for these airbag control units in the Audi S8 D4, which also makes the Bosch numbers important as a reference for repairs.
