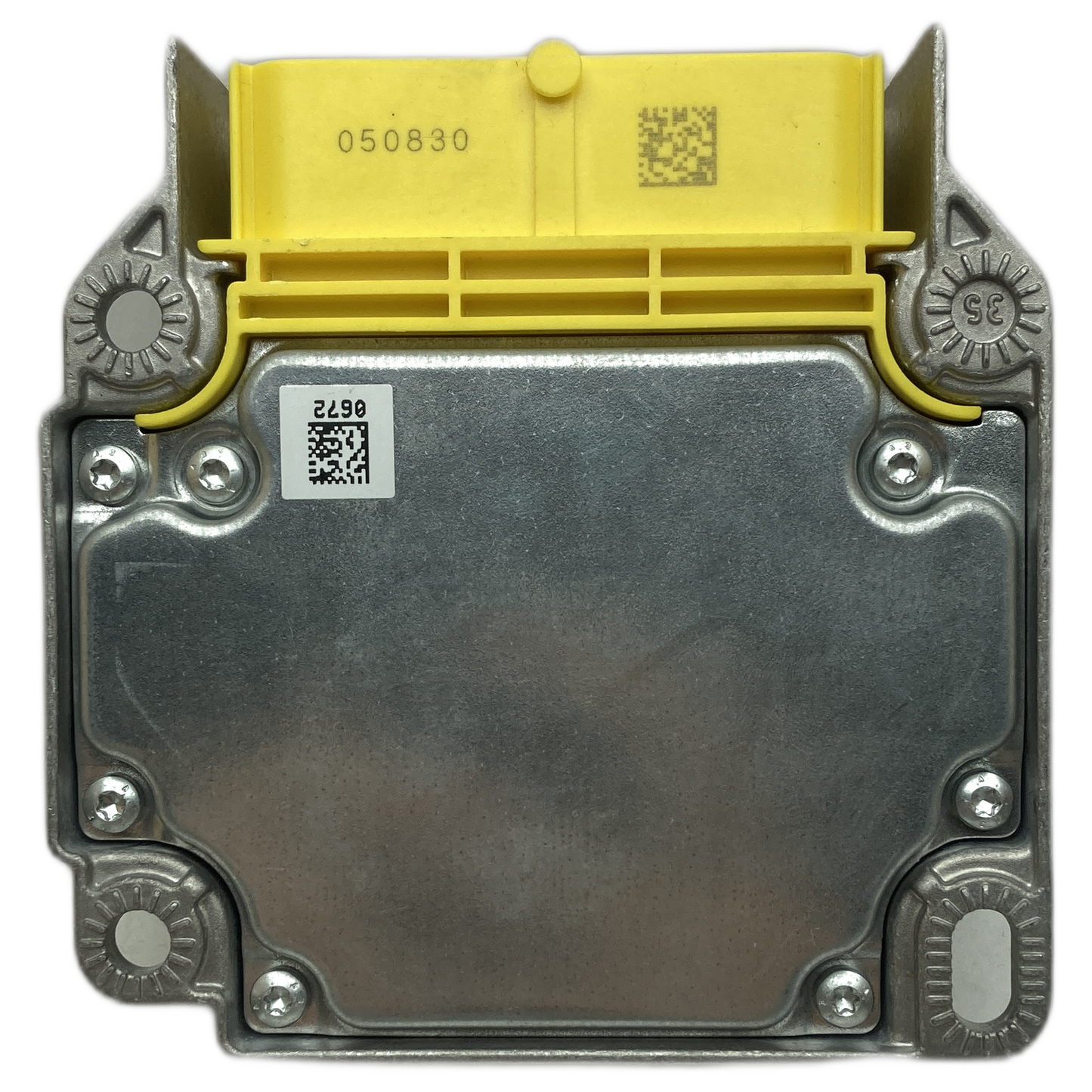

What is an Audi S8 D3 airbag control unit?
The Audi S8 D3 airbag control unit is the central safety unit in your vehicle, which activates all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It continuously monitors various sensors, stores relevant crash data, and ensures the proper functioning of all safety-relevant modules in the vehicle, making it essential for occupant safety.
This control unit operates on a 12-volt vehicle electrical system and is typically produced by Bosch for Audi. It forms the heart of the passive safety system and is crucial for protecting vehicle occupants.
Why is the Audi S8 D3 airbag control unit defective?
A defect in the Audi S8 D3 airbag control unit often occurs due to internal electrical malfunctions, overvoltage damage, or moisture ingress, which necessitates an Audi S8 D3 airbag control unit repair. Because the control unit is a highly sensitive electronic component, even minor voltage fluctuations or water damage can lead to failure, causing the airbag warning light to illuminate continuously.
Typical causes of failure include age-related corrosion on the internal circuit boards or damage caused by improper work on the vehicle's electrical system. A defective control unit no longer communicates correctly with the diagnostic tool or other vehicle systems.
This can lead to error messages that require inspection and, if necessary, professional repair of the Audi S8 D3 airbag control unit. Without a functioning control unit, the airbag system's full protective effect cannot be guaranteed.
Common error codes for Audi S8 D3 airbag control unit repair
Specific error codes directly indicate defects in the Audi S8 D3 airbag control unit and require targeted diagnostics, which often results in an Audi S8 D3 airbag control unit repair. These codes signal internal system errors, communication problems, or a complete failure of the control unit, which impairs the functionality of the entire airbag system and activates the airbag warning light.
- 00003 → Control unit defective → Internal error or failure of the airbag ECU.
- B1000 → Control unit communication error → Problem with the CAN bus connection or internal malfunction of the airbag ECU.
- 65535 → Control unit defective → General internal hardware or software error of the airbag control unit.
- 93F9 → Internal error in the control unit → Non-specific internally generated error, often caused by voltage spikes or component failure.
What part numbers are available for the Audi S8 D3 airbag control unit repair?
For Audi S8 D3 airbag control unit repairs, there are specific, verified OEM and Bosch part numbers that ensure correct compatibility. These numbers are crucial for finding the right replacement part, as they are tailored to the 2003 to 2009 Audi S8 (D3 / 4E model series) and some A8 D3 models, enabling a successful repair.
The most commonly confirmed Audi OEM part numbers for the S8 D3 airbag control unit include various revisions.
- Audi OEM: 4E0959655
- Audi OEM: 4E0959655G
- Audi OEM: 4E0959655H
- Audi OEM: 4E0910655
Corresponding Bosch original numbers, which are often associated with the Audi numbers, are:
- Bosch OEM: 0285001512
- Bosch OEM: 0285001705
These part numbers refer exclusively to the airbag control unit itself and not to separate sensors or modules of the airbag system. The exact part number is crucial for a successful Audi S8 D3 airbag control unit repair.
Installation and operation of the Audi S8 D3 airbag control unit
The Audi S8 D3 airbag control unit is typically securely installed behind the center console and ensures the proper functioning of the airbags in the event of an accident. After an Audi S8 D3 airbag control unit repair or replacement, professional installation, subsequent diagnostics, and error code reset are essential to ensure full safety and system integration.
The control unit continuously records signals from acceleration and crash sensors throughout the vehicle. In an emergency, it evaluates these signals within milliseconds and triggers the appropriate airbags and seatbelt pretensioners.
It's connected to other key control units, such as ABS and ESP, via a CAN bus to ensure a coordinated response in the event of an accident. The connectors are often brightly marked yellow and feature gold-plated pins to prevent corrosion and signal interference.
The control unit's integrated self-diagnostic function monitors wiring, sensors, and components for faults. Only a qualified workshop should perform installation and programming, as these are safety-relevant tasks.
