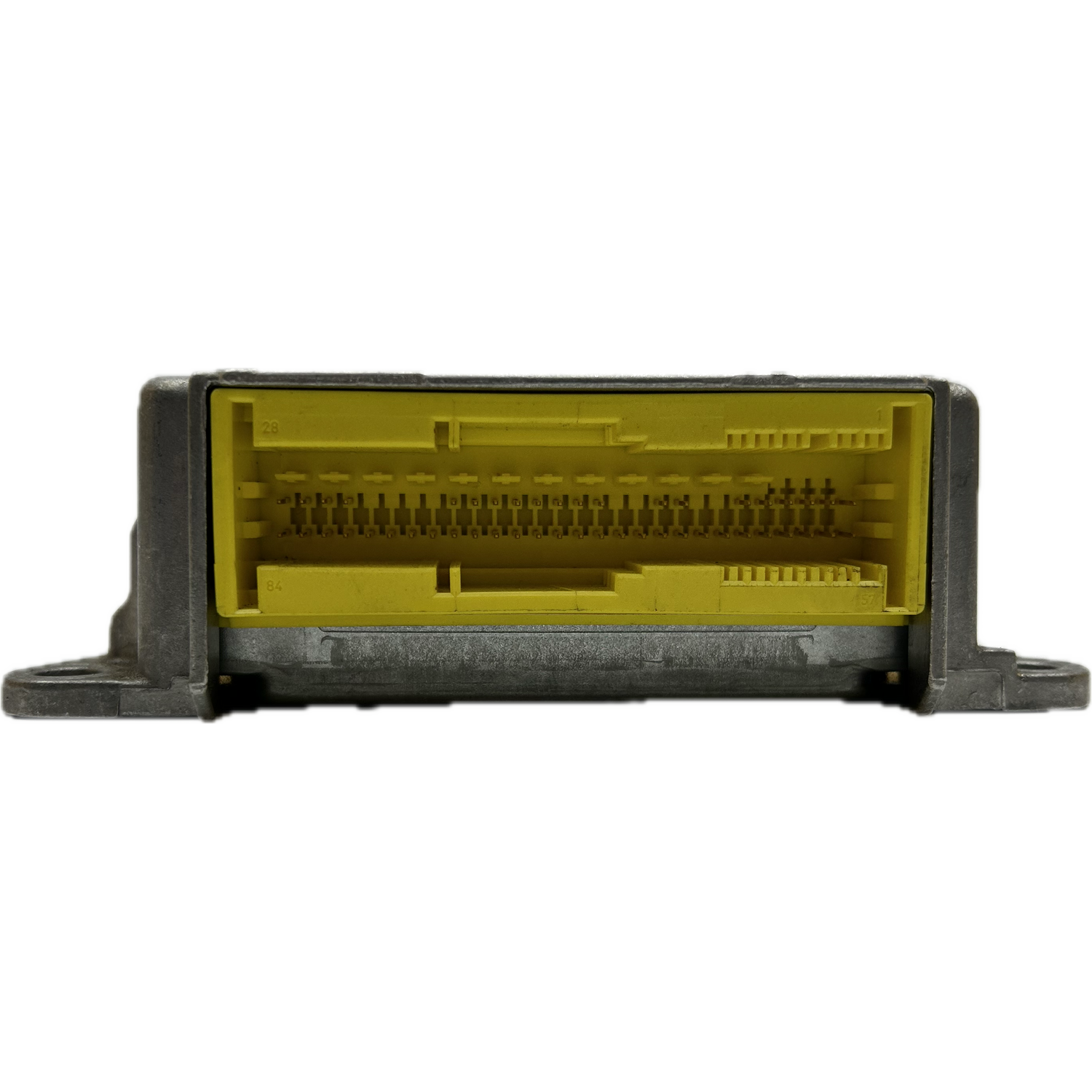

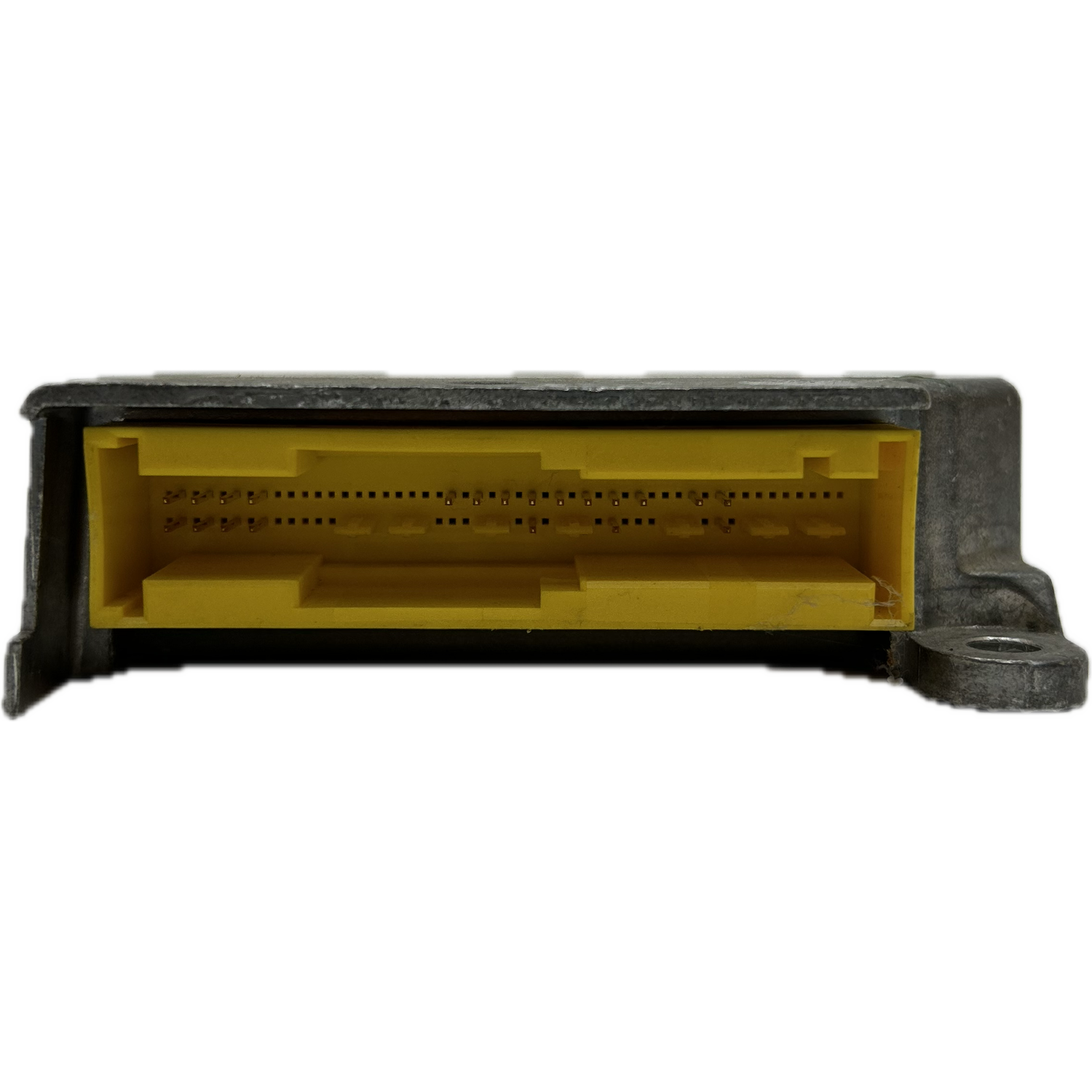

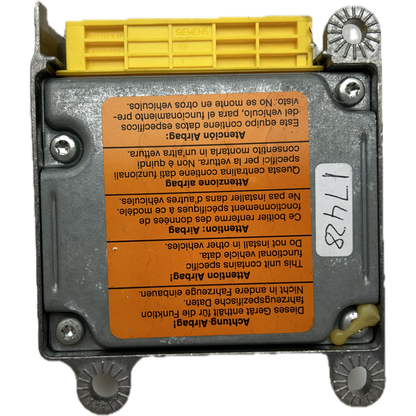

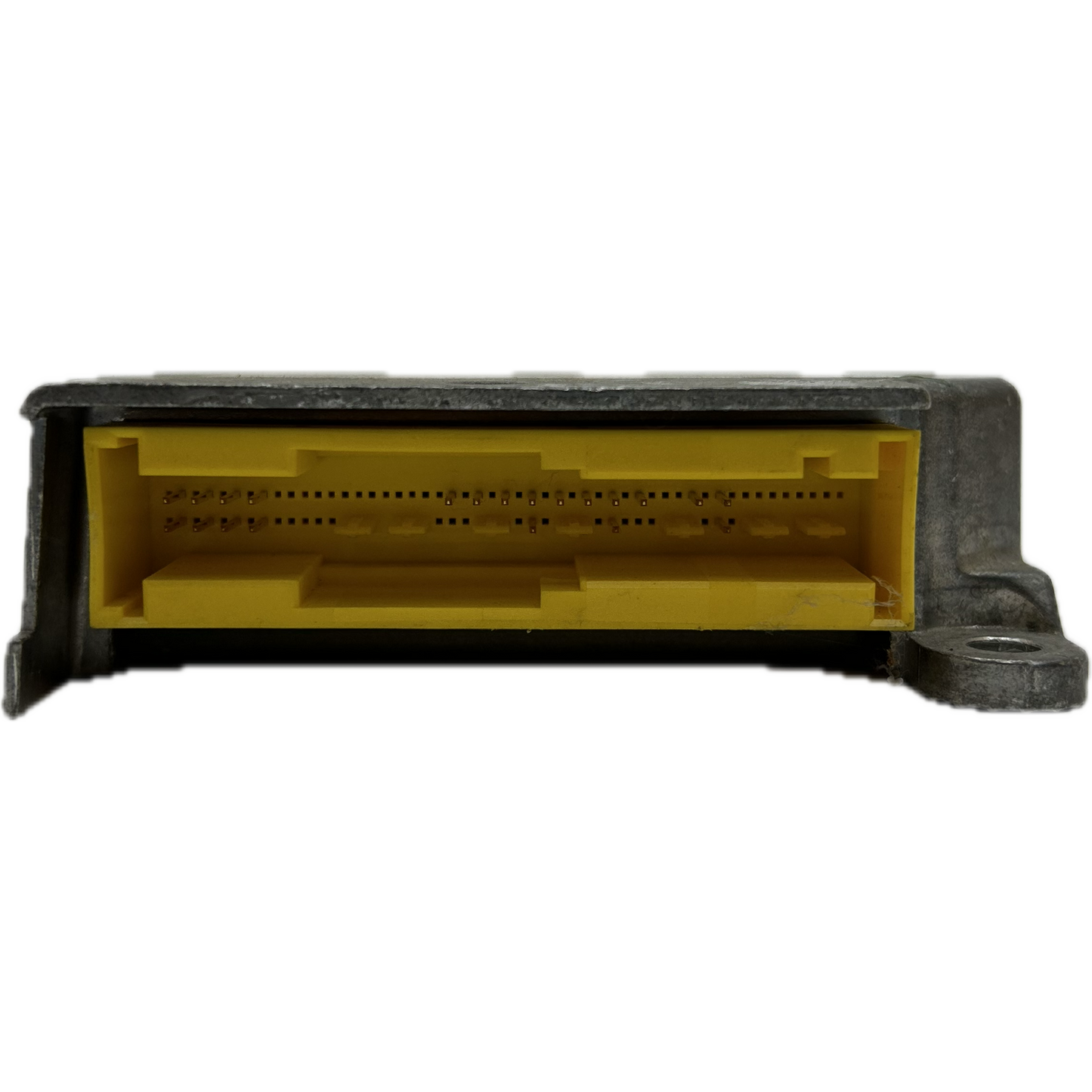

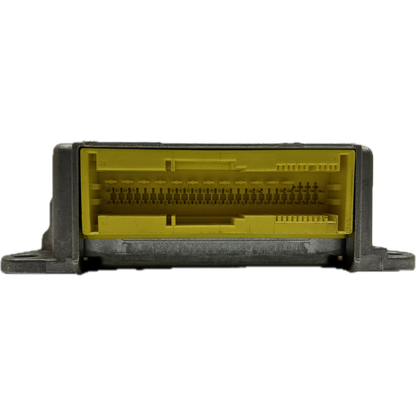

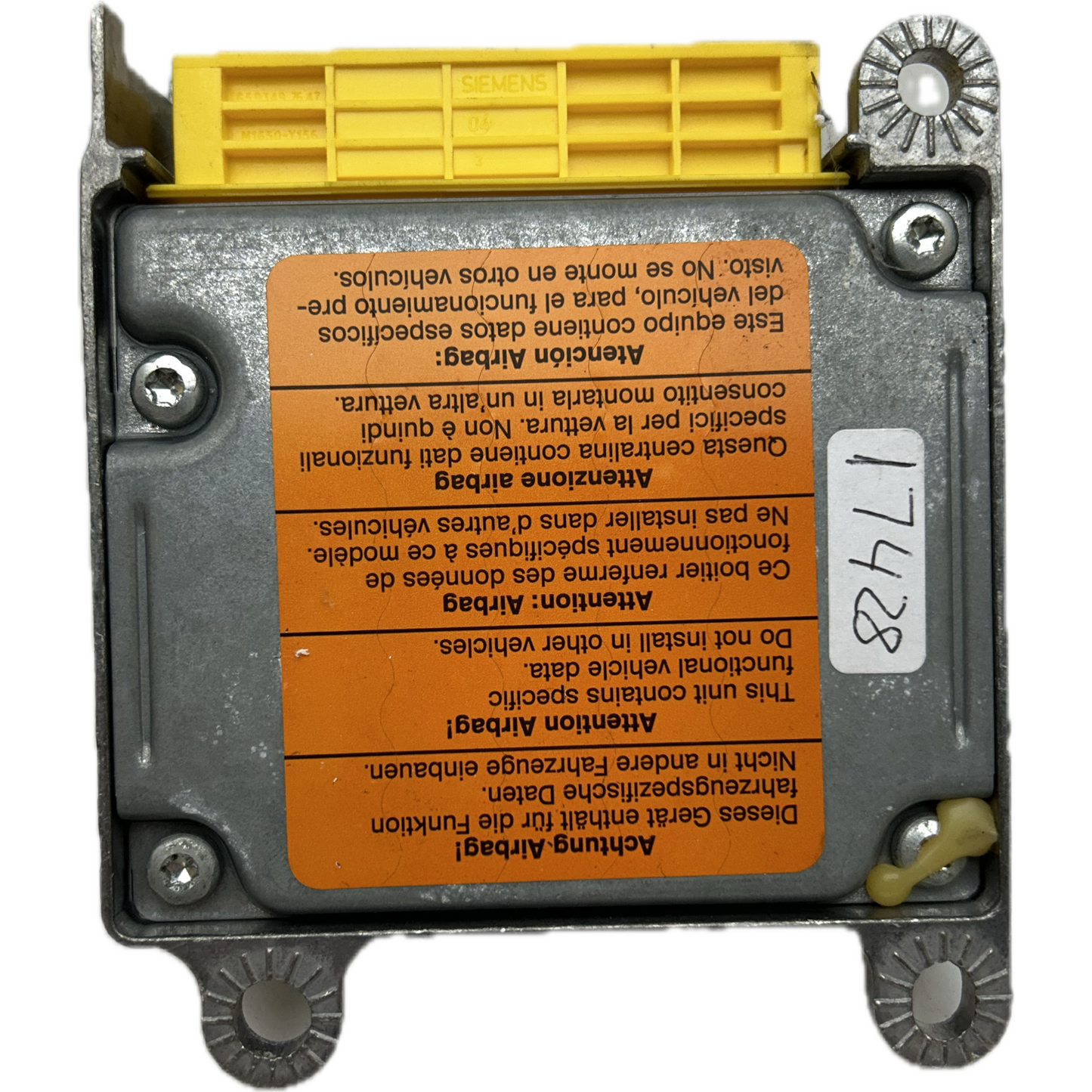

What is an Audi A3 8L airbag control unit?
The Audi A3 8L airbag control unit is the central control unit for the occupant protection system. It continuously monitors all airbag sensors and seat belt pretensioners and automatically triggers the safety systems in the event of an accident. This essential component stores important crash data and error codes for diagnosis and restoration of vehicle safety.
As an essential component of passive safety, it is responsible for the correct functioning of all airbag modules and seat belt pretensioners. It ensures that the occupants are optimally protected in the event of a collision.
The control unit processes signals from various sensors and decides in milliseconds whether a trigger is necessary. It is designed for all Audi A3 8L models from 1996 to 2003.
Why is the Audi A3 8L airbag control unit defective?
An Audi A3 8L airbag control unit often malfunctions because it stores crash data after an accident and thus locks itself. However, internal hardware or software errors can also occur, leading to communication problems or a malfunction of the safety system.
Typical causes of failure include internal component defects or software corruption. This can impair the monitoring function and activate the airbag warning light.
In the event of an accident, the device stores so-called "crash data," which often results in it being disabled for safety reasons, necessitating an Audi A3 8L airbag control unit repair. A defective control unit can also be caused by an insufficient supply voltage.
Common error codes for Audi A3 8L airbag control unit repair
When diagnosing a faulty Audi A3 8L airbag control unit, two specific error codes primarily occur, indicating an internal defect or a voltage issue. These codes are crucial for correct troubleshooting and successful Audi A3 8L airbag control unit repair.
- 65535 → Control unit defective / Control unit component defective / Checksum error → This code directly indicates an internal malfunction of the airbag control unit, often after an accident or in the event of a hardware failure.
- 00532 → Supply voltage signal too low (sporadic) → This error code indicates a problem with the power supply to the control unit, often caused by a weak battery or faulty wiring on the device.
Other specific error codes are less frequently documented for this airbag control unit and usually don't affect the unit itself, but rather connected sensors or seatbelt pretensioners. A precise diagnosis is essential for a successful repair.
What part numbers are available for the Audi A3 8L airbag control unit repair?
For Audi A3 8L airbag control unit repairs, there are several exact OEM part numbers that are directly compatible with the Audi A3 8L model. These original manufacturer numbers, often supplied by Bosch, guarantee the exact fit and functionality of the replacement part.
The most relevant OEM part numbers for the Audi A3 8L airbag control unit are:

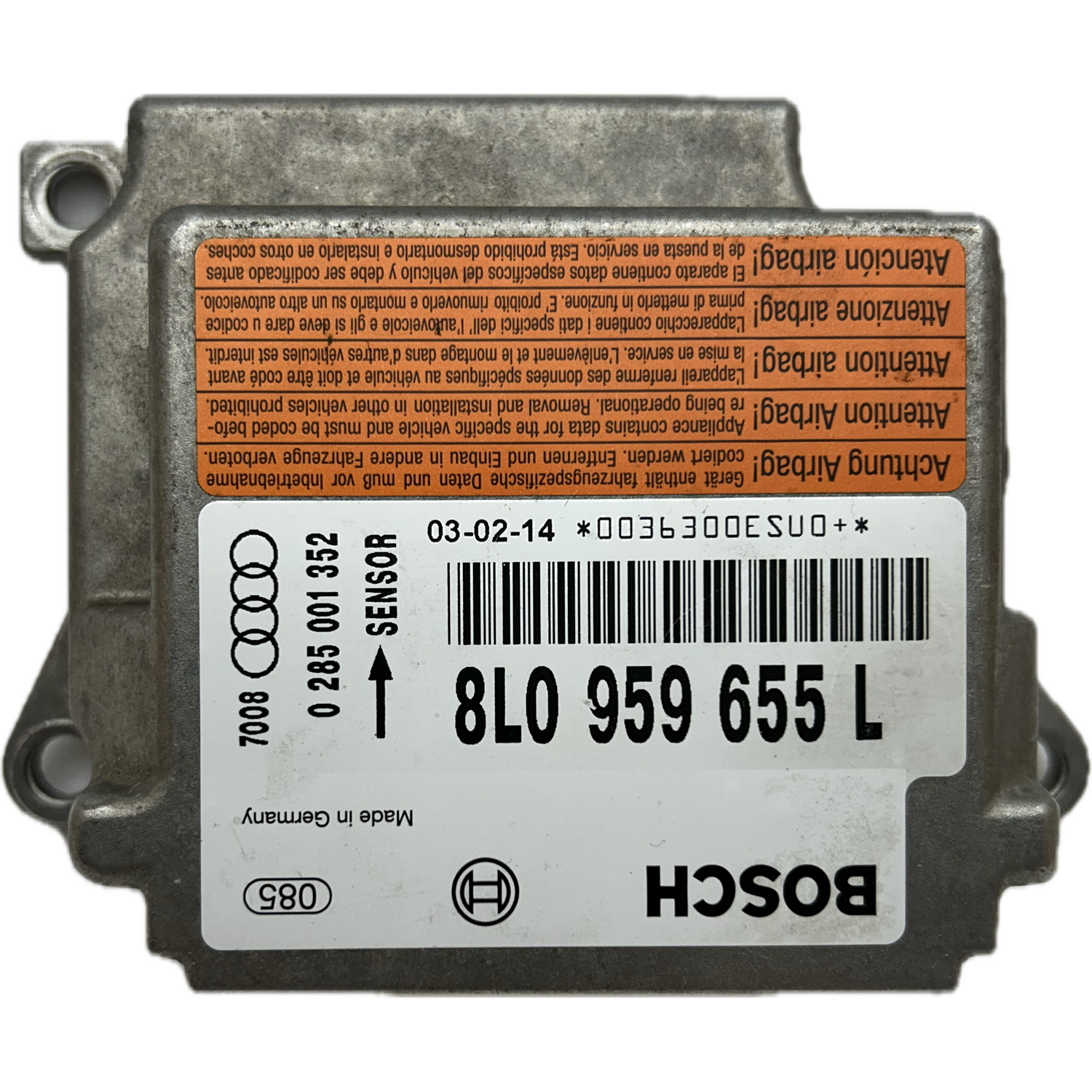

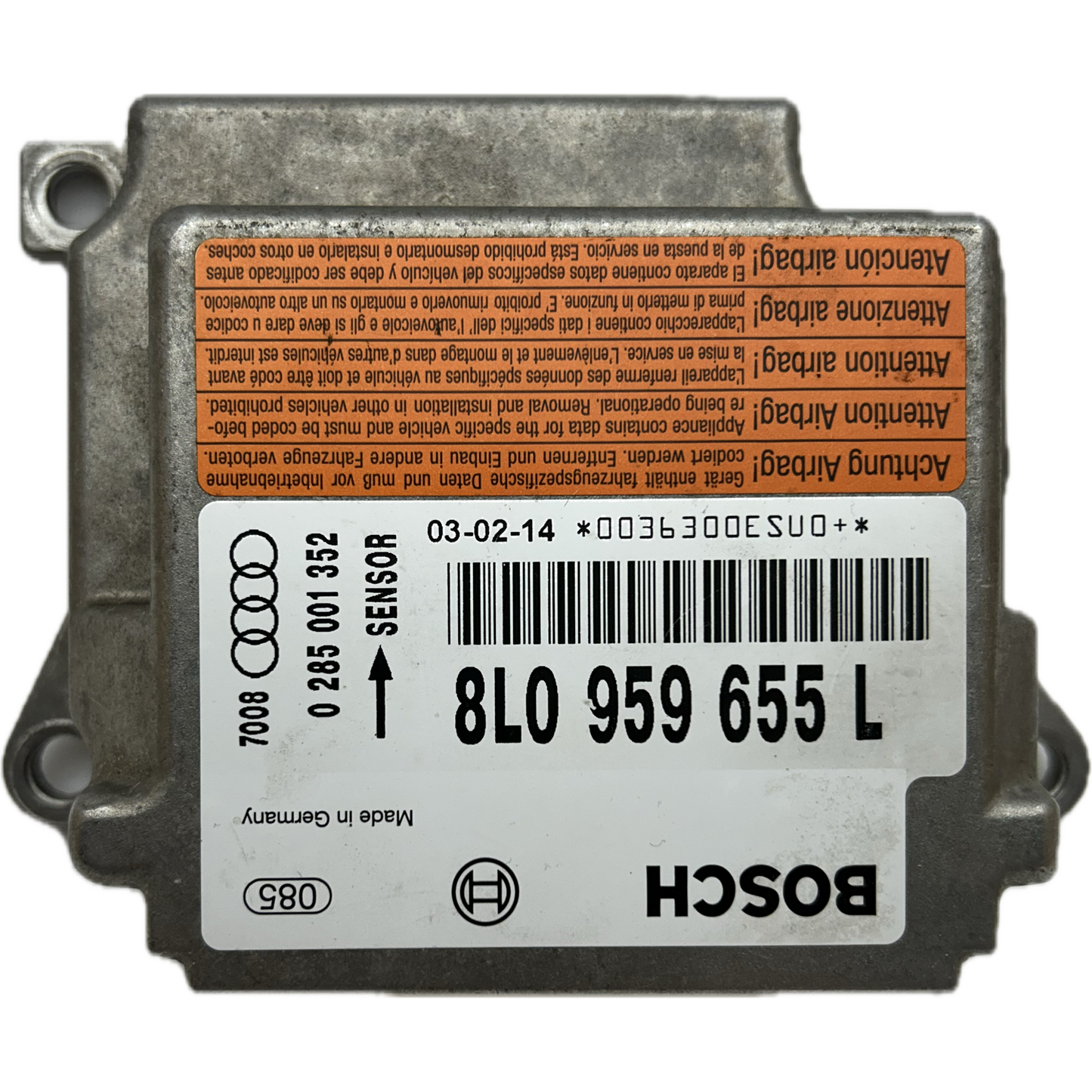

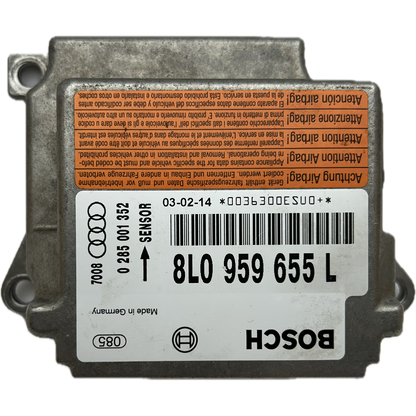

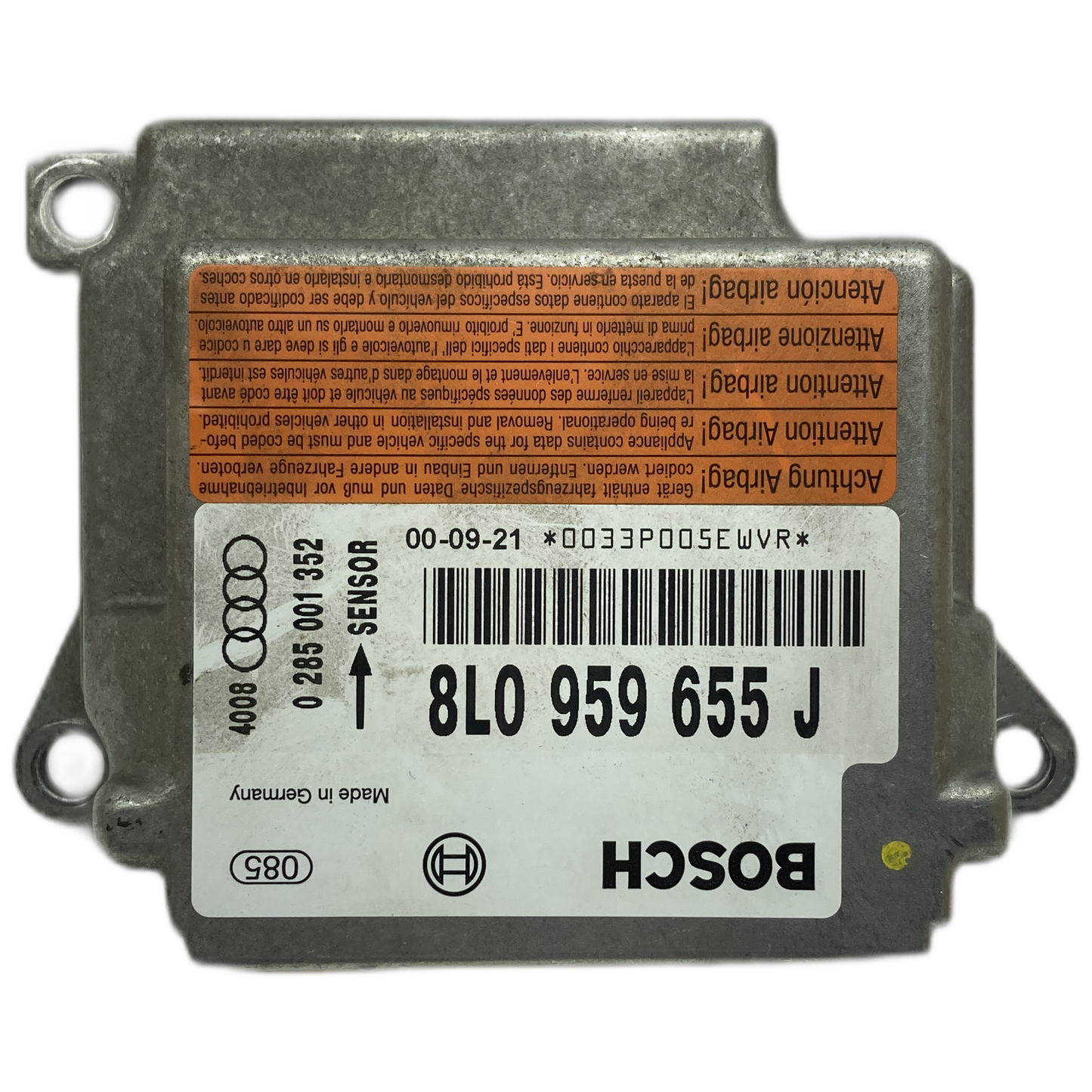

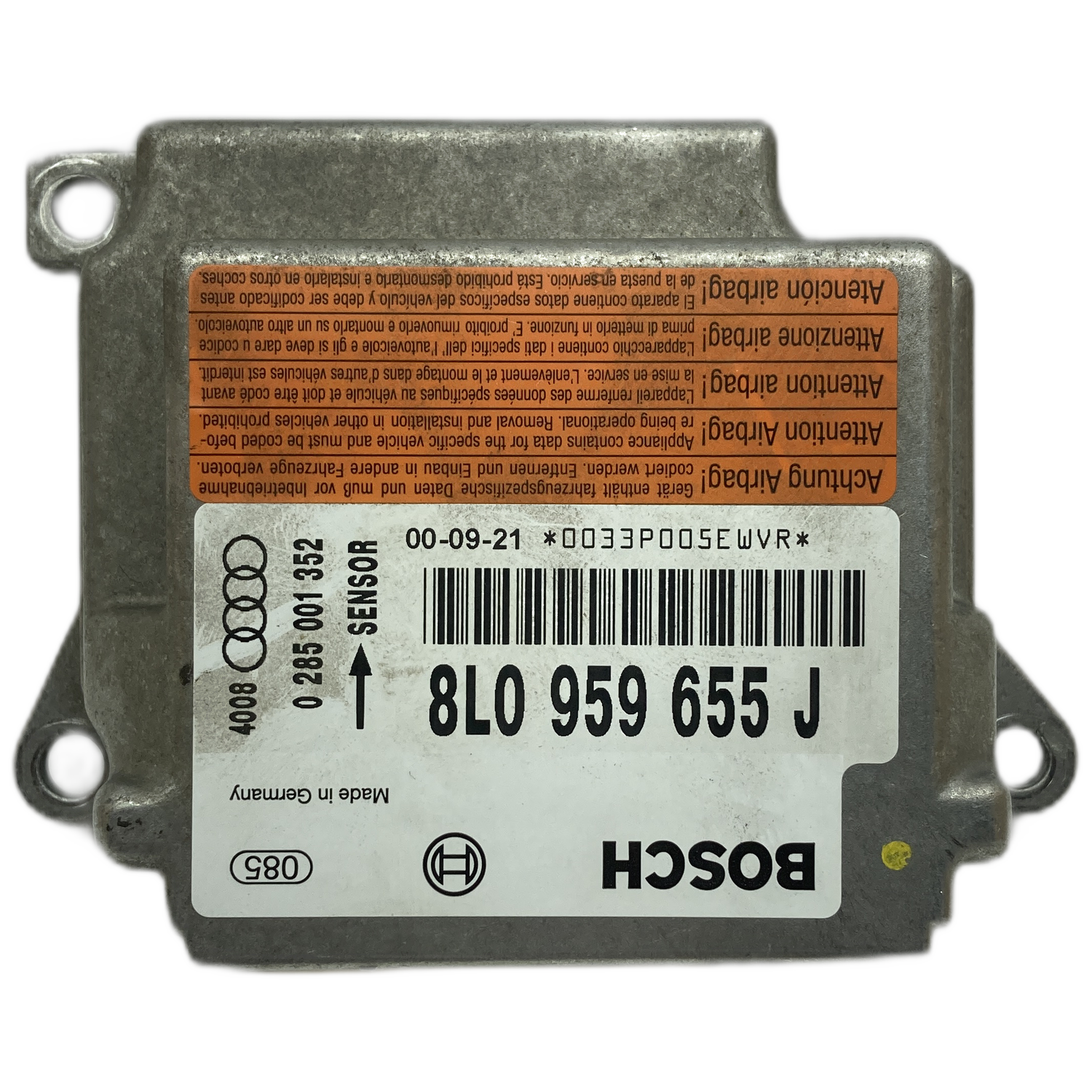

8L0959655L

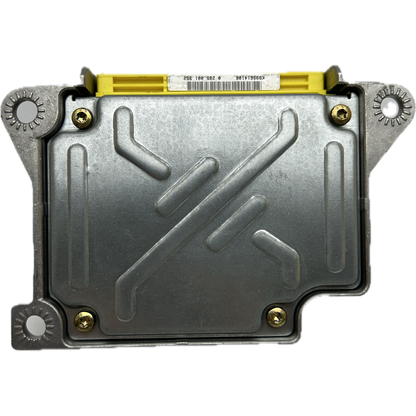

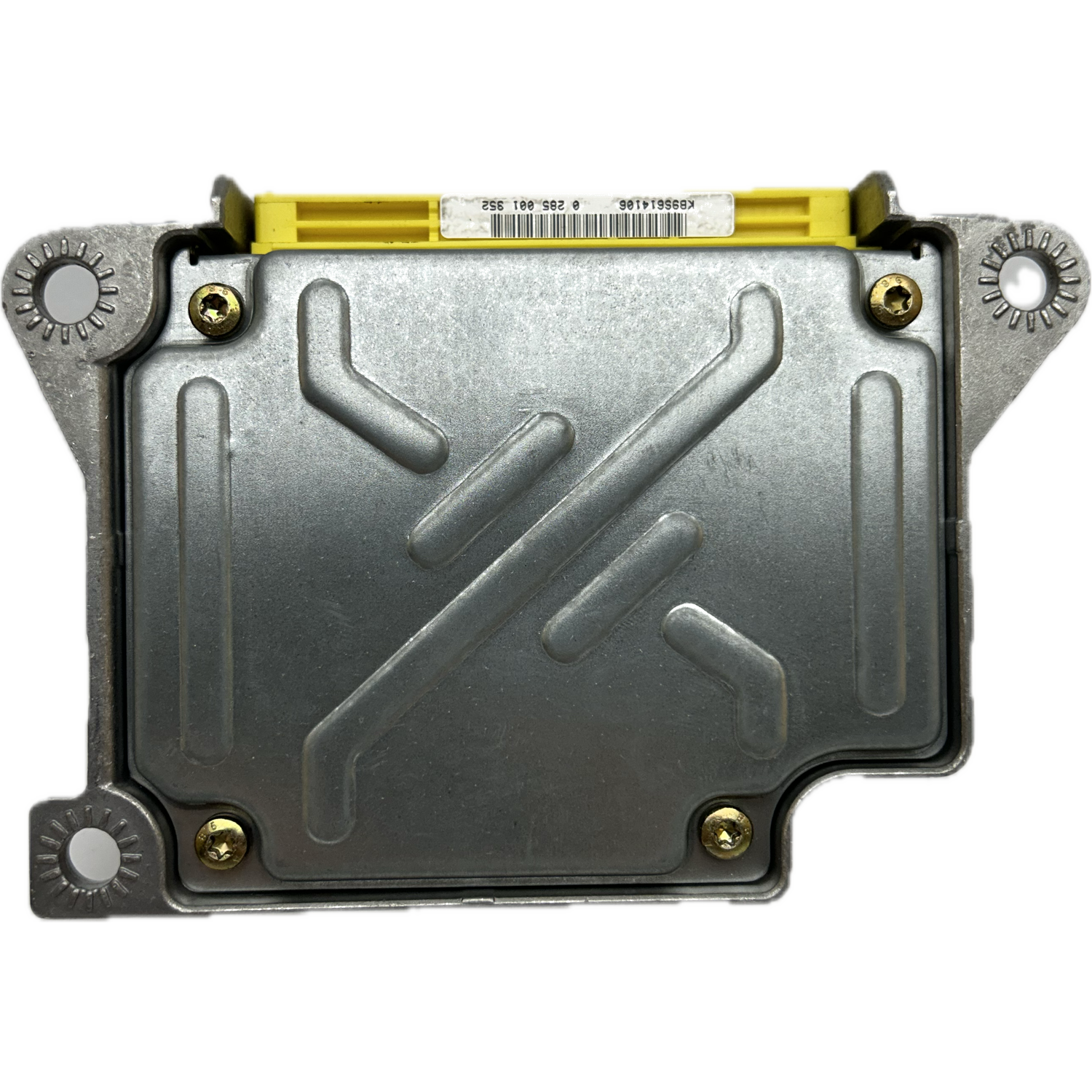

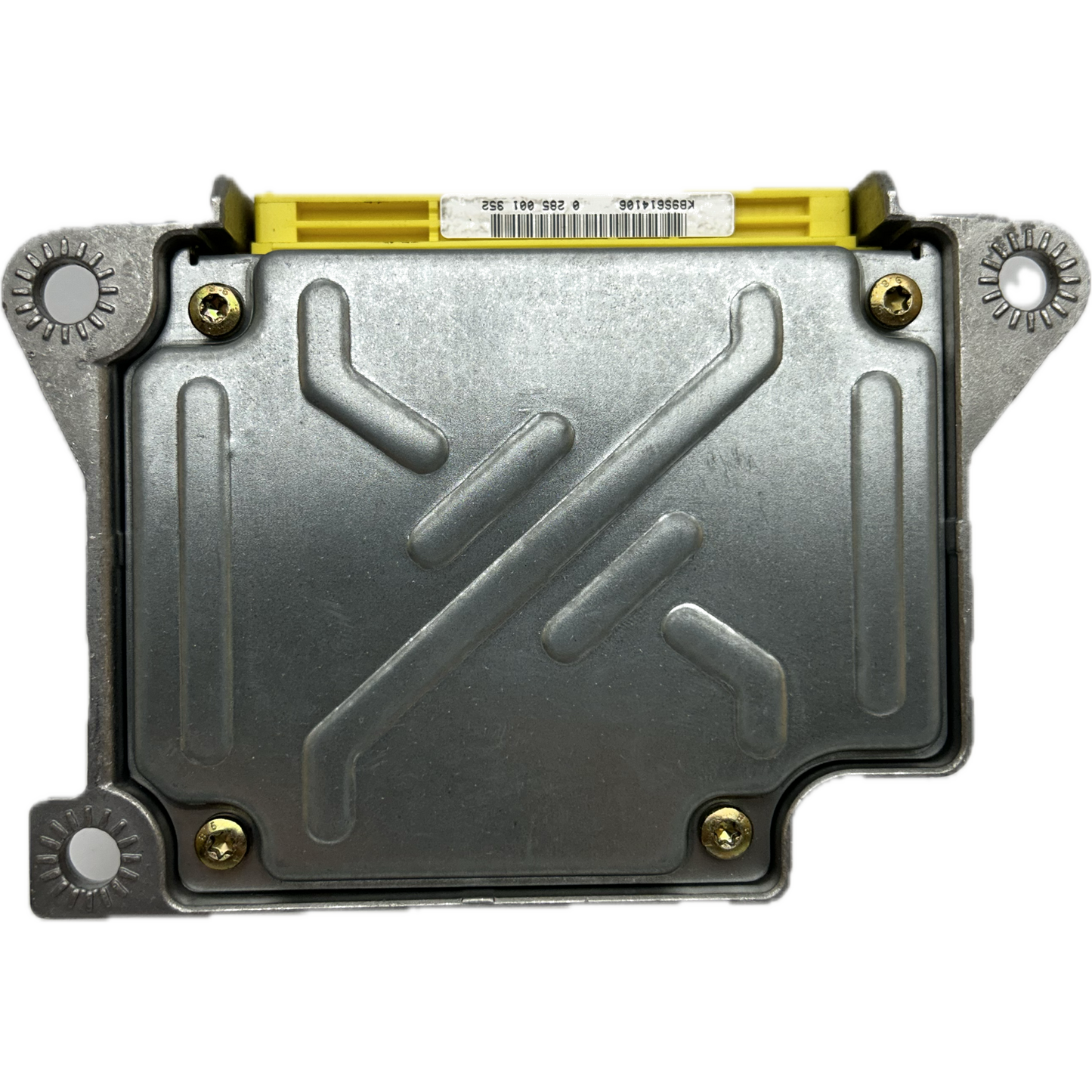

0285001352 (Bosch part number)
8L0959655G
8L0959655J

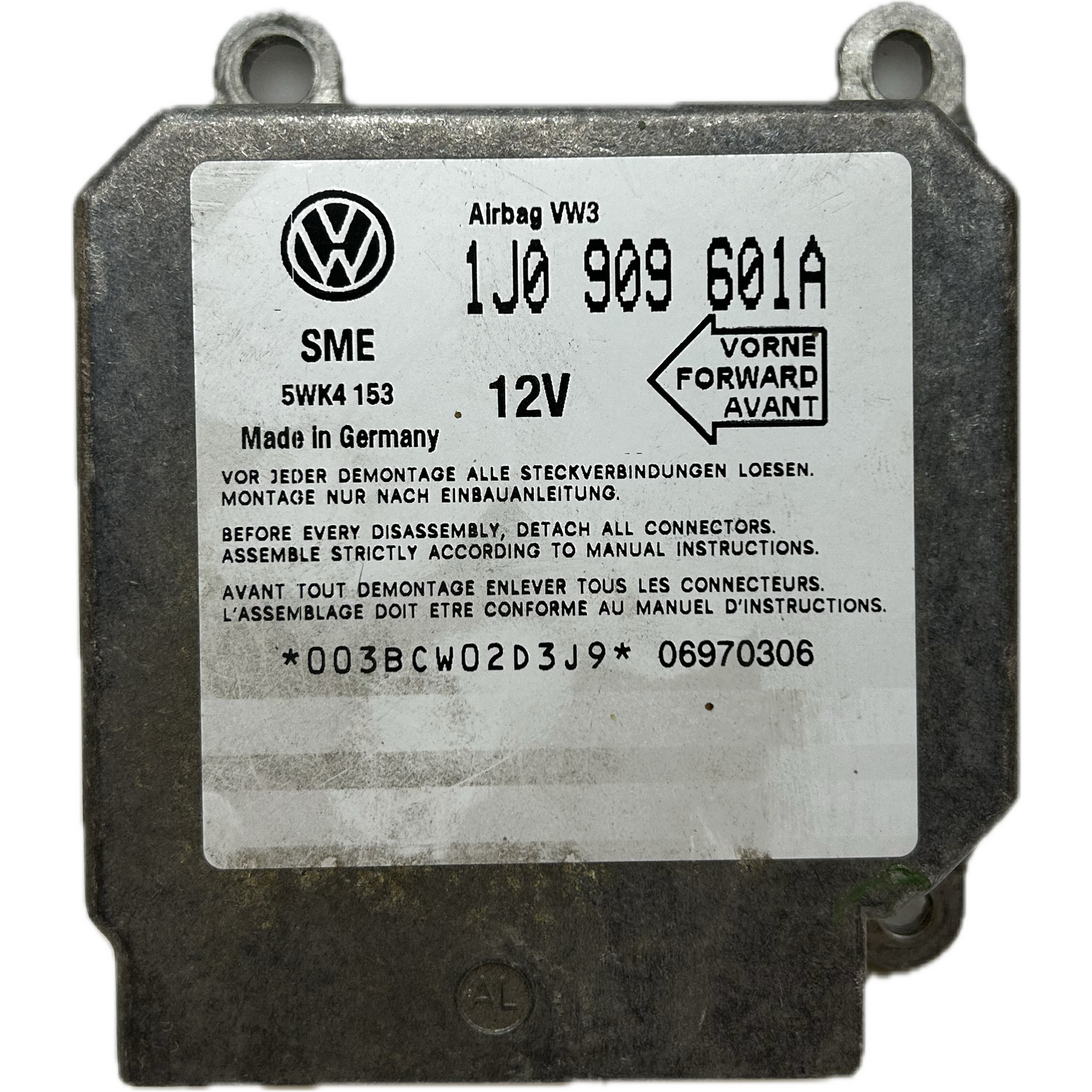

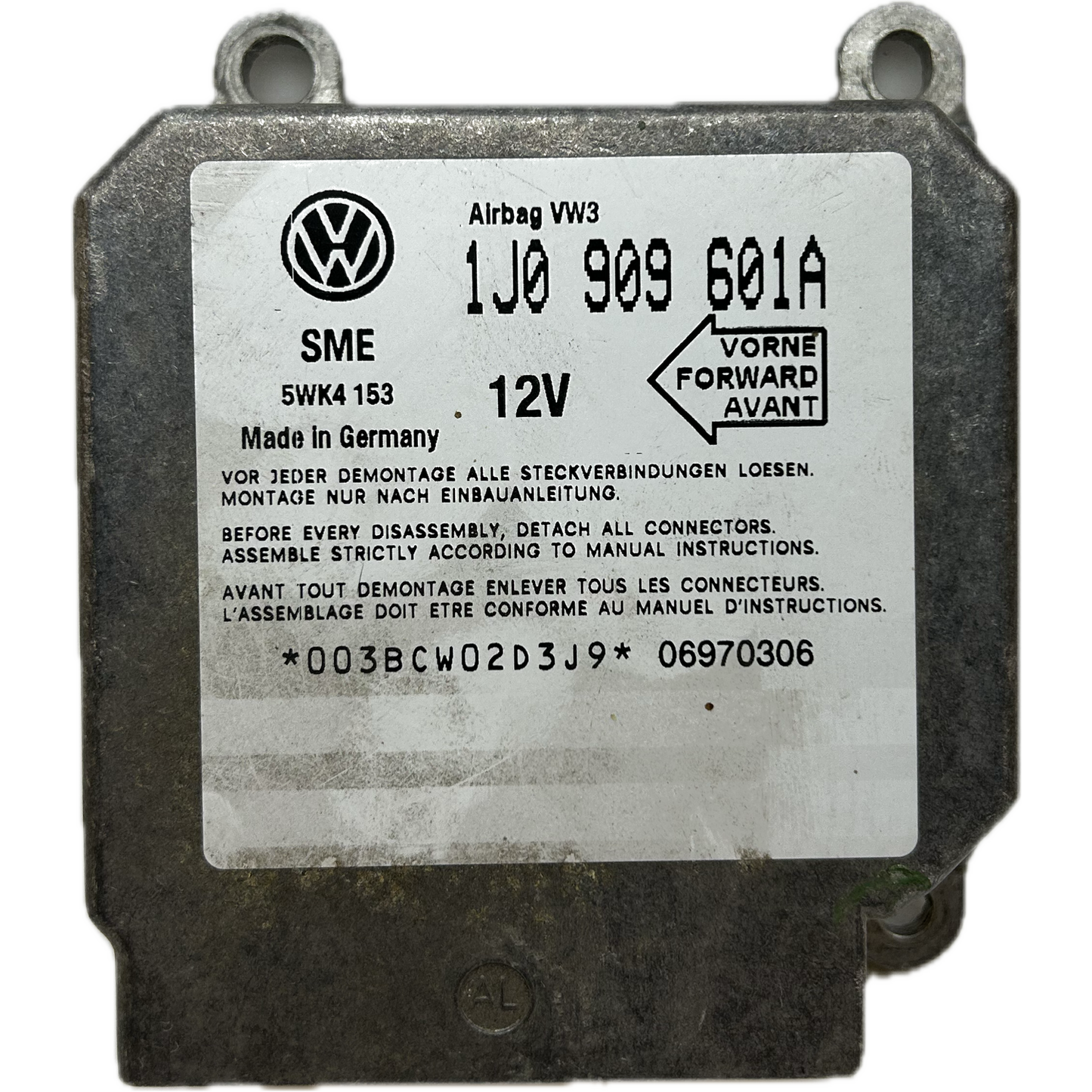

1J0909601A
These numbers have been verified multiple times and are suitable for the airbag control unit of the Audi A3 8L (Type 8L, built 1996-2003). Before replacing or repairing the part, it is essential to verify the exact part number.
How does the Audi A3 8L airbag control unit repair work?
Repairing an Audi A3 8L airbag control unit typically involves erasing crash data and repairing defective hardware components. This process requires specialized equipment and expertise to restore the system's full functionality and safety.
A defective control unit must first be removed from the vehicle, which is often complex and requires professional workshop expertise. After diagnosis, the error log is read.
The actual repair involves resetting the crash data and replacing faulty electronic components. The control unit is then tested, recoded if necessary, and is ready for reinstallation in the Audi A3 8L.
Compatibility and installation of the Audi A3 8L airbag control unit
The airbag control unit is designed for the first-generation Audi A3 Type 8L (model years 1996-2003) and is compatible with various gasoline and diesel engine variants. Installation is usually under the center console and requires specialist knowledge due to the safety-relevant nature of the component.
The device is available in various versions for all engine variants of the Audi A3 8L, such as the 1.8L petrol engine with engine code AVU. Exact compatibility should be checked using the chassis number.
The installation location is typically under the center console or the ashtray, sometimes near the accelerator pedal. Due to its complexity and safety relevance, work on the airbag system may only be performed by trained personnel to avoid failures or accidents.
